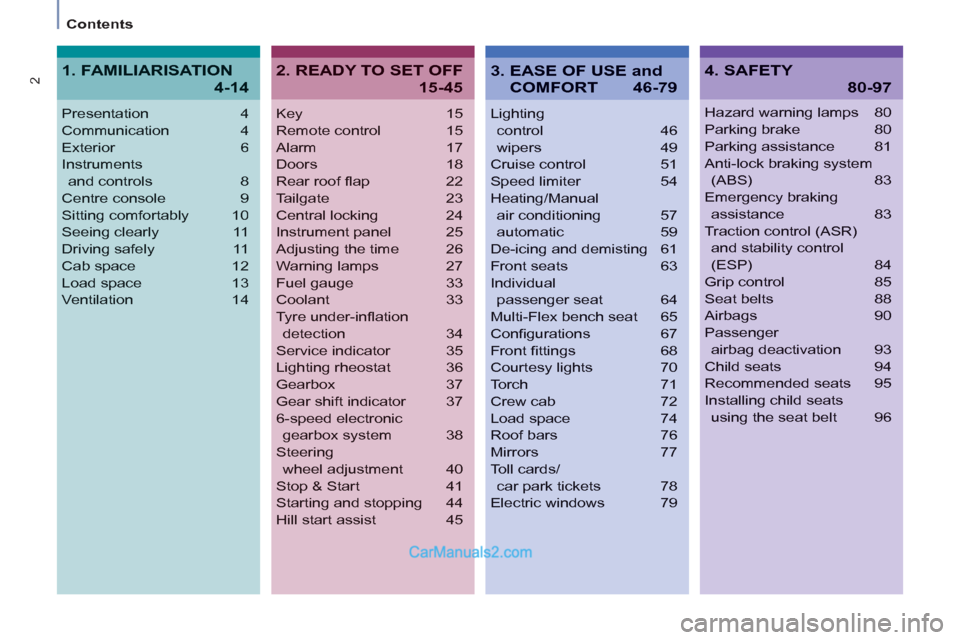

Contents
Key 15
Remote control 15
Alarm 17
Doors 18
Rear roof fl ap 22
Tailgate 23
Central locking 24
Instrument panel 25
Adjusting the time 26
Warning lamps 27
Fuel gauge 33
Coolant 33
Tyre under-infl ation
detection 34
Service indicator 35
Lighting rheostat 36
Gearbox 37
Gear shift indicator 37
6-speed electronic
gearbox system 38
Steering
wheel adjustment 40
Stop & Start 41
Starting and stopping 44
Hill start assist 45
Lighting
control 46
wipers 49
Cruise control 51
Speed limiter 54
Heating/Manual
air conditioning 57
automatic 59
De-icing and demisting 61
Front seats 63
Individual
passenger seat 64
Multi-Flex bench seat 65
Confi gurations 67
Front fi ttings 68
Courtesy lights 70
Torch 71
Crew cab 72
Load space 74
Roof bars 76
Mirrors 77
Toll cards/
car park tickets 78
Electric windows 79
Presentation4
Communication4
Exterior 6
Instruments
and controls8
Centre console9
Sitting comfortably 10
Seeing clearly 11
Driving safely 11
Cab space 12
Load space 13
Ventilation 14
Hazard warning lamps 80
Parking brake 80
Parking assistance 81
Anti-lock braking system
(ABS) 83
Emergency braking
assistance 83
Traction control (ASR)
and stability control
(ESP) 84
Grip control 85
Seat belts 88
Airbags 90
Passenger
airbag deactivation 93
Child seats 94
Recommended seats 95
Installing child seats
using the seat belt 96
2. READY TO SET OFF
15-45
4. SAFETY
80-97
1. FAMILIARISATION
4-14
3. EASE OF USE and
COMFORT 46-79

8

INSTRUMENTS AND CONTROLS



1.
Lights and direction indicator stalk.

2.
Instrument panel with screen.

3.
Wipers, screenwash, trip
computer controls.

4.
Ignition.

5.
Audio controls.

6.
Driver's airbag, horn.

7.
Steering wheel height and reach
adjustment.

8.
Cruise control, speed limiter
switches.

9.
Control panel, parking sensors,
headlamp beam adjustment,
ESP, Stop & Start.

10.
Bonnet release.

11 .
Electric door mirror adjustment.

Interior

47


Steering mounted controls

EASE OF USE and COMFOR
T
3


Daytime lights

Depending on the country in which
the vehicle is sold, the vehicle may
be equipped with daytime lights. The
dipped headlamps come on when the
vehicle is started.
Rear foglamps (amber,
2nd rotation of the ring
forwards). Front foglamps (green,
1st rotation of the ring
forwards).
Front and rear foglamps
Rotate ring B
forwards to switch on
and rearwards to switch off. The
status is confi rmed by the lamp on the
instrument panel.
These operate with the sidelamps and
the dipped beam headlamps. Do not forget to switch them off
when they are no longer needed.
Operation of the utomatic lighting
switches off the rear foglamps, but the
front foglamps remain on.

This warning light comes on
on the instrument panel.
The instruments and controls
(instrument panel, display, air
conditioning control panel, ...) are
only lit on switching to the automatic
switching on of the lights mode or
when the lights are switched on
manually.

To switch off the front and rear
foglamps, turn the ring rearwards twice
in succession.
In clear weather or in rain, both day
and night, rear foglamps dazzle and
their use is prohibited.

Automatic switching on of the lights

In foggy weather or in snow,
the brightness sensor can
detect suffi cient light. As a
consequence, the lights will not come
on automatically. If necessary, you
must switch on the dipped headlamps
manually.
Do not cover the brightness
sensor located on the windscreen,
behind the mirror. It is used for
the automatic switching on of the lights
and for the automatic wipers.

Activation
Turn the ring to the AUTO
position.
The activation of this function is
accompanied by a message on the
display.

Deactivation
Turn the ring forwards or rearwards.
The deactivation of this function
is accompanied by a message on
the display.
The function is deactivated temporarily
when you use the manual lights stalk. The side lights
and dipped beam
headlamps switch
on automatically if
the light is poor, or
during operation of the windscreen
wipers. They switch off as soon as the
light becomes bright enough or the
windscreen wipers stop.
This function is not compatible with the
daytime lights. If the user does not operate any
equipment for 30 minutes, the
Economy mode engages to avoid
discharging the battery (see "Battery"
in section 7). Electrical functions are
put on standby and the battery warning
lamp fl ashes.
Sidelamp operation is not affected by
Economy mode.

49


Steering mounted controls

EASE OF USE and COMFOR
T
3


2
Fast wipe (heavy rain).

1
Normal wipe (moderate rain).

l
Intermittent wipe.

0
Off.

È
Single wipe
(press downwards).
In the I
ntermittent position, the wiping
speed is in proportion to the vehicle
speed.

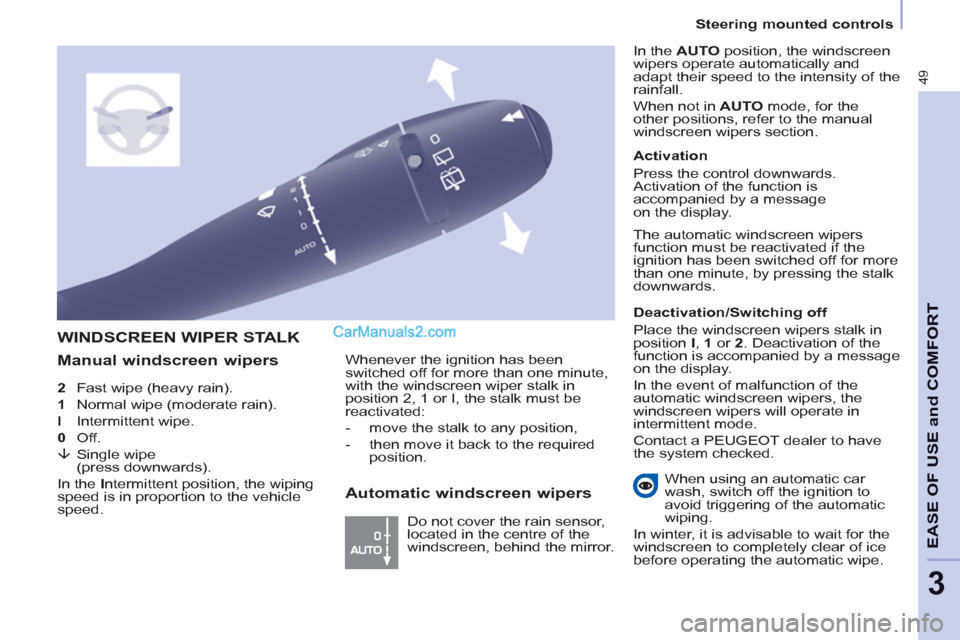

WINDSCREEN WIPER STALK

Manual windscreen wipers

Whenever the ignition has been
switched off for more than one minute,

with the windscreen wiper stalk in

position 2, 1 or I, the stalk must be
reactivated:


- move the stalk to any position,

- then move it back to the required
position.

Do not cover the rain sensor,
located in the centre of the
windscreen, behind the mirror.
Activation
Press the control downwards.
Activation of the function is
accompanied by a message
on the display.

Deactivation/Switching off
Place the windscreen wipers stalk in
position I
, 1
or 2
. Deactivation of the
function is accompanied by a message
on the display.
In the event of
malfunction of the
automatic windscreen wipers, the
windscreen wipers will operate in
intermittent mode.
Contact a PEUGEOT dealer to have
the system checked. In the AUTO
position, the windscreen
wipers operate automatically and
adapt their speed to the
intensity
of the
rainfall.
When not in AUTO
mode, for the
other positions, refer to the manual
windscreen wipers section.

The automatic windscreen wipers
function must be reactivated if the
ignition has been switched off for more
than one minute, by pressing the stalk
downwards.

When using an automatic car
wash, switch off the ignition to
avoid triggering of the automatic
wiping.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic wipe.



Automatic windscreen wipers

79
EASE OF USE and COMFOR
T
33


Mirrors and windows

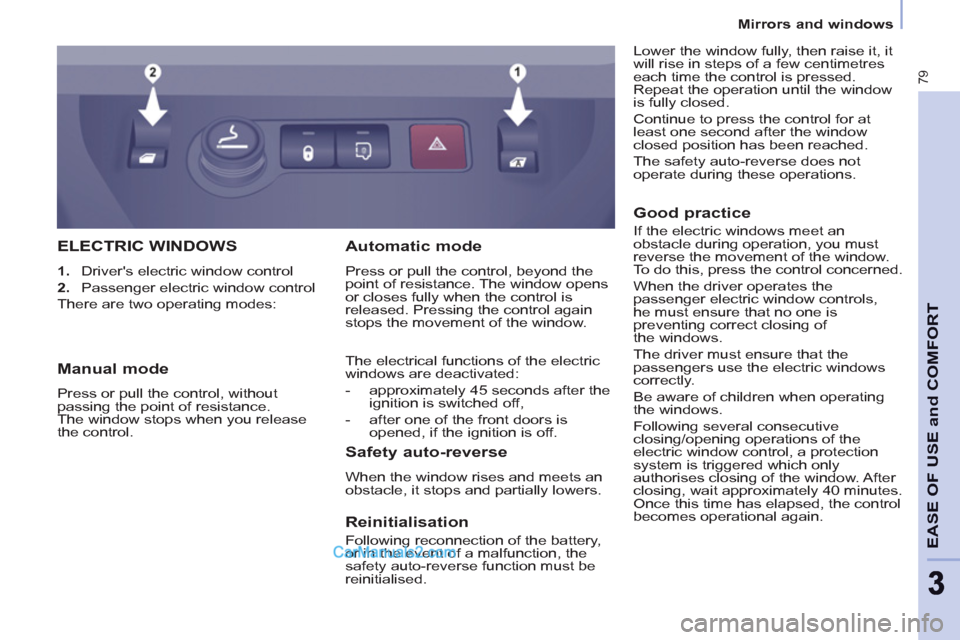

ELECTRIC WINDOWS



1.
Driver's electric window control

2.
Passenger electric window control
There are two operating modes:


Safety auto-reverse

When the window rises and meets an
obstacle, it stops and partially lowers.


Automatic mode

Press or pull the control, beyond the
point of resistance. The window opens
or closes fully when the control is
released. Pressing the control again
stops the movement of the window.
The electrical functions of the electric
windows are deactivated:


- approximately 45 seconds after the
ignition is switched off,

- after one of the front doors is
opened, if the ignition is off.



Manual mode

Press or pull the control, without
passing the point of resistance.
The window stops when you release
the control.


Reinitialisation

Following reconnection of the battery,
or in the event of a malfunction, the
safety auto-reverse function must be
reinitialised.

Good practice

If the electric windows meet an
obstacle during operation, you must
reverse the movement of the window.
To do this, press the control concerned.
When the driver operates the
passenger electric window controls,
he must ensure that no one is
preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Following several consecutive
closing/opening operations of the
electric window control, a protection
system is triggered which only
authorises closing of the window. After
closing, wait approximately 40 minutes.
Once this time has elapsed, the control
becomes operational again. Lower the window fully, then raise it, it
will rise in steps of a few centimetres
each time the control is pressed.
Repeat the operation until the window
is fully closed.
Continue to press the control for at
least one second after the window
closed position has been reached.
The safety auto-reverse does not
operate during these operations.

123
QUICK HEL
P
7

DASHBOARD FUSES

Tilt the cover to gain access to the
fuses. Fuses
F
Amperes
A
Allocation
1 15 Rear wiper
2 - Spare
3 5 Airbag
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5 Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio equipment, screen, tyre under-infl ation
detection, alarm and siren
9 30 Front and rear 12 V socket
10 15 Central column
11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument panel
14 15 Parking sensors, digital air conditioning controls,
hands-free kit
15 30 Locks
16 - Spare
17 40 Rear screen/mirrors defrosting

Changing a fuse

136
Instruments and controls
INSTRUMENTS AND CONTROLS


ESP 84
Parking sensors 81-82
Electric mirrors 77

Headlamp beam height adjustment 48
Stop & Start 41
Starter, ignition 44
Wipers control 49-50
Automatic wiping 49

Windscreen/headlamp wash 50, 106
Trip computer Section 9

Cruise control 51-53
Speed limiter 54-56
Lighting controls 46-47
Automatic illumination of
headlamps 47
Foglamps 47
Daytime runing lamps 47

Parking brake 80
Instrument panels,
screens, dials 25-26
Warning lamps,
indicator lamps 27-32
Indicators, gauge 33
Setting the time in
the instrument panel 26
Lighting dimmer 36
Gear shift indicator 37

Audio equipment steering
mounted controls Section 9

Steering wheel adjustment 40
Horn 80


Passenger’s airbag
deactivation 93

Gearbox 37

137


Instruments and controls

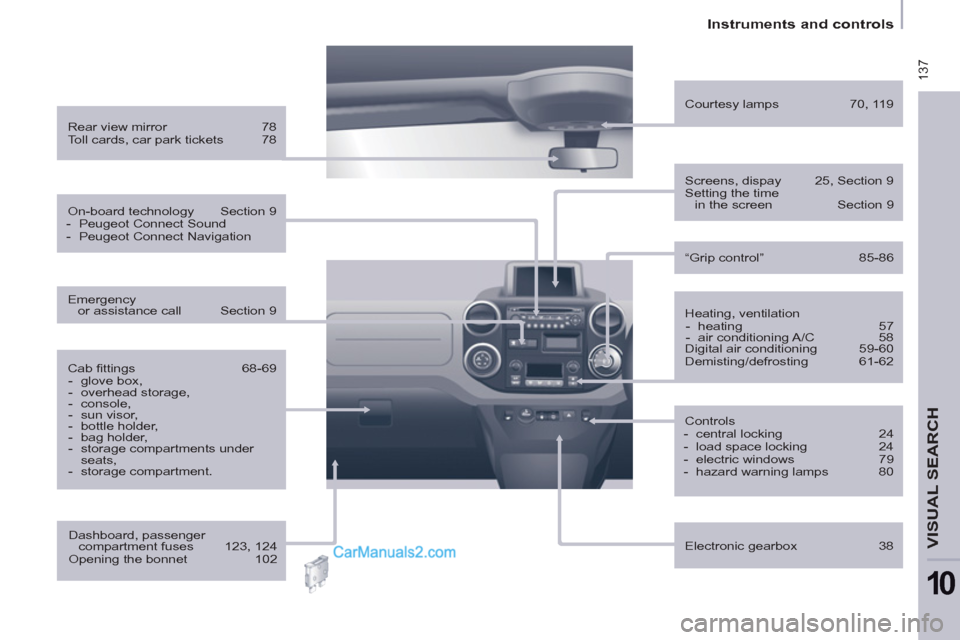

VISUAL SEARCH
10


Heating, ventilation


- heating 57

- air conditioning A/C 58
Digital air conditioning 59-60
Demisting/defrosting 61-62
Rear view mirror 78
Toll cards, car park tickets 78
Courtesy lamps 70, 119

Controls


- central locking 24

- load space locking 24

- electric windows 79

- hazard warning lamps 80


Electronic gearbox 38
Cab fi ttings 68-69


- glove box,

- overhead storage,

- console,

- sun visor,

- bottle holder,

- bag holder,

- storage compartments under
seats,

- storage compartment.


Screens, dispay 25, Section 9
Setting the time
in the screen Section 9

Dashboard, passenger
compartment fuses 123, 124
Opening the bonnet 102
On-board technology Section 9


- Peugeot Connect Sound

- Peugeot Connect Navigation


Emergency
or assistance call Section 9
“Grip control” 85-86
