2011 Peugeot Expert Tepee Owner's Manual

143



Environment
QUICK HELP
7

ENVIRONMENT

With you, PEUGEOT acts to protect the
environment.
We invite you to visit the www.peugeot.com

website. As the driver, you also can contribute to
protecting the environment by following
certain rules:


- adopt a preventive style of driving,
without frequent and harsh acceleration,

- observe the service intervals; we
recommend that services are carried out
by a PEUGEOT dealer, authorised to
collect used batteries and fluids,

- in order to preserve the reliability of the
engine and emission control systems,
do not use engine oil additives. Refer to information in this handbook
on eco-driving (at the end of section 1).

144

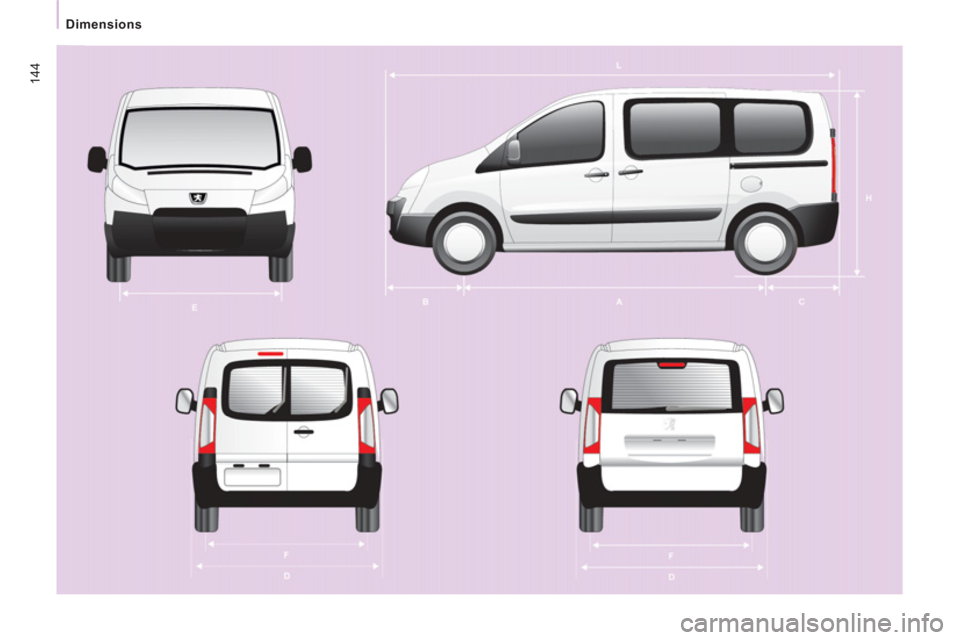

Dimensions

14
5
Dimensions

TECHNICAL DAT
A
8


H1

L Overall length
4 805
5 135

H Overall height pneumatic/metal suspension
1 895/1 942

A Wheelbase
3 000
3 122

B Front overhang

975

C Rear overhang
830
1 038
Overall width:
on panel

1 870

D with mouldings

1 895
with mirrors folded

1 986
with mirrors unfolded

2 194

E Width of front tracks

1 574

F Width of rear tracks

1 574
Turning circle pitch diameter between kerbs (m)
12,18
12,59
Maximum loads (kg)
Payload

1 000
On roof

170

DIMENSIONS

The vehicle is available in 2 lengths (L1, L2) and 1 height (H1),
refer to the tables:

146


Dimensions



REAR DOORS (mm)


L1
L2

H1

N Useful height

1 272

O Useful width

1 237

147
Dimensions

TECHNICAL DAT
A
8



SLIDING SIDE DOOR (mm)


L1
L2

H1

P Height

1 203

Q Width

924

148

Weights

WEIGHTS AND TOWED LOADS (KG)

For further information, refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. To find out your vehicle's towing
capabilities and its gross train weight, contact a PEUGEOT dealer.

Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trailer and the GTW, indicated on your registration certificate.
Comply with the towing capacities of your vehicle.

The weight of a braked trailer with load transfer can be increased on condition that the equivalent weight is removed from the vehicle and
the GTW is not exceeded.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine. If the ambient temperature is
above 37 °C, limit the towed load to 700 kg, without any transfer of load.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

14
9
Diesel - Petrol engines
TECHNICAL DAT
A
8



Diesel
Petrol

1.6 HDi 90
2.0 HDi 120
2.0 HDi 120
PEF
2.0 HDi 136
PEF
2.0 HDi 163
PEF


2.0 PETROL 140

Cubic capacity (cc)
1 560
1 997
1 997
-
1 997
Bore x stroke (mm)
75 x 88
85 x 88
85 x 88
-
85 x 88
Power (hp)
90
120
136
163
138
EU standard maximum power (kW)
66
88
100
-
103
Max power engine speed (rpm)
4 000
4 000
4 000
-
6 000
EU standard max torque (Nm)
180
300
320
-
180
Max torque engine speed (rpm)
1 750
2 000
2 000
-
2 500
Catalytic converter
Ye s
Ye s
Ye s
Ye s
Ye s
-
Particle emission filter
No

No
Ye s
Ye s
Ye s
/
Fuel
Diesel
Diesel
Diesel
Diesel
Diesel
Unleaded
Gearbox

Manual
Gears
5
6
6
6
5

For further information, consult the internet site at the address: http://public.servicebox.peugeot.com


ENGINES AND GEARBOXES

150


Identification markings

IDENTIFICATION FEATURES


A. Manufacturer's label.

1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle.
B. Model serial number.

Use the flat end piece of the towing eye to
open the flap.
C. Tyres and paint colour reference.

The label C
, on the front door gives:


- the wheel and tyre sizes,

- the brands of tyres approved by the
manufacturer,

- the tyre pressures (the tyre pressure
must be checked when the tyre is cold,
at least once a month),

- the paint colour reference.
