2011 Peugeot Expert Tepee Owner's Manual

95
Seat belts

SAFETY
4

The force limiter reduces the pressure of the
seat belt against the body of the occupants.
The pretensioning seat belts are active when
the ignition is switched on.
The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.
You can unfasten the seat belt by pressing
the red button on the buckle. Guide the seat
belt after unfastening.
The airbag warning lamp comes on if the
pretensioners are triggered. Contact a
PEUGEOT or a qualified workshop.
Recommendations for children:


- use a suitable child seat if the
passenger is less than 12 years old or
shorter than one metre fifty,

- never allow a child to travel on your lap,
even with the seat belt fastened.
FRONT SEAT BELTS
REAR SEAT BELTS

If your vehicle is fitted with an individual seat
and a 2-seat bench, the 3 seats are fitted
with three-point seat belts and inertia reels.
The centre seat has its seat belt guide and
inertia reel integrated with the seat back. For further information regarding child
seats, refer to the "Children on board"
section of chapter 4.
In accordance with current safety
regulations, your PEUGEOT dealer
guarantees all work or any checks, from
testing to maintenance, on your seat belt
equipment.
Have the seat belts checked regularly (even
after a minor impact) by a PEUGEOT dealer
or a qualified workshop: they must not show
any signs of wear, cutting or fraying and they
must not be transformed or modified.

Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by PEUGEOT dealers.
In order to be effective, a seat belt must:


- restrain one person only,

- must not be twisted, check by pulling in
front of you with an even movement,

- be tightened as close to the body as
possible.
The upper part of the seat belt should be
positioned in the hollow of the shoulder.
The lap part should be placed as low as
possible on the pelvis.
Do not invert the seat belt buckles as they
will not fulfil their role completely. If the
seats are fitted with armrests, the lap part
of the seat belt should always pass under
the armrest.
Check that the seat belt is fastened correctly
by pulling the strap firmly.
The front seats are fitted with pretensioners
and force limiters.


Without front airbag

If your vehicle is fitted with a front bench
without front airbag, the centre passenger's
seat belt does not have a pretensioner.
In rows 2 and 3, take care to fasten the correct
seat belt in the correct buckle. Do not invert the
seat belt or the buckle of the side seats with
the buckle or the seat belt of the centre seat.

96



Improved safety and security



IMPROVED SAFETY AND SECURITY

In situations of extreme transverse
acceleration, this module limits the risks
of the vehicle rolling over by acting on
the brakes.


Roll Over Mitigation *

This system, linked with the ESP,
supplements the ABS-EBFD, ASR-ESP and
EBA braking functions, already covered in
this document, to guarantee a high level
of active safety. Indeed, the ROM system
was intended originally for top-of-the-range
4x4 type vehicles and today it is fitted on
your vehicle.

*
Roll-over prevention system.

97
Airbags
SAFETY
4
The airbags have been designed to
maximise the safety of the occupants
(with the exception of the centre seats of
rows 2 and 3) in the event of a serious
collision; they work in conjunction with the
force limiting seat belts.
In the event of a serious collision, the electronic
detectors record and analyse the front and side
impacts suffered in the impact detection zones:


- in the event of a serious impact, the
airbags inflate instantly and protect the
occupants of the vehicle. Immediately after the impact, the airbags
deflate rapidly, so that they do not hinder the
visibility of the occupants nor their possible
exit from the vehicle.


- in the event of a minor or rear impact
and in certain roll-over conditions,
the airbags will not be deployed; the
seat belt alone is sufficient to provide
maximum protection in these situations.
The seriousness of the collision depends on
the nature of the obstacle and the speed of
the vehicle at the moment of impact. It is imperative that the passenger
airbag is disarmed if a child seat is
installed facing rearwards. Refer to the
"Children on board" section of chapter 4.

Airbags only operate when the
ignition is switched on.
This equipment only operates once. If a
second impact occurs (during the same or
a subsequent accident), the airbag will not
operate.
The triggering of an airbag or airbags
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience some irritation.
The noise of the detonation may result in
a slight loss of hearing for a short time.
AIRBAGS

98
Airbags

Good practice

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...). This could hinder the operation of
the airbags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system is strictly
forbidden unless it is carried out by qualified
personnel at a PEUGEOT dealer or a
qualified workshop.
Lateral airbags
Only put recommended covers on the seats.
These will not hinder inflation of the lateral
airbags. Contact a PEUGEOT dealer or a
qualified workshop.
Do not fix or attach anything to the seat
backs. This could cause injury to the chest
or arms when the lateral airbag inflates.
Do not sit with the upper part of the body
any nearer to the door than necessary.

Front airbags
Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Do not allow passengers to place their feet
on the dashboard, they risk serious injury if
the airbag is deployed.
Smoke as little as possible as deployment
of the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.
Even if all of the precautions mentioned are
observed, a risk of injury or of minor burns
to the head, chest or arms when an airbag
is deployed cannot be ruled out. In fact, the
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.

Curtain airbags
Do not fix or glue anything to the roof. This
could cause injury to the head when the
curtain airbag inflates.
Do not remove the grab handles installed
on the roof, they play a part in securing the
curtain airbags.

99
Airbags
SAFETY
4

Lateral airbags

If fitted on your vehicle, this is a system
which protects the driver and front
passenger in the event of a serious side
impact in order to limit the risk of injury to
the chest.
Each lateral airbag is fitted in the front seat
back frame, on the door side.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone. If this warning lamp comes
on in the instrument panel,
accompanied by an audible signal
and a message in the screen,
contact a PEUGEOT dealer or a qualified
workshop to have the system checked. The
airbags may no longer be deployed in the
event of a serious impact.


Deployment
It is deployed unilaterally in the event of a
serious side impact applied to all or part
of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle
on a horizontal plane and directed from the
outside towards the inside of the vehicle.
The lateral airbag inflates between the
front occupant of the vehicle and the
corresponding door trim panel.


Curtain airbags

This is a system which protects the driver
and passengers (with the exception of the
centre seats of rows 2 and 3) in the event of
a serious side impact in order to limit the risk
of head injuries.
Each curtain airbag is incorporated in the
pillars and the upper part of the passenger
compartment.

Activation
It is triggered at the same time as the
corresponding side airbag in the event of
a serious side impact applied to all or part
of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle
on a horizontal plane and directed from the
outside towards the inside of the vehicle.
The curtain airbag inflates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the airbag may not be
deployed.
The airbag is not deployed in the event of
a rear or front collision.
Operating fault

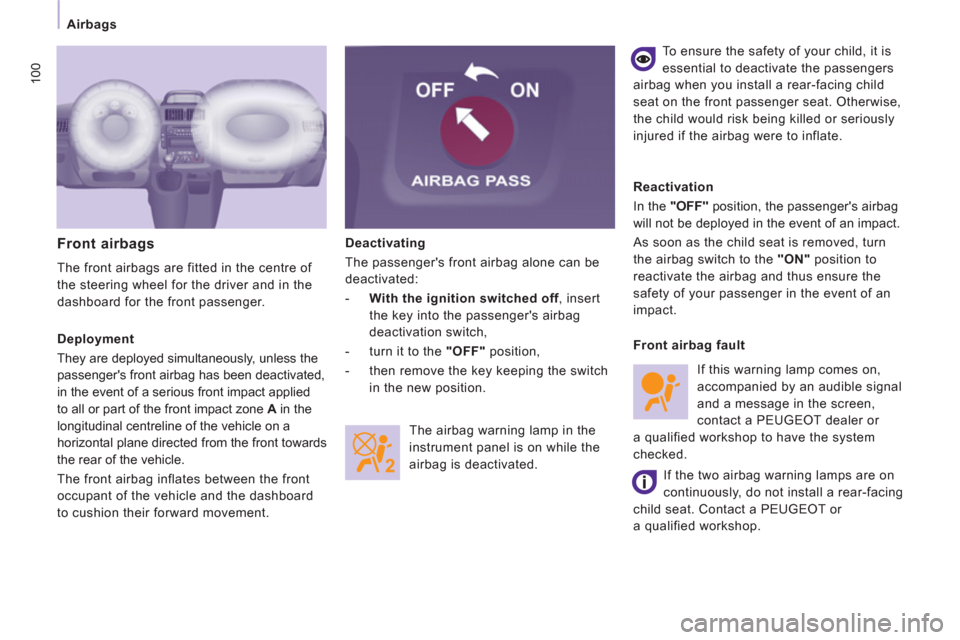

100
Airbags
Deactivating
The passenger's front airbag alone can be
deactivated:


- With the ignition switched off
, insert
the key into the passenger's airbag
deactivation switch,

- turn it to the "OFF"
position,

- then remove the key keeping the switch
in the new position.

Front airbags

The front airbags are fitted in the centre of
the steering wheel for the driver and in the
dashboard for the front passenger.
Reactivation
In the "OFF"
position, the passenger's airbag
will not be deployed in the event of an impact.
As soon as the child seat is removed, turn
the airbag switch to the "ON"
position to
reactivate the airbag and thus ensure the
safety of your passenger in the event of an
impact. To ensure the safety of your child, it is
essential to deactivate the passengers
airbag when you install a rear-facing child
seat on the front passenger seat. Otherwise,
the child would risk being killed or seriously
injured if the airbag were to inflate.
The airbag warning lamp in the
instrument panel is on while the
airbag is deactivated.
Deployment
They are deployed simultaneously, unless the
passenger's front airbag has been deactivated,
in the event of a serious front impact applied
to all or part of the front impact zone A
in the
longitudinal centreline of the vehicle on a
horizontal plane directed from the front towards
the rear of the vehicle.
The front airbag inflates between the front
occupant of the vehicle and the dashboard
to cushion their forward movement.

Front airbag fault
If this warning lamp comes on,
accompanied by an audible signal
and a message in the screen,
contact a PEUGEOT dealer or
a qualified workshop to have the system
checked.
If the two airbag warning lamps are on
continuously, do not install a rear-facing
child seat. Contact a PEUGEOT or
a qualified workshop.

101


Child safety


SAFETY
4

GENERAL POINTS RELATING TO
CHILD SEATS

"Rearwards-facing"
Recommended on the rear seats up to the
age of 2.
When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger airbag is
disarmed. Otherwise, the child would risk
being seriously injured or killed if the airbag
were to inflate.
"Forwards-facing"
Recommended on the rear seats over the
age of 2.
When a "forwards-facing" child seat is
installed on the front passenger seat, leave
the passenger airbag armed.

CHILD SEAT IN THE FRONT


The rules for carrying children are specific to
each country. Consult the current legislation
in your country.
Please consult the list of seats approved
in your country. The Isofix mountings, the
rear seats, the passenger airbag and the
deactivation of this airbag depend on the
version sold.
Although one of PEUGEOT's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please follow these
precautions:


- all children under the age of 12 or less
than one metre fifty tall must travel in
approved child seats suited to their
weight, on seats fitted with a seat belt or
ISOFIX mountings.

- statistically, the safest seats in your
vehicle for the transportation of children
are the rear seats,

- a child weighing less than 9 kg must
travel in the "rearwards-facing" position
both in the front and in the rear,

- the passenger must not travel with
a child on his lap.

102


Child safety


The child seats function and the
passenger airbag disarming function
are common to the entire PEUGEOT range.
If the passenger airbag is not disarmed, the
installation of a "rearwards-facing" child seat
in the front is strictly prohibited.

Refer to chapter 4, "Airbags" section.

Passenger airbag OFF

Refer to the advice given on the label
present on both sides of the passenger's
sun visor.

To assure the safety of your child, you must deactivate the passenger's front airbag
when you install a child seat in the rearwards facing position on the front passenger's
seat.
Otherwise, there is a risk that the child could be seriously injured or killed if the airbag
were deployed.
