2011 Peugeot Bipper Owner's Manual - RHD (UK, Australia)

7
FAMILIARISATIO
N
Familiarisation

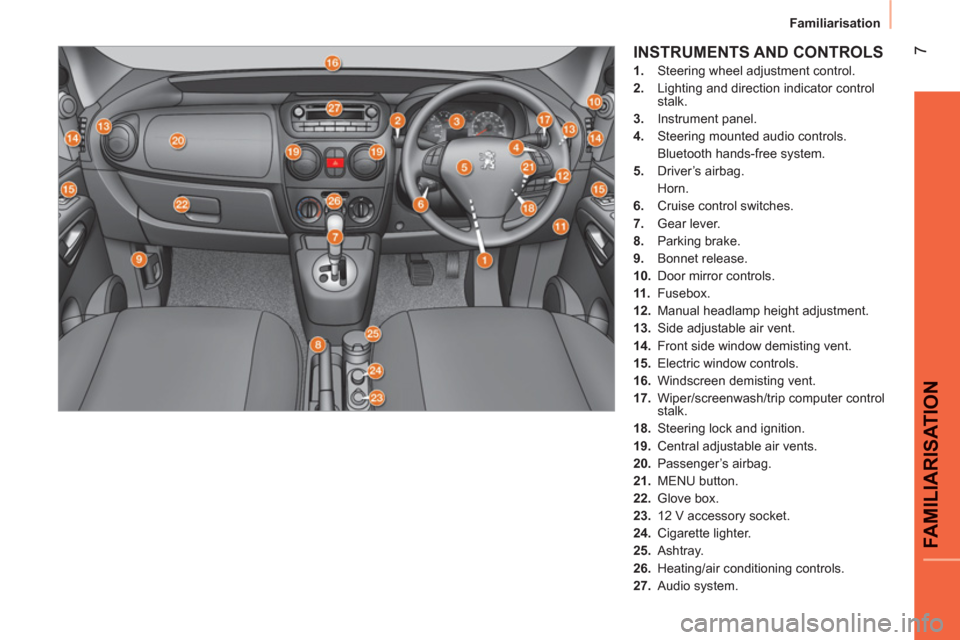

INSTRUMENTS AND CONTROLS



1.
Steering wheel adjustment control.

2.
Lighting and direction indicator control
stalk.

3.
Instrument panel.

4.
Steering mounted audio controls.
Bluetooth hands-free system.

5.
Driver’s airbag.
Horn.

6.
Cruise control switches.

7.
Gear lever.

8.
Parking brake.

9.
Bonnet release.

10.
Door mirror controls.

11 .
Fusebox.

12.
Manual headlamp height adjustment.

13.
Side adjustable air vent.

14.
Front side window demisting vent.

15.
Electric window controls.

16.
Windscreen demisting vent.

17.
Wiper/screenwash/trip computer control
stalk.

18.
Steering lock and ignition.

19.
Central adjustable air vents.

20.
Passenger’s airbag.

21.
MENU button.

22.
Glove box.

23.
12 V accessory socket.

24.
Cigarette lighter.

25.
Ashtray.

26.
Heating/air conditioning controls.

27.
Audio system.

8
Familiarisation

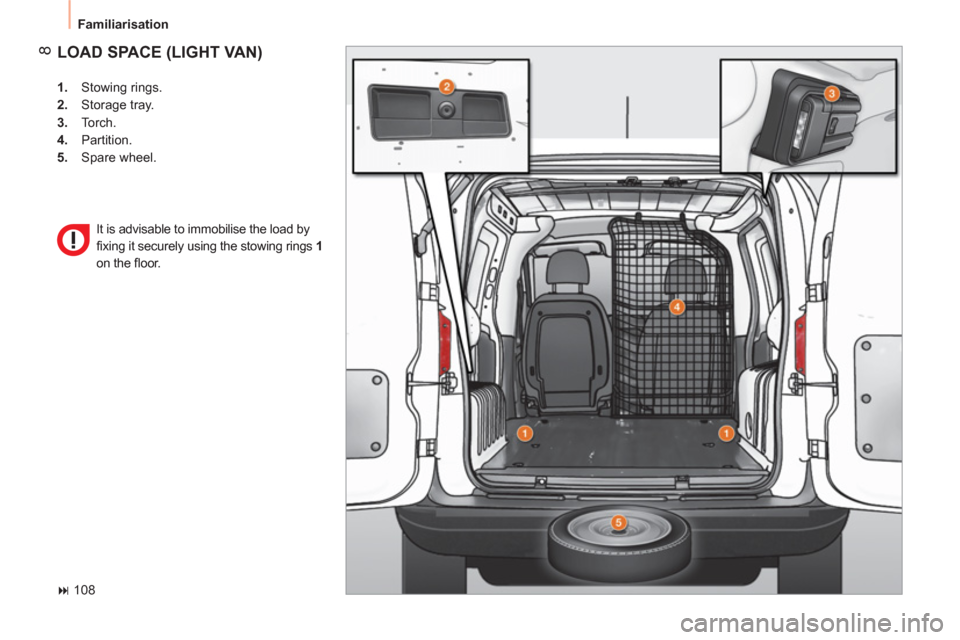

LOAD SPACE (LIGHT VAN)



1.
Stowing rings.

2.
Storage tray.

3.
Torch.

4.
Partition.

5.
Spare wheel.



108 It is advisable to immobilise the load by
fi xing it securely using the stowing rings 1
on the fl oor.

9
FAMILIARISATIO
N
Familiarisation

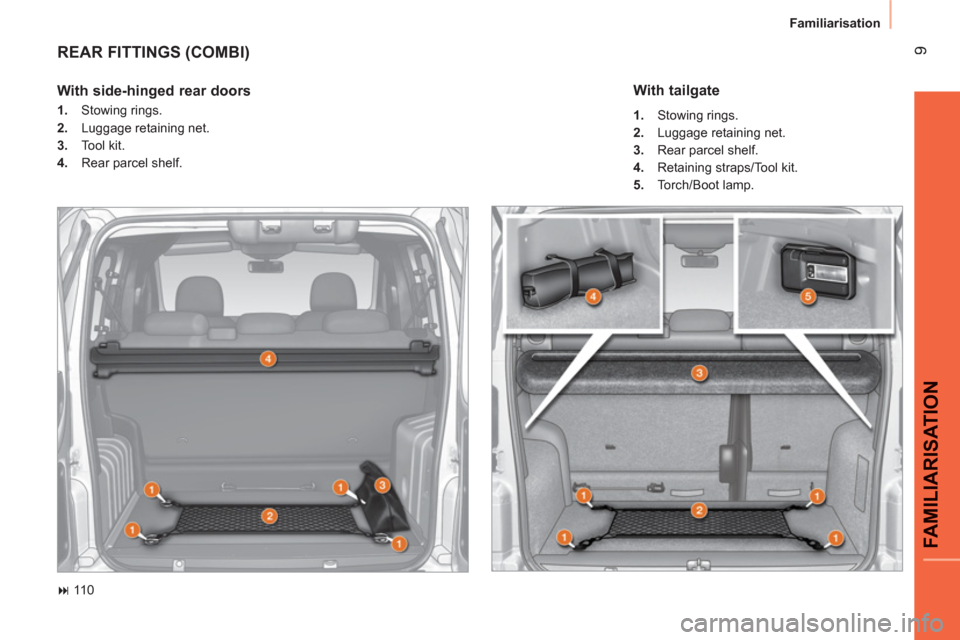

REAR FITTINGS (COMBI)




110


With side-hinged rear doors



1.
Stowing rings.

2.
Luggage retaining net.

3.
Tool kit.

4.
Rear parcel shelf.


With tailgate



1.
Stowing rings.

2.
Luggage retaining net.

3.
Rear parcel shelf.

4.
Retaining straps/Tool kit.

5.
Torch/Boot lamp.

10
Familiarisation

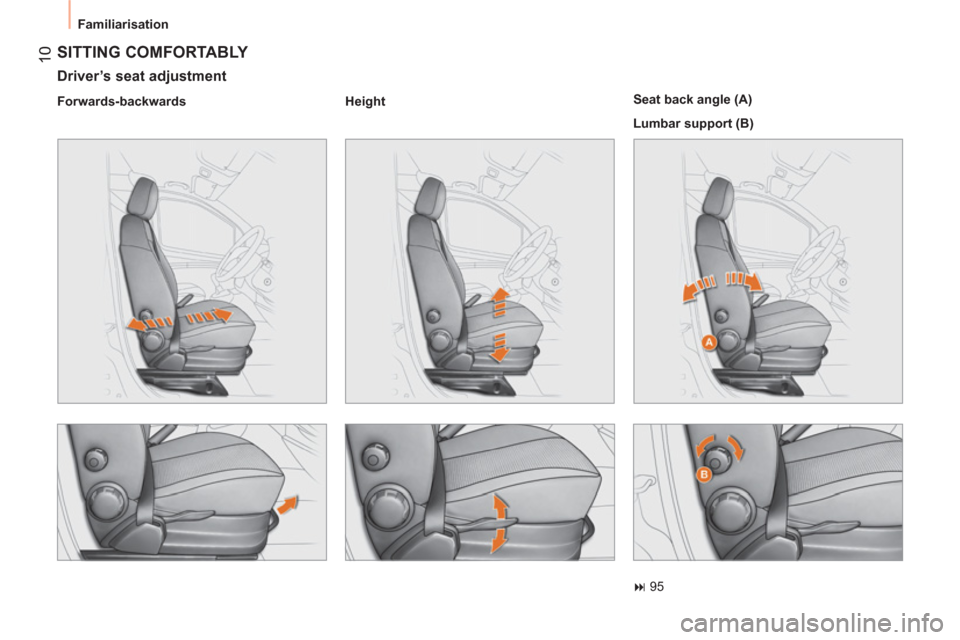

SITTING COMFORTABLY


Driver’s seat adjustment


Forwards-backwards
Height


Seat back angle (A)
Lumbar support (B)



95

11
FAMILIARISATIO
N
Familiarisation

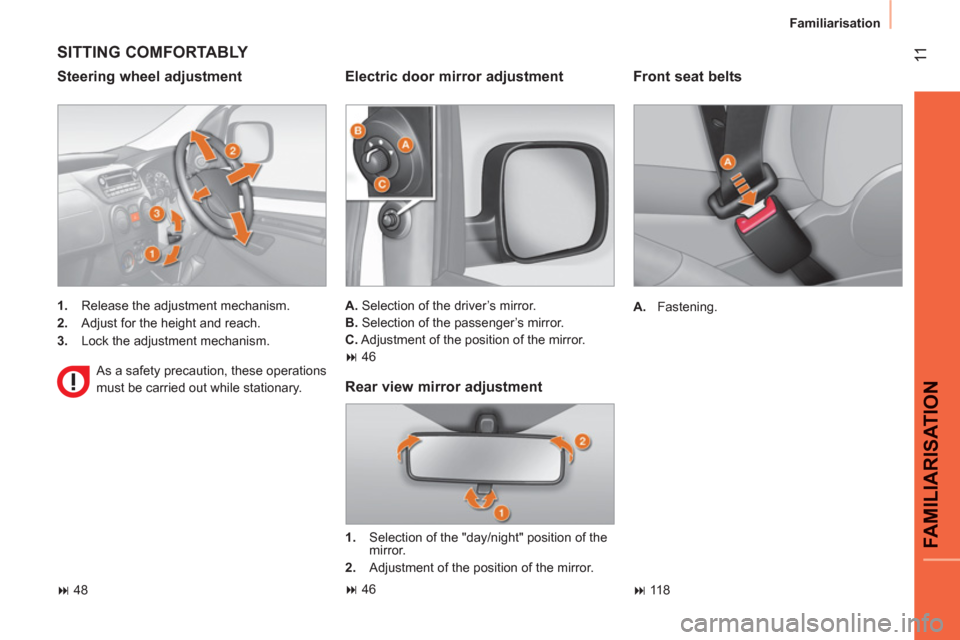

Front seat belts



A.
Fastening.



118


SITTING COMFORTABLY


Steering wheel adjustment



1.
Release the adjustment mechanism.

2.
Adjust for the height and reach.

3.
Lock the adjustment mechanism.
As a safety precaution, these operations
must be carried out while stationary.



48



Electric door mirror adjustment


A.
Selection of the driver’s mirror.

B.
Selection of the passenger’s mirror.

C.
Adjustment of the position of the mirror.



46





Rear view mirror adjustment



1.
Selection of the "day/night" position of the
mirror.

2.
Adjustment of the position of the mirror.



46

12
Familiarisation

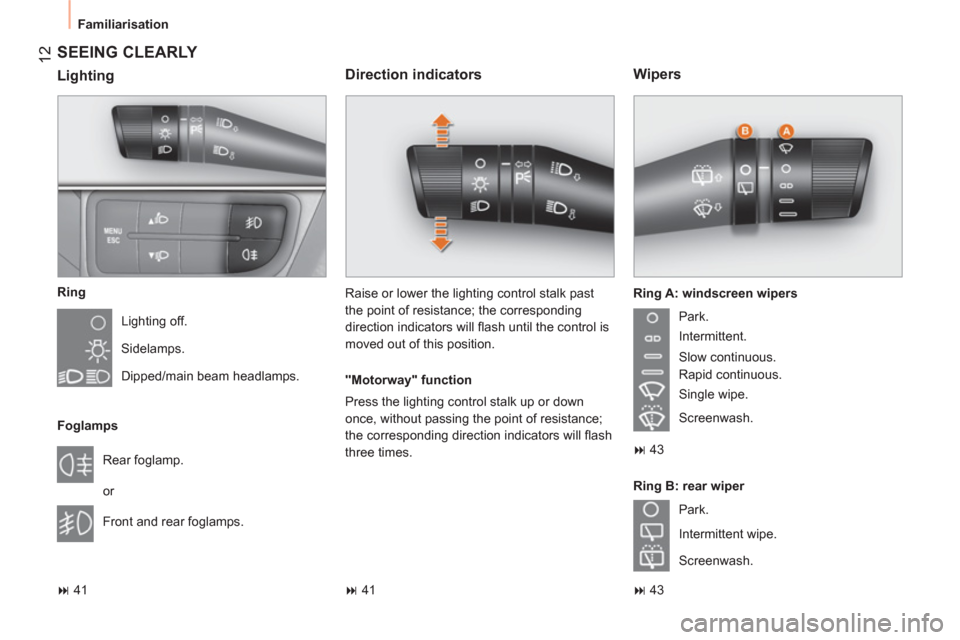

SEEING CLEARLY


Ring
Lighting off.
Sidelamps.
Dipped/main beam headlamps.

Foglamps
Rear foglamp.
or
Front and rear foglamps.



41




Direction indicators


"Motorway" function
Press the lighting control stalk up or down
once, without passing the point of resistance;
the corresponding direction indicators will fl ash
three times.



41




Wipers


Ring A: windscreen wipers



43


Ring B: rear wiper



43

Single wipe.
Intermittent wipe.
Screenwash. Screenwash.
Park.


Lighting

Park.
Intermittent.
Slow continuous.
Rapid continuous. Raise or lower the lighting control stalk past
the point of resistance; the corresponding
direction indicators will fl ash until the control is
moved out of this position.

13
FAMILIARISATIO
N
Familiarisation



103

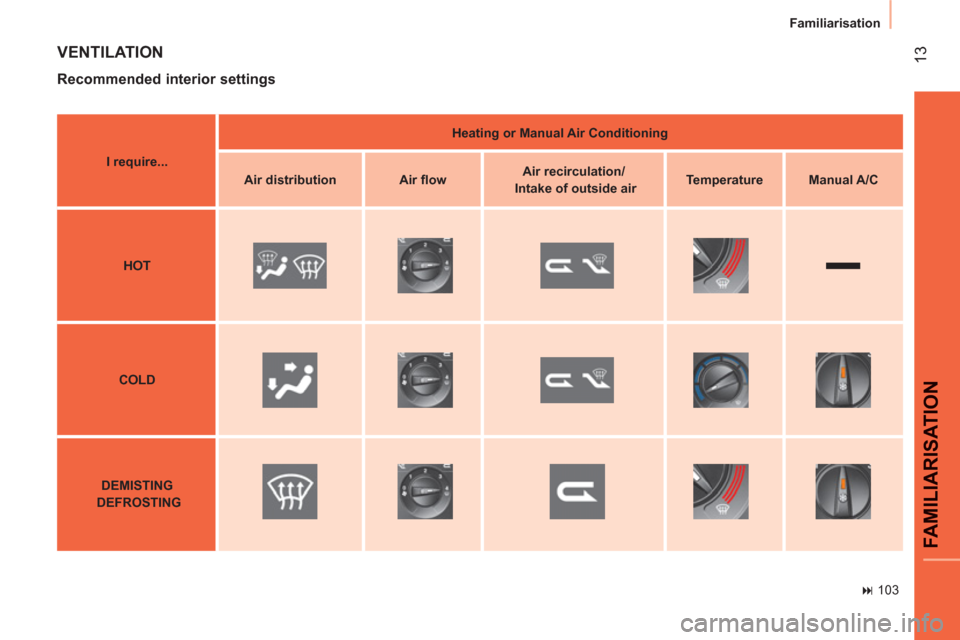

VENTILATION


Recommended interior settings



I require...



Heating or Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation/


Intake of outside air



Temperature



Manual A/C




HOT





COLD





DEMISTING

DEFROSTING

14
Familiarisation

MONITORING


Instrument panel
Control panel



A.
With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated
warning lamp goes off. If it remains on, this
indicates that you have reached the low
level in the tank.

B.
With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated
warning lamp goes off.

C.
With the ignition on, the oil level warning
lamp does not remain on.
If the levels are not correct, top up the levels
which are low.

A.
Intelligent traction control.

117


1.
With the ignition on, the orange and red
warning lamps come on.

2.
With the engine running, these warning
lamps should go off.
If warning lamps remain on, refer to the section
concerned.

Warning lamps




29
or
Anti-slip regulation.

115

B.
Stop & Start.

55

C.
Hazard warning lamps.

113

D.
Heated rear screen and door mirrors.


102

E.
Locking/Unlocking of the load space
(Light van).


39
