2011 Peugeot Bipper Owner's Manual - RHD (UK, Australia)

103
4
EASE OF USE and COMFOR
T

Ventilation
CORRECT USE OF THE AIRCONDITIONING

For even air distribution, ensure that the
exterior air intake grille located at the base
of the windscreen is not obstructed and that
the side and central vents, the air outlets on
the floor and the air extractor at the rear are
open.
The air conditioning is useful in all seasons
as it eliminates condensation and air
humidity. Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
Have the filter elements (air filter and
passenger compartment filter) replaced
regularly. If you drive in a dusty environment,
have them replaced twice as often.
It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.
If the system does not produce cold air, do
not use it and contact a PEUGEOT dealer or
a qualified workshop.
VENTS

For optimum distribution and diffusion of hot
or cool air in the passenger compartment,
there are:


- 2 adjustable central vents,

- 2 adjustable and closing side vents,

- 2 vents directed towards the floor of the
vehicle.
In order to be effective, the air conditioning
should only be used with the windows
closed. However, if the interior temperature
remains high after a prolonged period parked
in the sun, do not hesitate to ventilate the
passenger compartment for a few minutes.

104

Ventilation

These controls are located on the centre console.
Air conditioning
The air conditioning mode is operational
when the en
gine is running. The diode is lit.
Temperature adjustment
Control positioned:
- in the blue zone triggers cool
air,
Air flow
The force of the blown air, from
the vents, varies
from 1 to the
strongest 4. Remember to adjust
t
his control in order to reach the
ambient air comfort level. To switch off the
blower,
place the control in position 0 .
The air supply distribution is
directed b
y the control turned
t
owards:
th
e side vents and the central
vents
,
the side vents, the central vents
and the footwells,
the footwells,
the windscreen, the
front side
windows and the
footwells,
the windscreen.
Press the air blower control.
The diode li
ghts.
The air blower control must not
be in position
0 (zero flow) for air
conditioning to be obtained.
Turn the control to the position required.
- in the red zone triggers heating
of the interior ambient air.
Air distribution

105
4
EASE OF USE and COMFOR
T

Ventilation

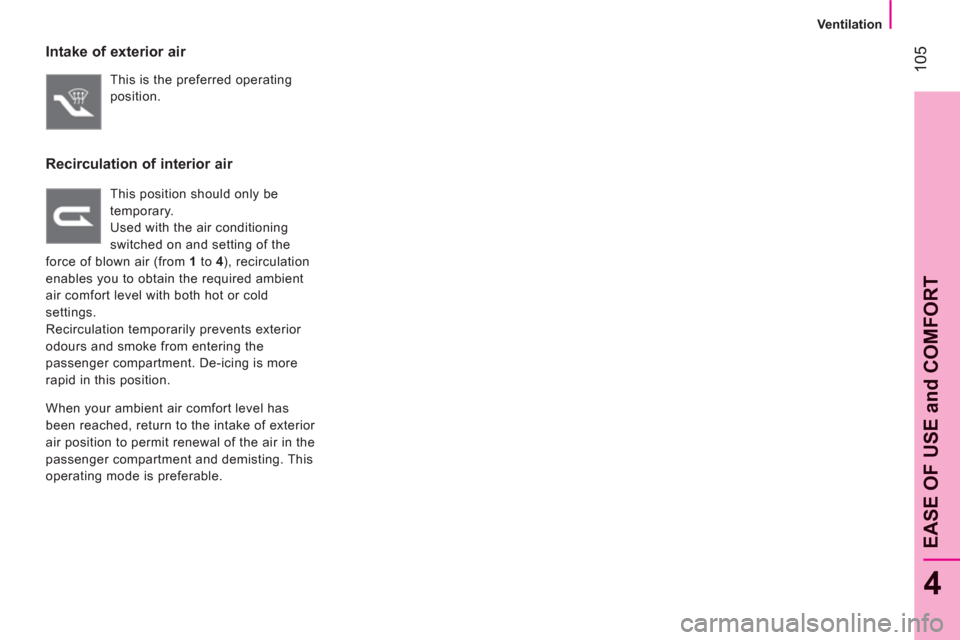

Intake of exterior air
This is the preferred operating
position.
Recirculation of interior air
This position should only be
temporary.
Used with the air conditioning
switched on and setting of the
force of blown air (from 1 to 4 ), recirculation
enables you to obtain the required ambient
air comfort level with both hot or cold
settings.
Recirculation temporarily prevents exterior
odours and smoke from entering the
passenger compartment. De-icing is more
rapid in this position.
When your ambient air comfort level has
been reached, return to the intake of exterior
air position to permit renewal of the air in the
passenger compartment and demisting. This
operating mode is preferable.

106


Practical information

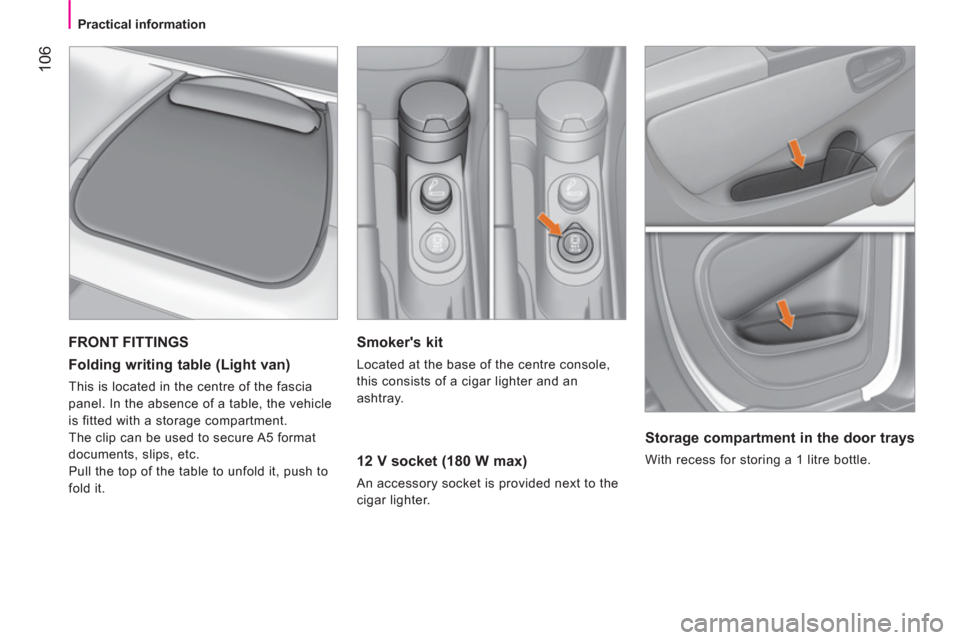

Smoker's kit

Located at the base of the centre console,
this consists of a cigar lighter and an
ashtray.


12 V socket (180 W max)

An accessory socket is provided next to the
cigar lighter.

FRONT FITTINGS

Folding writing table (Light van)

This is located in the centre of the fascia
panel. In the absence of a table, the vehicle
is fitted with a storage compartment.
The clip can be used to secure A5 format
documents, slips, etc.
Pull the top of the table to unfold it, push to
fold it.


Storage compartment in the door trays

With recess for storing a 1 litre bottle.

4
EASE OF USE and COMFOR
T


Practical information

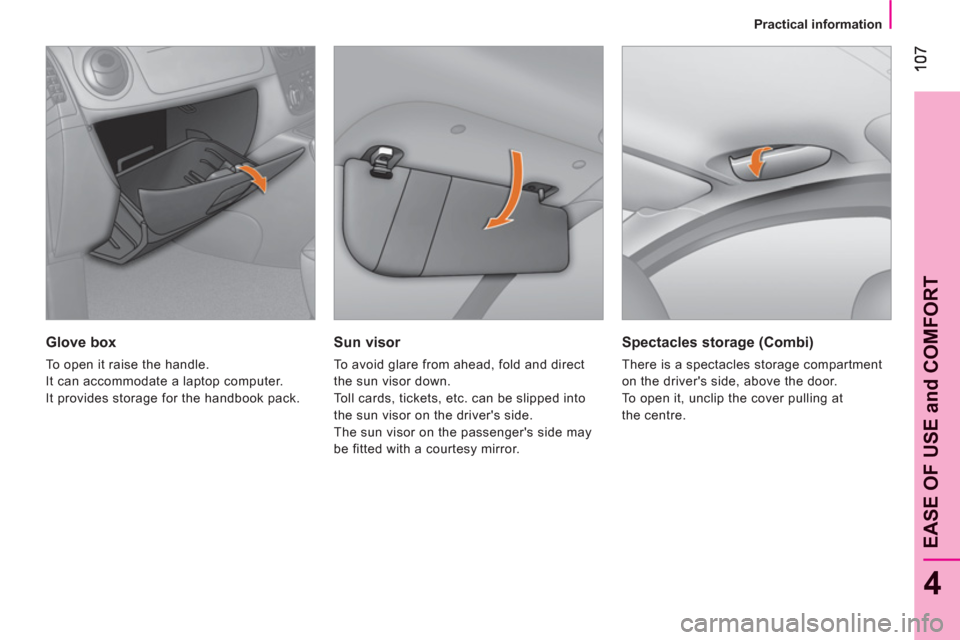

Sun visor

To avoid glare from ahead, fold and direct
the sun visor down.
Toll cards, tickets, etc. can be slipped into
the sun visor on the driver's side.
The sun visor on the passenger's side may
be fitted with a courtesy mirror.


Glove box

To open it raise the handle.
It can accommodate a laptop computer.
It provides storage for the handbook pack.


Spectacles storage (Combi)

There is a spectacles storage compartment
on the driver's side, above the door.
To open it, unclip the cover pulling at
the centre.

108


Practical information


LOAD SPACE LAYOUT

Stowing rings

There are 6 stowing rings on the rear floor to
secure your loads.
As a safety precaution in case of sharp
braking, you are advised to place heavy
objects as far forwards towards the driver’s
seat as possible.

Storage tray

A storage tray is provided at the rear left of
the load space.


Torch

A magnetic torch is provided at the rear right
of the load space.
Remove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
To switch on the torch, slide the switch
forwards.
To change the 4 storage batteries (NiMH type),
remove the protective cover from the torch.
To put the torch back in place, engage
it in the notches on the base and pivot it
upwards.

Ladder type vertical partition

Behind the driver’s seat, a ladder type
vertical partition protects the driver against
the risk of load movement.


Partitions

Panel, glazed and mid-height panel
with grille type partitions are offered to
complement your light van.

The transportation of passengers in the
load space is not permitted.
You are advised to immobilise the load
by securing it firmly using the stowing
rings on the floor. The torch’s storage batteries recharge
automatically while driving.
An additional light is installed in the centre of
the torch base (refer to the "Interior lighting"
section).

109
4
EASE OF USE and COMFOR
T


Practical information

11
0


Practical information

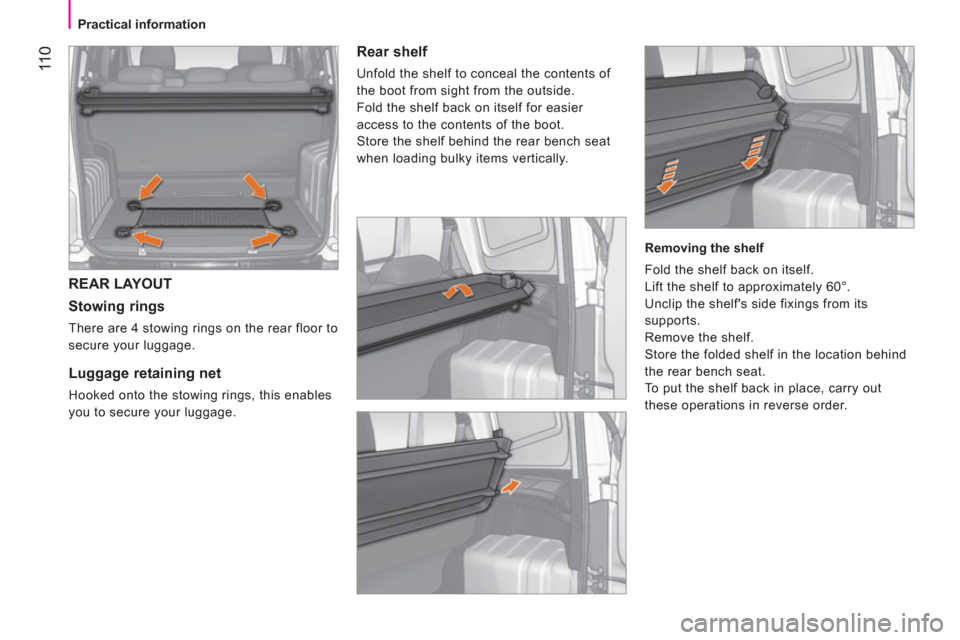

REAR LAYOUT

Stowing rings

There are 4 stowing rings on the rear floor to
secure your luggage.







Luggage retaining net

Hooked onto the stowing rings, this enables
you to secure your luggage.


Rear shelf

Unfold the shelf to conceal the contents of
the boot from sight from the outside.
Fold the shelf back on itself for easier
access to the contents of the boot.
Store the shelf behind the rear bench seat
when loading bulky items vertically.

Removing the shelf
Fold the shelf back on itself.
Lift the shelf to approximately 60°.
Unclip the shelf's side fixings from its
supports.
Remove the shelf.
Store the folded shelf in the location behind
the rear bench seat.
To put the shelf back in place, carry out
these operations in reverse order.
