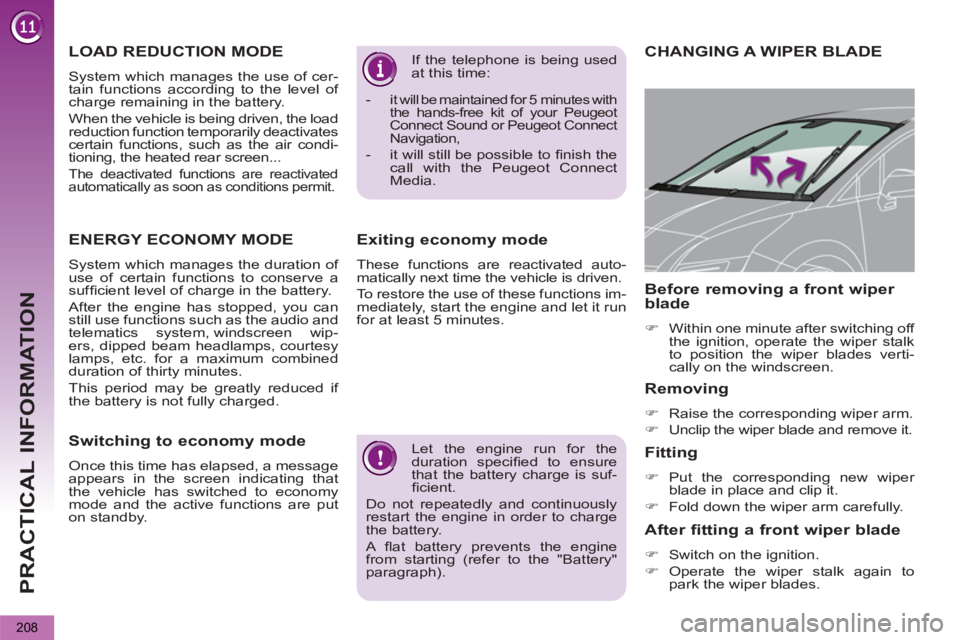

PRACTICAL INFORMATION
208
Let the engine run for the
duration specifi ed to ensure
that the battery charge is suf-
fi cient.
Do not repeatedly and continuously
restart the engine in order to charge
the battery.
A fl at battery prevents the engine
from starting (refer to the "Battery"
paragraph). If the telephone is being used
at this time:


- i
t will be maintained for 5 minutes with
the hands-free kit of your Peugeot
Connect Sound or Peugeot Connect
Navigation,

- it will still be possible to fi nish the
call with the Peugeot Connect
Media.



Exiting economy mode

These functions are reactivated auto-
matically next time the vehicle is driven.
To restore the use of these functions im-
mediately, start the engine and let it run
for at least 5 minutes.
CHANGING A WIPER BLADE

Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper
blade


)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.

LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
lamps, etc. for a maximum combined
duration of thirty minutes.
This period may be greatly reduced if
the battery is not fully charged.

Switching to economy mode

Once this time has elapsed, a message
appears in the screen indicating that
the vehicle has switched to economy
mode and the active functions are put
on standby.

ALPHABETICAL INDEX
325
Accessories ...........................213
Accessory socket,
12 volt ...102, 104, 109, 110, 114
Access to
the 3rd row ............................71
Adjusting headlamps .........94, 95
Adjusting head
restraints .........................67, 69
Adjusting seat belt
height ..........................132, 133
Adjusting the steering
wheel ....................................75
Airbags ....................................36
Airbags, curtain..............138, 139
Airbags, front .................136, 139
Airbags, lateral...............138, 139
Air conditioning ........................25
Air conditioning,
digital ..............................59, 62
Air conditioning,
manual ............................59, 60
Air fi lter ..................................177
Air fl ow .....................................25
Air vents...................................58
Alarm .......................................81
Anti-pinch.........................83, 108
Anti-theft ..................................78
Armrest, rear .......................... 110
Assistance call .......................224
Audible warning .....................128
Audio/video sockets...............254
Audio streaming
(Bluetooth) ..........................315
Automatic illumination
of headlamps ..................91, 94
Automatic operation
of hazard warning lamps .....128
Automatic rain sensitive
windscreen wipers ..........96, 98
Auxiliary socket..............290, 312
Auxiliary sockets ............254, 310Battery ...........................177, 206
Battery, charging ....................206
Battery, remote control ......79, 80
Blind for panoramic sunroof ....108
Blinds ..................................... 115
Bluetooth (hands-free) ...255-257,
291, 292, 313
Bluetooth
(telephone) ...255-257, 291, 292
Bonnet ...................................172
Bonnet stay............................172
Boot .........................................87
Boot lamp ...................... 101, 115
Brake discs ............................178
Brake lamps...........................197
Brake pads ............................178
Brakes ...................................178Checks...........174, 175, 177, 178
Child lock ...............................127
Children .................120, 124, 125
Child seats ............................ 116
Child seats,
conventional ................ 118, 120
Closing the boot.................77, 87
Closing the doors...............77, 85
Cold climate screen ...............212
Colour screen,
retractable .................49, 51, 53
Concertina boards ... 72, 109, 110
Connectors,
audio ...103, 104, 290, 310, 312
Control for panoramic
sunroof blind .......................108
Coolant level ....................37, 176
Coolant temperature
indicator ................................37
Courtesy lamps........................99
Courtesy mirror ......................103
Cruise control ........................154
Cup holder ............. 102, 109, 110
AB
Capacity, fuel tank ...................89
CD MP3 .........................289, 309
Central locking ...................77, 86
Centre console ......................104
Changing a bulb ....194, 197, 198
Changing a fuse ....................199
Changing a wheel ..........188, 190
Changing a wiper
blade .............................98, 208
Changing
the date ...............260, 294, 317
Changing the remote
control battery .......................79
Changing the time ...260, 294, 317
Checking levels .............176, 177
Checking the engine
oil level ..................................40
Checking tyre pressures
(using the kit) ......................179
C
Date
(setting) .......260, 294, 316, 317
Daytime running
lamps ....................93, 194, 196
Deactivating ESP ...................131
Deactivating the passenger
airbag ..................................136
Deadlocking .............................77
Defrosting ..........................60, 61
Demisting.................................60
Dials and gauges .....................27
Diesel additive level ...............177
Dimensions ............................221
Dipped beam ...........91, 194, 195
Dipstick ............................40, 176
D

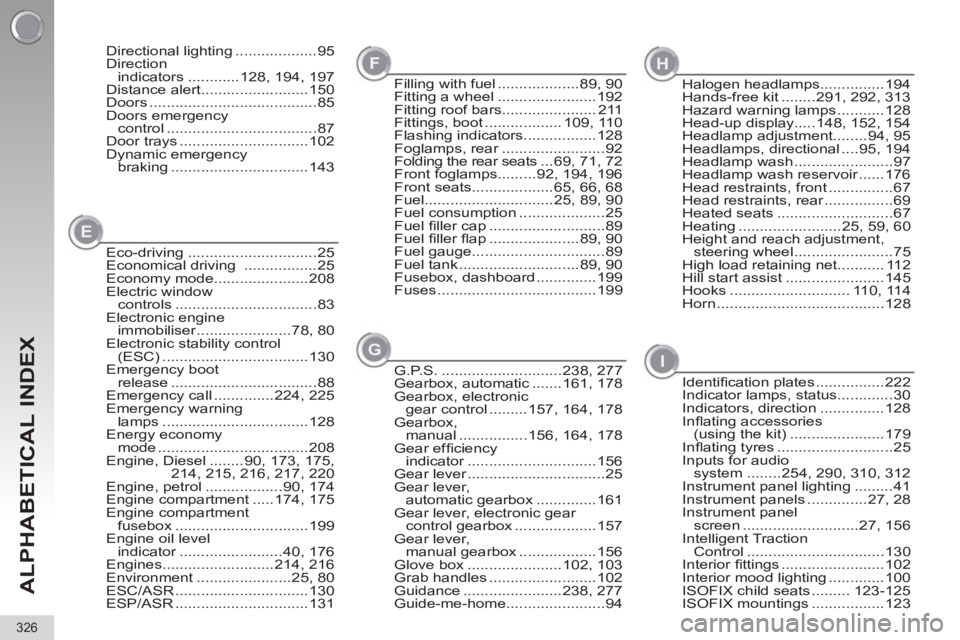

ALPHABETICAL INDEX
326
Eco-driving ..............................25
Economical driving .................25
Economy mode......................208
Electric window
controls .................................83
Electronic engine
immobiliser ......................78, 80
Electronic stability control
(ESC) ..................................130
Emergency boot
release ..................................88
Emergency call ..............224, 225
Emergency warning
lamps ..................................128
Energy economy
mode ...................................208
Engine, Diesel ........90, 173, 175,
214, 215, 216, 217, 220
Engine, petrol ..................90, 174
Engine compartment .....174, 175
Engine compartment
fusebox ...............................199
Engine oil level
indicator ........................40, 176
Engines..........................214, 216
Environment ......................25, 80
ESC/ASR ...............................130
ESP/ASR ...............................131
E
Halogen headlamps...............194
Hands-free kit ........291, 292, 313
Hazard warning lamps ...........128
Head-up display.....148, 152, 154
Headlamp adjustment........94, 95
Headlamps, directional ....95, 194
Headlamp wash .......................97
Headlamp wash reservoir ......176
Head restraints, front ...............67
Head restraints, rear ................69
Heated seats ...........................67
Heating ........................25, 59, 60
Height and reach adjustment,
steering wheel .......................75
High load retaining net........... 112
Hill start assist .......................145
Hooks ............................ 110, 114
Horn .......................................128
H
Filling with fuel ...................89, 90
Fitting a wheel .......................192
Fitting roof bars...................... 211
Fittings, boot .................. 109, 110
Flashing indicators.................128
Foglamps, rear ........................92
Folding the rear seats ...69, 71, 72
Front foglamps.........92, 194, 196
Front seats...................65, 66, 68
Fuel..............................25, 89, 90
Fuel consumption ....................25
Fuel fi ller cap ...........................89
Fuel fi ller fl ap .....................89, 90
Fuel gauge...............................89
Fuel tank ............................89, 90
Fusebox, dashboard ..............199
Fuses .....................................199
FDirectional lighting ...................95
Direction
indicators ............128, 194, 197
Distance alert.........................150
Doors .......................................85
Doors emergency
control ...................................87
Door trays ..............................102
Dynamic emergency
braking ................................143
G.P.S. ............................238, 277
Gearbox, automatic .......161, 178
Gearbox, electronic
gear control .........157, 164, 178
Gearbox,
manual ................156, 164, 178
Gear effi ciency
indicator ..............................156
Gear lever ................................25
Gear lever,
automatic gearbox ..............161
Gear lever, electronic gear
control gearbox ...................157
Gear lever,
manual gearbox ..................156
Glove box ......................102, 103
Grab handles .........................102
Guidance .......................238, 277
Guide-me-home.......................94
G
Identifi cation plates ................222
Indicator lamps, status.............30
Indicators, direction ...............128
Infl ating accessories
(using the kit) ......................179
Infl ating tyres ...........................25
Inputs for audio
system ........254, 290, 310, 312
Instrument panel lighting .........41
Instrument panels ..............27, 28
Instrument panel
screen ...........................27, 156
Intelligent Traction
Control ................................130
Interior fi ttings ........................102
Interior mood lighting .............100
ISOFIX child seats ......... 123-125
ISOFIX mountings .................123
I

ALPHABETICAL INDEX
327
Main beam ............... 91, 194-196
Maintenance ............................25
Map reading lamps ..................99
Markings, identifi cation ..........222
Mat.........................................105
Menu, main ............................306
Mini fuel level ...........................89
Mirror, rear view .......................75
Mirrors, door ............................74
Misfuel prevention ...................90
Modularity, seats ......................73
Motorway function
(direction indicators) ...........128
Mountings for ISOFIX seats ....123
MP3 CD .........................289, 309
Multimedia, rear .............104, 107
Music media players ......250, 288
M
Navigation......................238, 277
Net ......................................... 111
Number plate lamps ..............198
N
Paint colour code ...................222
Panoramic glass
sunroof ................................108
Parking brake ........................178
Parking brake,
electric ........................140, 143
Parking sensors,
rear .....................................167
Parking space
sensor ................................169
Particle emission
fi lter .............................177, 178
Passenger compartment
fi lter .....................................177
PEUGEOT call
button ..................................225
PEUGEOT CONNECT
ASSISTANCE .....................224
Peugeot Connect Media
Navigation (NG4 3D) .....28, 51,
53, 55, 227, 230,
233, 261
Peugeot Connect
Navigation (RNEG) ........49, 53,
274, 295
PEUGEOT
CONNECT SOS ..........224, 225
Peugeot Connect
Sound (RD5) ................46, 303,
318, 320
PEUGEOT services ...............225
PIN code ................................258
Player, CD MP3 .............289, 309
POIs
(updating) ............................245
Port, USB...............104, 310, 312
Priming the fuel
system ................................173
Protecting children ........ 116, 120,
123-125, 136
Puncture ........................179, 185
P
Jack ...............................188, 190
JACK socket ..........104, 310, 312
Jukebox (copy) ......................252
Jukebox (playing) ..................253
J
Keeping children
safe ............. 116, 124, 125, 136
Key with remote
control ....................... 76-78, 80
K
Labels, identifi cation ..............222
Lamps, warning and
indicator ....................29, 32, 33
Level, brake fl uid ...................176
Level, headlamp wash .....97, 176
Level, power steering fl uid .....176
Levels and checks ......... 174-177
Lighting ..................................101
Lighting, guide-me home .....93, 94
Lighting, interior ...............99, 100
Lighting bulbs
(replacement) ......194, 197, 198
Lighting control stalk ................91
Lighting dimmer .......................41
Loading ...................... 25, 73, 211
Load reduction mode .............208
Load space cover ........... 109-111
Locating your vehicle ...............77
Locking from the inside............86
Long objects,
transporting .....................68, 73
Luggage retaining net ............ 113
L
Oil fi lter ..................................177
Oil level ............................40, 176
Opening the bonnet ...............172
Opening the boot ...............76, 87
Opening the doors .............76, 85
Opening the panoramic
sunroof blind .......................108
Opening the retractable screen ...53
Operation indicator
lamps ..................29, 30, 32, 34
O

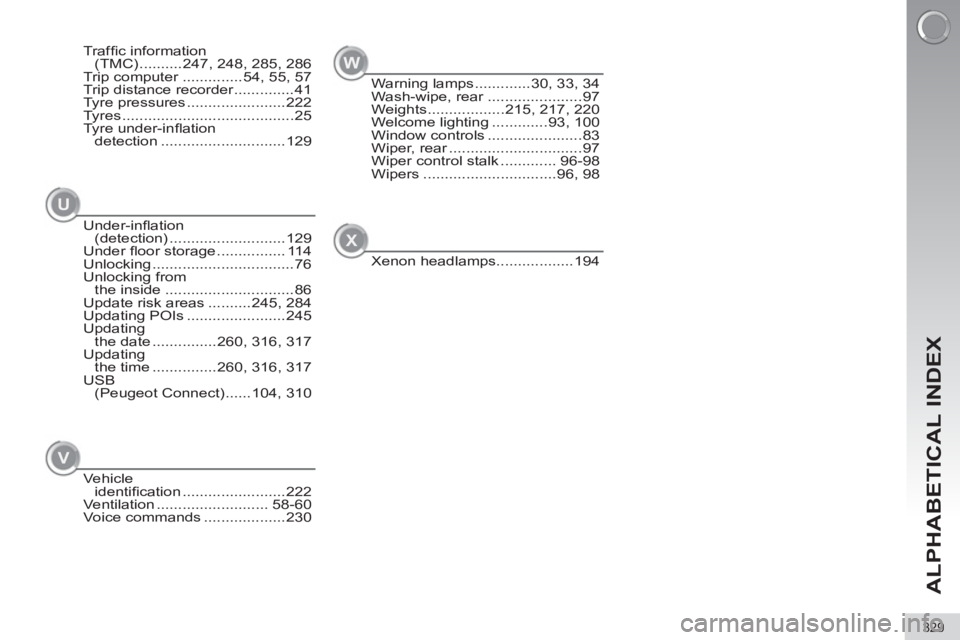

ALPHABETICAL INDEX
329
Warning lamps .............30, 33, 34
Wash-wipe, rear ......................97
Weights ..................215, 217, 220
Welcome lighting .............93, 100
Window controls ......................83
Wiper, rear ...............................97
Wiper control stalk ............. 96-98
Wipers ...............................96, 98
W
Xenon headlamps..................194
X
Vehicle
identifi cation ........................222
Ventilation .......................... 58-60
Voice commands ...................230
V
Under-infl ation
(detection) ...........................129
Under fl oor storage ................ 114
Unlocking .................................76
Unlocking from
the inside ..............................86
Update risk areas ..........245, 284
Updating POIs .......................245
Updating
the date ...............260, 316, 317
Updating
the time ...............260, 316, 317
USB
(Peugeot Connect) ......104, 310
U
Traffi c information
(TMC) ..........247, 248, 285, 286
Trip computer ..............54, 55, 57
Trip distance recorder ..............41
Tyre pressures .......................222
Tyres ........................................25
Tyre under-infl ation
detection .............................129

VISUAL SEARCH
EXTERIOR


Exterior welcome lighting.............. 93
Door mirror spotlamps ................ 100
Directional lighting ................... 91-95
Headlamp height adjustment..... 94, 95
Very cold climate screen............. 212
Changing
bulbs ................................. 194-196


- front lamps

- foglamps

- direction indicator repeaters

Fuel tank .................................. 89-90
Misfuel prevention ........................ 90

Boot ......................................... 87-88


- opening/closing

- emergency release
Temporary puncture
repair kit ............................ 179-187
Changing a wheel ................ 188-193


- tools

- removing

Remote control key.................. 76-80


- opening/closing

- anti-theft protection

- starting

- battery


Parking sensors ................... 167-168
Towing ................................. 209-210
Towbar ................................. 210-211

Changing
rear bulbs .......................... 197-198


- rear lamps

- 3rd brake lamp

- number plate lamps

- foglamps

Accessories ................................ 213
Roof bars, fi nishers..................... 211
Panoramic sunroof ..................... 108

Door mirrors .................................. 74

Doors ....................................... 85-88


- opening/closing

- central locking

- emergency control
Alarm ....................................... 81-82
Electric windows ...................... 83-84

ESC:
ABS, EBA, ASR, CDS ....... 130-131
Tyre under-infl ation detection ..... 129
Tyre pressures ............................ 222

Parking
space sensors ................... 169-170
Wiper ....................................... 96-98
Changing a wiper blade ........ 98, 208

VISUAL SEARCH
333

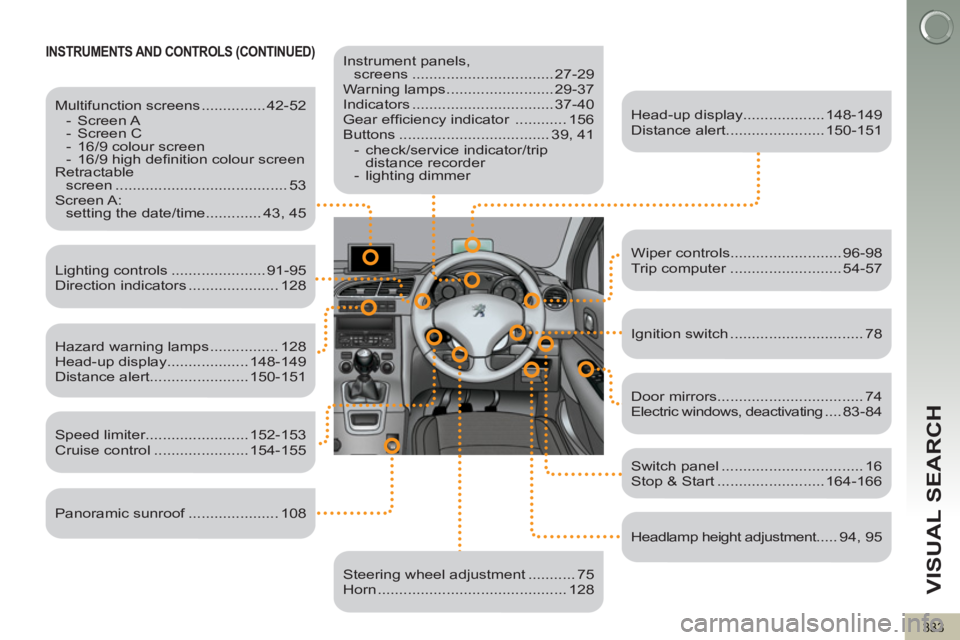

INSTRUMENTS AND CONTROLS (CONTINUED)

Instrument panels,
screens ................................. 27-29
Warning lamps ......................... 29-37
Indicators ................................. 37-40
Gear effi ciency indicator ............ 156
Buttons ................................... 39, 41


- check/service indicator/trip
distance recorder

- lighting dimmer

Head-up display................... 148-149
Distance alert....................... 150-151

Lighting controls ...................... 91-95
Direction indicators ..................... 128

Speed limiter........................ 152-153
Cruise control ...................... 154-155

Switch panel ................................. 16
Stop & Start ......................... 164-166
Door mirrors .................................. 74
Electric windows, deactivating .... 83-84

Headlamp height adjustment..... 94, 95

Steering wheel adjustment ........... 75
Horn ............................................ 128
Multifunction screens ............... 42-52


- Screen A

- Screen C

- 16/9 colour screen

- 16/9 high defi nition colour screen
Retractable
screen ........................................ 53
Screen A:
setting the date/time ............. 43, 45

Hazard warning lamps ................ 128
Head-up display................... 148-149
Distance alert....................... 150-151
Wiper controls.......................... 96-98
Trip computer .......................... 54-57

Ignition switch ............................... 78

Panoramic sunroof ..................... 108

VISUAL SEARCH
334

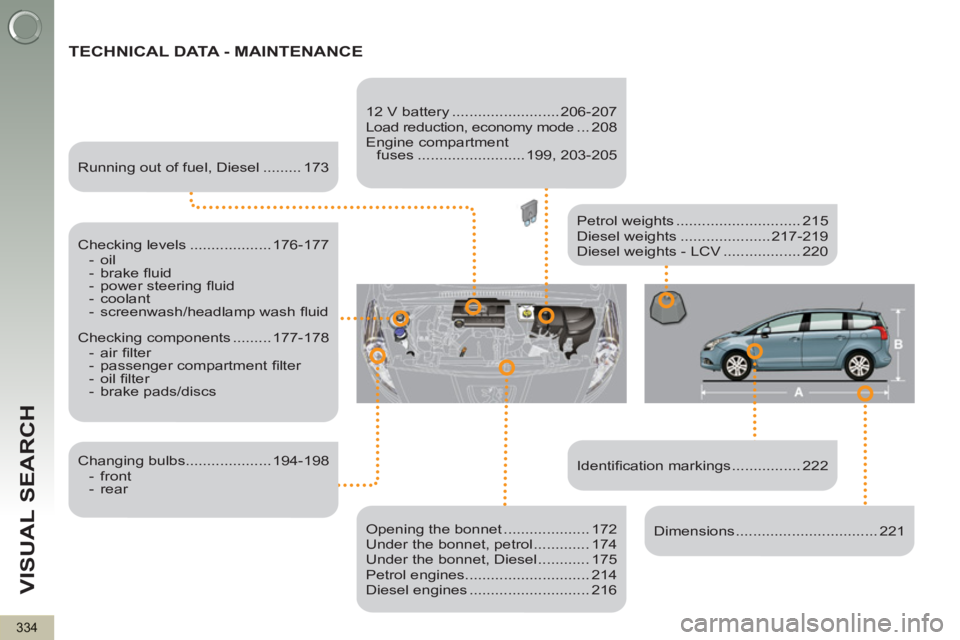

TECHNICAL DATA - MAINTENANCE


Identifi cation markings ................ 222
Petrol weights ............................. 215
Diesel weights ..................... 217-219
Diesel weights - LCV .................. 220
Running out of fuel, Diesel ......... 173

Checking levels ................... 176-177


- oil

- brake fl uid

- power steering fl uid

- coolant

- screenwash/headlamp wash fl uid
Checking components ......... 177-178


- air fi lter

- passenger compartment fi lter

- oil fi lter

- brake pads/discs


Changing bulbs.................... 194-198


- front

- rear

12 V battery ......................... 206-207
Load reduction, economy mode ...208
Engine compartment
fuses ......................... 199, 203-205

Opening the bonnet .................... 172
Under the bonnet, petrol ............. 174
Under the bonnet, Diesel ............ 175
Petrol engines............................. 214
Diesel engines ............................ 216
Dimensions ................................. 221
