INSTRUMENTS AND CONTROLS



1.
Steering wheel adjustment.

2.
Cruise control/speed limiter
switches.

3.
Lighting and direction indicator
control stalk.

4.
Central adjustable air vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Passenger’s airbag.

8.
Side adjustable air vent.

9.
Glove box - Audio/video sockets -
Passenger’s airbag deactivation.

10.
Bonnet release.

11 .
12 V accessory socket.

12.
Heating/air conditioning controls.

13.
Audio and telematics system.

14.
Switches:
- head-up display,
- hazard warning lamps,
- Distance alert,
- central locking.

32
IN
S










Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.



Warning lamp



is on



Cause



Action/Observations




Passenger's
airbag system


fi xed. The control, located in the
glove box, is set to the OFF

position.
The passenger's front airbag
is deactivated.
In this case you can install a
"rear facing" child seat. Set the control to the ON
position to activate the
passenger's front airbag.
In this case, do not fi t a child seat in the
rear-facing position.





ESP/ASR


fi xed. The button, located at
the bottom right of the
dashboard, is pressed. Its
indicator lamp is on.
The ESP/ASR is deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR. Its
indicator lamp switches off.
The ESP/ASR system is activated automatically
when the vehicle is started.
If it has been deactivated, the system is
reactivated automatically from approximately
30 mph (50 km/h).

FITTINGS
102

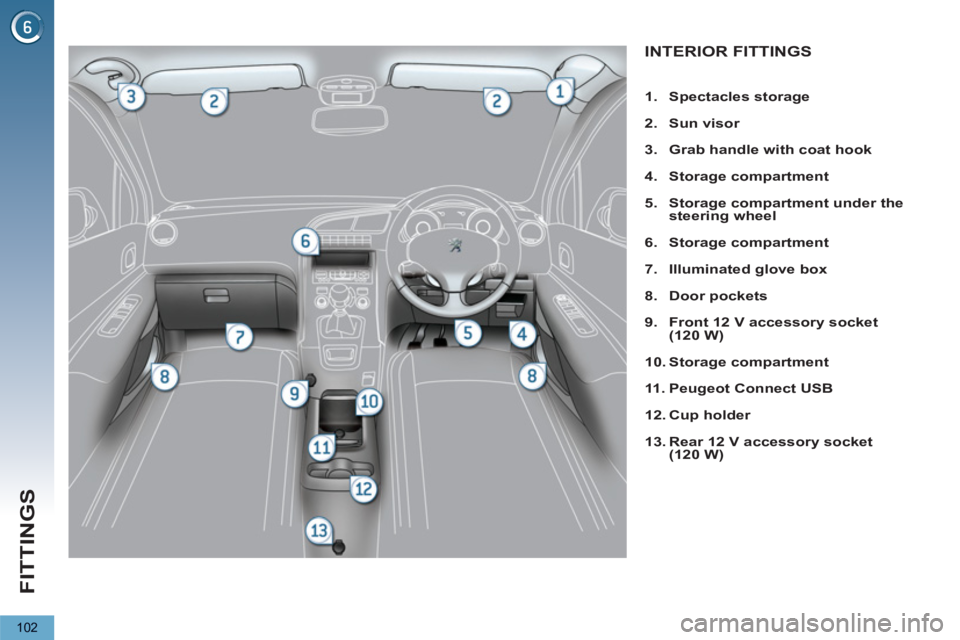

INTERIOR FITTINGS


1.
Spectacles storage


2.
Sun visor


3.
Grab handle with coat hook


4.
Storage compartment


5.
Storage compartment under the
steering wheel


6.
Storage compartment


7.
Illuminated glove box


8.
Door pockets


9.
Front 12 V accessory socket
(120 W)


10.
Storage compartment


11 .
Peugeot Connect USB


12.
Cup holder


13.
Rear 12 V accessory socket
(120 W)

FITTINGS
103
DRIVER'S STORAGECOMPARTMENTS

Storage box

This has storage areas for the handbook
pack, ...


)
To open, pull the handle then tilt the
box.

ILLUMINATED GLOVE BOX

This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Connect
Media), ...


)
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.


)

With the ignition on, raise the concealing
fl ap; the mirror is lit automatically.

This sun visor is also equipped with a
ticket holder.

Card holder

This can be used for a toll payment
ticket or parking card, for example.


Coin storage

Storage

To connect a portable player or
a SIM card, refer to the "Audio
and telematics" section.

SA
F
136
AIRBAGS

Deployment of the airbag(s) is
accompanied by a slight emis-
sion of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
This smoke is not harmful, but sensi-
tive individuals may experience slight
irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.

Front airbags

System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and thorax.
The driver's airbag is fi tted in the centre of
the steering wheel; the front passenger's
airbag is fi tted in the dashboard above
the glove box.

Deployment

The airbags are deployed simultaneously,
unless the passenger's front airbag is de-
activated, in the event of a serious front im-
pact to all or part of the front impact zone A
,
in the longitudinal centreline of the vehicle
on a horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag infl ates between the tho-
rax and head of the front occupant of the
vehicle and the steering wheel, driver's
side, and the dashboard, passenger's side
to cushion their forward movement.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.

The airbags do not oper-
ate when the ignition is
switched off.

This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts
(with the exception of the rear centre
passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:


- in the case of a serious impact, the
airbags are deployed instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
impact, the airbags defl ate rapidly
so that they do not hinder visibility
or the exit of the occupants,

- in the case of a minor or rear impact
or in certain roll-over conditions, the
airbags will not be deployed; the
seat belt alone is suffi cient to pro-
vide optimum protection in these
situations.

PRACTICAL INFORMATION
179
TEMPORARY PUNCTURE REPAIR KIT
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre so
that you can drive to the nearest garage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.

All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.


1.
12 V compressor.
Contains a sealant cartridge for
the temporary repair of a tyre and
can be used to adjust the tyre
pressures.

2.
Two chocks to chock the vehicle.

3.
Socket for security bolts (located
in the glove box*)
.
For adapting the wheelbrace to
the special security bolts.


List of tools
Other accessories

4.
Removable towing eye.
Refer to "Electric parking brake"
in the "Driving" section.
Refer to the paragraph "Towing
the vehicle".

5.
Electric parking brake emergency
release control.

Access to the kit
(5 SEAT VERSION)
*

The kit is located in the boot under the
concertina board.
Tools 4
and 5
are located in the boot
interior trim, on the left-hand side.

*
Depending on destination country.

PRACTICAL INFORMATION
188
CHANGING A WHEEL *

The tools 2
to 4
are installed in a box,
in the middle of the spare wheel, placed
underneath the vehicle.
The tools 1
and 6
to 9
are installed un-
der the concertina boards, in the boot
inner trim.
To gain access to them:


)
open the boot,

)
raise the concertina boards.


Access to the tools

Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.
List of tools *


1.
Wheelbrace.
For removing the wheel trim and
the wheel fi xing bolts.

2.
Jack with integral handle.
For raising the vehicle.

3.
"Bolt cover" tool (according to
equipment).
For removing the bolt protectors
(covers) on alloy wheels.

4.
Centring guide.
For refi tting an alloy wheel to the
hub.

5.
Socket for the security bolts (lo-
cated in the glove box).
For adapting the wheelbrace to
the special security bolts.

6.

Two chocks to immobilise the vehicle.

7.
Wheelbrace extension.
For unscrewing/tightening the
spare wheel carrier drive.


*
Depending on destination country.

PRACTICAL INFORMATION
200

Dashboard fuses

The fusebox is placed in the lower dash-
board (left-hand side).
Fuse tables

F us e
N°


Ratin g
(A)


Functions




F1


15

Rear wiper.


F2


-

Not used.


F3


5

Airbag control unit.


F4


10
Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia.


F5


30

Front one-touch electric windows.


F6


30

Rear one-touch electric windows.


F7


5
Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.
