CHECKS
175
DIESEL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air fi lter.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

11 .
Bleed screw * .

*
According to engine.

CHECKS
176

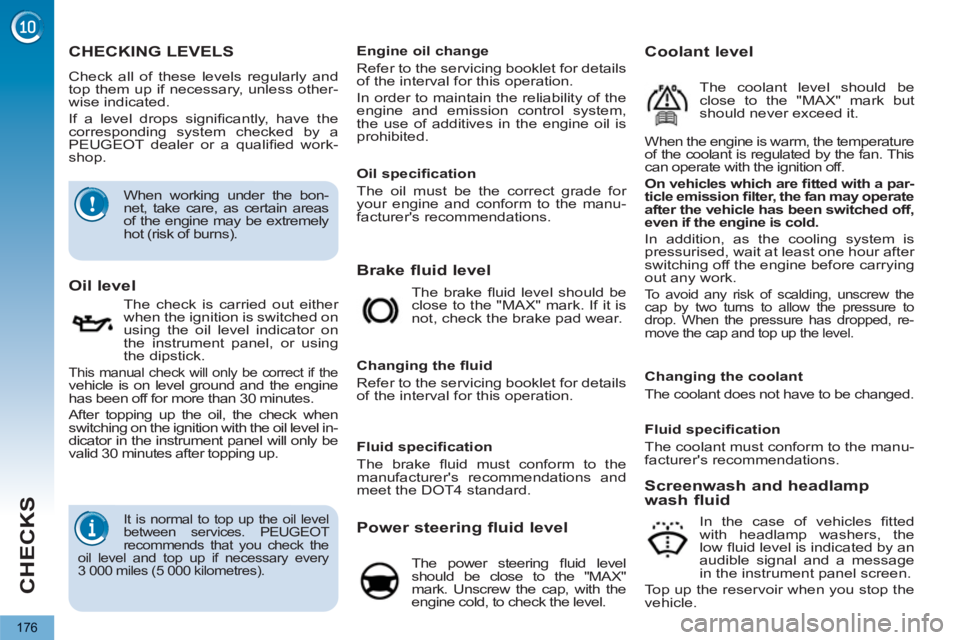

CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.

Brake fluid level

Oil level


The check is carried out either
when the ignition is switched on
using the oil level indicator on
the instrument panel, or using
the dipstick.
This manual check will only be correct if the vehicle is on level ground and the engine
has been off for more than 30 minutes.
After topping up the oil, the check when
switching on the ignition with the oil level in-
dicator in the instrument panel will only be
valid 30 minutes after topping up. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the fl uid
Refer to the servicing booklet for details
of the interval for this operation.


Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level.


Screenwash and headlamp
wash fluid

In the case of vehicles fi tted
with headlamp washers, the
low fl uid level is indicated by an
audible signal and a message
in the instrument panel screen.
Top up the reservoir when you stop the
vehicle.
Engine oil change
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.

Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.
When the engine is warm, the temperature
of the coolant is regulated by the fan. This
can operate with the ignition off.

On vehicles which are fi tted with a par-
ticle emission fi lter, the fan may operate
after the vehicle has been switched off,
even if the engine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop. When the pressure has dropped, re-
move the cap and top up the level.

Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.


When working under the bon-
net, take care, as certain areas
of the engine may be extremely
hot (risk of burns).


It is normal to top up the oil level
between services. PEUGEOT
recommends that you check the
oil level and top up if necessary every
3 000 miles (5 000 kilometres).


Oil specifi cation
The oil must be the correct grade for
your engine and conform to the manu-
facturer's recommendations.


Changing the coolant

The coolant does not have to be changed.


Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

PRACTICAL INFORMATION
194

Risk of electrocution

Xenon bulbs (D1S-35W) must
be replaced by a PEUGEOT
dealer or a qualifi ed workshop.

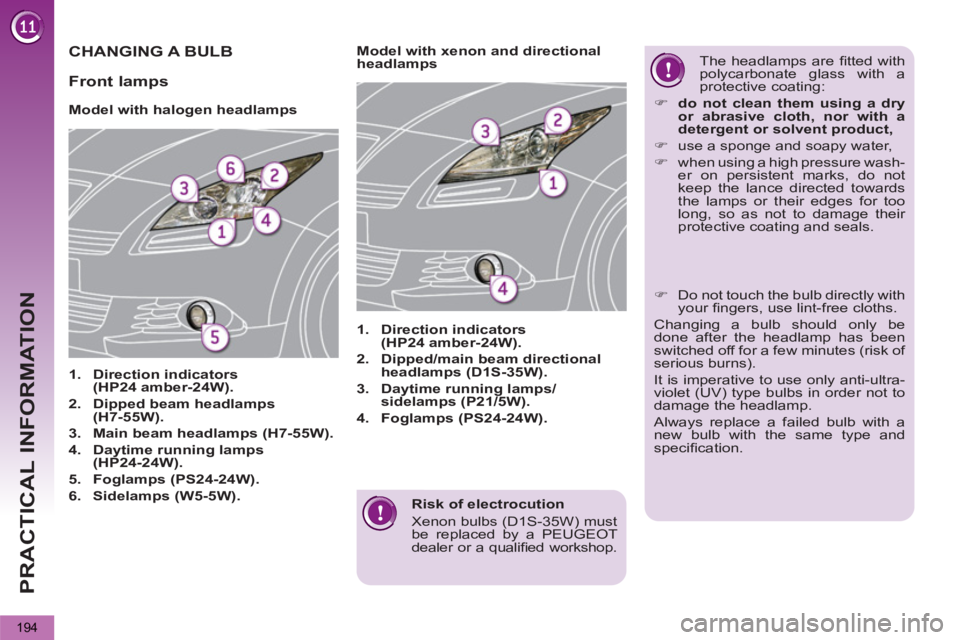

CHANGING A BULB








Model with halogen headlamps


1.
Direction indicators
(HP24 amber-24W).


2.
Dipped beam headlamps
(H7-55W).


3.
Main beam headlamps (H7-55W).


4.
Daytime running lamps
(HP24-24W).


5.
Foglamps (PS24-24W).


6.
Sidelamps (W5-5W).





1.
Direction indicators
(HP24 amber-24W).


2.
Dipped/main beam directional
headlamps (D1S-35W).


3.
Daytime running lamps/
sidelamps (P21/5W).


4.
Foglamps (PS24-24W).






























Model with xenon and directional
headlamps The headlamps are fi tted with
polycarbonate glass with a
protective coating:


)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,


)
use a sponge and soapy water,

)
when using a high pressure wash-
er on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals.


Front lamps




)
Do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.

PRACTICAL INFORMATION
195

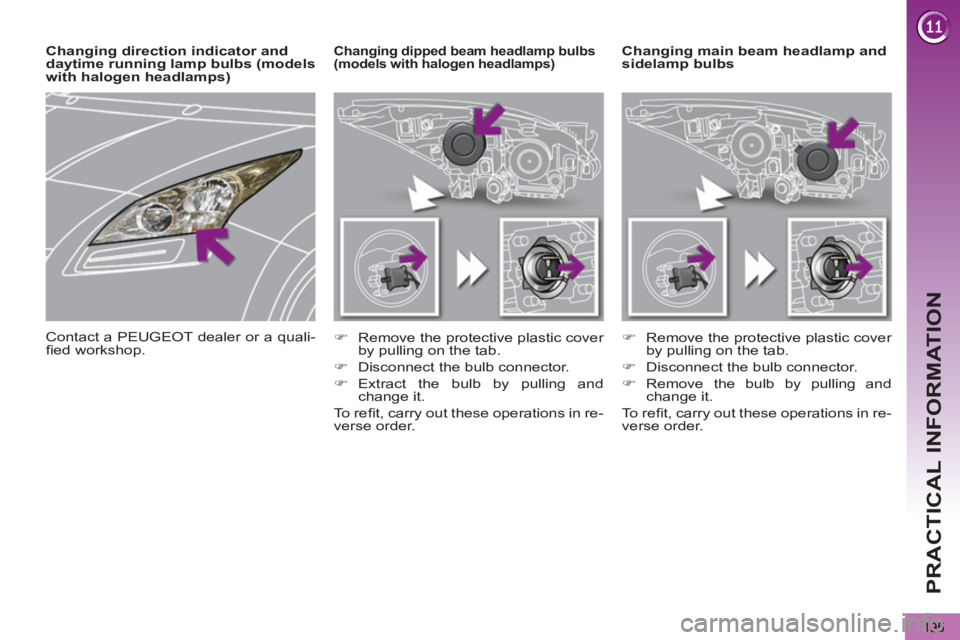

Changing main beam headlamp and
sidelamp bulbs






Changing dipped beam headlamp bulbs
(models with halogen headlamps)


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Extract the bulb by pulling and
change it.
To r efi t, carry out these operations in re-
verse order.


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Remove the bulb by pulling and
change it.
To r efi t, carry out these operations in re-
verse order.


Changing direction indicator and
daytime running lamp bulbs (models
with halogen headlamps)
Contact a PEUGEOT dealer or a quali-
fi ed workshop.

PRACTICAL INFORMATION
196

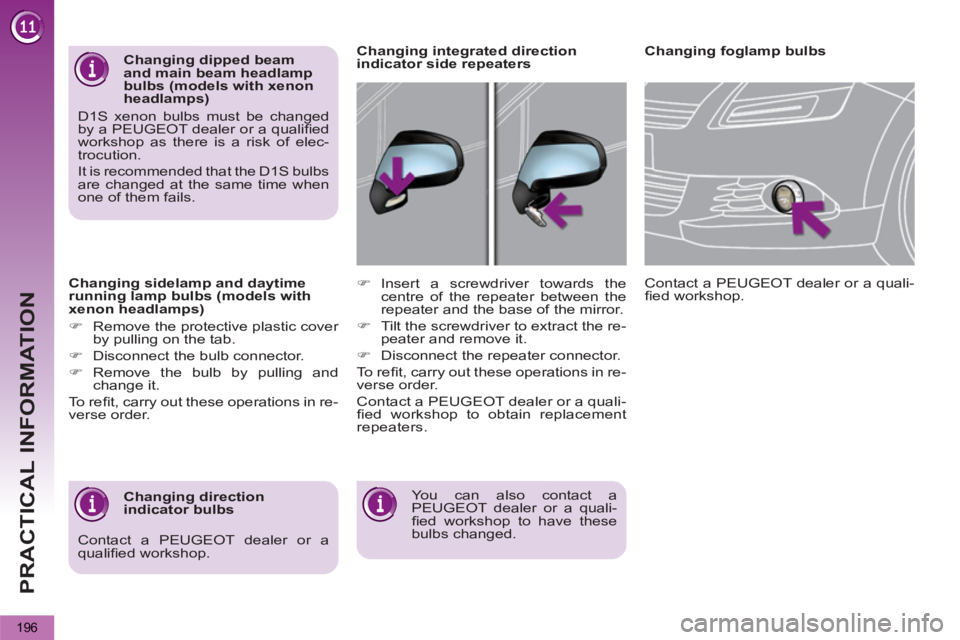

Changing sidelamp and daytime
running lamp bulbs (models with
xenon headlamps)


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Remove the bulb by pulling and
change it.

To r efi t, carry out these operations in re-
verse order.








Changing foglamp bulbs

You can also contact a
PEUGEOT dealer or a quali-
fi ed workshop to have these
bulbs changed.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.


)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

)
Tilt the screwdriver to extract the re-
peater and remove it.

)
Disconnect the repeater connector.
To r efi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to obtain replacement
repeaters.






Changing integrated direction
indicator side repeaters







Changing direction
indicator bulbs







Changing dipped beam
and main beam headlamp
bulbs (models with xenon
headlamps)
D1S xenon bulbs must be changed
by a PEUGEOT dealer or a qualifi ed
workshop as there is a risk of elec-
trocution.
It is recommended that the D1S bulbs
are changed at the same time when
one of them fails.
Contact a PEUGEOT dealer or a
qualifi ed workshop.

PRACTICAL INFORMATION
203

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.

Fuse table

Fuse
N°

Rating
(A)


Functions



F1



20

Engine management unit supply, injection pump
and EGR electrovalves (2 litre HDI), injectors
(2 litre HDI).


F2



15

Horn.


F3



10

Front/rear screenwash.


F4



10

Daytime running lamps.


F5



15

Canister purge electrovalves, turbine discharge
and Turbo pressure regulation electrovalves
(1.6 l THP 16V), oil vapour heater (1.6 l THP 16V),
diesel heater (1.6 l HDI 16V).


F6



10

Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), Distance alert,
engine coolant level detector, mirror adjustment
control.


F7



10

Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.


F8



20

Starter motor control.


F9



10

Clutch and brake pedal switches.


F10



30

Engine management unit actuators (petrol: ignition
coils, electrovalves, oxygen sensors, injectors,
heaters, fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).


F11



40

Air conditioning blower.

PRACTICAL INFORMATION
204

Fuse
N°

Rating
(A)

Functions



F12


30

Windscreen wipers slow/fast speed.


F13


40

Built-in systems interface supply (ignition positive).


F14


30

Air pump.


F15


10

Right-hand main beam headlamp.


F16


10

Left-hand main beam headlamp.


F17


15

Left-hand dipped headlamp.


F18


15

Right-hand dipped headlamp.


F19


15
Oil vapour heater (1.6 litre VTi), Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).


F20


10
Electronic thermostat, variable timing electrovalves,
Turbo pressure regulation electrovalve (Diesel),
engine coolant level detector (Diesel).


F21


5
Fan assembly relay supply, Valvetronic relay
control (1.6 litre VTi), Turbo cooling (1.6 litre THP),
air fl ow sensor (1.6 litre HDI).

PRACTICAL INFORMATION
205

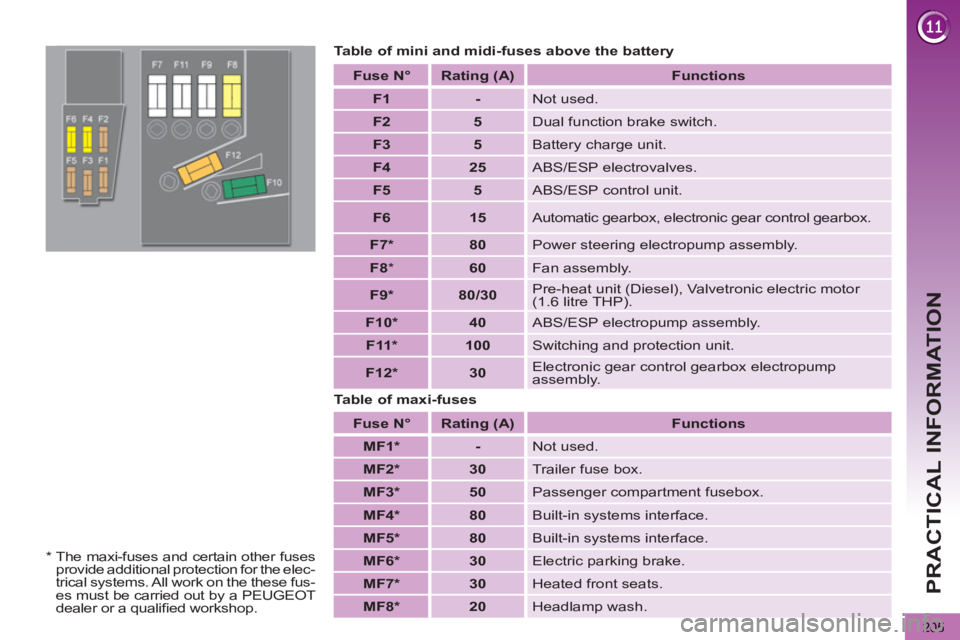

Table of mini and midi-fuses above the battery

Table of maxi-fuses
Fuse N°

Rating
(A)

Functions



F1



-

Not used.


F2



5

Dual function brake switch.


F3



5

Battery charge unit.


F4



25

ABS/ESP electrovalves.


F5



5

ABS/ESP control unit.


F6



15

Automatic gearbox, electronic gear control gearbox.


F7 *



80

Power steering electropump assembly.


F8

*


60

Fan assembly.


F9 *



80/30

Pre-heat unit (Diesel), Valvetronic electric motor
(1.6 litre THP).


F10 *



40

ABS/ESP electropump assembly.


F11 *



100

Switching and protection unit.


F12 *



30

Electronic gear control gearbox electropump
assembly.

Fuse N°

Rating (A)



Functions



MF1 *



-

Not used.


MF2 *



30

Trailer fuse box.


MF3 *



50

Passenger compartment fusebox.


MF4 *



80

Built-in systems interface.


MF5 *



80

Built-in systems interface.


MF6 *



30

Electric parking brake.


MF7 *



30

Heated front seats.


MF8 *



20

Headlamp wash.
*
The maxi-fuses and certain other fuses
provide additional protection for the elec-
trical systems. All work on the these fus-
es must be carried out by a PEUGEOT
dealer or a qualifi ed workshop.
