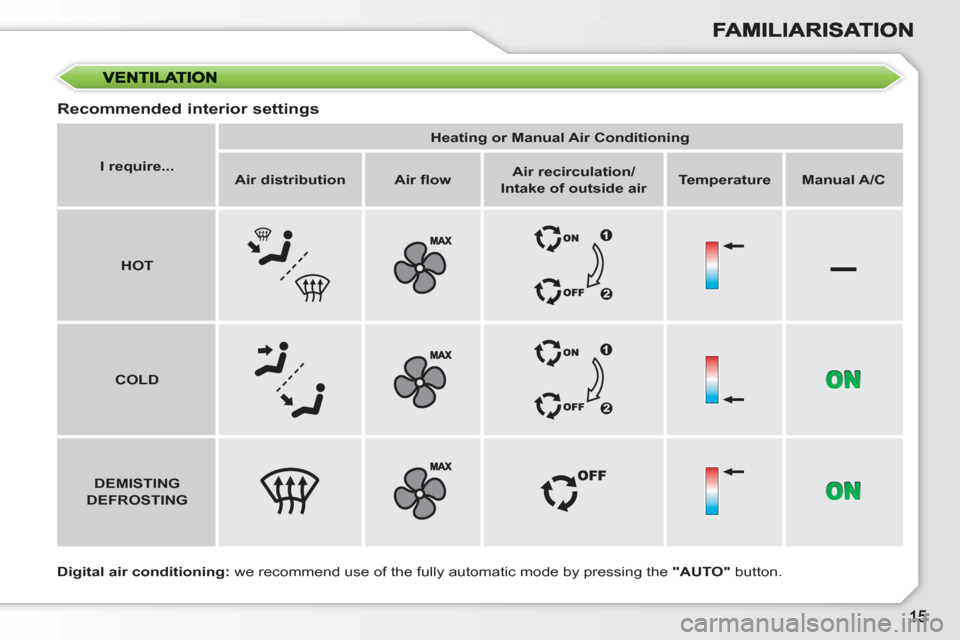

Recommended interior settings


Digital air conditioning:
we recommend use of the fully automatic mode by pressing the "AUTO"
button.

I require...



Heating or Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation/


Intake of outside air



Temperature



Manual A/C




HOT





COLD





DEMISTING


DEFROSTING

Instrument panel
Switch panel



A.
With the ignition on, the needle should
indicate the level of fuel remaining.

B.
With the engine running, its
associated low level warning lamp
should switch off.

C.
With the ignition on, the oil level
indicator should indicate for a few
seconds that the level is correct or
OK, depending on version.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator lamp indicates
the status of the corresponding
function.


A.
Emergency call in progress.


229

B.
Deactivation of the alarm interior
volumetric monitoring.


83

C.
Central locking.


87

D.
Deactivation of the ESP/ASR system.


131

E.
Deactivation of the front and rear
parking sensors.


155

F.
Access to PEUGEOT services.


229



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should switch off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




22



26

Passenger's front airbag
Electric child lock



1.
Insert the key.

2.
Select the position:
"OFF"
(deactivation), with "rear
facing" child seat,
"ON"
(activation), with front
passenger or "forwards facing"
child seat.

3.
Remove the key keeping the switch
in the new position. Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
Activation of the electric child lock.

A.
Front and/or rear seat belts not
fastened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp * .

E.
Rear centre seat belt warning
lamp * .

F.
Rear left seat belt warning lamp * .

G.
Passenger's front airbag
deactivated warning lamp.

H.
Passenger's front airbag activated
warning lamp.


Seat belts and passenger's
front airbag



133, 138




137




127

*
Only on SW individual rear seats.

Operating the rear seats


2nd row rear seats


1.
Forwards-backwards adjustment.

2.
Seat back angle adjustment/Table
position.

3.
Head restraint height adjustment.

4.
Folding.

5.
Removal/Installation.

6.
Carrying.



69

3rd row additional seats


A.
Seat back angle adjustment/Table
position.

B.
Head restraint height adjustment.

C.
Folding.

D.
Removal/Installation.

E.
Carrying.



71




Operating the front
passenger seat

Table position


A.
Placing in the partial table position.

B.
Placing in the full table position.



65

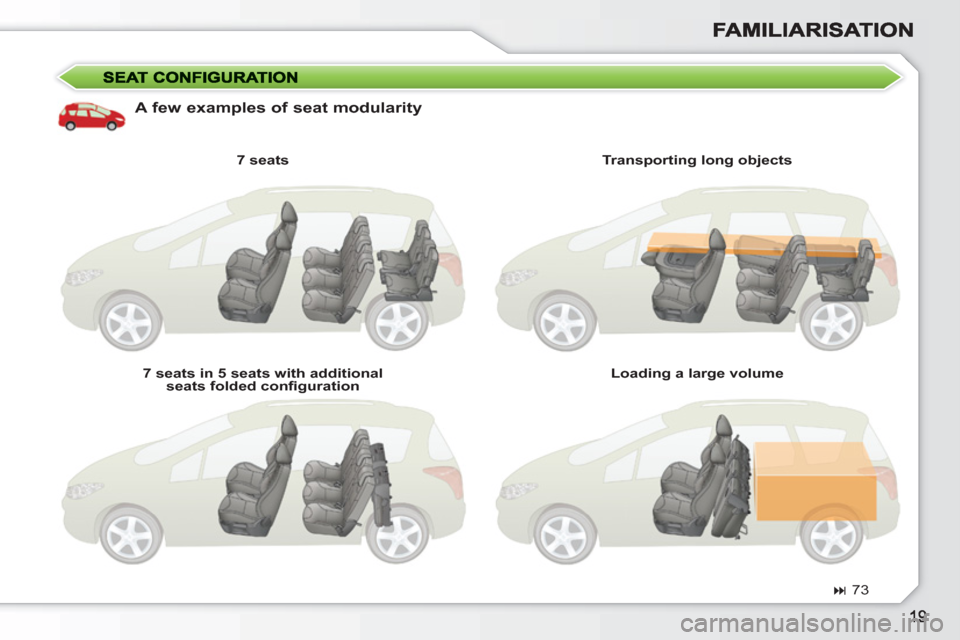

A few examples of seat modularity


7 seats

7 seats in 5 seats with additional
seats folded confi guration
Transporting long objects

Loading a large volume



73

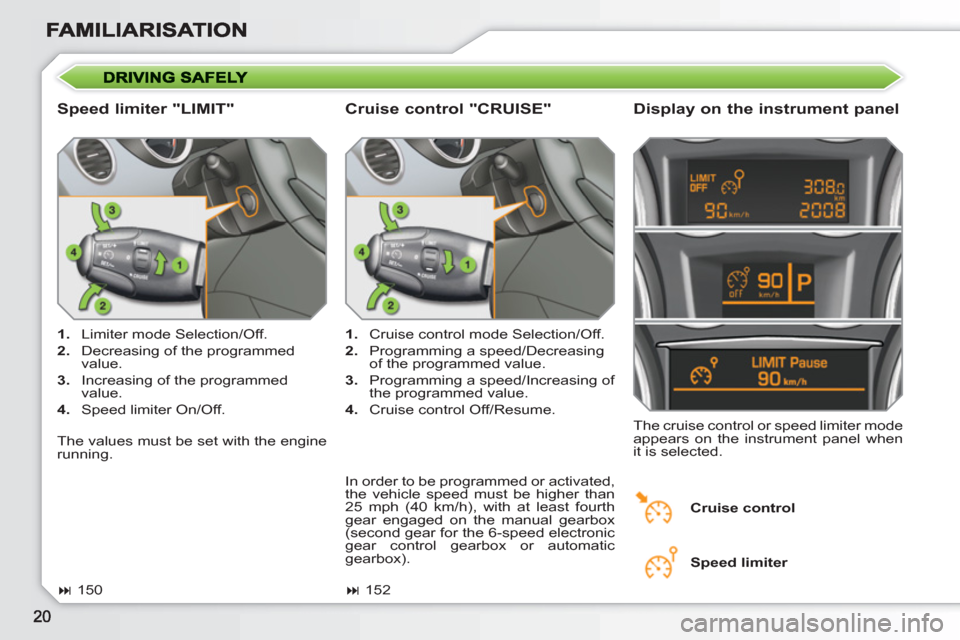

Speed limiter "LIMIT"
Display on the instrument panel



1.
Limiter mode Selection/Off.

2.
Decreasing of the programmed
value.

3.
Increasing of the programmed
value.

4.
Speed limiter On/Off.
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

1.
Cruise control mode Selection/Off.

2.
Programming a speed/Decreasing
of the programmed value.

3.
Programming a speed/Increasing of
the programmed value.

4.
Cruise control Off/Resume.


Cruise control "CRUISE"


Cruise control

Speed limiter




152




150
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear for the 6-speed electronic
gear control gearbox or automatic
gearbox). The values must be set with the engine
running.

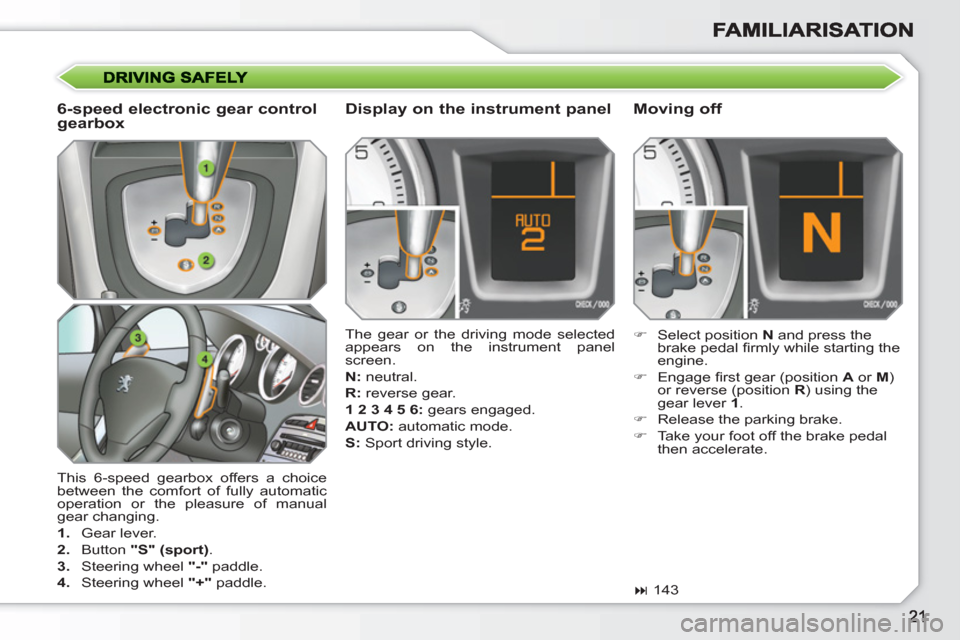

This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.


1.
Gear lever.

2.
Button "S" (sport)
.

3.
Steering wheel "-"
paddle.

4.
Steering wheel "+"
paddle.
The gear or the driving mode selected
appears on the instrument panel
screen.

N:
neutral.

R:
reverse gear.

1 2 3 4 5 6:
gears engaged.

AUTO:
automatic mode.

S:
Sport driving style.


Display on the instrument panel



)
Select position N
and press the
brake pedal fi rmly while starting the
engine.

)
Engage fi rst gear (position A
or M
)
or reverse (position R
) using the
gear lever 1
.

)
Release the parking brake.

)
Take your foot off the brake pedal
then accelerate.


Moving off




143



6-speed electronic gear control
gearbox

i
22
INSTRUMENTS and CONTROLS

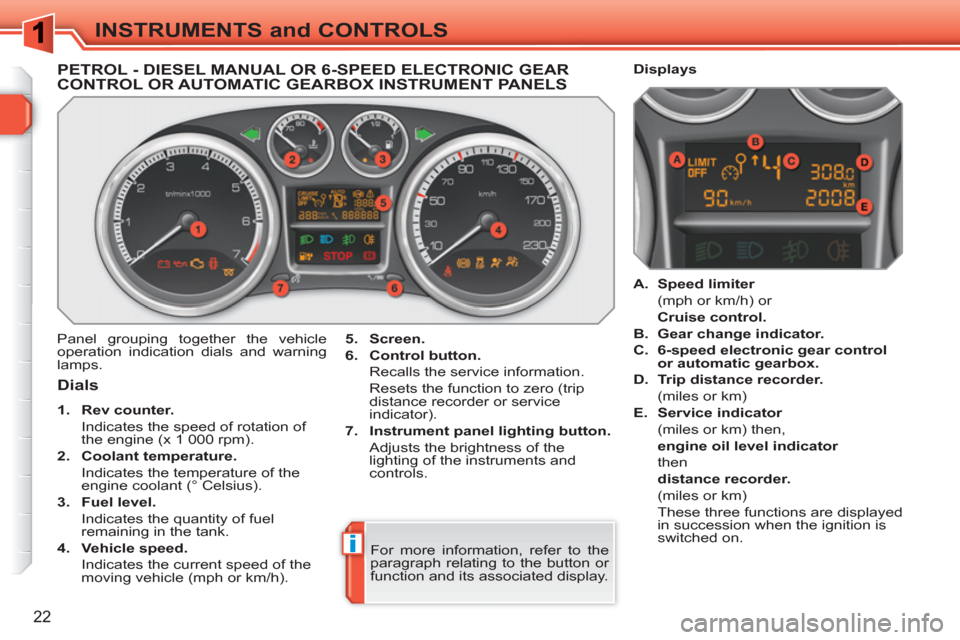

PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEARCONTROL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Screen.


6.
Control button.


Recalls the service information.
Resets the function to zero (trip
distance recorder or service
indicator).

7.
Instrument panel lighting button.


Adjusts the brightness of the
lighting of the instruments and
controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of
the engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.


Indicates the quantity of fuel
remaining in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Speed limiter


(mph or km/h) or
Cruise control.


B.
Gear change indicator.


C.
6-speed electronic gear control
or automatic gearbox.


D.
Trip distance recorder.


(miles or km)

E.
Service indicator


(miles or km) then,
engine oil level indicator


then
distance recorder.


(miles or km)
These three functions are displayed
in succession when the ignition is
switched on.


Displays
For more information, refer to the
paragraph relating to the button or
function and its associated display.
