FITTINGS
12 V ACCESSORIES SOCKET


)
To connect a 12 V accessory (max
power: 120 W), remove the cover
and connect a suitable adaptor.
ILLUMINATED ASHTRAY



)
Pull the drawer for access to the
ashtray.

)
To empty the ashtray, after opening,
press the tab and remove the
ashtray.

BAG HOOK



)
Press the lower part of the hook to
unfold it.

)
Hang the strap of your bag on the
hook to secure it.
PEUGEOT CONNECT USB


This connection box, consisting of a
USB port, is located in the front arm-
rest.
It permits the connection of portable
equipment, such as an iPod
® digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.

When it is in use, the portable equip-
ment charges automatically.

For more information on the use of
this equipment, refer to the "Peugeot
Connect Media" or "Peugeot Connect
Sound" part of the "Audio and Telemat-
ics" section.

1
!
i
i
200
PRACTICAL INFORMATION
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this specifi c warn-
ing. You are advised to contact a
PEUGEOT representative to be
shown the range of recommended
equipment and accessories.

Depending on the country in which
the vehicle is sold, it may be compul-
sory to have a high visibility safety
jacket, warning triangle and spare
bulbs available in the vehicle.
"Protection":
mats *** , mud fl aps, seat covers com-
patible with lateral airbags, vehicle cov-
ers, door sill protectors, transluscent
bumper protectors.
"Mulitmedia":
audio systems, amplifi ers, satellite
navigation systems, Bluetooth system,
speakers, DVD player, USB Box, WiFi
on board...

***
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of
another.

Installation of radio
communication transmitters
Before installing on your vehicle
any after-market radio communica-
tion transmitter with external aerial,
we recommend that you contact
a PEUGEOT dealer.
The PEUGEOT dealer network
will give you the specifi cation
for transmitters which can be fi t-
ted (frequency, maximum power,
aerial position, specifi c installation
requirements), in line with the Ve-
hicle Electromagnetic Compatibility
Directive (2004/104/EC).


You can also obtain products for cleaning
and maintenance (exterior and interior),
topping up (screenwash...) and refi lls
(fragrance cartridges, sealant cartridge
for the temporary puncture repair kit...)
from PEUGEOT dealers.

233
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1
RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK

The Peugeot Connect Media is protected in such away that it will only operate in your vehicle. If it is to beinstalled in another vehicle, contact a PEUGEOT dealer for confi guration of the system.
Certain functions described in this handbook will become available during the course of the year.
Peugeot Connect Media
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
gg


GPS EUROPE



For safety reasons, it is imperative that the driver carriesout operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the Peugeot Connect Mediaswitches off following the activation of the EnergyEconomy mode.



●
01 First steps
CONTENTS


●
02 General operation


●
03 Navigation - Guidance


●
04 Traffi c information


●
05 Radio


●
06 Music media players


●
07 Making a telephone call


●
08 Confi guration


●
09 Voice commands and
steering mounted controls


●
10 Screen menu map


●
Frequently asked questions
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
234
236
240
248
250
251
256
260
261
264
268

237
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
2
2
1
1
2
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
2
2
2
2
2
GENERAL OPERATION

Pressing OK gives access to short-cut menus according to the display on the screen.
MUSIC MEDIA PLAYERS:
TA
PLAY OPTIONS
NAVIGATION (IF GUIDANCE IS IN PROGRESS):

ABORT GUIDANCE

REPEAT ADVICE

BLOCK ROAD

UNBLOCK

MORE

LESS

CALCULATE

ZOOM/SCROLL

BROWSE ROUTE

ROUTE INFO
SHOW DESTINATION

TRIP INFO

Route type


RADIO:
IN FM MODE
TA

RDS

RADIOTEXT

REGIONAL PROG.
AM


IN AM MODE

TA

REFRESH AM LIST
FM


TELEPHONE:

END CALL

HOLD CALL

DIAL

DTMF-TONES

PRIVATE MODE

MICRO OFF
DISPLAY ACCORDING TO THE CONTEXT
Avoid
Satellites

Stopovers
BROWSE ROUTE
ZOOM/SCROLL
VOICE ADVICE

ROUTE OPTIONS

ROUTE TYPE
ROUTE DYNAMICS
AVOIDANCE CRITERIA
RECALCULATE
NORMAL ORDER
RANDOM TRACK
SCAN
SELECT MEDIA

251

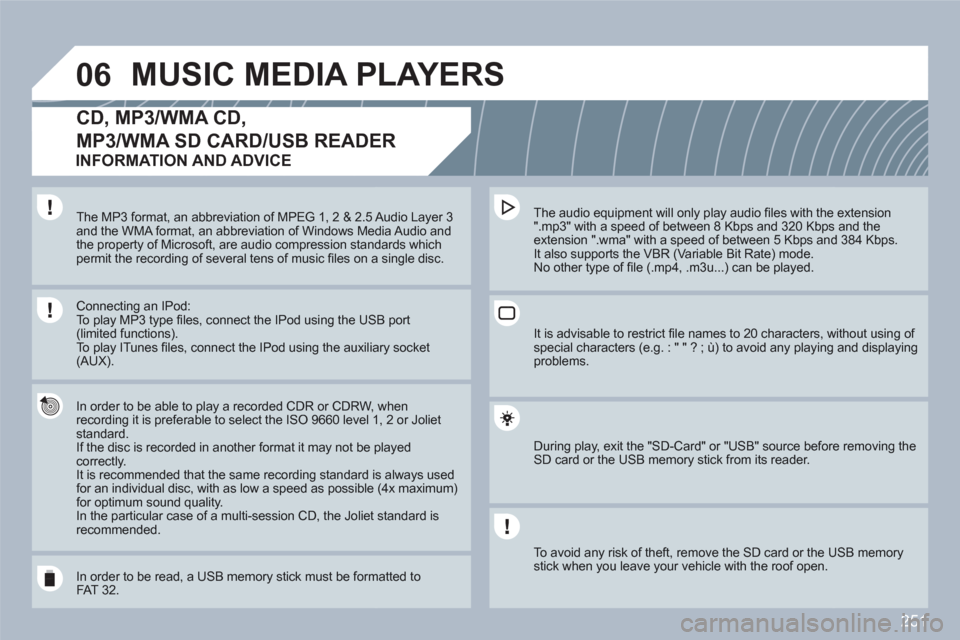

06MUSIC MEDIA PLAYERS
CD, MP3/WMA CD,
MP3/WMA SD CARD/USB READER

In order to be able to play a recorded CDR or CDRW, whenrecording it is preferable to select the ISO 9660 level 11, 2 or Jolietstandard.
If the disc is recorded in another format it may not be pplayedcorrectly.
It is recommended that the same recording standard is always usedfor an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio equipment will only play audio fi les with thee extension ".mp3" with a speed of between 8 Kbps and 320 Kbpss and theextension ".wma" with a speed of between 5 Kbps andd 384 Kbps. It also supports the VBR (Variable Bit Rate) mode. No other type of fi le (.mp4, .m3u...) can be played.

The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio Layer 3and the WMA format, an abbreviation of Windows Media Audio andthe property of Microsoft, are audio compression standdards whichpermit the recording of several tens of music fi les on aa single disc.


Connecting an IPod:
To play MP3 type fi les, connect the IPod using the USSB port (limited functions).
To play ITunes fi les, connect the IPod using the auxiliaary socket(AUX).


In order to be read, a USB memory stick must be formmatted to FAT 32.
It is advisable to restrict fi le names to 20 characters, wwithout using of special characters (e.g. : " " ? ; ˘) to avoid any playingg and displaying problems.
During play, exit the "SD-Card" or "USB" source beforre removing theSD card or the USB memory stick from its reader.
To avoid any risk of theft, remove the SD card or the UUSB memorystick when you leave your vehicle with the roof open.

INFORMATION AND ADVICE

252
4
5
6
RADIONAVESCTRAFFICADDRBOOKMEDIAMEDIA
2
7
3
1
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
MEDIA
ABCDEF5JKL4GHI68TUV7PQRS90*#
RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
06
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
CD, MP3/WMA CD, MP3/WMA SD CARD/
USB READER
The playing and displaying of an MP3/WMA compilatioon may dependon the recording programme and/or the parameters ussed. We recommend the ISO 9660 recording standard. Press the MEDIA button.
Select the "Select media" function and press OK to confi rm.

Press this button.
Select the music source required.Press OK to confi rm. Play begins.
SELECT MEDIA

Press the MEDIA button again or select the "Media" Menu function and press OK to confi rm.

When the "MEDIA" screen is displayed, turn the ring up or down to select the previous or next compatible source.
"MEDIA" MENU
The list of tracks or MP3/WMA fi les appears under "Media" Menu.

Insert the audio or MP3 CD in the player,the SD card in the card reader or the USB peripheral in the USB reader. Play begins automatically.
MP3 CDs, SD cards or USB peripherals are the compatible sources.
MUSIC MEDIA PLAYERS

253
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
1
2
3
RADIONAVESCTRAFFICADDRBOOKMEDIAMEDIA
RADIONAVESCTRAFFICADDRBOOKMEDIAMEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK4
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
5
6
7
8
9
MEDIA
06
Select "Jukebox management" then "Add fi les"and press OK at each step to confi rm.
Press the MEDIA button. Press the MEDIA button again or select Media Menu and press OK to confi rm.
Insert an audio/MP3 CD, a USB memory stick or an SD card.
JUKEBOX

ADD FILES

Check that the active MEDIA source is that of the meddium used (CD, USB or SD card).
Select "Add fi les from MP3-Disc" for example and press OK to validate.


Select the tracks required then"Rip selection" or select all of thetracks using "Rip all".

Select "[New folder]" to create a new folder or select an existing folder (created previously).

ADD FILES FROM MP3-DISC
[NEW FOLDER]


"Do you want to change the names of the tracks that will be ripped?": select"Yes" to change them or "No".


To copy an MP3 CD, then select "Real time ripping", "Fast ripping"/"High quality (192 kbit/sec)" or "Standard quality (128 kbit/sec)" then select "Start ripping".

Confi rm the warning message by pressing "OK" to start the copy.

OK

YESNO
When copying is in progress, switching off the ignition will interrupt the process but it will resumedirectly when the ignition is switched on again.

MUSIC MEDIA PLAYERS

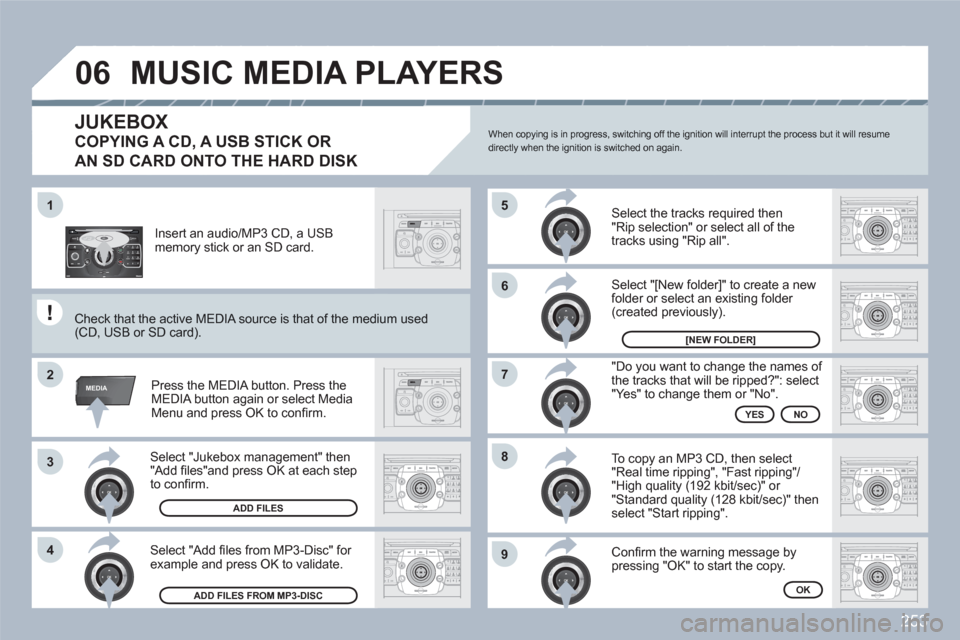

COPYING A CD, A USB STICK OR
AN SD CARD ONTO THE HARD DISK

254
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
33
22
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOKMEDIA
33
44
55
RADIONAVESCTRAFFICADDRBOOKMEDIAMEDIA22
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
RADIONAVESCTRAFFICADDRBOOKMEDIAMEDIAMEDIA1
11
06
Press the MEDIA button.Press the MEDIA button again or select Media Menu and press OK to confi rm.
Select "Jukebox management" and press OK to confi rm.

Select "Play options" and press OK to confi rm. Select "Folders & Files" or "Playlists" then press OK to confi rm.
Press the ESC button to return to the fi rst fi le level. Playlists can be created in the Jukebox. Media Menu> Jukebox management> Create new playlist. Add the tracks required one by one then save the change. The "Playlists" play mode must then be selected.
JUKEBOX


LISTENING TO THE JUKEBOX

JUKEBOX MANAGEMENT

MODIFY CONTENT
Press the MEDIA button.
Press the MEDIA button again or select Media Menu and press OK to confi rm.
Select "Jukebox management" and press OK to confi rm.
Select "Modify content" and press OK confi rm.

JUKEBOX


RENAMING OR DELETING AN ALBUM

Activate the playing of a source other than the Jukebox(CD, radio, etc...).
Check that the active source is not the Jukebox in ordeer to be able to rename or delete a track/folder.
MUSIC MEDIA PLAYERS
