159
DRIVING

Moving off



)
With your foot on the brake, select
position P
or N
.

)
Start the engine.
If this procedure is not followed, there
is an audible signal, accompanied by a
message in the multifunction screen.


)
With the engine running, press the
brake pedal.

)
Release the parking brake, unless it
is programmed to automatic mode.

)
Select position R
, D
or M
,

)
Gradually release the brake pedal.
The vehicle moves off immediately.
If position N
is engaged inad-
vertently while driving, allow the
engine to return to idle then en-
gage position D
to accelerate. The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
ing to the style of driving, the profi le of
the road and the load in the vehicle.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide effi cient engine
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.

Automatic operation



)
Select position D
for automatic

changing of the six gears.

7
appears in the instrument
panel.

Snow programme " 7
"


)
Press button " 7
", after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.
S
appears in the instrument
panel.
Sport programme "S"


)
Press button "S"
, after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.

Never select position N
while
the vehicle is moving.
Never select positions P
or R

unless the vehicle is completely sta-
tionary.

When the engine is running at
idle, with the brakes released,
if position R
, D
or M
is select-
ed, the vehicle moves even without
the accelerator being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P
.



Sport and snow programmes

These two special programmes supple-
ment the automatic operation in very
specifi c conditions of use.


Return to automatic operation



)
At any time, press the button selected
again to quit the programme engaged
and return to auto-adaptive mode.

160
DRIVING

Stopping the vehicle

Before switching off the engine, you
can engage position P
or N
to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle, unless it is
programmed to automatic mode.

Operating fault

When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible
signal and a message in the
multifunction screen, indicates
a gearbox malfunction.
In this case, the gearbox switches to
back-up mode and is locked in 3rd gear.
You may feel a substantial knock when
changing from P
to R
and from N
to R
.
This will not cause any damage to the
gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
This warning lamp may also come on if
a door is opened.

You risk damaging the gear-
box:

Manual operation



)
Select position M
for sequential

changing of the six gears.

)
Push the lever towards the +
sign to
change up a gear.

)
Pull the lever towards the -
sign to
change down a gear.

D
disappears and the gears
engaged appear in succes-
sion in the instrument panel.

If the lever is not in position P
,
when the driver's door is opened
or approximately 45 seconds
after the ignition is switched off, there
is an audible signal and a message
appears.


)
Return the lever to position P
; the
audible signal stops and the mes-
sage disappears.

It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).

It is possible to change from position D

(automatic) to position M
(manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1
automatically.
The sport and snow programmes do not
operate in manual mode. If the engine speed is too low or too
high, the gear selected fl ashes for a few
seconds, then the actual gear engaged
is displayed.


- if you press the accelerator and
brake pedals at the same time,

- if you force the lever from posi-
tion P
to another position when
the battery is fl at.
To reduce fuel consumption when
stationary for long periods with the
engine running (traffi c jam...), posi-
tion the gear lever at N
and apply
the parking brake, unless it is pro-
grammed in automatic mode.

172
CHECKS
Avoid prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl u-
ids into sewers or onto the
ground.
Take used oil to a PEUGEOT
dealer or a qualifi ed workshop
(France) or to an authorised waste
disposal site.










Diesel additive level (Diesel engine
with particle emission filter)
The additive reservoir low level is indi-
cated by fi xed illumination of this warn-
ing lamp, accompanied by an audible
warning and a message in the multi-
function screen.








Used products






























CHECKS


Battery

The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, refer
to the "Practical information" section for de-
tails of the precautions to be taken before
disconnecting the battery and following its
reconnection.


Air filter

Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary
(re-
fer to the "Engines" paragraph).


Oil filter

Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualifi ed work-
shop without delay.

Unless otherwise indicated, check
these components in accordance with
the servicing booklet and according to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer or a qualifi ed work-
shop.






The presence of this label, in
particular with the Stop & Start
system, indicates the use of a
specifi c 12 V lead-acid battery with spe-
cial technology and specifi cation, for
which the involvement of a PEUGEOT
dealer or a qualifi ed workshop is re-
quired when replacing or disconnecting
the battery.
Failure to observe this recommendation
may shorten the life of the battery.

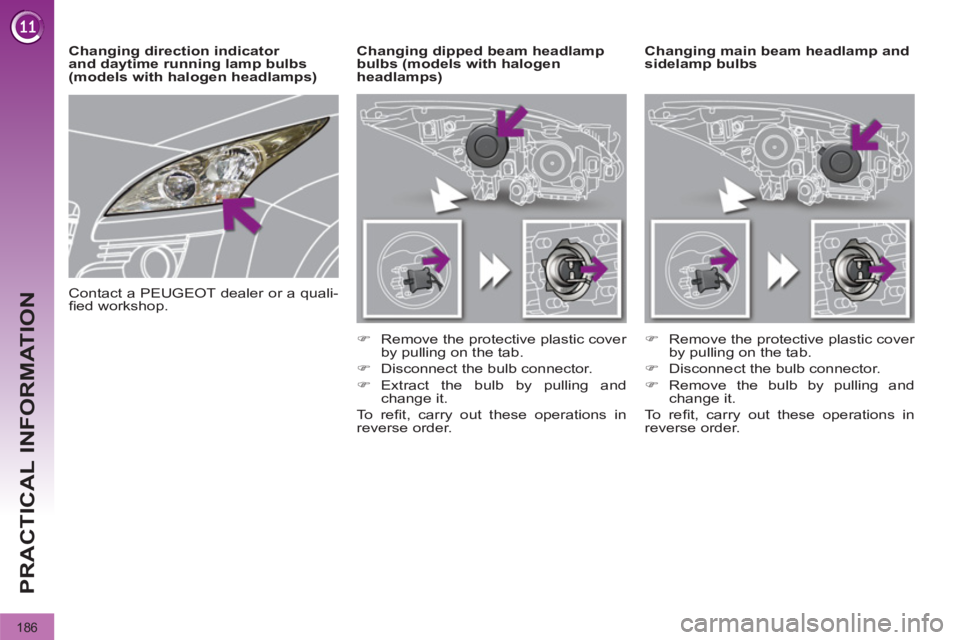

186
PRACTICAL INFORMATION








Changing main beam headlamp and
sidelamp bulbs






Changing dipped beam headlamp
bulbs (models with halogen
headlamps)


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Extract the bulb by pulling and
change it.
To r efi t, carry out these operations in
reverse order.


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Remove the bulb by pulling and
change it.
To r efi t, carry out these operations in
reverse order.


Changing direction indicator
and daytime running lamp bulbs
(models with halogen headlamps)
Contact a PEUGEOT dealer or a quali-
fi ed workshop.

187
PRACTICAL INFORMATION

Changing sidelamp and daytime running
lamp bulbs (models with xenon headlamps)


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Remove the bulb by pulling and
change it.

To r efi t, carry out these operations in re-
verse order.








Changing foglamp bulbs

You can also contact a
PEUGEOT dealer or a quali-
fi ed workshop to have these
bulbs changed.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.


)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

)
Tilt the screwdriver to extract the re-
peater and remove it.

)
Disconnect the repeater connector.
To r efi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to obtain replacement
repeaters.






Changing integrated direction
indicator side repeaters







Changing direction
indicator bulbs







Changing dipped beam
and main beam headlamp
bulbs (models with xenon
headlamps)
D1S xenon bulbs must be changed
by a PEUGEOT dealer or a qualifi ed
workshop as there is a risk of elec-
trocution.
It is recommended that the D1S bulbs
are changed at the same time when
one of them fails.
Contact a PEUGEOT dealer or a
qualifi ed workshop.

194
PRACTICAL INFORMATION

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see corresponding
paragraph).

)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.

Fuse table

Fuse
N°

Rating
(A)


Functions



F1



20

Engine control unit supply, injection pump and EGR
electrovalves (2 litre HDI), injectors (2 litre HDI).


F2



15

Horn.


F3



10

Front/rear wash-wipe.


F4



10

Daytime running lamps.


F5



15

Purge canister, turbine discharge and Turbo
pressure regulation electrovalves (1.6 litre THP),
oil vapour heater (1.6 litre THP), diesel heater
(1.6 litre HDI).


F6



10

Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), Distance alert,
engine coolant level detector, mirror adjustment
control.


F7



10

Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.


F8



20

Starter motor control.


F9



10

Clutch and brake pedal switches.


F10



30

Engine control unit actuators (petrol: ignition
coils, electrovalves, oxygen sensors, injectors,
heaters, fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).


F11



40

Air conditioning fan.

204
PRACTICAL INFORMATION

Installation of radio
communication
transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).



*
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.






ACCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommendation
and warranty.







"Transport solutions":

For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds, under shelf
storage.
Trailer towbar, which must be fi tted by a
PEUGEOT dealer.

You can also obtain cleaning and main-
tenance products (exterior and interior),
products for topping up (screenwash
fl uid...) and refi lls (sealant cartridge
for the temporary puncture repair kit...)
from PEUGEOT dealers.


Depending on the legislation
in force in the country, it may
be compulsory to have a high
visibility safety vest, warning triangle
and spare bulbs and fuses available
in the vehicle.
The fi tting of electrical equip-
ment or accessories which
are not recommended by
PEUGEOT may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.



"Style":

seat covers compatible with lateral air-
bags, leather gear lever knob, foglamps,
door defl ectors, spoiler, styling strips,
alloy wheels, trims, chrome-plated door
handle shells.


"Safety and security":

anti-theft alarm, window etching, wheel
security bolts, fi rst aid kit, breathalyzer,
warning triangle, high visibility vest, sto-
len vehicle tracking system, dog guard,
snow chains.


"Protection":

mats * , boot tray, luggage net, coat
hanger fi xed on head restraint, stainless
steel or carbon fi bre style door sills.


"Multimedia":

audio systems, amplifi ers, satellite navi-
gation systems, Bluetooth hands-free
system, CD changer, speakers, DVD
player, USB Box, front and rear parking
sensors, additional Bluetooth wireless
headphones, Bluetooth audio head-
phones mains charger.

220
02
2
1
SETUP2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1NAV ESC TRAFFICADDR
BOOKSETUP

Before using the system for the fi rst time, you are advised to listen
to, say and practice the tutorial.

Press the SETUP button and select
the "Language & Speech" function.
Turn the ring and select "Voice control".
Activate voice recognition.
Select "Tutorial".










VOICE COMMANDS -
VOICE RECO. INITIATION

The phrases to be spoken according to the context are indicated in
the tables below.
Speak and Peugeot Connect Media acts.

Pressing the end of the lighting
control stalk activates voice
recognition.



CONTEXT



SAY



ACTION




GENERAL

Help address book
Help voice control
Help media
Help navigation
Help telephone
Help radio
Cancel
Correction Access to the address book help
Access to the voice recognition help
Access to the media management help
Access to the guidance, navigation help
Access to the telephone help
Access to the radio help
To cancel a voice command which is in
progress
Request to correct the last voice
recognition carried out
Clear


RADIO

Select station
Station
Read out station list
Enter frequency
Select wave band
AM
FM
TA on
TA off Select a radio station
Select a radio station using its RDS
description from the
RADIO list
Listen to the list of stations available
Listen to the frequency of the current
radio station
Choose the frequency waveband
(AM or FM)
Change the frequency waveband to AM
Change the frequency waveband to FM
Activate Traffi c Info (TA)
Deactivate Traffi c Info


NAVIGATION

Destination input
Voice advice off
Voice advice on
Save address
Start guidance

Abort guidance
Navigate entry
POI Search Command to enter a new destination
address
Deactivate the spoken guidance
instructions
Activate the spoken guidance instructions
Save an address in the address book
Start guidance (once the address has
been entered)
Stop the guidance
Start guidance to an entry in the address
book
Start guidance to a point of interest

VOICE COMMANDS AND STEERING MOUNTED CONTROLS
