Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and
observe the schedule of operations
recommended by the manufacturer.


When refuelling, do not continue after
the 3rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

26

35
INSTRUMENTS and CONTROLS


Warning lamp



is on



Cause



Action/Observations








Engine
autodiagnosis
system


fi xed. The emission control system
has a fault. The warning lamp should go off when
the engine is started.
If it does not go off, contact a PEUGEOT
dealer or qualifi ed workshop without delay.

fl ashing. The engine management
system has a fault.
Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.






Low fuel
level


fi xed with the needle
in the red zone. When it fi rst comes on there
remains approximately
6 litres
of fuel in the tank.
At this point, you begin to
use the fuel reserve.
Refuel as soon as possible to avoid running out of fuel.
This warning lamp will come on every time the ignition
is switched on, until a suffi cient addition of fuel is made.
Fuel tank capacity: approximately 60 litres
.
Never continue to drive until you run out of fuel, as
this could damage the emission control and injection
systems.





Maximum
coolant
temperature


fi xed with the needle
in the red zone. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a PEUGEOT
dealer or a qualifi ed workshop.






Engine oil
pressure


fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.







Dynamic
stability
control
(ESP/ASR)

fl ashing. The ESP/ASR regulation is
active. The system optimises traction and
improves the directional stability of the
vehicle.

fi xed. Unless it has been
deactivated (button pressed
and its indicator lamp on) the
ESP/ASR system has a fault. Have it checked by a PEUGEOT or a
qualifi ed workshop.

40
INSTRUMENTS and CONTROLS

The level shown will only be
correct if the vehicle is on level
ground and the engine has been
off for more than 30 minutes.















Engine oil level indicator

System which informs the driver wheth-
er the engine oil level is correct or not. This information is indicated for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Oil level low
Oil level indicator fault

Dipstick
This is indicated by the fl ashing of "OIL"
,
linked with the service warning lamp, ac-
companied by an audible signal and a
message in the multifunction screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of
"OIL --"
. Contact a PEUGEOT dealer
or a qualifi ed workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of dam-
age to the engine),

- B
= min; top up the level
via the oil fi ller cap, us-
ing the grade of oil suit-
ed to your engine.

DIESEL
88
ACCESS










Quality of the fuel used for
petrol engines

The petrol engines are perfectly com-
patible with E10 or E24 type petrol
biofuels (containing 10 % or 24 % etha-
nol), conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).














Quality of the fuel used for
Diesel engines

The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Contact a
PEUGEOT dealer or a qualifi ed work-
shop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).


















MISFUEL PREVENTION *

Mechanical device which prevents fi lling
the tank of a Diesel vehicle with petrol. It
avoids the risk of engine damage that can
result from fi lling with the wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.


Operation
When a petrol fi ller nozzle is introduced into
the fuel fi ller neck of your Diesel vehicle, it
comes into contact with the fl ap. The system
remains closed and prevents fi lling.

Do not persist but introduce a Diesel type
fi ller nozzle.


It is still possible to use a fuel
can to fi ll the reservoir.
In order to ensure a good fl ow
of fuel, do not place the nozzle of the
fuel can in direct contact with the fl ap
of the misfuel prevention device.

Travelling abroad
As Diesel fuel pump nozzles may be dif-
ferent in other countries, the presence
of the misfuel prevention device may
make refuelling impossible.
Before travelling abroad, we recommend
that you check with the PEUGEOT dealer
network, whether your vehicle is suitable
for the fuel pumps in the country in which
you want to travel.


* According to destination country.

169
CHECKS

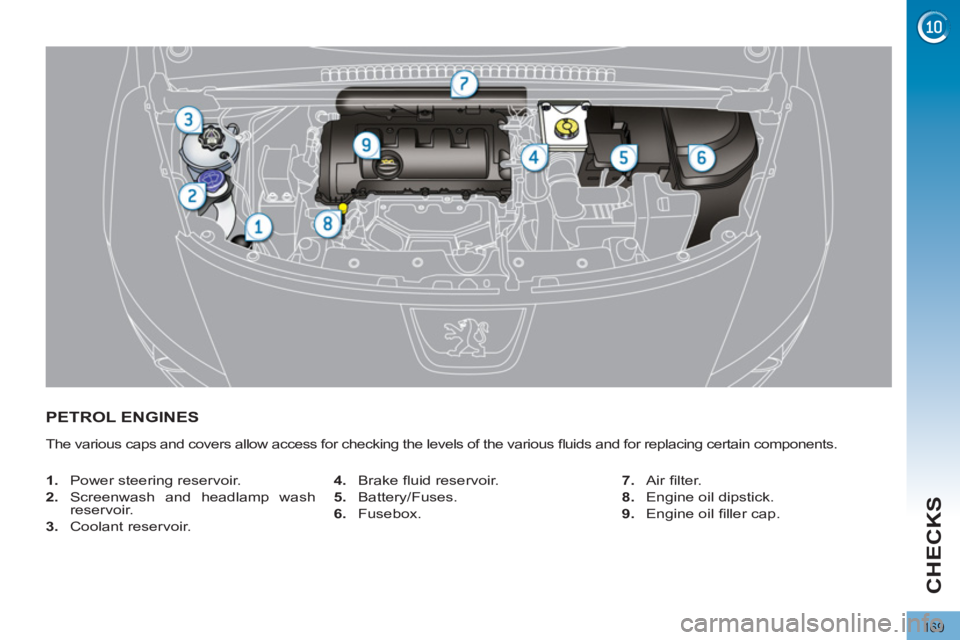

PETROL ENGINES

The various caps and covers allow access for checking the levels of the various fl uids and for replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.
7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

170
CHECKS

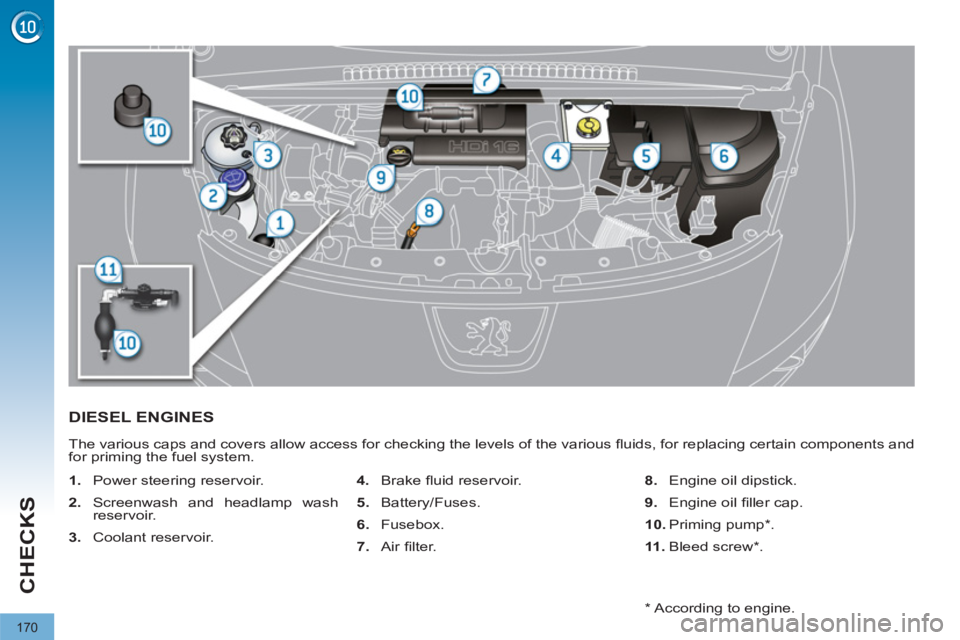

DIESEL ENGINES

The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air fi lter.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

11 .
Bleed screw * .

* According to engine.

171
CHECKS





































CHECKING LEVELS

Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.

Brake fluid level

When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.

On vehicles which are fi tted with a
particle emission fi lter, the fan may
operate after the vehicle has been
switched off, even if the engine is
cold.

In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.

Oil level

The check is carried out either when
the ignition is switched on using the
oil level indicator on the instrument
panel, or using the dipstick.
This manual check will only be correct if the
vehicle is on level ground and the engine
has been off for more than 30 minutes.
After topping up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel will only
be valid 30 minutes after topping up. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the fl uid
Refer to the servicing booklet for details
of the interval for this operation.


Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level.


Screenwash and headlamp
wash fluid
In the case of vehicles fi tted
with headlamp washers, the
low fl uid level is indicated by an
audible signal and a message
in the instrument panel screen.
Top up the reservoir when you stop the
vehicle.

Engine oil change
Refer to the servicing booklet for details
of the interval for this operation.
Oil specifi cation
The oil must be the correct grade for
your engine and conform to the manu-
facturer's recommendations.


Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.

Changing the coolant
The coolant does not have to be
changed.

Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up with or replaced with plain water.



Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.
Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

When working under the bon-
net, take care, as certain areas
of the engine may be extreme-
ly hot (risk of burns).

It is normal to top up the oil level
between services. PEUGEOT
recommends that you check
the oil level and top up if necessary ev-
ery 3 000 miles (5 000 kilometres). In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.

172
CHECKS

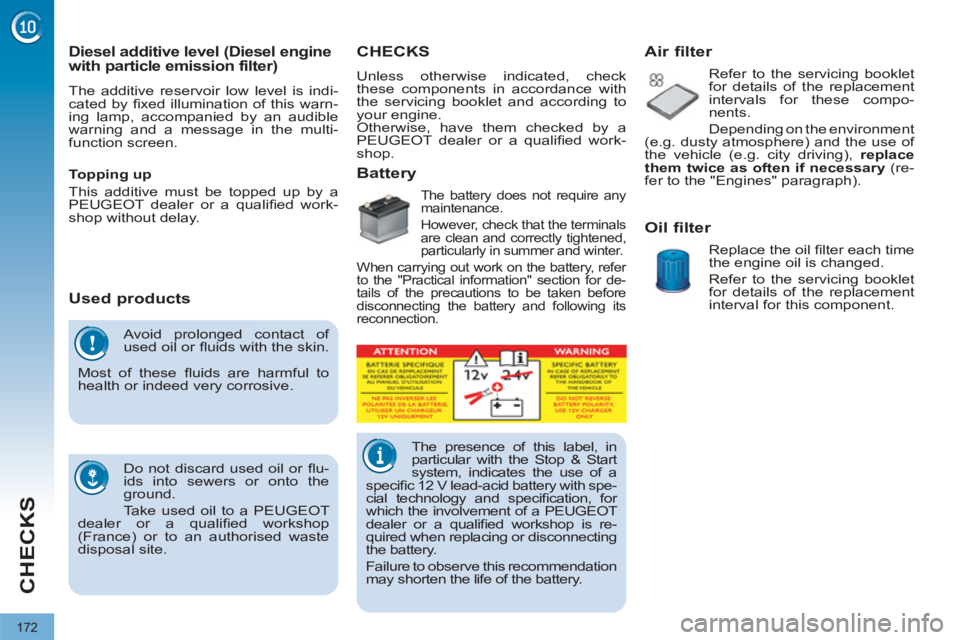

Avoid prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl u-
ids into sewers or onto the
ground.
Take used oil to a PEUGEOT
dealer or a qualifi ed workshop
(France) or to an authorised waste
disposal site.










Diesel additive level (Diesel engine
with particle emission filter)
The additive reservoir low level is indi-
cated by fi xed illumination of this warn-
ing lamp, accompanied by an audible
warning and a message in the multi-
function screen.








Used products






























CHECKS


Battery

The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, refer
to the "Practical information" section for de-
tails of the precautions to be taken before
disconnecting the battery and following its
reconnection.


Air filter

Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary
(re-
fer to the "Engines" paragraph).


Oil filter

Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualifi ed work-
shop without delay.

Unless otherwise indicated, check
these components in accordance with
the servicing booklet and according to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer or a qualifi ed work-
shop.






The presence of this label, in
particular with the Stop & Start
system, indicates the use of a
specifi c 12 V lead-acid battery with spe-
cial technology and specifi cation, for
which the involvement of a PEUGEOT
dealer or a qualifi ed workshop is re-
quired when replacing or disconnecting
the battery.
Failure to observe this recommendation
may shorten the life of the battery.
