1. CD eject.

2. RADIO: access to the "Radio" Menu.
Display the list of stations in alphabetical order
(FM waveband) or frequency order
(AM waveband).
MEDIA: access to the "Media" Menu (Audio CD,
Jukebox, External Device).
Display the list of tracks. Change of source.
NAV: access to the "Navigation" Menu and display
of the last destinations.
ESC: abandon the operation in progress.
Long press: return to the main display.
TRAFFIC: access to the "Traffi c" Menu (function
described in detail in sections 02 and 10). ADDR BOOK: access to the "Address book" Menu
(function described in detail in section 10).
SETUP: access to the "SETUP" Menu
(confi guration) (function described in detail in
sections 02 and 10).
Long press: GPS coverage.

3. Audio settings (Balance/Fader, Bass/Treble,
Musical Ambience...).

4. Volume adjustment (each source is independent,
including message and navigation alert).
Long press: reinitialisation of the system.
Short press: mute.

5.
Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.

FIRST STEPS


Peugeot Connect Media CONTROL PANEL


6. Automatic search for a radio station on a higher frequency. Selection of the next CD or MP3 track.

7. Normal display or black screen.

8. Selection of the successive display on the screen
of "MAP"/"NAV" (if navigation is in progress)/"TEL"
(if a conversation is in progress)/"RADIO" or
"MEDIA" currently being played.

9. PICK UP: access to the "Phone" menu.
With Bluetooth connection, accept an incoming call.

10. HANG UP: access to the "Phone" menu.
Hang up the current call or refuse an incoming
call, with Bluetooth connection.

11. Entering of numbers or letters on the alpha-numeric
keypad, pre-selection of 10 radio frequencies.

12. SD card reader.


Short press: clears the last
character.

187
01
2ABC3DEF
5JKL4GHI6MNO
8TUV7PQRS9WXYZ
0*#
1
13
14

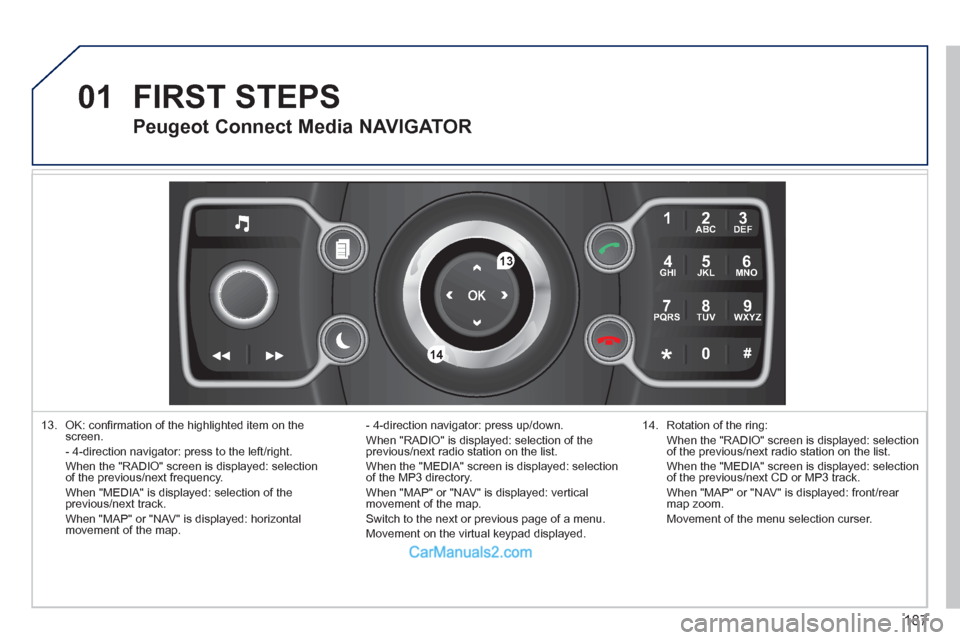

13. OK: confi rmation of the highlighted item on the
screen.
- 4-direction navigator: press to the left/right.
When the "RADIO" screen is displayed: selection
of the previous/next frequency.
When "MEDIA" is displayed: selection of the
previous/next track.
When "MAP" or "NAV" is displayed: horizontal
movement of the map. - 4-direction navigator: press up/down.
When "RADIO" is displayed: selection of the
previous/next radio station on the list.
When the "MEDIA" screen is displayed: selection
of the MP3 directory.
When "MAP" or "NAV" is displayed: vertical
movement of the map.
Switch to the next or previous page of a menu.
Movement on the virtual keypad displayed.
FIRST STEPS


14. Rotation of the ring:
When the "RADIO" screen is displayed: selection
of the previous/next radio station on the list.
When the "MEDIA" screen is displayed: selection
of the previous/next CD or MP3 track.
When "MAP" or "NAV" is displayed: front/rear
map zoom.
Movement of the menu selection curser.



Peugeot Connect Media NAVIGATOR

190
02 VOICE COMMANDS AND STEERING MOUNTED CONTROLS

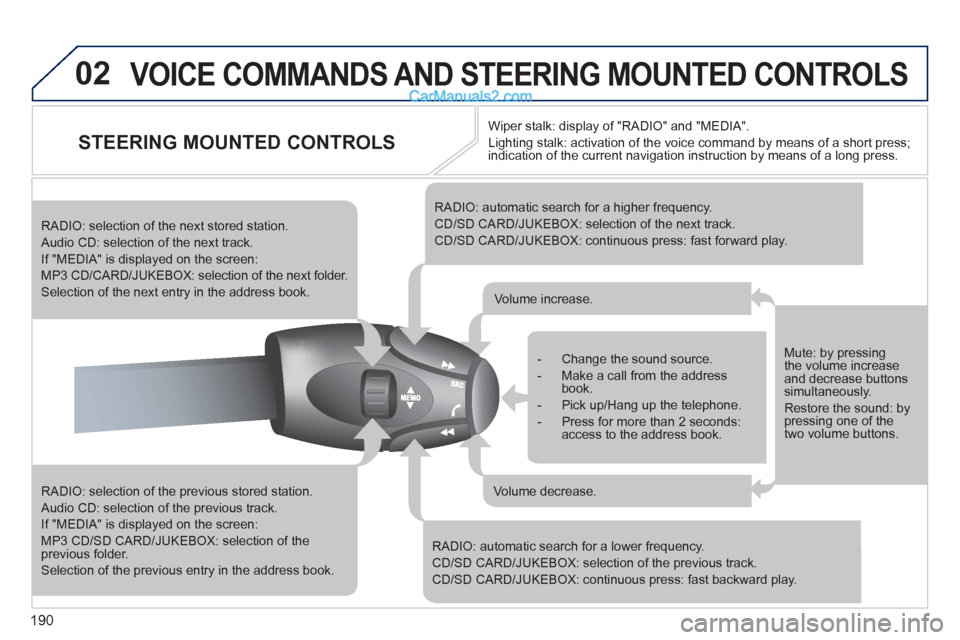

STEERING MOUNTED CONTROLS


RADIO: selection of the previous stored station.
Audio CD: selection of the previous track.
If "MEDIA" is displayed on the screen:
MP3 CD/SD CARD/JUKEBOX: selection of the
previous folder.
Selection of the previous entry in the address book.
RADIO: selection of the next stored station.
Audio CD: selection of the next track.
If "MEDIA" is displayed on the screen:
MP3 CD/CARD/JUKEBOX: selection of the next folder.
Selection of the next entry in the address book.
RADIO: automatic search for a higher frequency.
CD/SD CARD/JUKEBOX: selection of the next track.
CD/SD CARD/JUKEBOX: continuous press: fast forward play.

RADIO: automatic search for a lower frequency.
CD/SD CARD/JUKEBOX: selection of the previous track.
CD/SD CARD/JUKEBOX: continuous press: fast backward play.



- Change the sound source.

- Make a call from the address
book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:
access to the address book.

Volume increase.

Volume decrease.
Mute: by pressing
the volume increase
and decrease buttons
simultaneously.
Restore the sound: by
pressing one of the
two volume buttons.
Wiper stalk: display of "RADIO" and "MEDIA".
Lighting stalk: activation of the voice command by means of a short press;
indication of the current navigation instruction by means of a long press.

191
03
SETUP
TRAFFIC
MEDIA
GENERAL OPERATION


For a detailed global view of the menus available, refer to the
"Screen menu map" section of this handbook.
Press the MODE button several times in succession to gain access to the following displays:

Long press: access to the GPS coverage and to the
demonstration mode.
For maintenance of the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, without any additional product.

RADIO

/

MUSIC

MEDIA/VIDEO




TELEPHONE


(If a conversation is in progress)

FULL SCREEN MAP




NAVIGATION


(If guidance is in progress)


SETUP:


access to the "SETUP" Menu: system language *
and voice functions * , voice initialisation (section 09),
date and time * , display, unit and system parameters.

TRAFFIC:


access to the Traffi c Menu: display of the current
traffi c alerts.










DISPLAY ACCORDING TO THE CONTEXT



MEDIA:


"DVD-audio" menu
"DVD-Video" menu
*
Available according to model.

192
03 GENERAL OPERATION

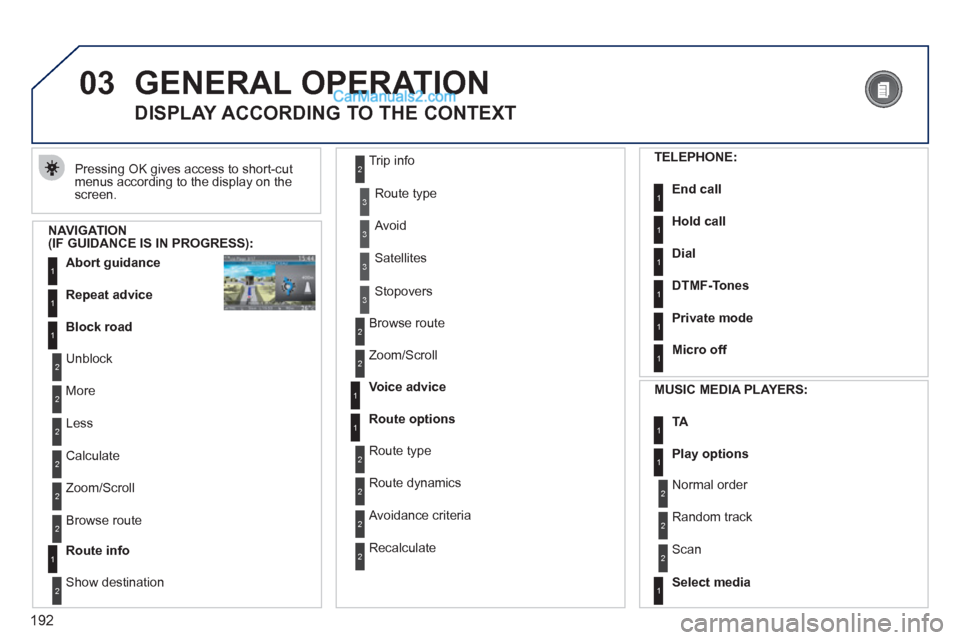

Pressing OK gives access to short-cut
menus according to the display on the
screen.






DISPLAY ACCORDING TO THE CONTEXT


NAVIGATION
(IF GUIDANCE IS IN PROGRESS):

Abort guidance
1
1
1


Repeat advice


Block road

2
2

Unblock
More
2
Less
3
3

Route type
Avoid
3
Satellites
2
2

Calculate
Zoom/Scroll
2
Browse route
1

Route info

2
2

Show destination Trip info
3
Stopovers
2
2

Browse route

Zoom/Scroll
1
1


Voice advice


Route options

2
2

Route type
Route dynamics
2
Avoidance criteria
2
Recalculate
TELEPHONE:


End call
1
1
1
1


Hold call


Dial



DTMF-Tones

1

Private mode

1

Micro off



MUSIC MEDIA PLAYERS:


TA
1
1

Play options

1

Select media


2
2

Normal order
Random track
2
Scan

193
03 GENERAL OPERATION


DISPLAY ACCORDING TO THE CONTEXT

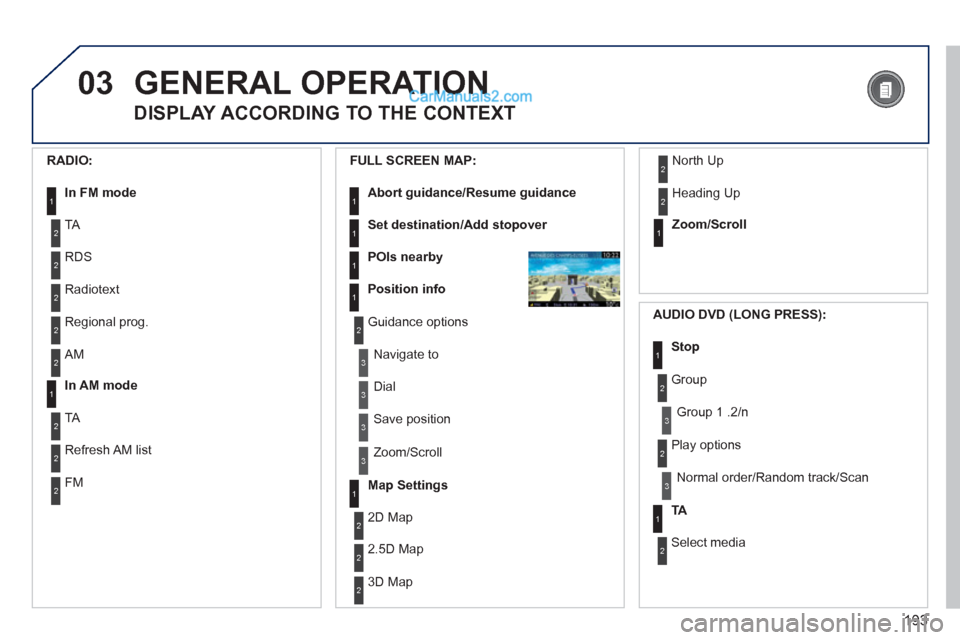

RADIO:


In FM mode
1
1

In AM mode

2
2

TA
RDS
2
Radiotext
2
Regional prog.
2
AM
2
2

TA
Refresh AM list
2
FM

FULL SCREEN MAP:


Abort guidance/Resume guidance
1
1
1
1


Set destination/Add stopover


POIs nearby


Position info

2
Guidance options
3
3

Navigate to
Dial
3
Save position
3
Zoom/Scroll


Map Settings
1
1

Zoom/Scroll


2
2

2D Map
2.5D Map
2
3D Map
2
North Up
2
Heading Up


AUDIO DVD (LONG PRESS):
1

Stop

2
Group
3
Group 1 .2/n


TA
1
2
Select media
2
Play options
3
Normal order/Random track/Scan

194
03
3
3
DVD menu
DVD top menu
3
List of titles
3
List of chapters
VIDEO DVD (LONG PRESS):


Play
1

GENERAL OPERATION


DISPLAY ACCORDING TO THE CONTEXT
2
2

Stop
DVD menus
3
3

Audio
Subtitles
3
Angle
2

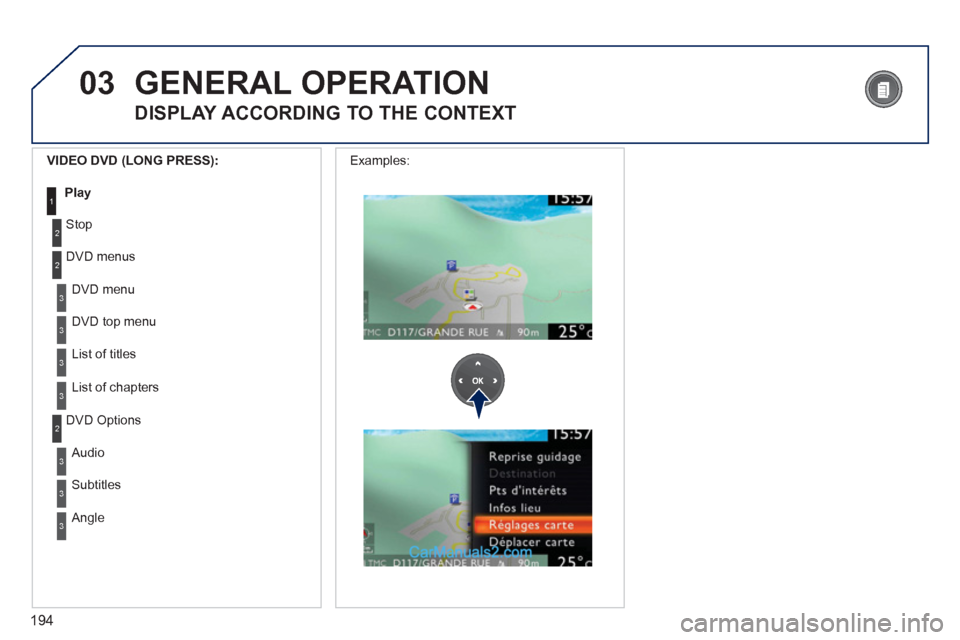

DVD Options Examples:

195

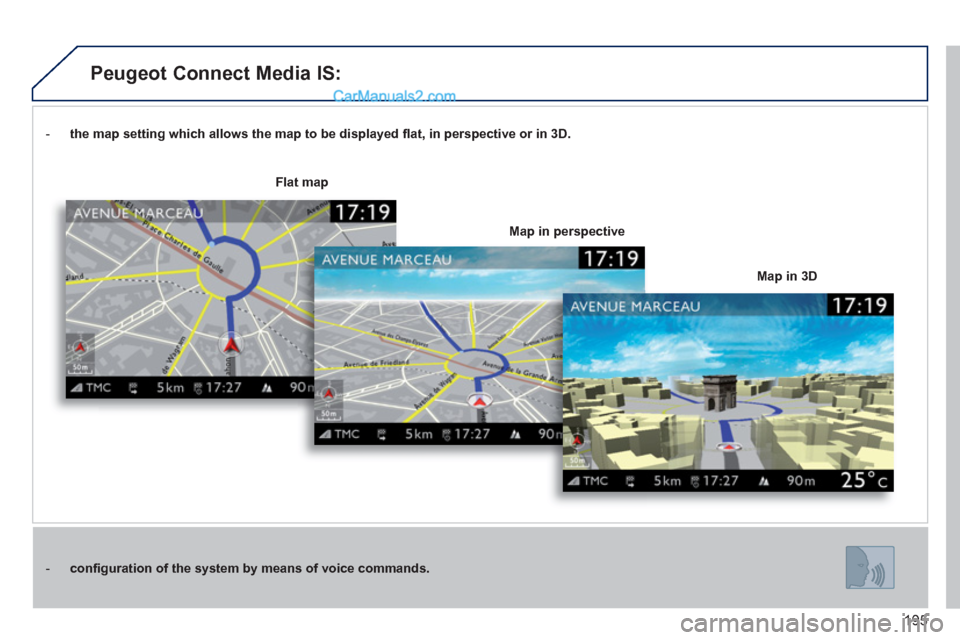

- the map setting which allows the map to be displayed fl at, in perspective or in 3D.




- confi guration of the system by means of voice commands.



Map in 3D

Flat map


Map in perspective





Peugeot Connect Media IS:
