2011 Peugeot 308 CC inflation pressure

7
!
i
i
i
103
SAFETY








TYRE UNDER-INFLATION
DETECTION
System which automatically and continuously
checks the pressure of the tyres while driving.
All repairs and changing of tyres on
a wheel fi tted with this system must
be carried out by a PEUGEOT
dealer or a qualifi ed workshop.
If, when changing a tyre, you fi t a
wheel which is not detected by your
vehicle (example: fi tting of snow
tyres), you must have the system
reinitialised by a PEUGEOT dealer
or a qualifi ed workshop.
This system does not avoid the need
to have the tyre pressures checked
regularly (refer to the "Identifi cation
markings" section) to ensure that
the optimum dynamic performance
of the vehicle is maintained and pre-
vent premature wear of the tyres,
particularly in arduous driving con-
ditions (heavy load, high speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electro-magnetic
emissions on a frequency close to
that used by the system.
Sensors fi tted in each valve trigger a
warning in the event of problem (speed
above 12 mph (20 km/h)).

This warning lamp is displayed
in the instrument panel and/or a
message appears in the screen,
accompanied by an audible signal,
to identify the wheel concerned.


)
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Under-infl ated tyre
The STOP
warning lamp comes
on and/or this warning lamp is
displayed in the instrument panel,
accompanied by an audible sig-
nal and a message in the screen
identifying the wheel concerned.


)
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.

)
Repair or change the damaged
wheel (punctured or very defl ated
tyre), and have the tyre pressure
checked as soon as possible.

Puncture
The tyre under-infl ation detection
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly.
Sensor(s) not detected or faulty
This warning lamp is displayed
on the instrument panel and/
or a message appears in the
screen, accompanied by an
audible signal, to locate the wheel or
wheels which are not detected or to in-
dicate a malfunction of the system.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to replace the faulty
sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are fi tted.
If your vehicle is equipped with a
spare wheel, this is not fi tted with
a sensor.

279

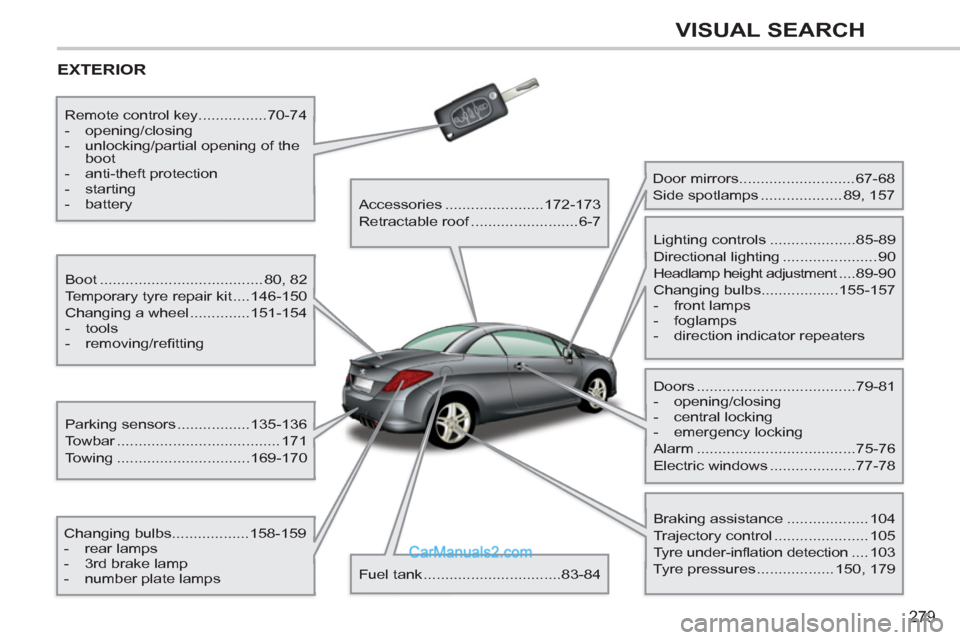

VISUAL SEARCH
EXTERIOR


Boot ...................................... 80, 82
Temporary tyre repair kit ....146-150
Changing a wheel ..............151-154


- tools

- removing/refi tting


Changing bulbs..................158-159


- rear lamps

- 3rd brake lamp

- number plate lamps

Parking sensors .................135-136
Towbar ...................................... 171
Towing ...............................169-170
Remote control key................70-74


- opening/closing

- unlocking/partial opening of the
boot

- anti-theft protection

- starting

- battery


Accessories .......................172-173
Retractable roof .........................6-7

Fuel tank ................................83-84
Door mirrors ...........................67-68
Side spotlamps ................... 89, 157

Doors .....................................79-81


- opening/closing

- central locking

- emergency locking
Alarm .....................................75-76
Electric windows ....................77-78
Lighting controls ....................85-89
Directional lighting ...................... 90
Headlamp height adjustment ....89-90
Changing bulbs..................155-157


- front lamps

- foglamps

- direction indicator repeaters



Braking assistance ................... 104
Trajectory control ...................... 105
Tyre under-inflation detection .... 103
Tyre pressures .................. 150, 179

287

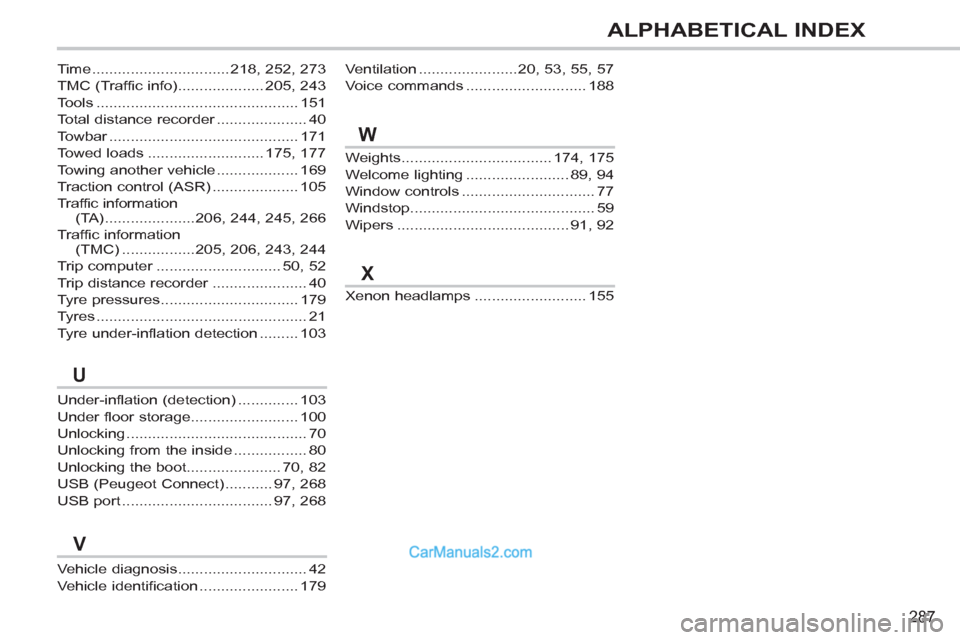

ALPHABETICAL INDEX
Xenon headlamps .......................... 155 Weights ................................... 174, 175
Welcome lighting ........................ 89, 94
Window controls ............................... 77
Windstop........................................... 59
Wipers ........................................ 91, 92
Under-inflation (detection) .............. 103
Under floor storage......................... 100
Unlocking .......................................... 70
Unlocking from the inside ................. 80
Unlocking the boot...................... 70, 82
USB (Peugeot Connect) ........... 97, 268
USB port ................................... 97, 268
W
V
Time ................................ 218, 252, 273
TMC (Traffic info) .................... 205, 243
Tools ............................................... 151
Total distance recorder ..................... 40
Towbar ............................................ 171
Towed loads ........................... 175, 177
Towing another vehicle ................... 169
Traction control (ASR) .................... 105
Traffic information
(TA) .....................206, 244, 245, 266
Traffic information
(TMC) .................205, 206, 243, 244
Trip computer ............................. 50, 52
Trip distance recorder ...................... 40
Tyre pressures ................................ 179
Tyres ................................................. 21
Tyre under-inflation detection ......... 103
Vehicle diagnosis .............................. 42
Vehicle identification ....................... 179
U
X
Ventilation .......................20, 53, 55, 57
Voice commands ............................ 188
