2011 Peugeot 308 CC wipers

2
CONTENTS
Instrument panels 22
Warning and indicator lamps 26
Indicators 36
Instrument panel buttons 40„
„
„
„
Ventilation 53
Manual air conditioning 55
Rear screen demist/defrost 56
Dual-zone digital
air conditioning 57
Windstop 59
Front seats 62
"AIRWAVE" system 65
Rear seats 66
Mirrors 67
Steering wheel adjustment 69„
„
„
„
„
„
„
„
„
„
COMFORT 53 Î 69
Remote control key 70
Alarm 75
Window controls 77
Doors 79
Boot 82
Fuel tank 83
Misfuel prevention 84„
„
„
„
„
„
„
ACCESS 70 Î 84
Lighting controls 85
Light emitting diode lamps 87
Daytime running lamps 87
Automatic illumination of
headlamps 88
Welcome lighting 89
Headlamp adjustment 89
Directional lighting 90
Wiper controls 91
Automatic rain sensitive wipers 92
Courtesy lamps 93
Interior mood lighting 94„
„
„
„
„
„
„
„
„
„
„
VISIBILITY 85 Î 94 FAMILIARISATION 4 Î 19
INSTRUMENTS and
CONTROLS 22 Î 41
Monochrome screen C
(Peugeot Connect Sound) 42
16/9 retractable colour screen
(Peugeot Connect Navigation) 45
16/9 high defi nition retractable
colour screen
(Peugeot Connect Media) 47
Trip computer 50„
„
„
„
MULTIFUNCTION
SCREENS 42 Î 52
Interior fi ttings 95
Lockable glove box 96
Lockable front armrest 97
Boot fi ttings 99„
„
„
„
FITTINGS 95 Î 100
15
43
26
ECO-DRIVING 20 Î 21

9
FAMILIARISATION


1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
12 V accessory socket.

9.
Heated seat control.

10.
Door mirror controls.
Electric window controls.

11 .
Passenger’s airbag deactivation
switch.

12.
Manual headlamp height
adjustment.
Stop & Start button.

13.
Side adjustable air vent.

14.
Front side window demisting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting vent.

INSTRUMENTS AND CONTROLS

14
FAMILIARISATION
SEEING CLEARLY


Lighting


Ring A

Ring B Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash until the stalk
is moved from this position.

Direction indicators


Switching on "AUTO"


)
Press the stalk down and release it.




85


Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Front and rear foglamps.
Stalk A: windscreen wipers



91




Wipers


Switching off "AUTO"


)
Push the stalk up and return it to po-
sition "0"
.
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
The use of this function is available re-
gardless of the speed, but you will fi nd it
particularly useful when changing lane
on fast roads.



101





92

5
!
AUTO
88
VISIBILITY












Automatic illumination
of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.

Activation


)
Turn the ring to the "AUTO"
posi-
tion. The automatic illumination of
headlamps is accompanied by a
message in the screen.


Deactivation


)
Turn the ring to another position.
Deactivation is accompanied by a
message in the screen.
In fog or snow, the sunshine sen-
sor may detect suffi cient light. In
this case, the lighting will not come
on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.

Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:


- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters in the vehicle confi gura-
tion menu,

- automatic activation of "guide-me-
home" lighting when automatic
lillumination of headlamps is in
operation.


Operating fault
In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed in the instru-
ment panel and/or a message appears
in the screen, accompanied by an au-
dible signal.
Contact a PEUGEOT dealer or a qualifi ed
workshop.

5
91
VISIBILITY

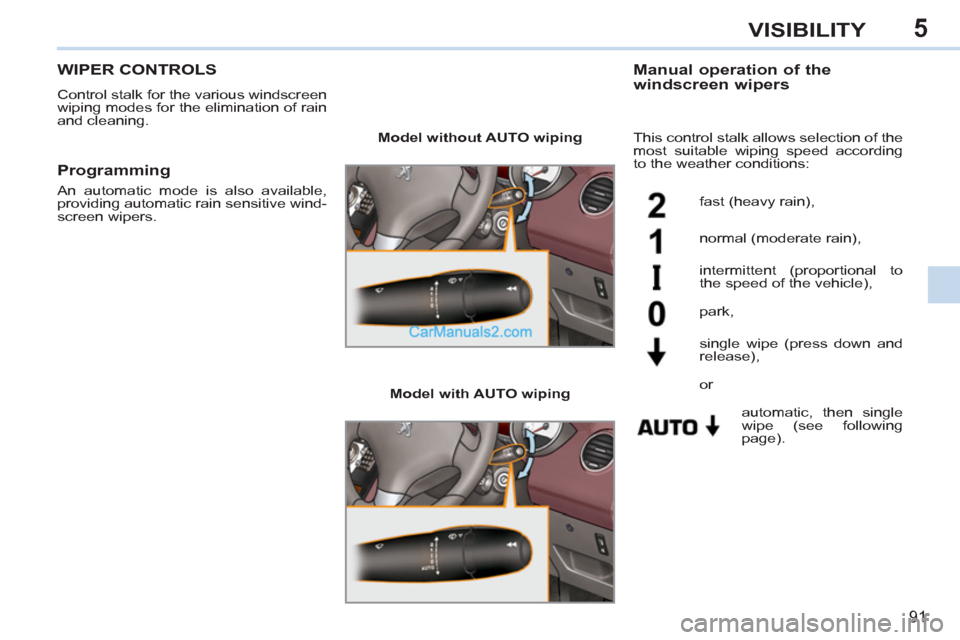

WIPER CONTROLS

Control stalk for the various windscreen
wiping modes for the elimination of rain
and cleaning.

Manual operation of the
windscreen wipers


Model without AUTO wiping



Model with AUTO wiping
fast (heavy rain),
normal (moderate rain),
intermittent (proportional to
the speed of the vehicle),
automatic, then single
wipe (see following
page). park,

single wipe (press down and
release),

Programming

An automatic mode is also available,
providing automatic rain sensitive wind-
screen wipers.
This control stalk allows selection of the
most suitable wiping speed according
to the weather conditions:





or

5
!
i
92
VISIBILITY









Windscreen and headlamp wash



)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.










Screenwash/headlamp wash low

In the case of vehicles fi tted with
headlamp washers, when the
minimum level of the reservoir is
reached, this warning lamp and/or
the service warning lamp is displayed on
the instrument panel, accompanied by an
audible signal and a message on the mul-
tifunction screen.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning lamp is displayed when the ig-
nition is switched on, or every time the stalk
is operated, until the reservoir is fi lled.














Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.

Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message in the
screen.

Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
The automatic rain sensitive wip-
ers must be reactivated if the igni-
tion has been off for more than one
minute, by pushing the stalk down-
wards.

Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
It is accompanied by a message in the
screen.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.

5
i
i
93
VISIBILITY









Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching the
ignition off, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
To maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:


- handle them with care,

- clean them regularly using
soapy water,

- avoid using them to retain card-
board on the windscreen,

- replace them at the fi rst signs of
wear.













COURTESY LAMPS



1.
Front courtesy lamp


2.
Map reading lamp


3.
Rear courtesy lamp




Front and rear courtesy lamps

In this position, the courtesy
lamp comes on gradually: In permanent lighting mode, different
lighting times are available:


- with the ignition off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

-
with the engine running, unlimited.




- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when the remote control locking
button is activated, in order to locate
your vehicle. Permanently off.
Permanent lighting.


Map reading lamps



)
With the ignition on, press the cor-
responding switch.
It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.

10
164
PRACTICAL INFORMATION


Fuse N°



Rating



Functions




F12



30 A

Windscreen wipers slow/fast speed.


F13



40 A

Built-in systems interface supply (ignition positive).


F14



-

Not used.


F15



10 A

Right-hand main beam headlamp.


F16



10 A

Left-hand main beam headlamp.


F17



15 A

Left-hand dipped headlamp.


F18



15 A

Right-hand dipped headlamp.


F19



15 A

Oil vapour heater (1.6 litre VTi), purge canister
electrovalve (1.6 litre VTi), oxygen sensors (petrol),
air cooling electrovalves (Diesel).


F20



10 A

Electronic thermostat, variable timing electrovalves,
Turbo pressure regulation electrovalve (Diesel),
engine coolant level detector (Diesel).


F21



5 A

Fan assembly relay supply, Valvetronic relay
control (1.6 litre VTi), Turbo cooling (1.6 litre THP),
air fl ow sensor (1.6 litre HDI).
