2011 Peugeot 308 CC display

275
08

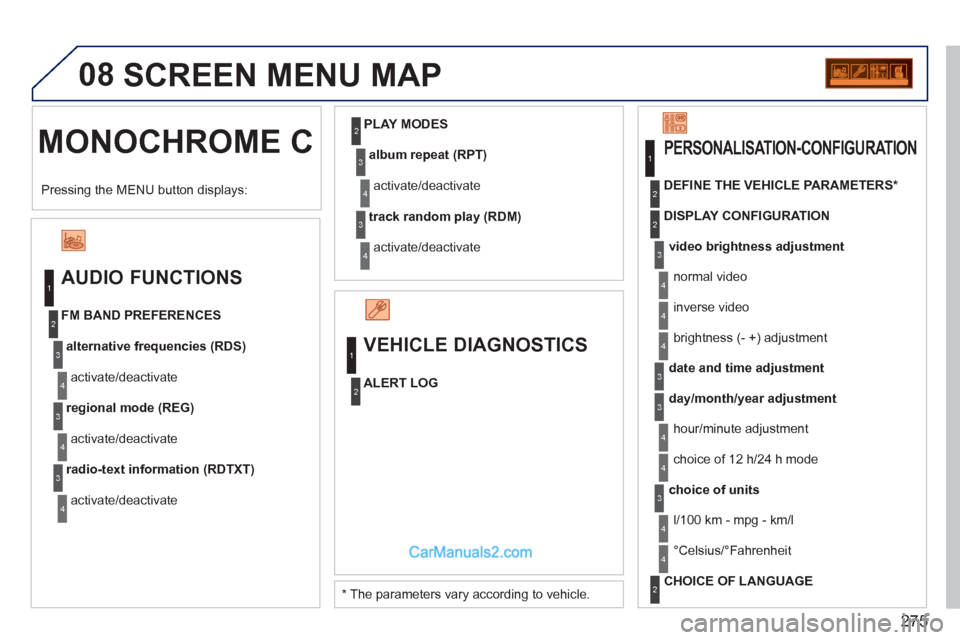

MONOCHROME C SCREEN MENU MAP


AUDIO FUNCTIONS


alternative frequencies (RDS)

activate/deactivate
FM BAND PREFERENCES

regional mode (REG)

activate/deactivate

radio-text information (RDTXT)


activate/deactivate
1
2
3
4
3
4
3
4


PLAY MODES

album repeat (RPT)

activate/deactivate

track random play (RDM)

activate/deactivate
2
3
4
3
4


VEHICLE DIAGNOSTICS


ALERT LOG

1
2
1
2
4
3
2
4
4
3
3
4
4
2
3
4
4

Pressing the MENU button displays:

* The parameters vary according to vehicle.
video brightness adjustment

DISPLAY CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *



PERSONALISATION-CONFIGURATION

normal video
inverse video
brightness (- +) adjustment

date and time adjustment

day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode

choice of units

l/100 km - mpg - km/l
°Celsius/°Fahrenheit

CHOICE OF LANGUAGE

277

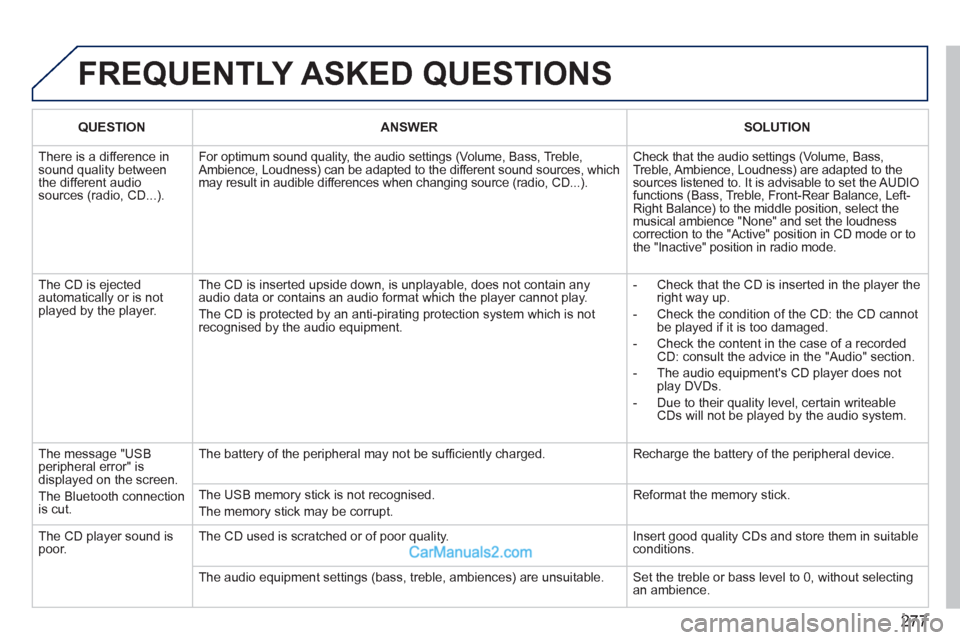

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


There is a difference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources, which
may result in audible differences when changing source (radio, CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to the
sources listened to. It is advisable to set the AUDIO
functions (Bass, Treble, Front-Rear Balance, Left-
Right Balance) to the middle position, select the
musical ambience "None" and set the loudness
correction to the "Active" position in CD mode or to
the "Inactive" position in radio mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

278


QUESTION



ANSWER



SOLUTION


The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The traffi c announcement
(TA) is displayed. I do
not receive any traffi c
information. The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c
information.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing of
the CD. Switch the audio system off for a few minutes to
allow the system to cool.

281
VISUAL SEARCH
INSTRUMENTS AND CONTROLS


Instrument panels ..................22-25
Warning lamps .......................26-35
Indicators ...............................36-39
Buttons ..................................40-41


- Check/service indicator/trip
distance recorder

- lighting dimmer

Courtesy lamps........................... 93
Seat belt/passenger’s front airbag
warning lamps display ............ 107
Rear view mirror ......................... 69
Sun visor..................................... 96

Lighting controls ....................85-89

Ventilation ..............................53-54
Manual air conditioning..........55-56
Digital air conditioning ...........57-58
Peugeot Connect Media ....185-228
Setting the date/time................. 218

Peugeot Connect Navigation .....229-260
Setting the date/time................. 252
Peugeot Connect Sound .....261-278
Setting the date/time................. 273
Dashboard fuses ...............160-162
Opening the bonnet .................. 138
Speed limiter......................131-132
Cruise control ....................133-134
Multifunction screens .............42-49
Hazard warning lamps .............. 101
Switch panel ............................... 16
Emergency or
assistance call ................ 102, 181

Wiper controls........................91-93
Trip computer ........................50-52

Headlamp height adjustment ....89-90
Stop & Start .......................128-130

Door mirrors ...........................67-68
Electric windows ....................77-78

"AIRWAVE" system controls ....... 65
Retractable roof control .............6-7
Control for all four windows ........ 78

Parking brake ........................... 122
Manual gearbox .................122-124
Automatic gearbox.............125-127
Steering wheel adjustment ......... 69
Horn .......................................... 102

283
ALPHABETICAL INDEX
ABS and EBFD systems ................ 104
Accessories .................................... 172
Accessories socket, 12 V ................. 98
Access to rear seats ......................... 64
Adjusting headlamps .................. 89, 90
Adjusting the steering
wheel ............................................ 69
Airbags ........................................... 110
Air conditioning ..................... 20, 55, 57
Air conditioning (digital) .................... 57
Air conditioning (manual).................. 55
Air filter ........................................... 144
Air vents ........................................... 53
Alarm ................................................ 75
Anti-lock braking system (ABS) ...... 104
Anti-swirl net ..................................... 59
Anti-theft steering lock ...................... 72
Ashtray ............................................. 98
Assistance call ................ 102, 182, 183
Audible warning .............................. 102
Audio/video sockets ....................... 212
Audio streaming (Bluetooth) ........... 272
Automatic gearbox ................. 125, 145
Automatic illumination
of headlamps .......................... 85, 88
Automatic operation of hazard
warning lamps ............................ 101
Automatic rain sensitive
windscreen wipers .................. 91, 92
Auxiliary socket .............. 212, 248, 270CHECK ............................................. 40
Checking levels ...................... 142, 143
Checking the engine oil level ........... 37
Checking tyre pressures
(using the kit) ............................. 150
Checks..................................... 138-145
Children ................... 109, 111, 114-121
Child seats .............................. 114-121
Closing the boot ............................... 82
Closing the doors ............................. 79
Closing the retractable roof ................ 6
Cold climate screen ........................ 172
Connectors, audio ....97, 248, 268, 270
Control for retractable roof ................. 6
Control for the four windows ............ 77
Control stalk, wipers ................... 91, 92
Coolant level ............................. 36, 142
Coolant temperature ......................... 36
Coolant temperature indicator .......... 36
Courtesy lamps ................................ 93
Courtesy mirror ................................. 96
Cruise control ................................. 133 Battery .................................... 144, 166
Battery, remote control ............... 73, 74
Battery recharge ............................. 167
Bluetooth telephone
(hands-free) ........................... 213-271
Bonnet ............................................ 138
Bonnet stay .................................... 138
Boot .................................................. 82
Boot (fittings) .................................. 100
Boot (opening) .................................. 70
Boot lamp ......................................... 94
Boot screen .................................... 100
Brake discs ..................................... 145
Brake lamps ................................... 158
Brake pads ..................................... 145
Brakes ............................................ 145
Braking assistance system ............. 104
AB
Capacity, fuel tank ............................ 83
CD MP3 .......................... 208, 246, 267
Central locking .................................. 80
Changing a bulb ...................... 155-159
Changing a fuse ...................... 160-165
Changing a wheel.................... 151-154
Changing a wiper blade ........... 93, 169
Changing the date .................. 218, 252
Changing the remote control battery .... 73
Changing the time .......... 218, 252, 273
C
D
Dashboard fusebox ........................ 161
Date (display) ................. 218, 252, 273
Daytime running lamps..... 87, 155, 157
Deactivating the passenger airbag ....111
Deadlocking ...................................... 71
Defrosting ................................... 56, 57
Dials and gauges......................... 22-24
