MULTIFUNCTION SCREENS


- The current information tab
with:


●
the range,

●
the current fuel
consumption,

●
the distance remaining to
be travelled or the Stop &
Start counter.



- The trip "1"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the fi rst trip.



- The trip "2"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the second trip.



)
Pressing the button again takes you
to a black screen.
A further press returns you to the normal
display.

Trip zero reset

With the monochrome screen C or
the instrument panel small screen



)

When the trip required is displayed,
press the button on the end of the wiper
stalk
for more than two seconds.


With the instrument panel
large central
screen


)
When the required trip is displayed,
press the "OK"
button on the instru-
ment panel navigator
, associated
with Peugeot Connect Media, for
more than two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.

2
!
i
i
52
MULTIFUNCTION SCREENS






A few definitions…

When the range falls below 20 miles
(30 km), dashes are displayed. After
fi lling with at least 5 litres of fuel, the
range is recalculated and is displayed
when it exceeds 60 miles (100 km).
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualifi ed workshop. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or the
relief, resulting in a signifi cant change
in the current fuel consumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.


Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).

Distance remaining to
destination
(miles or km)
This is the distance remaining to be
travelled to the fi nal destination. It is
calculated instantly by the navigation
system, if guidance is activated.
If the distance is not entered, dashes
are displayed in place of the digits.








Stop & Start time counter
(minutes/seconds or hours/
minutes)
If your vehicle is fi tted with Stop & Start,
a time counter calculates the time spent
in STOP mode during a journey.
It resets to zero every time the ignition
is switched on with the key.

3
ii
i
57
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the value displayed in order to obtain the
comfort required. The system cor-
rects the difference in temperature
automatically and as quickly as
possible.
The air conditioning can only operate
with the engine running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.


)
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right setting
difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice, etc.).


)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.

Automatic operation



)
Press the "AUTO"
button.
The indicator lamp on the
button comes on.
2. Driver's side adjustment






DUAL-ZONE DIGITAL AIR
CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate
effectively in all seasons, with automatic
adaptation in the "cabriolet" confi guration. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.


)
To switch it off, press the "visibility"

button again or press the "AUTO"

button, the indicator lamp in the but-
ton goes off and the indicator lamp in
the "AUTO"
button comes on.


1. Automatic comfort programme
3. Passenger side adjustment






With Stop & Start, when demisting
has been activated, the STOP mode
is not available.

3
!
i
58

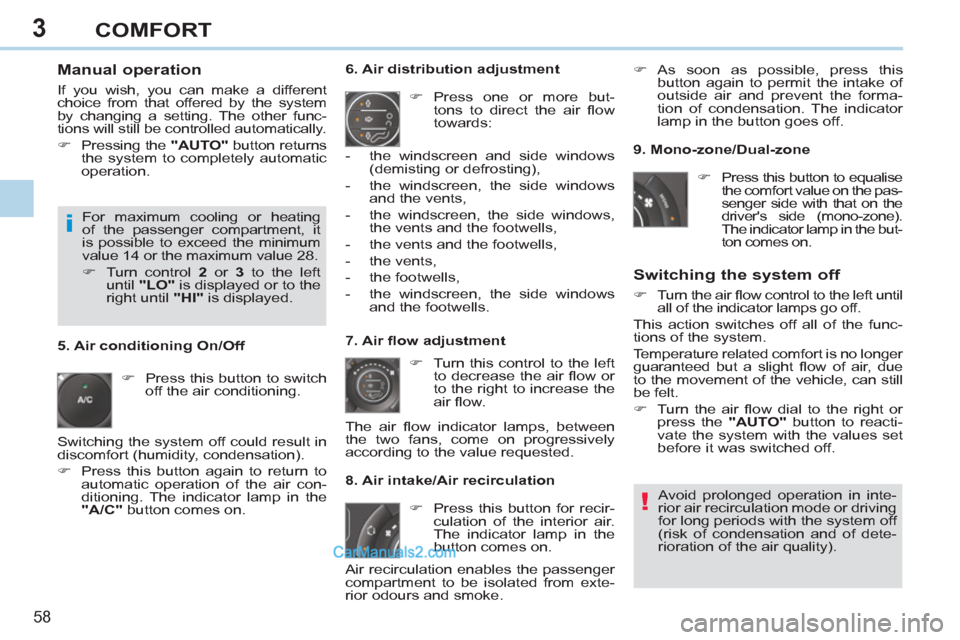

COMFORT

Manual operation

If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automatically.


)
Pressing the "AUTO"


button returns
the system to completely automatic
operation.


)
Press this button to switch
off the air conditioning.
6. Air distribution adjustment


)
Press one or more but-
tons to direct the air fl ow
towards:

7. Air fl ow adjustment


)
Turn this control to the left
to decrease the air fl ow or
to the right to increase the
air fl ow.

8. Air intake/Air recirculation


Switching the system off



)
Turn the air fl ow control to the left until
all of the indicator lamps go off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no longer
guaranteed but a slight fl ow of air, due
to the movement of the vehicle, can still
be felt.


)
Turn the air fl ow dial to the right or
press the "AUTO"
button to reacti-
vate the system with the values set
before it was switched off.


)
Press this button for recir-
culation of the interior air.
The indicator lamp in the
button comes on.
5. Air conditioning On/Off
Avoid prolonged operation in inte-
rior air recirculation mode or driving
for long periods with the system off
(risk of condensation and of dete-
rioration of the air quality).

- the windscreen and side windows
(demisting or defrosting),

- the windscreen, the side windows
and the vents,

- the windscreen, the side windows,
the vents and the footwells,

- the vents and the footwells,

- the vents,

- the footwells,

- the windscreen, the side windows
and the footwells.


The air fl ow indicator lamps, between
the two fans, come on progressively
according to the value requested.

)
As soon as possible, press this
button again to permit the intake of
outside air and prevent the forma-
tion of condensation. The indicator
lamp in the button goes off.

For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.


)
Turn control 2
or 3
to the left
until "LO"
is displayed or to the
right until "HI"
is displayed.
9. Mono-zone/Dual-zone


)
Press this button to equalise
the comfort value on the pas-
senger side with that on the
driver's side (mono-zone).
The indicator lamp in the but-
ton comes on.


Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).


)
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator lamp in the
"A/C"
button comes on.

5
85
VISIBILITY














EXTERIOR LIGHTING
CONTROLS
Control stalk for the selection and
control of the various front and rear
lamps providing the vehicle's lighting.

Main lighting

The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively in relation to the cli-
matic conditions:


- sidelamps, to be seen,

- dipped beam headlamps to see
without dazzling other drivers,

- main beam headlamps to see clearly
when the road is clear.



Additional lighting

Other lamps are fi tted to fulfi l the
requirements of particular driving condi-
tions:


- a rear foglamp to be seen from a
distance,

- front foglamps for even better forward
vision,

- directional headlamps for improved
visibility when cornering,

- daytime running lamps to be seen
during the day.



Programming

Various automatic lighting control
modes are also available depending on
options:


- guide-me-home lighting,

- automatic illumination of headlamps,

- directional lighting.


Model without AUTO lighting



Model with AUTO lighting





Automatic illumination of
headlamps.

Manual controls

The lighting commands are issued di-
rectly by the driver by means of the ring A

and the stalk B
.

A.
Main lighting mode selection ring:
turn it to position the symbol required
facing the mark.
Lamps off.
Sidelamps only.

B.
Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam head-
lamps temporarily ("headlamp fl ash") by
maintaining a pull on the stalk. Dipped headlamps or
main beam headlamps.

Displays

Illumination of the corresponding indica-
tor lamp in the instrument panel confi rms
that the lighting selected is on.

5
!
AUTO
88
VISIBILITY












Automatic illumination
of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.

Activation


)
Turn the ring to the "AUTO"
posi-
tion. The automatic illumination of
headlamps is accompanied by a
message in the screen.


Deactivation


)
Turn the ring to another position.
Deactivation is accompanied by a
message in the screen.
In fog or snow, the sunshine sen-
sor may detect suffi cient light. In
this case, the lighting will not come
on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.

Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:


- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters in the vehicle confi gura-
tion menu,

- automatic activation of "guide-me-
home" lighting when automatic
lillumination of headlamps is in
operation.


Operating fault
In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed in the instru-
ment panel and/or a message appears
in the screen, accompanied by an au-
dible signal.
Contact a PEUGEOT dealer or a qualifi ed
workshop.

5
!
i
90
VISIBILITY








AUTOMATIC ADJUSTMENT OF
XENON HEADLAMPS
Do not touch the xenon headlamp
bulbs.
Contact a PEUGEOT dealer or a
qualifi ed workshop. In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamp beams
automatically and when stationary, in
relation to the load in the vehicle.

If a malfunction occurs, this
warning lamp is displayed on
the instrument panel, accompa-
nied by an audible signal and a
message in the screen.
The system then places your headlamps
in the lowest position.








DIRECTIONAL LIGHTING

When the dipped or main beam head-
lamps are on, this function enables the
light beams to provide improved lighting
of the side of the road when cornering.
The use of this function, from approxi-
mately 12 mph (20 km/h) and associ-
ated with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.

with directional lighting


without directional lighting



Programming

Operating fault

The function is activated or
deactivated via the vehicle
confi guration menu.
If a fault occurs, this warning
lamp fl ashes in the instrument
panel, accompanied by a mes-
sage in the screen.
Contact a PEUGEOT dealer or a qualifi ed
workshop.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.

5
!
i
92
VISIBILITY









Windscreen and headlamp wash



)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.










Screenwash/headlamp wash low

In the case of vehicles fi tted with
headlamp washers, when the
minimum level of the reservoir is
reached, this warning lamp and/or
the service warning lamp is displayed on
the instrument panel, accompanied by an
audible signal and a message on the mul-
tifunction screen.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning lamp is displayed when the ig-
nition is switched on, or every time the stalk
is operated, until the reservoir is fi lled.














Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.

Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message in the
screen.

Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
The automatic rain sensitive wip-
ers must be reactivated if the igni-
tion has been off for more than one
minute, by pushing the stalk down-
wards.

Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
It is accompanied by a message in the
screen.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
