3
i
i
54
COMFORT
The condensation created by the
air conditioning results in a dis-
charge of water under the vehicle
which is perfectly normal.
RECOMMENDATIONS FOR VENTILATION AND AIR
CONDITIONING
In order for these systems to be fully effective, follow the guidelines on
operation and maintenance below:
)
To obtain an even air distribution, take care not to obstruct the exterior air
intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
)
Do not cover the sunshine sensor, located on the dashboard; this is used
for regulation of the air conditioning system.
)
Operate the air conditioning system for 5 to 10 minutes, once or twice a
month to keep it in perfect working order.
)
Ensure that the passenger compartment fi lter is in good condition and
have the fi lter elements replaced regularly (refer to the "Checks" section).
)
We recommend the use of a combined passenger compartment fi lter. Thanks
to its second special active fi lter, it contributes to the purifi cation of the air
breathed by the occupants and the cleanness of the passenger compartment
(reduction of allergic symptoms, bad odours and greasy deposits).
)
To guarantee correct operation of the air conditioning system, you are also
advised to have it checked regularly.
)
If the system does not produce cold air, do not use it and contact a
PEUGEOT dealer or a qualifi ed workshop.
In the "cabriolet" confi guration, installing the windstop and using the "AIRWAVE"
systems improves comfort.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engine power and
therefore improvement of the towing capacity.
If the interior temperature remains
very high after the vehicle has been
parked in the sun for a considerable
time, fi rst ventilate the passenger
compartment for a few minutes.
Place the air fl ow control at a suf-
fi cient level to provide an adequate
renewal of air in the passenger
compartment.
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.
Stop & Start
The heating and air conditioning systems only work when the engine is running.
To maintain a comfortable temperature in the passenger compartment, you
can temporarily deactivate the Stop & Start system (see "Driving").
Page 58 of 292
3
i
i
i
56
COMFORT
The control button is located on
the heating or air conditioning
system control panel.
REAR SCREEN DEMIST/
DEFROST
)
Switch off the demist/defrost of the
rear screen and door mirrors as
soon as it is no longer needed as
lower current consumption results
in reduced fuel consumption.
If the engine is switched off before the
demist/defrost is switched off auto-
matically, demist/defrost will resume
next time the engine is switched on.
The demist/defrost is deactivated
when the retractable roof is stored in
the boot.
Switching on
The rear screen demist/defrost can only
operate when the engine is running.
Switching off
The demist/defrost switches off automati-
cally to prevent an excessive consumption
of current.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the
demisting in winter, above 3 °C.
Switching off
)
Press the "A/C"
button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
)
Press this button to demist/defrost the
rear screen and the exterior mirrors.
The indicator lamp associated with the
button comes on.
)
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.
Switching on
)
Press the "A/C"
button, the button's
indicator lamp comes on.
FRONT DEMIST - DEFROST
These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.
With manual air conditioning
)
Put the temperature, air fl ow and
distribution controls to the dedicated
marked position.
)
Put the air intake control to the
"Exterior air intake" position
(indicator lamp on the control off).
)
Switch on the air conditioning by
pressing the "A/C"
button; the warning
lamp in the button comes on.
The air conditioning does not ope-
rate when the air fl ow adjustment
control 2
is in position " 0
".
With Stop & Start, when the de-
misting, air conditioning and air
fl ow functions are activated, STOP
mode is not available.
Page 63 of 292
3
61
COMFORT
)
Pull the windstop forwards to re-
lease the guides from the points,
located behind each corner of the
back of the rear bench seat.
)
Fold the windstop frame guides.
Storing
In the storage box (version equipped
with a temporary tyre repair kit)
)
Raise the boot carpet and hook its
handle on the boot seal.
)
Store the folded windstop in the cor-
responding recess in the box.
)
Lower the boot carpet.
In the boot (version equipped with a
spare wheel)
)
Stow the folded windstop securing it
using the luggage retaining net.
)
Fold the windstop closing the
two large parts on themselves.
)
Unclip each end individually.
)
Fold each of the two parts on them-
selves.

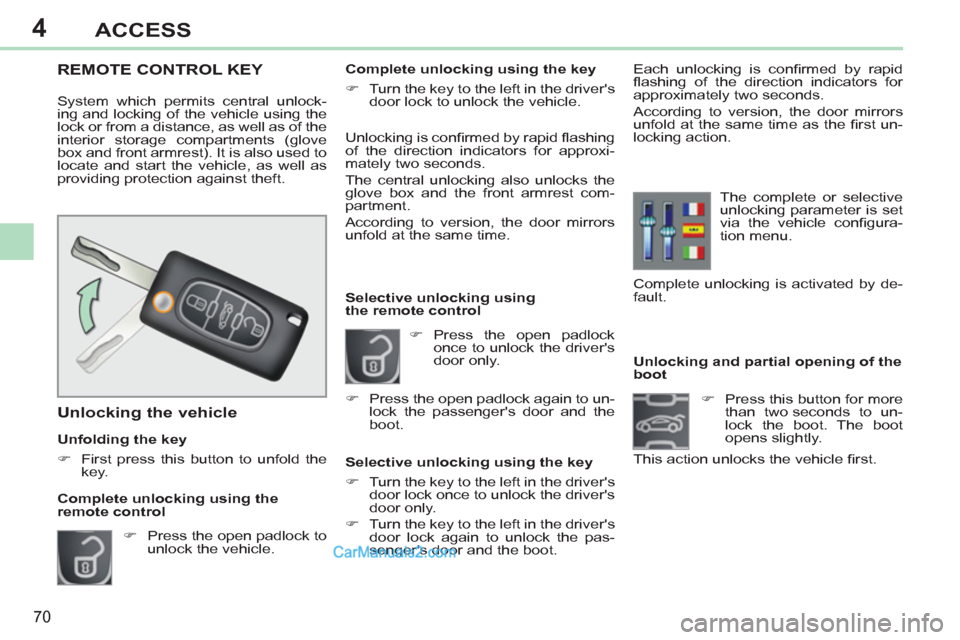

Page 72 of 292
4
70
ACCESS
Unlocking and partial opening of the
boot
)
Press this button for more
than two seconds to un-
lock the boot. The boot
opens slightly.
This action unlocks the vehicle fi rst.
)
Press the open padlock
once to unlock the driver's
door only.
Selective unlocking using
the remote control Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the fi rst un-
locking action.
Selective unlocking using the key
)
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.
)
Turn the key to the left in the driver's
door lock again to unlock the pas-
senger's door and the boot. The complete or selective
unlocking parameter is set
via the vehicle confi gura-
tion menu.
REMOTE CONTROL KEY
System which permits central unlock-
ing and locking of the vehicle using the
lock or from a distance, as well as of the
interior storage compartments (glove
box and front armrest). It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key
)
First press this button to unfold the
key.
Unlocking the vehicle
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
The central unlocking also unlocks the
glove box and the front armrest com-
partment.
According to version, the door mirrors
unfold at the same time.
)
Press the open padlock to
unlock the vehicle.
Complete unlocking using the key
)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Complete unlocking using the
remote control
)
Press the open padlock again to un-
lock the passenger's door and the
boot.
Complete unlocking is activated by de-
fault.

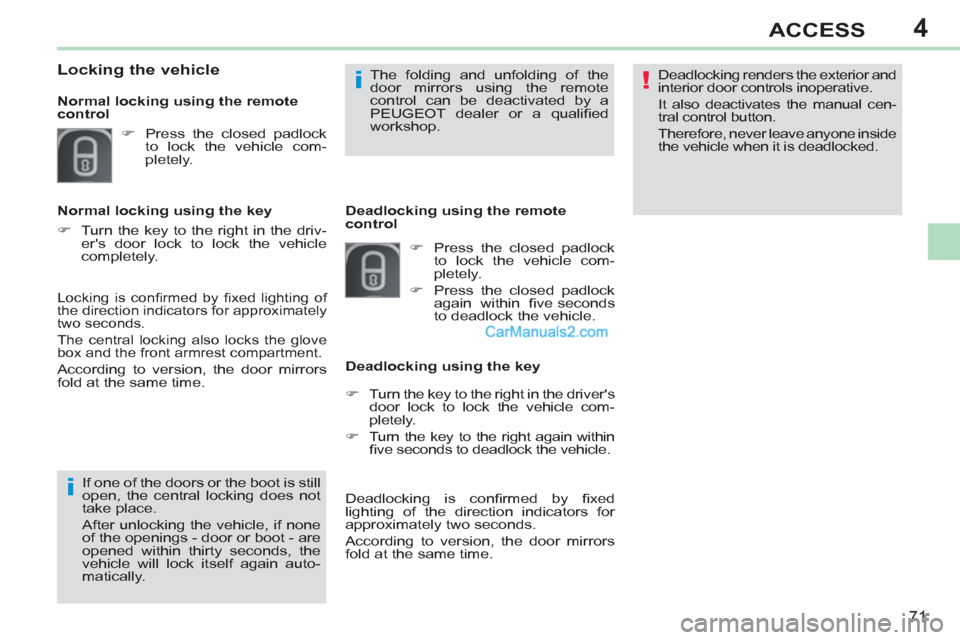

Page 73 of 292
4
!
i
i
71
ACCESS
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
If one of the doors or the boot is still
open, the central locking does not
take place.
After unlocking the vehicle, if none
of the openings - door or boot - are
opened within thirty seconds, the
vehicle will lock itself again auto-
matically.
Deadlocking using the remote
control
Deadlocking using the key The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
)
Press the closed padlock
to lock the vehicle com-
pletely.
)
Press the closed padlock
again within fi ve seconds
to deadlock the vehicle.
Locking the vehicle
)
Press the closed padlock
to lock the vehicle com-
pletely.
Normal locking using the key
)
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
Normal locking using the remote
control
Deadlocking is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
The central locking also locks the glove
box and the front armrest compartment.
According to version, the door mirrors
fold at the same time.
)
Turn the key to the right in the driver's
door lock to lock the vehicle com-
pletely.
)
Turn the key to the right again within
fi ve seconds to deadlock the vehicle.

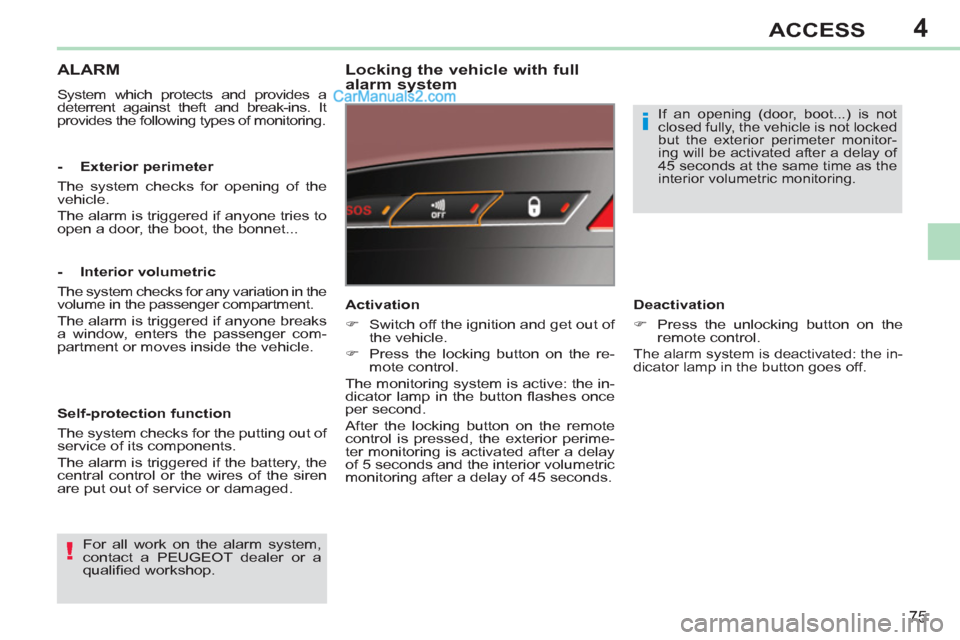

Page 77 of 292
4
!
i
75
ACCESS
ALARM
System which protects and provides a
deterrent against theft and break-ins. It
provides the following types of monitoring.
Locking the vehicle with full
alarm system
For all work on the alarm system,
contact a PEUGEOT dealer or a
qualifi ed workshop.
Activation
)
Switch off the ignition and get out of
the vehicle.
)
Press the locking button on the re-
mote control.
The monitoring system is active: the in-
dicator lamp in the button fl ashes once
per second.
After the locking button on the remote
control is pressed, the exterior perime-
ter monitoring is activated after a delay
of 5 seconds and the interior volumetric
monitoring after a delay of 45 seconds.
- Exterior perimeter
The system checks for opening of the
vehicle.
The alarm is triggered if anyone tries to
open a door, the boot, the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window, enters the passenger com-
partment or moves inside the vehicle.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control or the wires of the siren
are put out of service or damaged.
Deactivation
)
Press the unlocking button on the
remote control.
The alarm system is deactivated: the in-
dicator lamp in the button goes off.
If an opening (door, boot...) is not
closed fully, the vehicle is not locked
but the exterior perimeter monitor-
ing will be activated after a delay of
45 seconds at the same time as the
interior volumetric monitoring.

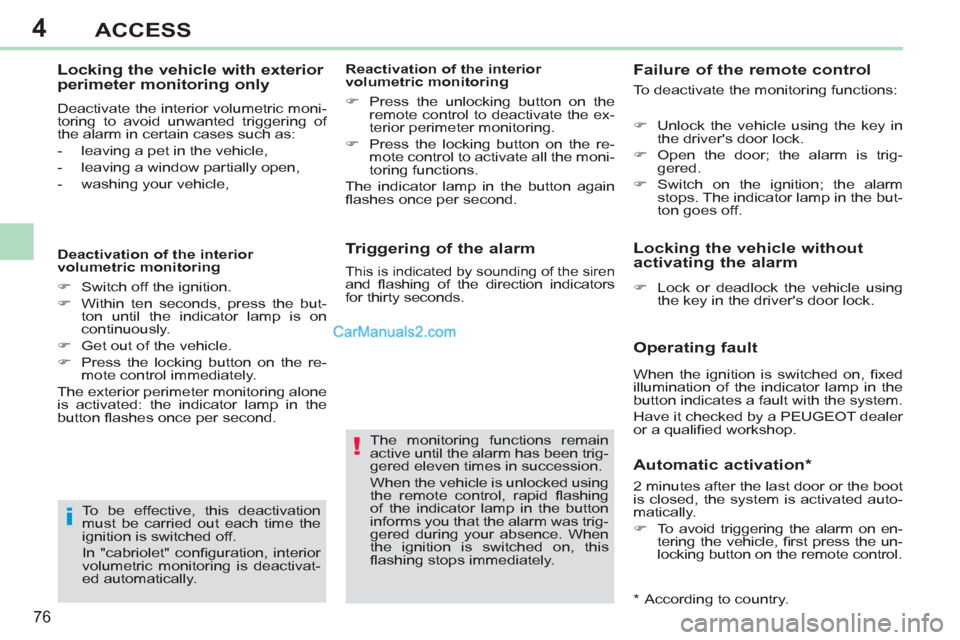

Page 78 of 292
4
!
i
76
ACCESS
Triggering of the alarm
The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using
the remote control, rapid fl ashing
of the indicator lamp in the button
informs you that the alarm was trig-
gered during your absence. When
the ignition is switched on, this
fl ashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
Locking the vehicle without
activating the alarm
)
Unlock the vehicle using the key in
the driver's door lock.
)
Open the door; the alarm is trig-
gered.
)
Switch on the ignition; the alarm
stops. The indicator lamp in the but-
ton goes off.
)
Lock or deadlock the vehicle using
the key in the driver's door lock.
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
In "cabriolet" confi guration, interior
volumetric monitoring is deactivat-
ed automatically.
Deactivation of the interior
volumetric monitoring
)
Switch off the ignition.
)
Within ten seconds, press the but-
ton until the indicator lamp is on
continuously.
)
Get out of the vehicle.
)
Press the locking button on the re-
mote control immediately.
The exterior perimeter monitoring alone
is activated: the indicator lamp in the
button fl ashes once per second.
Locking the vehicle with exterior
perimeter monitoring only
Deactivate the interior volumetric moni-
toring to avoid unwanted triggering of
the alarm in certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle,
Reactivation of the interior
volumetric monitoring
)
Press the unlocking button on the
remote control to deactivate the ex-
terior perimeter monitoring.
)
Press the locking button on the re-
mote control to activate all the moni-
toring functions.
The indicator lamp in the button again
fl ashes once per second.
This is indicated by sounding of the siren and fl ashing of the direction indicators
for thirty seconds.
Operating fault
When the ignition is switched on, fi xed
illumination of the indicator lamp in the
button indicates a fault with the system.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Automatic activation *
2 minutes after the last door or the boot
is closed, the system is activated auto-
matically.
)
To avoid triggering the alarm on en-
tering the vehicle, fi rst press the un-
locking button on the remote control.
*
According to country.
Page 81 of 292
4
!
i
i
i
i
79

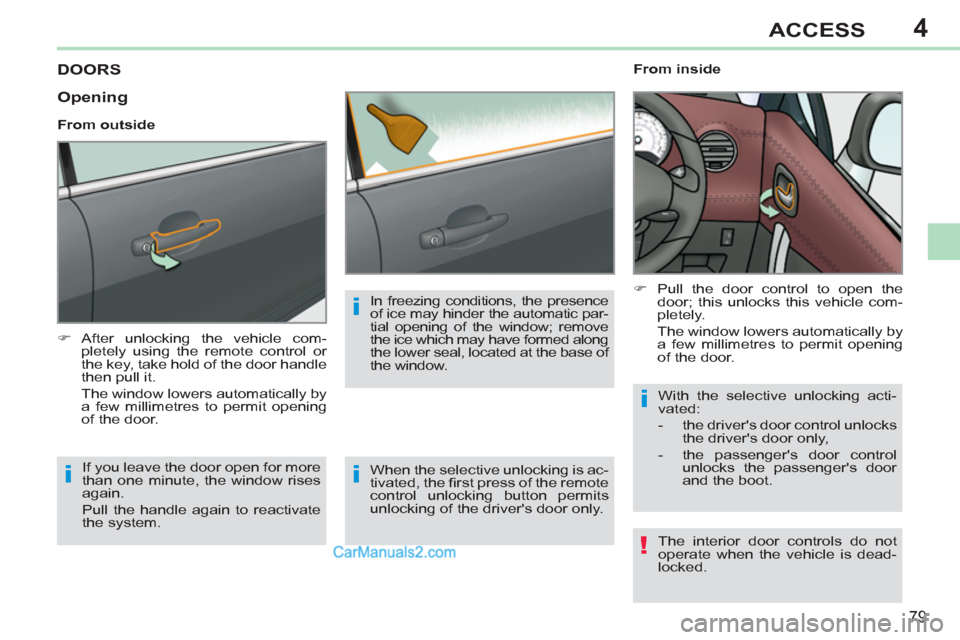

ACCESS
DOORS
)
After unlocking the vehicle com-
pletely using the remote control or
the key, take hold of the door handle
then pull it.
The window lowers automatically by
a few millimetres to permit opening
of the door.
From inside
)
Pull the door control to open the
door; this unlocks this vehicle com-
pletely.
The window lowers automatically by
a few millimetres to permit opening
of the door.
The interior door controls do not
operate when the vehicle is dead-
locked. If you leave the door open for more
than one minute, the window rises
again.
Pull the handle again to reactivate
the system.
Opening
From outside
When the selective unlocking is ac-
tivated, the fi rst press of the remote
control unlocking button permits
unlocking of the driver's door only. With the selective unlocking acti-
vated:
- the driver's door control unlocks
the driver's door only,
- the passenger's door control
unlocks the passenger's door
and the boot.
In freezing conditions, the presence
of ice may hinder the automatic par-
tial opening of the window; remove
the ice which may have formed along
the lower seal, located at the base of
the window.
