FAMILIARISATION
MONITORING


Instrument panel
Switch panel



A.
With the ignition on, the needle should
indicate the level of fuel remaining.

B.
With the engine running, its associated
low level warning lamp should go off.

C.
With the ignition on, the oil level indica-
tor should display that the level is OK
or correct, according to version, for a
few seconds.
If the levels are not correct, top up the
levels which are low. Illumination of the indicator lamp indi-
cates the status of the corresponding
function.


A.
Emergency call in progress.


181


B.
Deactivation of the alarm volumetric
monitoring.


75


C.
Central locking.


80


D.
Deactivation of the ESP/ASR system.


105


E.
Deactivation of the front and rear
parking sensors.


135


F.
Access to PEUGEOT services.

181




1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




22




26, 30

!
i
i
18
FAMILIARISATION
DRIVING SAFELY


Stop & Start

The "ECO"
warning lamp comes on
in the instrument panel and the en-
gine automatically goes into standby: The "ECO"
warning lamp goes
off and the engine restarts au-
tomatically:
You can deactivate the system at any
time by pressing the "ECO OFF"
but-
ton; the warning lamp in the button
comes on.
Deactivation/Reactivation



129



Going into engine STOP mode
Going into engine START mode


- with a manual gearbox:
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal.
In some circumstances, STOP mode
may not be available; the "ECO"
warn-
ing lamp fl ashes for few seconds, then
goes off.



128



- with a manual gearbox:
when you
fully
depress the clutch pedal.
If you engage a gear without fully
depressing the clutch pedal, the
engine will not restart automatically.
An alert message is displayed asking
you to fully depress the clutch pedal.



129

The system is reactivated auto-
matically at every new start using
the key.
Before refuelling or doing anything
under the bonnet, you must switch
off the ignition using the key. In some circumstances START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.

19
FAMILIARISATION
DRIVING SAFELY

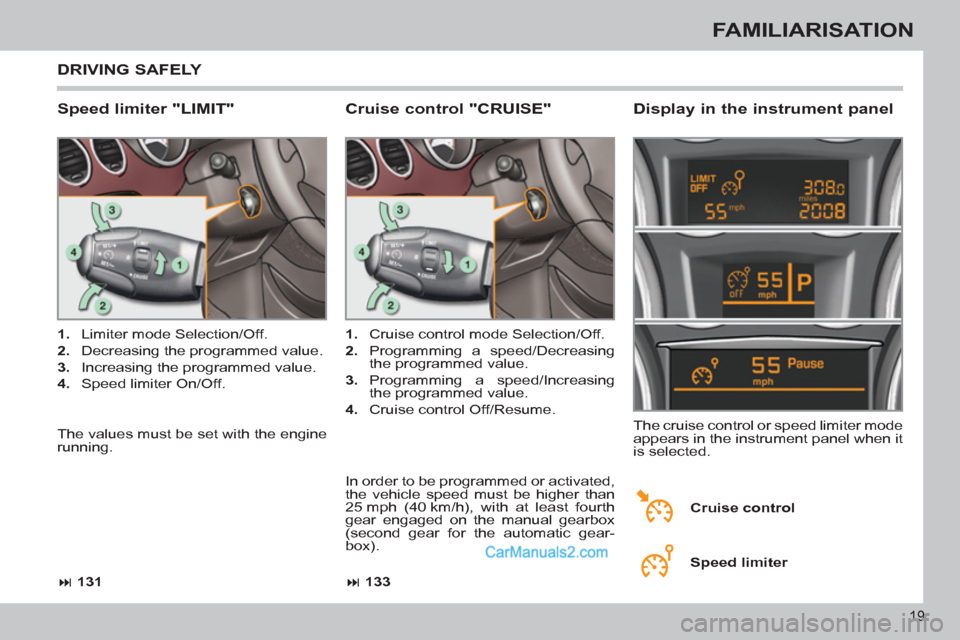

Speed limiter "LIMIT"
Display in the instrument panel



1.
Limiter mode Selection/Off.

2.
Decreasing the programmed value.

3.
Increasing the programmed value.

4.
Speed limiter On/Off.
The cruise control or speed limiter mode
appears in the instrument panel when it
is selected.

1.
Cruise control mode Selection/Off.

2.
Programming a speed/Decreasing
the programmed value.

3.
Programming a speed/Increasing
the programmed value.

4.
Cruise control Off/Resume.


Cruise control "CRUISE"


Cruise control

Speed limiter




133





131

In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear for the automatic gear-
box). The values must be set with the engine
running.

20






































ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
,
according to the type of gear selector,
without pressing the accelerator pedal
heavily or suddenly.



Drive smoothly


Maintain a safe distance between vehi-
cles, use engine braking rather than the
brake pedal, and press the accelerator
progressively. These attitudes contribute
towards a reduction in fuel consumption
and CO
2 emissions and also helps re-
duce the background traffi c noise.

When the traffi c is fl owing well, and if
you have cruise control, make use of
the system at speeds above 25 mph
(40 km/h).



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music, vid-
eo game...), you will contribute towards
limiting the consumption of electrical
energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

1
i
22
INSTRUMENTS and CONTROLS

















PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Screen.


6.
Control button.


Recalls the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

7.
Instrument panel lighting

dimmer

.

Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of
the engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (°Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Speed limiter


(mph or km/h) or
Cruise control.


B.
Gear shift indicator.


C.
Automatic gearbox.


D.
Trip distance recorder.


(miles or km)

E.
Service indicator.


(miles or km) then,
engine oil level indicator


then
distance recorder.


(miles or km)
These three functions are displayed
in succession when the ignition is
switched on.


Displays
For more information, refer to the
paragraph relating to the button or
function and its associated display.

1
i
23
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

8.
Instrument panel lighting

dimmer.


Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (°Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km)

C.
Engine oil level indicator,


service indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear shift indicator.


- Automatic gearbox.


-

Navigation - Guidance/Trip computer.

1
i
24
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX PEUGEOT
CONNECT MEDIA INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

8.
Instrument panel lighting

dimmer

.

Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (°Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km)

C.
Engine oil level indicator,


se rvice indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear shift indicator.


- Automatic gearbox.


-
Navigation - Guidance/Trip computer.



- Vehicle parameters.

1
i
25
INSTRUMENTS and CONTROLS

*
According to country.









Instrument panel navigator associated
with the Peugeot Connect Media

Main menu


)
Press button 1
to open the main
menu and select one of the following
functions:


- "Vehicle parameters",

- "Choice of language",

- "Choice of units".

)
Press button 2
or 3
to move on the
screen.

)
Press button 1
again to confi rm the
selection.

Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:


- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome light-
ing (refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).


Choice of language
This menu allows you to select the lan-
guage used by the screen: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .

Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and fuel consumption (mpg, km/l or
l/100 km).
This group of buttons permits:


- when stationary
, confi guration of
the vehicle's equipment and the
central screen settings (language,
units...),

- while driving
, scrolling through the
active functions (trip computer, navi-
gation...).

Controls
There are four buttons to control the in-
strument panel large screen:


1.
access the main menu, confi rm the
selection,

2.
move up through the menu,

3.
move down through the menu,

4.
return to the previous screen, exit
from the menu. The main menu and its associated
functions can only be accessed
when stationary, via buttons 1
to 4
.
A message appears in the cen-
tral screen, above a certain speed
threshold, indicating that the main
menu cannot be displayed.
Trip computer information can only
be displayed while driving, using
buttons 2
and 3
(refer to the "Trip
computer" section).
