Page 82 of 292
4
i
i!
!
!
80
ACCESS
When locking/deadlocking from
outside
When the vehicle is locked or dead-
locked from the outside, the red
indicator lamp fl ashes and the but-
ton is inactive.
)
For normal locking, pull the in-
terior door control to open the
vehicle.
)
For deadlocking, you have to
use the remote control or the
key to unlock the vehicle.
Central locking control
System which provides full manual lock-
ing or unlocking of the doors and boot
from the inside.
Locking
)
Press this button to lock the vehicle.
The red indicator lamp in the button
comes on.
If one of the doors or the boot is
open, the central locking from the
inside does not take place.
Unlocking
)
Press this button again to unlock the
vehicle.
The red indicator lamp in the button
goes off.
Closing
The window rises automatically after a
few seconds and adjusts to provide per-
fect sealing when closed.
-
when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-
when the vehicle is moving
(speed
higher than 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
When washing your vehicle:
- fi rst lock the vehicle using the
remote control or the key,
- avoid spraying the upper part of
the windows,
- keep the end of the high pres-
sure nozzle at least 1 metre from
the windows and door seals.
When a door is not closed correctly: Be aware of the risk of pinching
when the window rises automati-
cally on closing the door.
The glove box and the front arm-
rest compartment are not locked so
that they remain accessible.

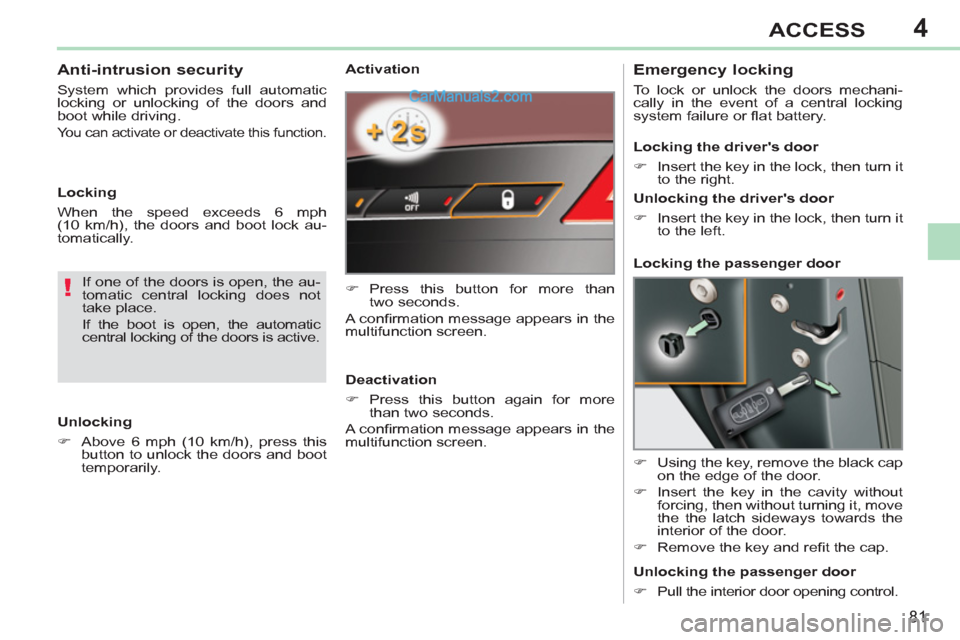

Page 83 of 292
4
!
81
ACCESS
Activation
)
Press this button for more than
two seconds.
A confi rmation message appears in the
multifunction screen.
Deactivation
)
Press this button again for more
than two seconds.
A confi rmation message appears in the
multifunction screen.
Emergency locking
To lock or unlock the doors mechani-
cally in the event of a central locking
system failure or fl at battery.
)
Using the key, remove the black cap
on the edge of the door.
)
Insert the key in the cavity without
forcing, then without turning it, move
the the latch sideways towards the
interior of the door.
)
Remove the key and refi t the cap.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Locking the passenger door
Unlocking the passenger door
)
Pull the interior door opening control.
If one of the doors is open, the au-
tomatic central locking does not
take place.
If the boot is open, the automatic
central locking of the doors is active.
Anti-intrusion security
System which provides full automatic
locking or unlocking of the doors and
boot while driving.
You can activate or deactivate this function.
Unlocking
)
Above 6 mph (10 km/h), press this
button to unlock the doors and boot
temporarily.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and boot lock au-
tomatically.
Page 84 of 292
4
ii
82
ACCESS
Unlocking and partially opening
the boot
BOOT
Boot anti-theft protection
The boot is designed to remain secure,
even in the "cabriolet" confi guration, if
the vehicle is locked.
So, when the vehicle is locked and the
roof is open, the boot cannot be un-
locked:
- by means of the interior door open-
ing control,
- by pressing the manual central lock-
ing control A
, when the key is not in
the ignition switch.
Opening
)
After unlocking the boot or the ve-
hicle using the remote control or the
key, press the opening control, then
raise the boot lid.
When the selective unlocking is ac-
tivated, the boot can be opened at
the second press of the unlocking
button on the remote control.
)
Press this button for more
than two seconds to un-
lock the boot. The boot
opens slightly.
This action also unlocks the doors.
If a battery failure occurs, the boot
is locked. Contact a PEUGEOT
dealer or a qualifi ed workshop.
Closing
)
Lower the boot lid using the interior
grab handle.
)
Press on the top of the boot lid to
close it fully.
If the boot lid is not closed correctly:
- when the engine is run-
ning
, this warning lamp
comes on, accompanied by
a message in the screen for
a few seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
in the screen for a few seconds.
Page 96 of 292
5
i
i
94
VISIBILITY
INTERIOR MOOD LIGHTING
Different lighting times are available:
- when the ignition is off, approxi-
mately ten minutes,
- in energy economy mode, approxi-
mately thirty seconds,
- when the engine is running, no
limit. Your vehicle is fi tted with two boot lamps;
one in the left-hand boot side trim and a
second in the boot lid interior trim.
They come on automatically when the
boot is opened and switch off automati-
cally when the boot is closed.
They cannot be deactivated manually.
INTERIOR WELCOME LIGHTING
BOOT LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on
)
Press the open padlock on the re-
mote control.
The front door sill lighting, the footwell
lighting and the courtesy lamps come
on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switches
off automatically after a set time or when
one of the doors is opened.
Programming
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the footwell lighting and the
front courtesy mood lamp come on
automatically when the sidelamps are
switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
Programming
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting. The function is activated or
deactivated via the vehicle
confi guration menu.
This function is activated
by default. The lighting duration is
selected via the vehicle
confi guration menu.
Page 101 of 292
6
99
FITTINGS
BOOT FITTINGS
1.
Stowing rings
2.
Luggage retaining net
(see details on following page)
3.
Boot screen
(see details on following page)
4.
Storage net
5.
Luggage retaining strap
6.
Storage box (version fi tted with a
temporary tyre repair kit)
(see details on following page)
or
Tool box (version fi tted with a
standard spare wheel
)
(refer to the section "Practical
information - § Changing a wheel")
Page 102 of 292

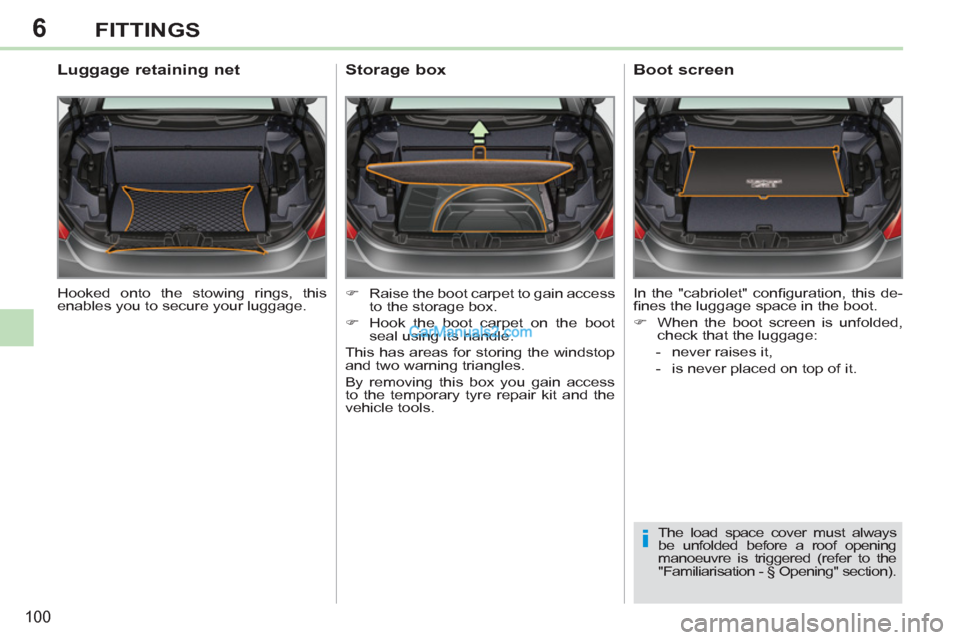

6
i
100
FITTINGS
Hooked onto the stowing rings, this
enables you to secure your luggage.
Luggage retaining net
)
Raise the boot carpet to gain access
to the storage box.
)
Hook the boot carpet on the boot
seal using its handle.
This has areas for storing the windstop
and two warning triangles.
By removing this box you gain access
to the temporary tyre repair kit and the
vehicle tools.
Storage box
Boot screen
In the "cabriolet" confi guration, this de-
fi nes the luggage space in the boot.
)
When the boot screen is unfolded,
check that the luggage:
- never raises it,
- is never placed on top of it.
The load space cover must always
be unfolded before a roof opening
manoeuvre is triggered (refer to the
"Familiarisation - § Opening" section).

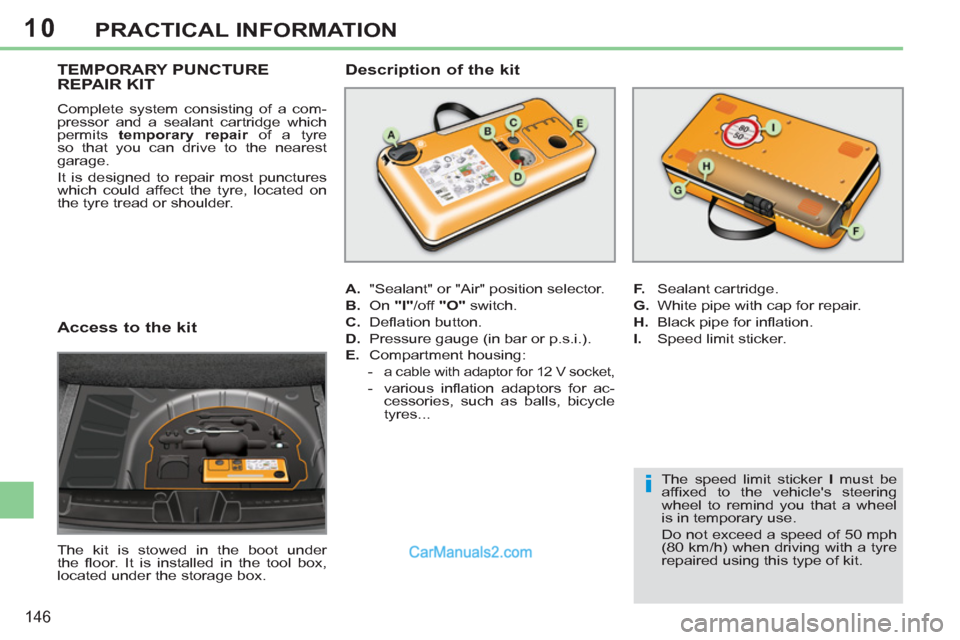

Page 148 of 292
10
i
146
PRACTICAL INFORMATION
Access to the kit
The kit is stowed in the boot under
the fl oor. It is installed in the tool box,
located under the storage box.
TEMPORARY PUNCTURE
REPAIR KIT
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre
so that you can drive to the nearest
garage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.
A.
"Sealant" or "Air" position selector.
B.
On "I"
/off "O"
switch.
C.
Defl ation button.
D.
Pressure gauge (in bar or p.s.i.).
E.
Compartment housing:
-
a cable with adaptor for 12 V socket,
- various infl ation adaptors for ac-
cessories, such as balls, bicycle
tyres...
Description of the kit
F.
Sealant cartridge.
G.
White pipe with cap for repair.
H.
Black pipe for infl ation.
I.
Speed limit sticker.
The speed limit sticker I
must be
affi xed to the vehicle's steering
wheel to remind you that a wheel
is in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.
Page 153 of 292
10
i
151
PRACTICAL INFORMATION
CHANGING A WHEEL
Procedure for changing a faulty wheel
for the spare wheel using the tools
provided with the vehicle.
The tools are installed in the boot under
the fl oor.
For access to them:
)
change to the "coupé" confi guration,
)
open the boot,
)
raise the fl oor,
)
secure it by hooking its handle on
the boot seal,
)
unclip and remove the box containing
the tools. All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.
1.
Wheelbrace.
For removing the wheel trim and
the wheel fi xing bolts.
2.
Jack with integral handle.
For raising the vehicle.
3.
Bolt cover removal tool.
For removing the bolt fi nishers
(covers) on alloy wheels.
4.
Socket for the security bolts (located
in the glove box).
For adapting the wheelbrace to
the special "security" bolts.
List of tools
Access to the tools
Wheel with trim
When removing the wheel
, detach the trim fi rst using the wheelbrace 1
pulling at the valve passage hole.
When refi tting the wheel
, refi t the trim starting by placing its notch facing the
valve and press around its edge with the palm of your hand.
