FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Steering wheel adjustment control.

2.
Cruise control/speed limiter
switches.

3.
Lighting and direction indicator
control stalk.

4.
Central adjustable air vents.

5.
Multifunction screen.

6.
Sunshine sensor.

7.
Passenger’s airbag.

8.
Glove box/Audio/video sockets/
Fusebox.

9.
Bonnet release.

10.
Retractable roof control.
Control for all four windows.

11 .
Storage compartment or instrument
panel navigator associated with the
Peugeot Connect Media.

12.
"AIRWAVE" system controls.

13.
Front armrest.

14.
Front ashtray.

15.
Heating/air conditioning controls.

16.
Audio and telematics system.

17.
Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control
(ESP/ASR) button.
Parking sensors button.
PEUGEOT services button.

!i
12
FAMILIARISATION

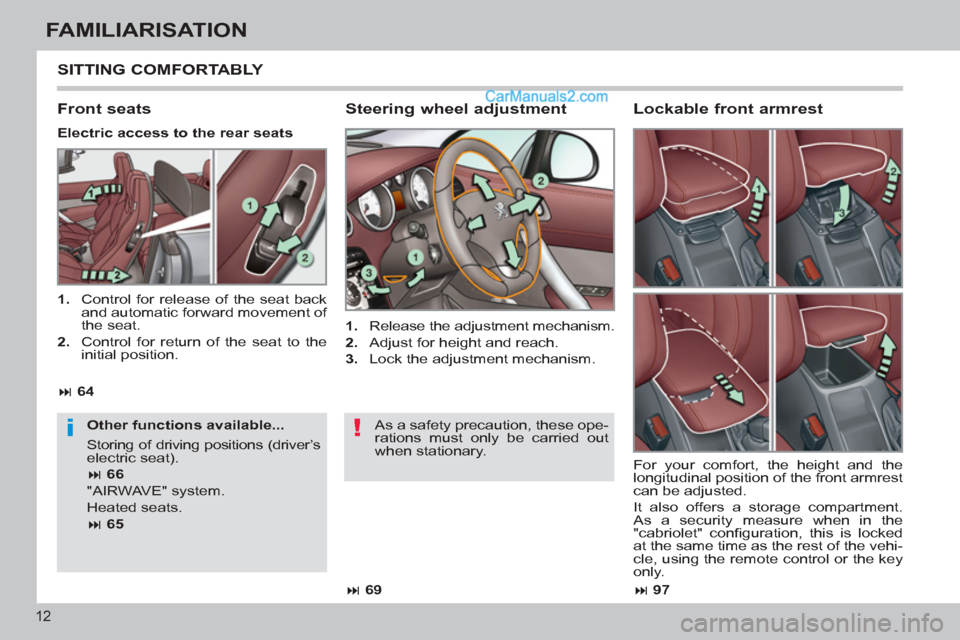

SITTING COMFORTABLY


Steering wheel adjustment



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.


Front seats


Other functions available...
Storing of driving positions (driver’s
electric seat).



66

"AIRWAVE" system.
Heated seats.



65



Electric access to the rear seats


Lockable front armrest




97





69

For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment.
As a security measure when in the
"cabriolet" confi guration, this is locked
at the same time as the rest of the vehi-
cle, using the remote control or the key
only. As a safety precaution, these ope-
rations must only be carried out
when stationary.

1.
Control for release of the seat back
and automatic forward movement of
the seat.

2.
Control for return of the seat to the
initial position.



64

3
!
i
!
69
COMFORT








STEERING WHEEL ADJUSTMENT




)
When stationary
, pull the control lever
to release the adjustment mechanism.

)
Adjust the height and reach to suit
your driving position.

)
Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these opera-
tions should only be carried out while
the vehicle is stationary.






Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.

In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.

Adjustment


)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.

As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".



Manual day/night model

Day/night position


)
Pull the lever to change to the "night"
anti-dazzle position.

)
Push the lever to change to the normal
"day" position.








Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehicles,
low sun...

6
97
FITTINGS








LOCKABLE FRONT ARMREST

Comfort and storage device for the driver
and front passenger.
The height and longitudinal position
of the armrest lid can be adjusted for
greater comfort.
Its compartment is also locked or unlocked
when the vehicle is locked or unlocked us-
ing the remote control or the key.

Storage

It can hold up to 6 CDs.


)
Raise the lever 1
.

)
Raise the lid fully.


)
Slide the lid fully forwards or rear-
wards.



)
Raise the lid to the required position
(low, intermediate or high).

)
If you raise the lid slightly beyond
the high position, guide it when low-
ering it to the low position.



Longitudinal adjustment

Height adjustment











PEUGEOT CONNECT USB


This connection box, consisting of a
USB port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod
® digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.

When it is in use, the portable equipment
charges automatically.

For more information on the use of this
equipment, refer to the "Peugeot Connect
Media" or "Peugeot Connect Sound" part
of the "Audio and Telematics" section.
