2011 Peugeot 308 CC warning

!
Please note the following point:

The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of
your vehicle's electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT dealer to be
shown the recommended equipment and accessories.

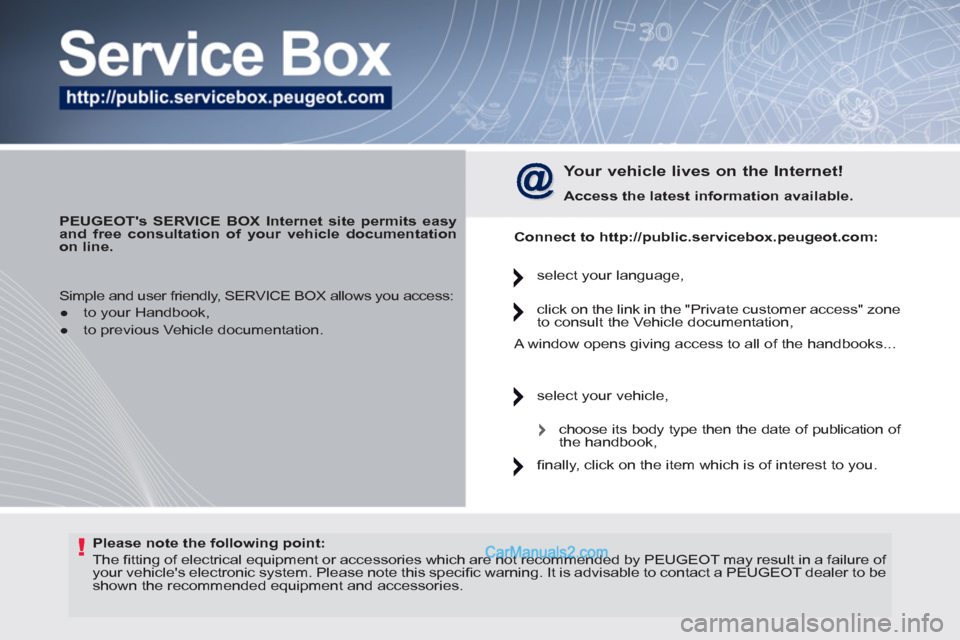

PEUGEOT's SERVICE BOX Internet site permits easy
and free consultation of your vehicle documentation
on line.



Your vehicle lives on the Internet!


Access the latest information available.


Connect to http://public.servicebox.peugeot.com:

Simple and user friendly, SERVICE BOX allows you access:


●
to your Handbook,

●
to previous Vehicle documentation.
select your language,
click on the link in the "Private customer access" zone
to consult the Vehicle documentation,
A window opens giving access to all of the handbooks...
select your vehicle,

choose its body type then the date of publication of
the handbook,
fi nally, click on the item which is of interest to you.

!
i
1

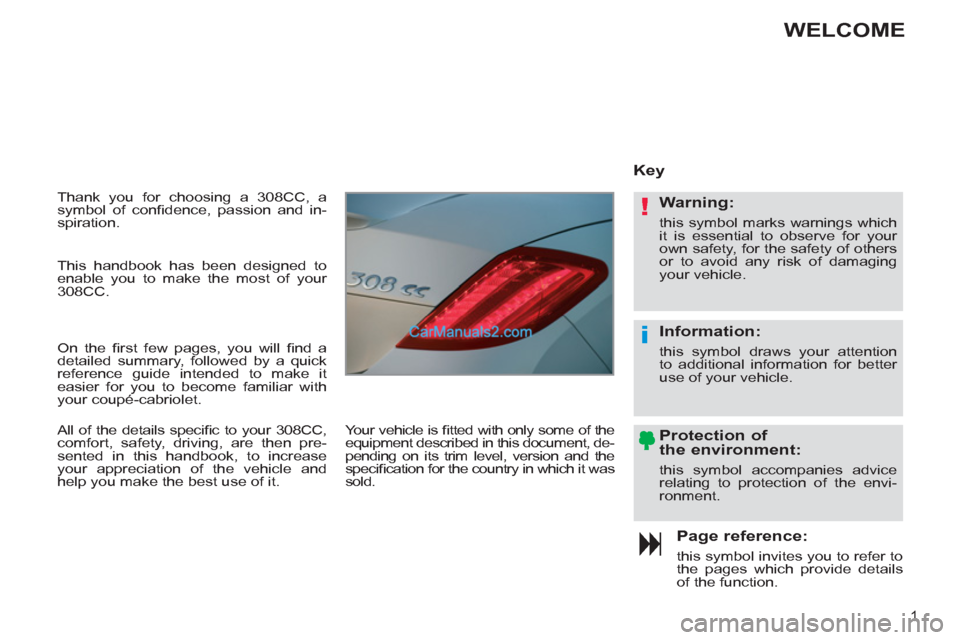

Thank you for choosing a 308CC, a
symbol of confi dence, passion and in-
spiration.

Page reference:

this symbol invites you to refer to
the pages which provide details
of the function.


Key

Protection of
the environment:
this symbol accompanies advice
relating to protection of the envi-
ronment.


Information:

this symbol draws your attention
to additional information for better
use of your vehicle.


Warning:

this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.
Your vehicle is fi tted with only some of the
equipment described in this document, de-
pending on its trim level, version and the
specifi cation for the country in which it was
sold.
WELCOME

This handbook has been designed to
enable you to make the most of your
308CC.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your coupé-cabriolet.
All of the details specifi c to your 308CC,
comfort, safety, driving, are then pre-
sented in this handbook, to increase
your appreciation of the vehicle and
help you make the best use of it.

2
CONTENTS
Instrument panels 22
Warning and indicator lamps 26
Indicators 36
Instrument panel buttons 40„
„
„
„
Ventilation 53
Manual air conditioning 55
Rear screen demist/defrost 56
Dual-zone digital
air conditioning 57
Windstop 59
Front seats 62
"AIRWAVE" system 65
Rear seats 66
Mirrors 67
Steering wheel adjustment 69„
„
„
„
„
„
„
„
„
„
COMFORT 53 Î 69
Remote control key 70
Alarm 75
Window controls 77
Doors 79
Boot 82
Fuel tank 83
Misfuel prevention 84„
„
„
„
„
„
„
ACCESS 70 Î 84
Lighting controls 85
Light emitting diode lamps 87
Daytime running lamps 87
Automatic illumination of
headlamps 88
Welcome lighting 89
Headlamp adjustment 89
Directional lighting 90
Wiper controls 91
Automatic rain sensitive wipers 92
Courtesy lamps 93
Interior mood lighting 94„
„
„
„
„
„
„
„
„
„
„
VISIBILITY 85 Î 94 FAMILIARISATION 4 Î 19
INSTRUMENTS and
CONTROLS 22 Î 41
Monochrome screen C
(Peugeot Connect Sound) 42
16/9 retractable colour screen
(Peugeot Connect Navigation) 45
16/9 high defi nition retractable
colour screen
(Peugeot Connect Media) 47
Trip computer 50„
„
„
„
MULTIFUNCTION
SCREENS 42 Î 52
Interior fi ttings 95
Lockable glove box 96
Lockable front armrest 97
Boot fi ttings 99„
„
„
„
FITTINGS 95 Î 100
15
43
26
ECO-DRIVING 20 Î 21

3
CONTENTS
Direction indicators 101
Hazard warning lamps 101
Horn 102
Emergency or assistance call 102
Tyre under-infl ation detection 103
Braking assistance systems 104
Trajectory control systems 105
Front seat belts 107
Airbags 110
Child seats 114
ISOFIX child seats 119„
„
„
„
„
„
„
„
„
„
„
SAFETY 101 Î 121
Parking brake 122
Manual gearbox 122
Gear shift indicator 123
Hill start assist 124
Automatic gearbox 125
Stop & Start 128
Speed limiter 131
Cruise control 133
Parking sensors 135„
„
„
„
„
„
„
„
„
DRIVING 122 Î 136
Bonnet 138
Running out of fuel (Diesel) 139
Petrol engines 140
Diesel engines 141
Checking levels 142
Checks 144„
„
„
„
„
„
CHECKS 137 Î 145
Temporary puncture repair kit 146
Changing a wheel 151
Changing a bulb 155
Changing a fuse 160
Battery 166
Energy economy mode 168
Changing a wiper blade 169
Towing the vehicle 169
Towing a trailer 171
Very cold climate screen 172
Accessories 172„
„
„
„
„
„
„
„
„
„
„
PRACTICAL
INFORMATION 146 Î 173
Petrol engines 174
Weights (petrol) 175
Diesel engines 176
Weights (Diesel) 177
Dimensions 178
Identifi cation markings 179„
„
„
„
„
„
TECHNICAL
DATA 174 Î 180
AUDIO EQUIPMENT
and TELEMATICS 181 Î 278
VISUAL SEARCH 279 Î 282
ALPHABETICAL
INDEX 283 Î 287
Emergency or assistance 181
Peugeot Connect Media 185
Peugeot Connect Navigation 229
Peugeot Connect Sound 261„
„
„
„
7
89
1011

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Steering wheel adjustment control.

2.
Cruise control/speed limiter
switches.

3.
Lighting and direction indicator
control stalk.

4.
Central adjustable air vents.

5.
Multifunction screen.

6.
Sunshine sensor.

7.
Passenger’s airbag.

8.
Glove box/Audio/video sockets/
Fusebox.

9.
Bonnet release.

10.
Retractable roof control.
Control for all four windows.

11 .
Storage compartment or instrument
panel navigator associated with the
Peugeot Connect Media.

12.
"AIRWAVE" system controls.

13.
Front armrest.

14.
Front ashtray.

15.
Heating/air conditioning controls.

16.
Audio and telematics system.

17.
Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control
(ESP/ASR) button.
Parking sensors button.
PEUGEOT services button.

16
FAMILIARISATION
MONITORING


Instrument panel
Switch panel



A.
With the ignition on, the needle should
indicate the level of fuel remaining.

B.
With the engine running, its associated
low level warning lamp should go off.

C.
With the ignition on, the oil level indica-
tor should display that the level is OK
or correct, according to version, for a
few seconds.
If the levels are not correct, top up the
levels which are low. Illumination of the indicator lamp indi-
cates the status of the corresponding
function.


A.
Emergency call in progress.


181


B.
Deactivation of the alarm volumetric
monitoring.


75


C.
Central locking.


80


D.
Deactivation of the ESP/ASR system.


105


E.
Deactivation of the front and rear
parking sensors.


135


F.
Access to PEUGEOT services.

181




1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




22




26, 30

i
17

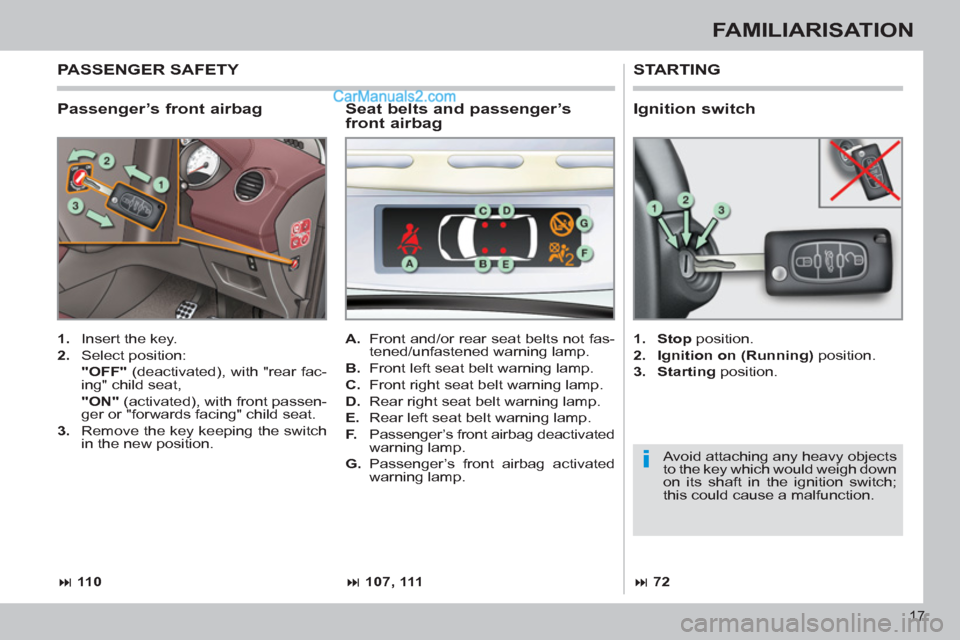

FAMILIARISATION

Passenger’s front airbag

STARTING



1.
Insert the key.

2.
Select position:
"OFF"
(deactivated), with "rear fac-
ing" child seat,
"ON"
(activated), with front passen-
ger or "forwards facing" child seat.

3.
Remove the key keeping the switch
in the new position.

1.
Stop
position.

2.
Ignition on (Running
) position.

3.
Starting
position.

A.
Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp.

E.
Rear left seat belt warning lamp.

F.
Passenger’s front airbag deactivated
warning lamp.

G.
Passenger’s front airbag activated
warning lamp.


Seat belts and passenger’s
front airbag
PASSENGER SAFETY




11 0




107, 111




Ignition switch




72

Avoid attaching any heavy objects
to the key which would weigh down
on its shaft in the ignition switch;
this could cause a malfunction.

!
i
i
18
FAMILIARISATION
DRIVING SAFELY


Stop & Start

The "ECO"
warning lamp comes on
in the instrument panel and the en-
gine automatically goes into standby: The "ECO"
warning lamp goes
off and the engine restarts au-
tomatically:
You can deactivate the system at any
time by pressing the "ECO OFF"
but-
ton; the warning lamp in the button
comes on.
Deactivation/Reactivation



129



Going into engine STOP mode
Going into engine START mode


- with a manual gearbox:
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal.
In some circumstances, STOP mode
may not be available; the "ECO"
warn-
ing lamp fl ashes for few seconds, then
goes off.



128



- with a manual gearbox:
when you
fully
depress the clutch pedal.
If you engage a gear without fully
depressing the clutch pedal, the
engine will not restart automatically.
An alert message is displayed asking
you to fully depress the clutch pedal.



129

The system is reactivated auto-
matically at every new start using
the key.
Before refuelling or doing anything
under the bonnet, you must switch
off the ignition using the key. In some circumstances START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.
