If at least one of the two airbag
warning lamps come on con-
tinuously, do not install a child
seat on the front passenger seat.
Have the system checked by a
PEUGEOT dealer.


Operating fault
If this warning lamp comes on in
the instrument panel, accompa-
nied by an audible warning and
a message in the multifunction
screen, contact a PEUGEOT
dealer to have the system checked. The
airbags may no longer be deployed in the
event of a serious impact.
Reactivation
When you remove the child seat, turn
the switch to the "ON"
position to re-
activate the airbag and so assure the
safety of your front passenger in the
event of an impact.

With the ignition on, this warn-
ing lamp comes on in the seat
belt and passenger's front air-
bag warning lamps display for
approximately one minute, if
the passenger's front airbag is
activated. To assure the safety of your
child, the passenger's front
airbag must be deactivated
when you install a "rear facing" child
seat on the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.
According to version, this
warning lamp comes on either
in the instrument panel or in
the seat belt and passenger's
front airbag warning lamps
display when the ignition is on and until
the airbag is reactivated. If this warning lamp fl ashes,
contact a PEUGEOT dealer.
The passenger's front airbag
may no longer be deployed in
the event of a serious impact.
Deactivation
Only the passenger's front airbag can
be deactivated:


)
with the ignition off
, insert the key
in the passenger airbag deactivation
switch,

)
turn it to the "OFF"
position,

)
then, remove the key keeping the
switch in the new position.

136

The electric parking brake combines
2 operational modes:


- Automatic application/release

Application is automatic when the
engine stops, release is automatic
on use of the accelerator (activated
by default),

- Manual application/release

The parking brake can be applied/
released manually by pulling control
lever A
.


Deactivation is recommended in
particularly cold conditions (ice)
and during towing (breakdown,
caravan...). Refer to the "Manual
release" paragraph.



Programming the mode
Depending on the country of registration
of the vehicle, the automatic application
when the engine is switched off and the
automatic release when you press the
accelerator can be deactivated.
If this warning lamp in the in-
strument panel comes on, the
automatic mode is deactivated. The system can be ac-
tivated/deactivated by a
PEUGEOT dealer.
The parking brake is then applied and
released manually. When the driver's
door is opened, there is an audible beep
and a message is displayed if the brake
is not applied.


Do not place any object (packet
of cigarettes, telephone, ...) be-
hind the electric brake control.

137
With the vehicle stationary, to apply the
parking brake whether the engine is
running or off, pull
on control lever A
.
The application of the parking brake is
confi rmed by:


-
lighting of the braking warn-
ing lamp and of the warning
lamp P
in the control lever A
,

When the driver’s door is opened with
the engine running, there is an audible
signal and a message is displayed if
the parking brake has not been applied,
unless the gear lever is in position P

(Park).
Manual release

With the ignition on or the engine run-
ning, to release the parking brake, press

on the brake
pedal
or the accelerator,
pull then release
control lever A
.
The full application of the parking brake
is confi rmed by:


-
extinction of the braking warn-
ing lamp and of the warning
lamp P
in control lever lever A
,

If you pull control lever A
with-
out pressing the brake pedal,
the parking brake will not be
released and a warning lamp
will come on in the instrument
panel.
Manual applicationMaximum application

If necessary, you can utilise maximum
application
of the parking brake. It is
obtained by means of a long pull
on
control lever A
, until you see the mes-
sage "Handbrake on" and an audible
signal is heard.

In the case of towing, a loaded
vehicle or parking on a gradient,
make a maximum application
of the parking brake then turn the front
wheels towards the pavement and en-
gage a gear when you park.
After a maximum application, the re-
lease time will be longer.


Before leaving the vehicle,
check that parking brake
warning lamp in the instrument
panel is on fi xed, not fl ashing.

Maximum application is essential:



- in the case of a vehicle towing a
caravan or a trailer, if the automatic
functions are activated but you are
applying the parking brake manually,

- when the gradient you are parked
on is variable in its effect (e.g. on a
ferry, in a lorry, during towing),

- display of the message
"Handbrake on".
- display of the message
"Handbrake off".

138
Automatic application,
engine off

With the vehicle stationary, the parking
brake is automatically applied when
the engine is switched off.


-
illumination of the braking
warning lamp and of the warn-
ing lamp P
in control lever A
,
Automatic release

The electric parking brake releases au-
tomatically and progressively
when
you press the accelerator:


)
Put the gear lever in position A
, M

or R
then press on the accelerator
pedal.


Before leaving the vehicle,
check that parking brake
warning lamp in the instru-
ment panel is on fi xed (not
fl ashing).
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.

- extinction of braking warn-
ing lamp and of the warning
lamp P
in control lever A
,
The noise of operation confi rms the ap-
plication/release of the electric parking
brake. Full release of the parking brake is con-
fi rmed by:

To immobilise the vehicle, engine running

With the engine running and the vehicle
stationary, in order to immobilise the
vehicle it is essential to manually apply
the parking brake by pulling
on control
lever A
.
The application of the parking brake is
confi rmed by:


-
illumination of the braking warn-
ing lamp and of the warning
lamp P
in control lever A
,

When the driver’s door is opened, there
is an audible signal and a message is
displayed if the parking brake has not
been applied, unless the gear lever is in
position P
(Park).

Before leaving the vehicle,
check that parking brake
warning lamp in the instrument
panel is on fi xed, not fl ashing.


When stationary, with the en-
gine running, do not press the
accelerator pedal unneces-
sarily, as you may release the
parking brake.
Application of the parking brake is con-
fi rmed by:

- display of the message
"Handbrake on".

In the case of towing, a loaded vehi-
cle or parking on a gradient, turn the
front wheels towards the pavement
and engage a gear when you park.

- display of the message
"Handbrake off".
- display of the message
"Handbrake on".

139
Particular situationsEMERGENCY BRAKING


In the event of a failure of the main ser-
vice brake or in an exceptional situation
(e.g. driver taken ill, under instruction,
etc) a continuous pull on control le-
ver
A
will stop the vehicle
.
The electronic stability programme
(ESP) provides stability during emer-
gency braking.
If the emergency braking malfunctions,
one of the following messages will be
displayed:


- "Parking brake faulty".

- "Parking brake control faulty".
In certain situations (e.g. starting the
engine), the parking brake can auto-
matically alter its force. This is nor-
mal operation.
To advance your vehicle a few cen-
timetres without starting the engine,
but with the ignition on, press on the
brake pedal and release the park-
ing brake by pulling
then releasing

control lever A
. The full release of
the parking brake is confi rmed by the
extinction of warning lamp in control
lever A
and of the warning lamp in
the instrument panel and display of
the message "Handbrake off".
If the parking brake malfunctions
while applied
or if the battery runs
fl at, an emergency release is always
possible.

If a failure of the ESP system is
signalled by illumination of this
warning lamp, then braking sta-
bility is not guaranteed.

The emergency braking must
only be used in exceptional
circumstances.
In this event, stability must be assured
by the driver by repeating alternate "pull
release" actions on control lever A
.

142

Operating faults

If the electric parking brake fault warning lamp comes on together with one or more of the warning lamps presented in these
tables, place the vehicle in a safe condition (on level ground, gear engaged) and contact a PEUGEOT dealer without delay.


Situations



Consequences


Display of the message " Parking
brake fault
" and of the following war-
ning lamps:

- The automatic functions are deactivated.

- Hill start assist is not available.

- The electric parking brake can only be used manually.
Display of the message " Parking
brake fault
" and of the following war-
ning lamps:

- Manual release of the electric parking brake is only available by pressing the
accelerator pedal and releasing the control.

- Hill start assist is not available.

- The automatic functions and the manual application are still available.
Display of the message " Parking
brake fault
" and of the following war-
ning lamps:

- The automatic functions are deactivated.

- Hill start assist is not available.


To apply the electric parking brake:


)
Immobilise the vehicle and switch off the ignition.

)
Pull the control for at least 5 seconds or until application is complete.

)
Switch on the ignition and check the switching on of the electric parking brake
warning lamps.
The application is slower than during normal operation.
To release the electric parking brake:


)
Switch on the ignition.

)
Pull the control and hold it for approximately 3 seconds then release it.
If the braking warning lamp is fl ashing or if the warning lamps do not come on with
the ignition on, these procedures will not work. Place the vehicle on level ground
and have it checked by a PEUGEOT dealer. and possibly
fl ashing

143


Situations



Consequences




Display of the message " Parking
brake control fault - auto parking
brake activated
" and of the following
warning lamps:




- Only the automatic application on switching off the engine and automatic re-
lease on acceleration functions are available.

- The manual application/release of the electric parking brake and the emer-
gency braking are not available.
and possibly



fl ashing


Battery fault

- If the battery warning lamp comes on you must stop immediately as soon as
the traffi c allows. Stop and immobilise your vehicle (if necessary, place the
two chocks under the wheels).

- Apply the electric parking brake before switching off the engine.

144

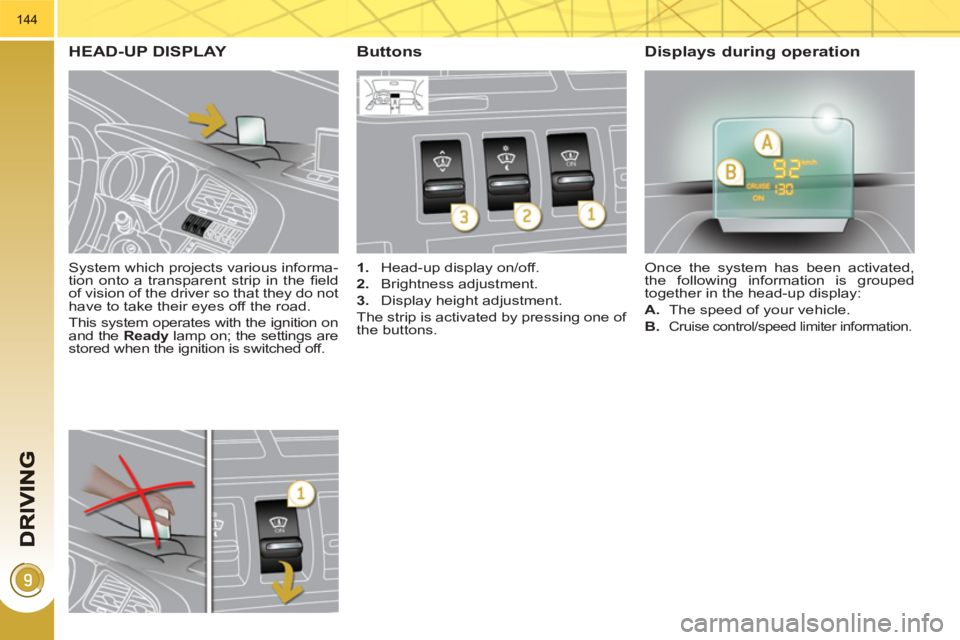

System which projects various informa-
tion onto a transparent strip in the fi eld
of vision of the driver so that they do not
have to take their eyes off the road.
This system operates with the ignition on
and the Ready
lamp on; the settings are
stored when the ignition is switched off.


HEAD-UP DISPLAY



1.
Head-up display on/off.

2.
Brightness adjustment.

3.
Display height adjustment.
The strip is activated by pressing one of
the buttons. Once the system has been activated,
the following information is grouped
together in the head-up display:


A.
The speed of your vehicle.

B.

Cruise control/speed limiter information.

Buttons Displays during operation
