79
The objects observed are, in re-
ality, closer than they appear.
Take this into account in order
to correctly judge the distance of vehi-
cles approaching from behind.

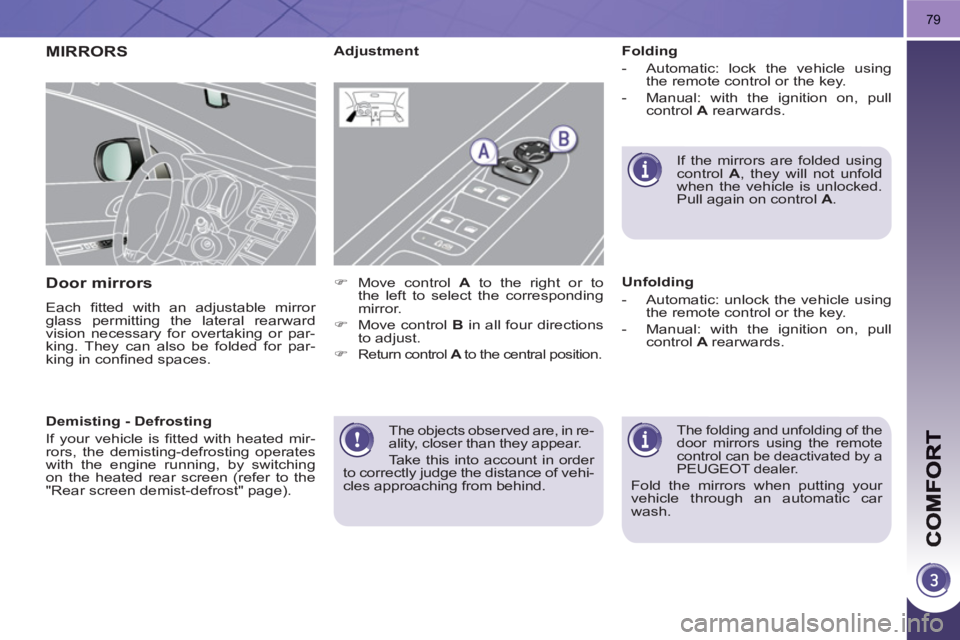

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward
vision necessary for overtaking or par-
king. They can also be folded for par-
king in confi ned spaces.
Folding
- Automatic: lock the vehicle using
the remote control or the key.
- Manual: with the ignition on, pull
control A
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.
Fold the mirrors when putting your
vehicle through an automatic car
wash.
Adjustment
Unfolding
- Automatic: unlock the vehicle using
the remote control or the key.
- Manual: with the ignition on, pull
control A
rearwards.
If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.
)
Move control A
to the right or to
the left to select the corresponding
mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central position.
Demisting - Defrosting
If your vehicle is fi tted with heated mir-
rors, the demisting-defrosting operates
with the engine running, by switching
on the heated rear screen (refer to the
"Rear screen demist-defrost" page).
Page 83 of 280
81

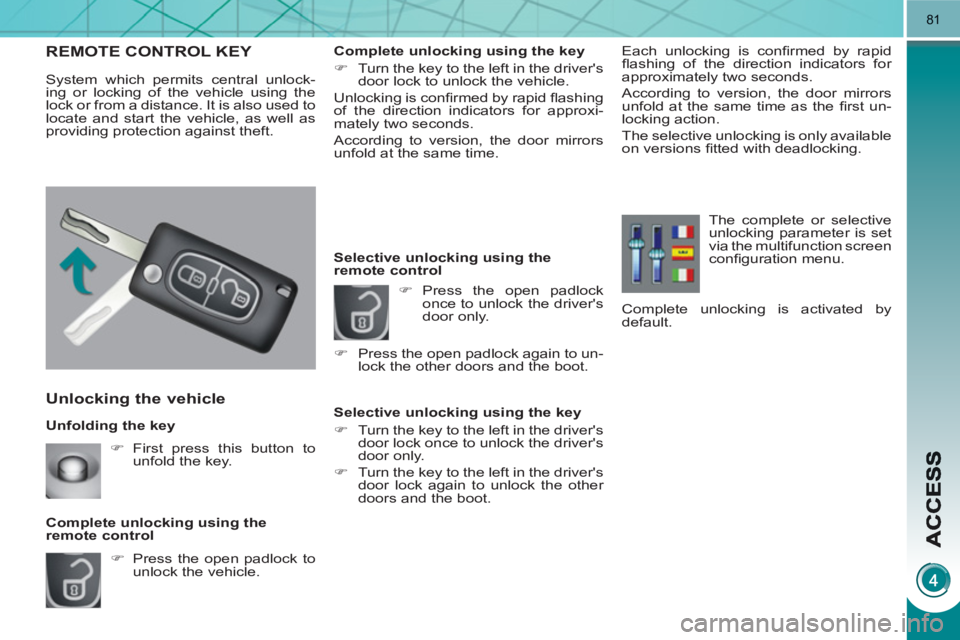

Unfolding the key
Unlocking the vehicle
)
Press the open padlock to
unlock the vehicle.
Complete unlocking using the
remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Complete unlocking using the key
)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Selective unlocking using the
remote control
Selective unlocking using the key
)
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.
)
Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot.
)
Press the open padlock
once to unlock the driver's
door only.
)
Press the open padlock again to un-
lock the other doors and the boot.
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the fi rst un-
locking action.
The selective unlocking is only available
on versions fi tted with deadlocking.
The complete or selective
unlocking parameter is set
via the multifunction screen
confi guration menu.
Complete unlocking is activated by
default.
)
First press this button to
unfold the key.
Page 84 of 280
82

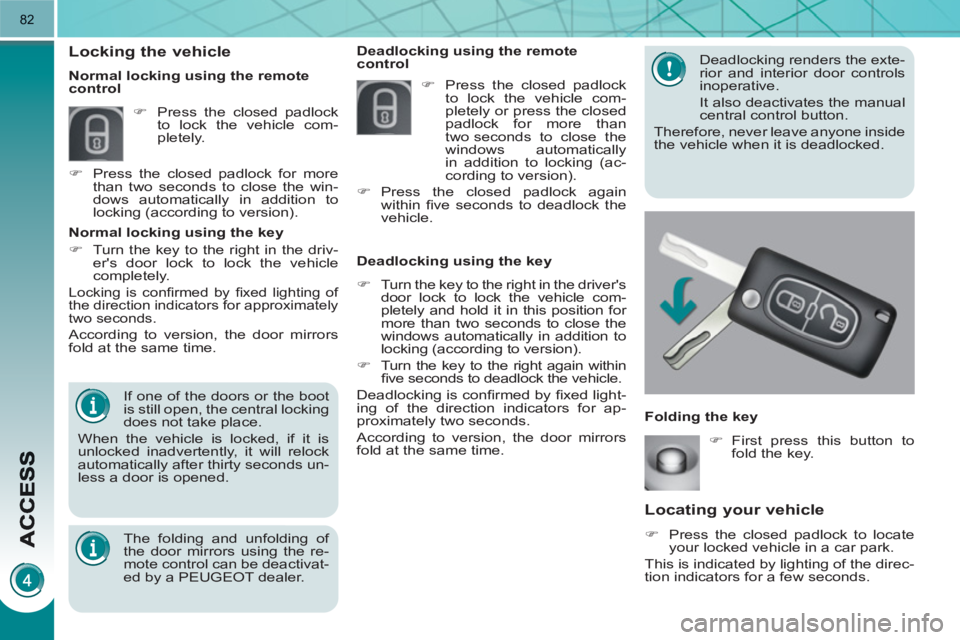

Locating your vehicle
)
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the direc-
tion indicators for a few seconds. Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking using the remote
control
Deadlocking using the key
Folding the key
)
Press the closed padlock
to lock the vehicle com-
pletely or press the closed
padlock for more than
two seconds to close the
windows automatically
in addition to locking (ac-
cording to version).
)
Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.
If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds un-
less a door is opened.
Normal locking using the key
)
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
The folding and unfolding of
the door mirrors using the re-
mote control can be deactivat-
ed by a PEUGEOT dealer.
Locking the vehicle
)
Press the closed padlock
to lock the vehicle com-
pletely.
)
Press the closed padlock for more
than two seconds to close the win-
dows automatically in addition to
locking (according to version).
Normal locking using the remote
control
)
Turn the key to the right in the driver's
door lock to lock the vehicle com-
pletely and hold it in this position for
more than two seconds to close the
windows automatically in addition to
locking (according to version).
)
Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.
)
First press this button to
fold the key.
Page 85 of 280
83
A heavy object (key fob...), at-
tached to the key and weigh-
ing down on its shaft in the
ignition switch, could cause a
malfunction.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
For more information, refer to the
"Practical information - Energy
economy mode" section.
Energy economy mode
After switching off the engine (posi-
tion 1-Stop
), you can still use functions
such as the audio and telematics sys-
tem, wipers, dipped beam headlamps,
courtesy lamps, etc. for a maximum
combined period of thirty minutes.
Page 86 of 280
84
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition
on)
.
)
Press the closed padlock immedi-
ately for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the multifunc-
tion screen.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its location.
)
Slide the new battery into its loca-
tion observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
Page 87 of 280
85
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and
your personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder
code required to order a replacement key.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not operate it while
it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even when
the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment
by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system; this
could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys
in your possession are the only ones which can start the vehicle.
Page 89 of 280
87

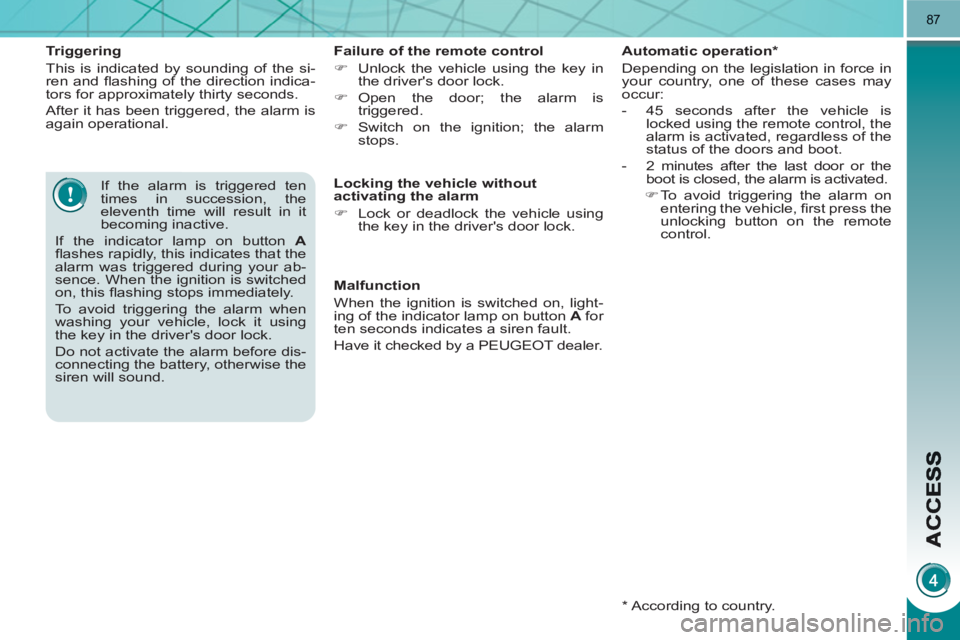

Triggering
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for approximately thirty seconds.
After it has been triggered, the alarm is
again operational.
If the alarm is triggered ten
times in succession, the
eleventh time will result in it
becoming inactive.
If the indicator lamp on button A
fl ashes rapidly, this indicates that the
alarm was triggered during your ab-
sence. When the ignition is switched
on, this fl ashing stops immediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
Do not activate the alarm before dis-
connecting the battery, otherwise the
siren will sound.
Failure of the remote control
)
Unlock the vehicle using the key in
the driver's door lock.
)
Open the door; the alarm is
triggered.
)
Switch on the ignition; the alarm
stops.
Malfunction
When the ignition is switched on, light-
ing of the indicator lamp on button A
for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using
the key in the driver's door lock.
Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the
boot is closed, the alarm is activated.
)
To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.
* According to country.
Page 91 of 280
89

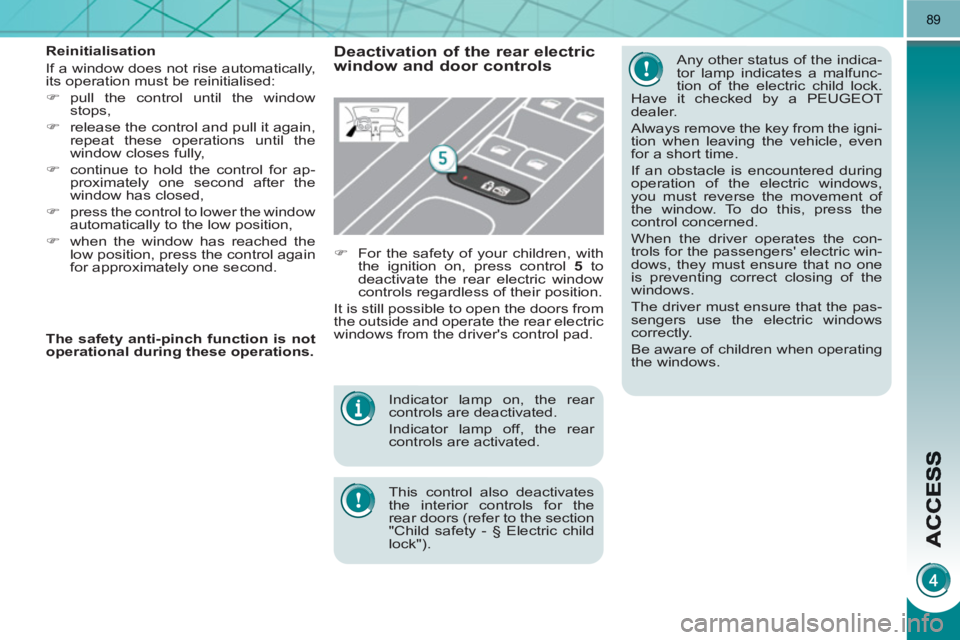

Indicator lamp on, the rear
controls are deactivated.
Indicator lamp off, the rear
controls are activated.
This control also deactivates
the interior controls for the
rear doors (refer to the section
"Child safety - § Electric child
lock").
Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:
)
pull the control until the window
stops,
)
release the control and pull it again,
repeat these operations until the
window closes fully,
)
continue to hold the control for ap-
proximately one second after the
window has closed,
)
press the control to lower the window
automatically to the low position,
)
when the window has reached the
low position, press the control again
for approximately one second. Any other status of the indica-
tor lamp indicates a malfunc-
tion of the electric child lock.
Have it checked by a PEUGEOT
dealer.
Always remove the key from the igni-
tion when leaving the vehicle, even
for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric win-
dows, they must ensure that no one
is preventing correct closing of the
windows.
The driver must ensure that the pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Deactivation of the rear electric
window and door controls
)
For the safety of your children, with
the ignition on, press control 5
to
deactivate the rear electric window
controls regardless of their position.
It is still possible to open the doors from
the outside and operate the rear electric
windows from the driver's control pad.
The safety anti-pinch function is not
operational during these operations.
