90
DOORS
)
After unlocking the vehicle com-
pletely using the remote control or
the key, pull the door handle.
From inside
)
Pull the door control (front or rear)
to open the door; this unlocks this
vehicle completely.
The interior door controls do
not operate when the vehicle
is deadlocked.
Closing
When a door is not closed correctly:
-
when the engine is running
,
this warning lamp comes on,
accompanied by a message
in the multifunction screen for
a few seconds,
- when the vehicle is moving
(speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accom-
panied by an audible signal and a
message in the multifunction screen
for a few seconds.
Opening
From outside
Page 93 of 280
91
If the vehicle is locked or
deadlocked from the outside,
the red indicator lamp fl ashes
and button A
is inactive.
)
In this case, use the remote
control or the key to unlock the
vehicle.
A confi rmation message ap-
pears on the multifunction
screen, accompanied by an
audible signal. Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
)
Press button A
to lock the vehicle.
The red indicator lamp on the button
comes on.
Automatic centralised control
System which provides full automatic
locking or unlocking of the doors and
boot while driving, if they are closed
correctly.
You can activate or deactivate this
function.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and boot lock
automatically.
If one of the doors is open, the automatic
central locking does not take place.
If the boot is open, the automatic central
locking of the doors is active.
Deactivation
)
Press button A
again for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.
If one of the doors is open, the
central locking from the inside
does not take place.
Unlocking
)
Press button A
again to unlock the
vehicle.
The red indicator lamp on the button
switches off.
Activation
In the event of an impact, the
doors unlock automatically.
Unlocking
)
Above 6 mph (10 km/h), press but-
ton A
to unlock the doors and boot
temporarily.
)
Press button A
for more than
two seconds.
Page 94 of 280
92
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the
central locking.
)
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn
.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
)
Pull the interior door opening control.
Opening
)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and raise the tailgate.
BOOT
Closin
g
)
Close the lower tailgate.
)
Pull the handle B
downwards to
guide the tailgate.
Page 96 of 280
94
The key cannot be removed
from the lock until the cap is
put back on the tank.
Opening the cap may trigger an in-
rush of air. This vacuum, which is
completely normal, is caused by the
sealing of the fuel system.
FUEL TANK
Capacity of the tank: approximately
56.5 litres.
To fi ll the tank safely:
When refuelling is complete:
)
put the cap back in place,
)
turn the key to the right, then remove
it from the cap,
)
close the fi ller fl ap.
)
remove the cap and secure it on the
hook, located on the inside of the
fl ap,
)
fi ll the tank, but do not continue
after the 3rd cut-off of the nozzle
;
this could cause malfunctions.
Low fuel level
Operatin
g fault
A malfunction of the fuel gauge is indi-
cated by the return to zero of the fuel
gauge needle.
Have it checked by a PEUGEOT dealer.
Refuelling
A label affi xed to the inside of the fi ller
fl ap reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge. When the low fuel level is
reached, this warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a message
in the multifunction screen. When the
lamp fi rst comes on, there is approxi-
mately
6 litres
of fuel remaining.
Until suffi cient fuel has been added, this
warning lamp appears every time the
ignition is switched on, accompanied by
an audible signal and a message. When
driving, this audible signal and message
are repeated with increasing frequency,
as the fuel level drops towards "0"
.
You must refuel to avoid run-
ning out of fuel.
If you run out of fuel (Diesel),
refer also to the "Checks"
section.
)
the engine must
be turned off
at the ignition
switch
(the Ready
lamp must be off) to avoid an auto-
matic restart of the engine while re-
fuelling,
)
open the fuel fi ller fl ap,
)
insert the key in the cap, then turn it
to the left,
Page 105 of 280
103
COURTESY LAMPS
1.
Front courtesy lamp
2.
Map reading lamps
3.
Rear side reading lamps
4.
Rear courtesy lamp
Front and rear courtesy lamps
In this position, the courtesy
lamp comes on gradually:
Map reading lamps
)
With the ignition on, press the cor-
responding switch.
With the "permanent lighting"
mode, the duration of lighting var-
ies depending on the context:
- with the ignition off, approximately
ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking but-
ton is activated, in order to locate
your vehicle.
Permanently off.
Permanent lighting. When the front courtesy lamp
is in the "permanent lighting"
position, the rear courtesy
lamp will also come on, unless it is in
the "permanently off" position. To switch off the rear courtesy lamp,
place it in the "permanently off" position.
Rear side reading lamps
)
With the ignition on, the fi rst press
of the reading lamp switch switches
on the reading lamp in "permanent
lighting" mode.
)
Following a second press, it comes
on:
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking
button is pressed, in order to
locate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Take care not to place anything in contact
with the courtesy lamps.
Page 106 of 280
104
INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
INTERIOR WELCOME LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
approach to the vehicle easier in poor
light. It operates with the automatic il-
lumination of headlamps.
Switching on
)
Press the open padlock on the remote
control.
The courtesy lamps come on; your ve-
hicle is also unlocked.
Switching off
The interior welcome lighting switch-
es off automatically after a set time or
when one of the doors is opened.
Programming
Switching on
At night, the front courtesy lamp mood
lamp A
comes on automatically when
the sidelamps are switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
The duration of the welcome
lighting is associated with and
identical to that of the automatic
guide-me-home lighting.
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
DOOR MIRROR SPOTLAMPS
To make your approach to the vehicle
easier, these illuminate:
- the zones facing the driver’s and
passenger’s doors,
- the zones forward of the door mirrors
and rearward of the front doors.
Switching on
The spotlamps come on:
- when you unlock the vehicle,
- when you remove the key from the
ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go off automatically.
Page 116 of 280
FITTINGS
11 4
The hooks can be used to secure shop-
ping bags.
Hooks
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition on position.
12 V accessory socket
Adjustable boot floor
)
Push the fl oor forwards, then lift up.
Do not place more than 100 kg on the
fl oor.
To place and support the fl oor at an angle:
)
Raise the fl oor towards the rear
parcel shelf.
)
Pass two retractable stops then
place the fl oor back on these
two stops.

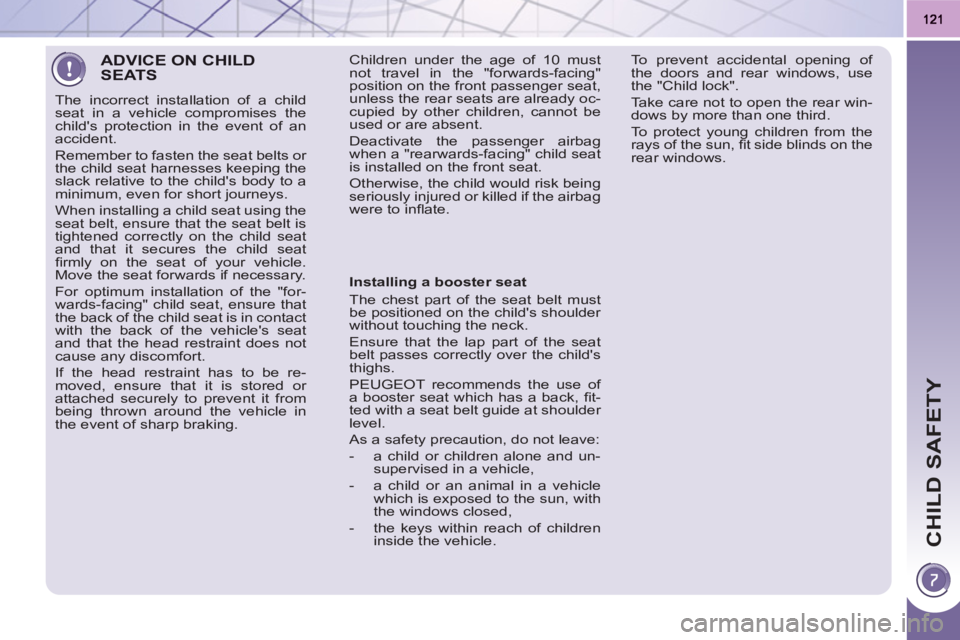

Page 123 of 280
CHILD SAFETY
ADVICE ON CHILDSEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat
fi rmly on the seat of your vehicle.
Move the seat forwards if necessary.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- a child or children alone and un-
supervised in a vehicle,
- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,
- the keys within reach of children
inside the vehicle. To prevent accidental opening of
the doors and rear windows, use
the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
Children under the age of 10 must
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.
