2011 NISSAN TITAN start stop button

CAUTION
●The glass screen on the liquid crystal
display may break if hit with a hard or
sharp object. If the glass breaks, do not
touch the liquid crystalline material,
which contains a small amount of mer-
cury. In case of contact with skin, wash
immediately with soap and water.
● Use a damp, soft cloth when cleaning
the Mobile Entertainment System com-
ponents. Do not use solvents or clean-
ing solutions.
Do not attempt to use the system in extreme
temperature conditions [below -4°F (-20°C) or
above 158°F (70°C)].
To avoid discharging the vehicle battery, do not
operate the system more than 15 minutes without
starting the engine.
1. EJECT button
2. DVD slot
3. ENTER button
4. POWER on/off button
5. MODE button
6. Input jacks
7. STOP button
8. PLAY/PAUSE button
9. MENU button
10. DISPLAY button
11. NAVIGATION keysDIGITAL VIDEO DISC (DVD) PLAYER
CONTROLS
Refer to “Playing a digital video disc (DVD)” later
in this section for the function of each button.

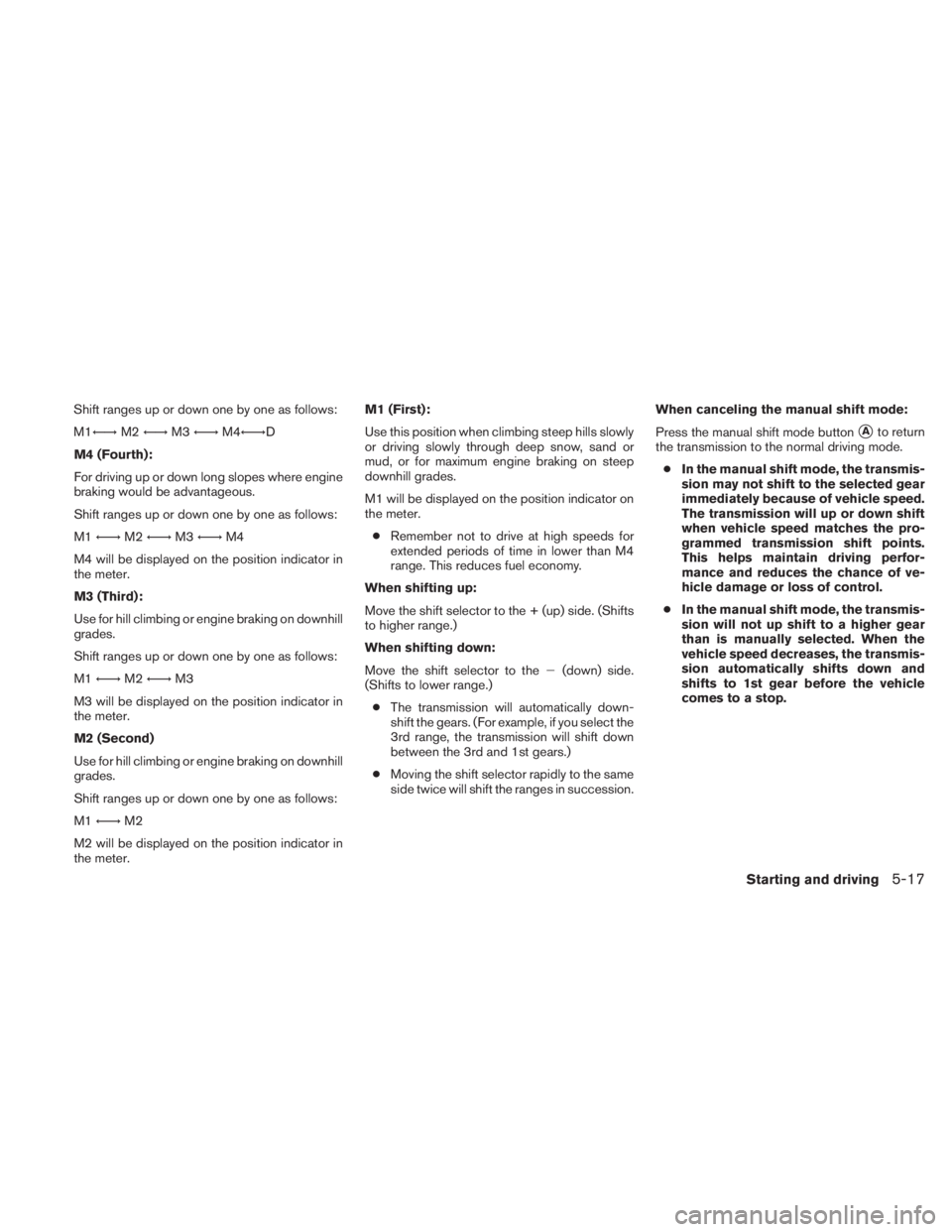

Shift ranges up or down one by one as follows:
M1←→M2←→ M3←→ M4←→D
M4 (Fourth):
For driving up or down long slopes where engine
braking would be advantageous.
Shift ranges up or down one by one as follows:
M1 ←→ M2←→ M3←→ M4
M4 will be displayed on the position indicator in
the meter.
M3 (Third):
Use for hill climbing or engine braking on downhill
grades.
Shift ranges up or down one by one as follows:
M1 ←→ M2←→ M3
M3 will be displayed on the position indicator in
the meter.
M2 (Second)
Use for hill climbing or engine braking on downhill
grades.
Shift ranges up or down one by one as follows:
M1 ←→ M2
M2 will be displayed on the position indicator in
the meter. M1 (First):
Use this position when climbing steep hills slowly
or driving slowly through deep snow, sand or
mud, or for maximum engine braking on steep
downhill grades.
M1 will be displayed on the position indicator on
the meter.
● Remember not to drive at high speeds for
extended periods of time in lower than M4
range. This reduces fuel economy.
When shifting up:
Move the shift selector to the + (up) side. (Shifts
to higher range.)
When shifting down:
Move the shift selector to the (down) side.
(Shifts to lower range.)
● The transmission will automatically down-
shift the gears. (For example, if you select the
3rd range, the transmission will shift down
between the 3rd and 1st gears.)
● Moving the shift selector rapidly to the same
side twice will shift the ranges in succession. When canceling the manual shift mode:
Press the manual shift mode button
Ato return
the transmission to the normal driving mode.
● In the manual shift mode, the transmis-
sion may not shift to the selected gear
immediately because of vehicle speed.
The transmission will up or down shift
when vehicle speed matches the pro-
grammed transmission shift points.
This helps maintain driving perfor-
mance and reduces the chance of ve-
hicle damage or loss of control.
● In the manual shift mode, the transmis-
sion will not up shift to a higher gear
than is manually selected. When the
vehicle speed decreases, the transmis-
sion automatically shifts down and
shifts to 1st gear before the vehicle
comes to a stop.
Starting and driving5-17

SteeringPower steering fluid .............8-11
Power steering system ...........5-31
Tilting steering wheel ............3-14
Steering wheel audio control switch ......4-54
Stop light .....................8-27
Storage ......................2-39
Lockable bedside storage compartment . .2-47
Overhead storage compartment ......2-43
Storage bin ....................2-44
Storage tray ...................2-39
Sun visors ....................3-15
Sunglasses case .................2-42
Sunroof ......................2-51
Sunroof (see Moonroof) .............2-51
Supplemental air bag warning labels ......1-61
Supplemental air bag warning light . . .1-62, 2-17
Supplemental front impact air bag system . . .1-54
Supplemental restraint system Information and warning labels .......1-61
Precautions on supplemental restraint
system ....................1-47
Supplemental restraint system
(Supplemental air bag system) .........1-47
Switch Autolight switch ...............2-30
Automatic power window switch ......2-49
Electronic locking rear differential
(E-Lock) system switch ...........2-35
Fog light switch ...............2-33
Hazard warning flasher switch .......2-33
Headlight and turn signal switch ......2-29
Headlight control switch ..........2-29
Ignition switch .................5-9
Power door lock switch ............3-4
Rear sonar system off switch ........2-36Rear window and outside mirror defroster
switch
.....................2-28
Turn signal switch ..............2-32
Vehicle dynamic control (VDC) off
switch .....................2-35
Windshield wiper and washer switch . . .2-27
T
Tachometer ....................2-6
Tailgate latch .................. .3-21
T

emperature gauge Engine coolant temperature gauge .....2-6
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Theft (NISSAN vehicle immobilizer system) ,
engine start .............2-26, 3-2, 5-11
Three-way catalyst ................5-2
Tie down hooks .................3-23
Tilting steering wheel ..............3-14
Tire Flat tire .....................6-2
Spare tire ...................6-3
Tire and Loading Information label .....9-12
Tire chains ..................8-38
Tire placard ..................9-12
Tire pressure .................8-31
Tire rotation ..................8-38
Tires of 4-wheel drive ............8-40
Types of tires .................8-37
Uniform tire quality grading .........9-43
Wheels and tires ...............8-31
Wheel/tire size .................9-9
Tire pressure Low tire pressure warning light .......2-16Tire pressure display
...............4-7
Tire Pressure Monitoring System (TPMS) . . . .5-3
Tire rotation maintenance reminder .......4-7
Tow mode switch ................2-37
Towing 2-wheel drive models ............6-12
4-wheel drive models ............6-13
Flat towing ..................9-42
Tow truck towing ...............6-11
Towing load/specification ..........9-29
Trailer towing .................9-25
Transceiver HomeLink Universal Transceiver ......2-55
Transmission Driving with automatic transmission . . . .5-13
Selector lever lock release .........5-18
T

ravel (See registering your vehicle in another
country) ......................9-10
Trip button .....................4-4
Trip odometer ...................2-5
Truck - camper loading .............9-23
Turn signal switch ................2-32
U
Uniform tire quality grading ...........9-43
V
Vanity mirror ...................3-16
Variable voltage control system .........8-15
Vehicle dimensions and weights .........9-9
Vehicle dynamic control (VDC) off switch . . .2-35
Vehicle dynamic control (VDC) system .....5-34
10-6
