9. Apply the sealant without breaks to the specified location using
Tool.
Use Genuine Silicone RTV Seal ant or equivalent. Refer to
GI-42, "
Recommended Chemical Product and Sealant".
10. Tighten bolts in numerical order as shown.
11. Install oil filter with the following procedure:
a. Remove foreign materials adhering to the oil filter installation surface.
b. Apply new engine oil to the oil seal contact surface of new oil fil- ter.
c. Screw oil filter manually until it touches the installation surface, then tighten it by 2/3 turn. Or tighten to specification.
12. Installation of the remaining components is in the reverse order of removal.
InspectionINFOID:0000000006413286
INSPECTION AFTER INSTALLATION
• Before starting engine, check oil/fluid levels incl uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-14, "
Fluids and Lubricants".
• Use procedure below to check for fuel leakage.
• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-
age at connection points.
• Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration. Tool number WS39930000 ( – )
1 : Oil pan (lower)
A : Liquid gasket
: Engine outside
PBIC4590E
: Engine front
PBIC3146J
Oil filter: : 17.7 N·m (1.8 kg-m, 13 ft-lb)
SMA229B
Revision: May 2010 2011 Versa

EM-152
< SERVICE INFORMATION >[MR18DE]
IGNITION COIL, SPARK PLUG AND ROCKER COVER
4. Remove rocker cover.
• Loosen bolts in reverse order as shown.
• Engine front
INSPECTION AFTER REMOVAL
CAUTION:
• Never drop or shock spark plug.
• Checking and adjusting spar k plug gap is not required
between change intervals.
• If spark plug tip is covered with car bon, a spark plug cleaner may be used.
• Never use wire brush for cleaning spark plug.
INSTALLATION
1. Install the rocker cover gasket to the rocker cover.

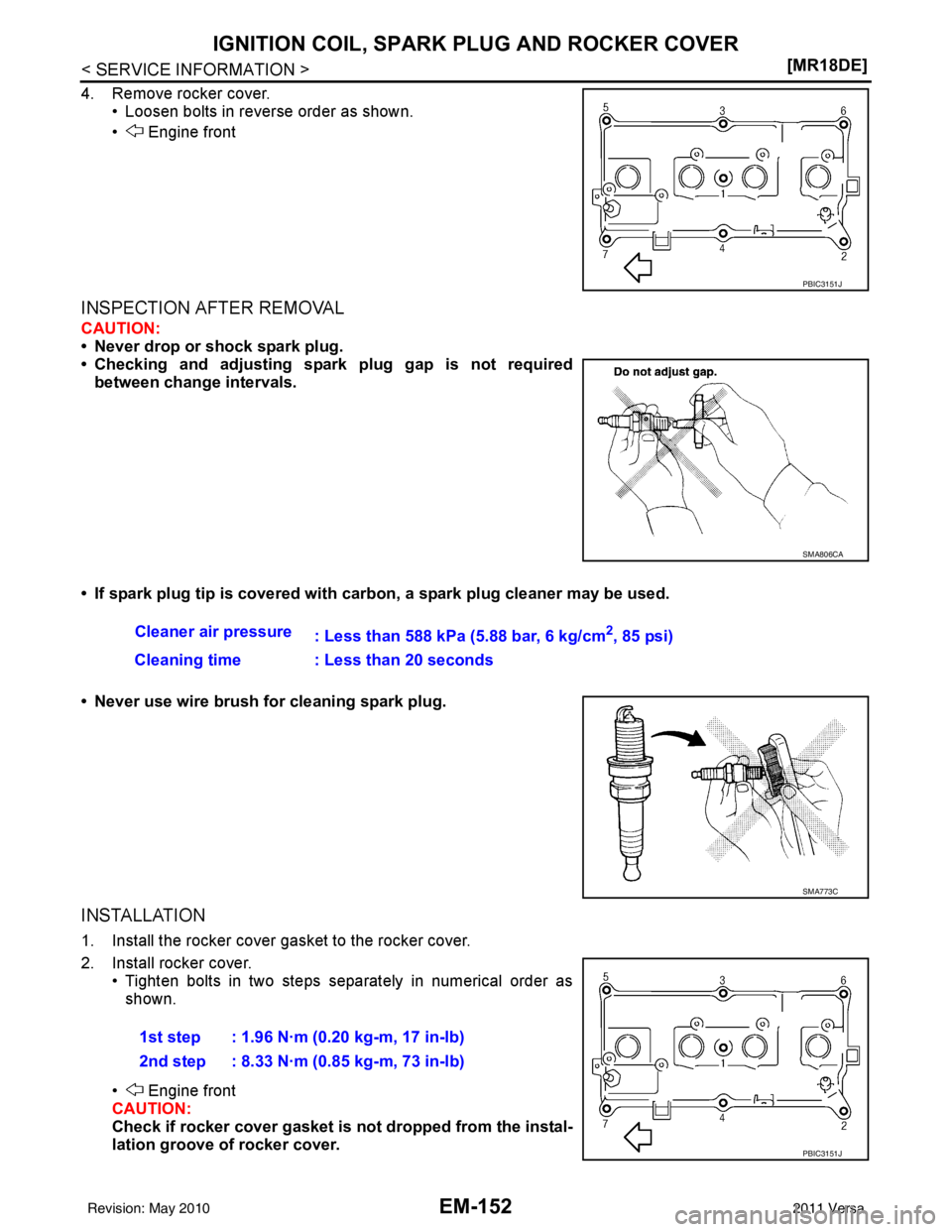

2. Install rocker cover. • Tighten bolts in two steps separately in numerical order asshown.
• Engine front
CAUTION:
Check if rocker cover gasket is not dropped from the instal-
lation groove of rocker cover.
PBIC3151J
SMA806CA
Cleaner air pressure : Less than 588 kPa (5.88 bar, 6 kg/cm2, 85 psi)
Cleaning time : Less than 20 seconds
SMA773C
1st step : 1.96 N·m (0.20 kg-m, 17 in-lb)
2nd step : 8.33 N·m (0.85 kg-m, 73 in-lb)
PBIC3151J
Revision: May 2010 2011 Versa

EM-154
< SERVICE INFORMATION >[MR18DE]
FUEL INJECTOR AND FUEL TUBE
FUEL INJECTOR AND FUEL TUBE
ComponentINFOID:0000000005931014
Removal and InstallationINFOID:0000000005931015
WARNING:
• Put a “CAUTION: FLAMMABLE”
sign in the workshop.
• Be sure to work in a well ventilate d area and furnish workshop with a CO
2 fire extinguisher.
• Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.
CAUTION:
• Apply new engine oil to parts before installing the parts, as shown above.
• Do not remove or disassemble parts unless instructed as shown.
REMOVAL
1. Release the fuel pressure. Refer to EC-582, "Fuel Pressure Check".
2. Disconnect the battery negative terminal. Refer to SC-7, "
Removal and Installation".

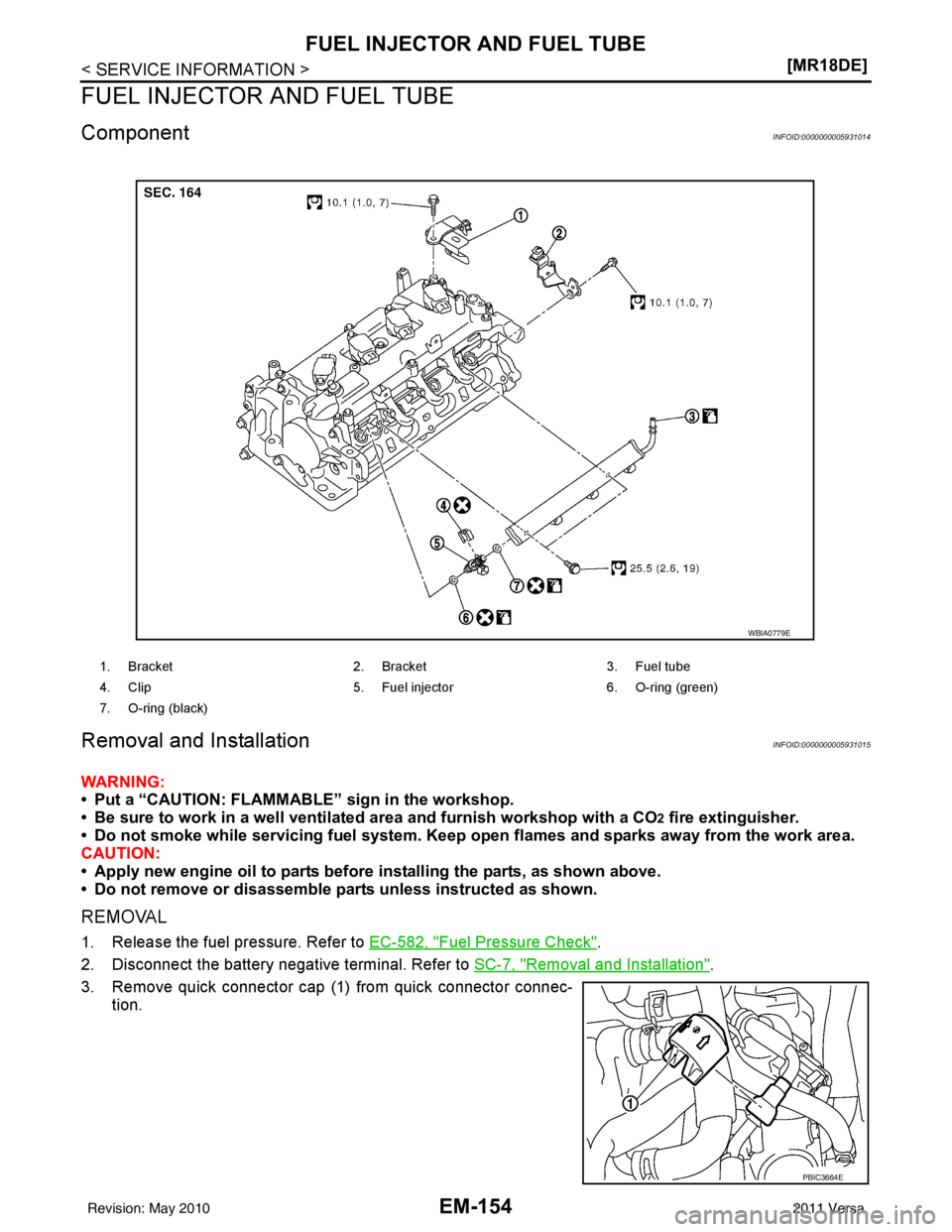

3. Remove quick connector cap (1) from quick connector connec- tion.
1. Bracket 2. Bracket 3. Fuel tube
4. Clip 5. Fuel injector6. O-ring (green)
7. O-ring (black)
WBIA0779E
PBIC3664E
Revision: May 2010 2011 Versa

EM-156
< SERVICE INFORMATION >[MR18DE]
FUEL INJECTOR AND FUEL TUBE
9. Remove fuel tube bolts.
• Loosen bolts in reverse order as shown.
10. Remove the fuel tube and fuel injector assembly. CAUTION:
• When removing, be careful to avoid any interference with fuel injector.
• Use a shop cloth to absorb any fuel leaks from fuel tube.
11. Remove fuel injector from the f uel tube with the following procedure:
a. Open and remove the clip.
b. Remove fuel injector from the fuel tube by pulling straight. CAUTION:
• Be careful about spilling fu el remaining in fuel tube.
• Be careful not to damage the fuel injector nozzle during removal.
• Never bump or drop fuel injector.
• Never disassemble fuel injector.
INSTALLATION
1. Install new O-rings to the fuel injector.
CAUTION:
• The upper and lower O-rings are different. Be careful not to confuse them.
• Handle O-ring with bare hands. Never wear gloves.
• Lubricate O-ring with new engine oil.
• Never clean O-ring with solvent.
• Make sure that the O-ring and its mati ng part are free of foreign material.
• Be careful not to scratch O-ring with tool or fingernails when installing.
• Do not twist or stretch O-ring. If O-ring was stretched while installing, never insert it into fuel
tube immediately.
• Insert O-ring straight into fuel tube. Never angle or twist it.
: Engine front
PBIC3154J
Fuel tube side : Black
Nozzle side : Green
Revision: May 2010 2011 Versa

EM-160
< SERVICE INFORMATION >[MR18DE]
TIMING CHAIN
Removal and Installation
INFOID:0000000005931017
CAUTION:
The rotating direction in dicated in the text indicates all directions seen from the engine front.
REMOVAL
1. Disconnect the battery negative terminal. Refer to SC-7, "Removal and Installation".
2. Drain engine oil. Refer to LU-18, "
Changing Engine Oil".
CAUTION:
Perform this step when engine is cold.
3. Partially drain engine coolant from the radiator. Refer to CO-36, "
Changing Engine Coolant".
4. Remove front RH wheel. Refer to WT-7, "
Adjustment".
5. Remove front fender protector (RH). Refer to EI-26, "
Removal and Installation".
6. Remove the following parts. • Rocker cover: Refer to EM-151, "
Component".
• Drive belt: Refer to EM-132, "
Removal and Installation".
• Water pump pulley: Refer to CO-45, "
Component".
• Ground cable (between engine bracket (RH) and radiator core support)
7. Support the bottom surface of engine using a trans mission jack, and then remove the engine bracket and
insulator (RH). Refer to EM-197, "
Component".
8. Set No. 1 cylinder at TDC on its compression stroke with the following procedure:

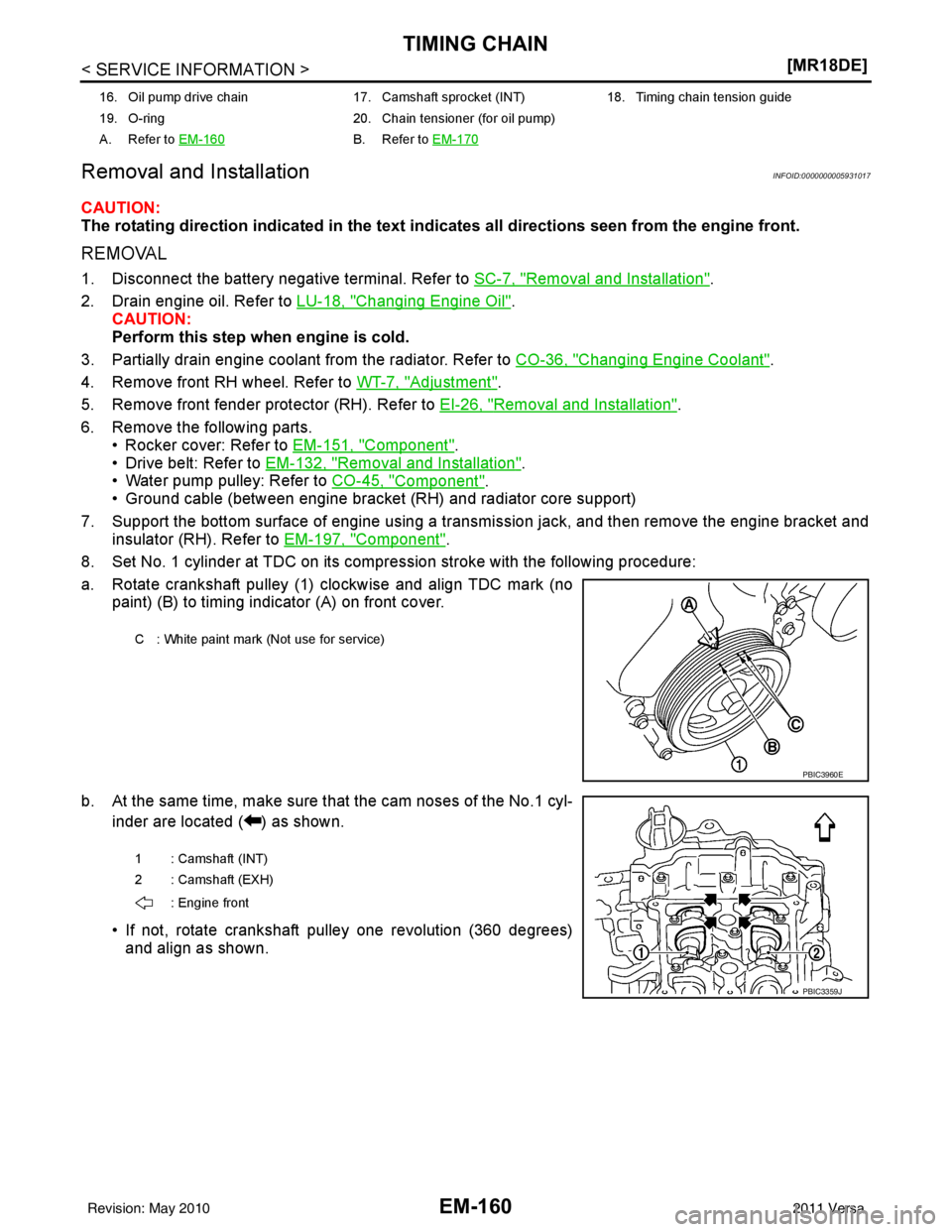

a. Rotate crankshaft pulley (1) clockwise and align TDC mark (no paint) (B) to timing indicator (A) on front cover.
b. At the same time, make sure that the cam noses of the No.1 cyl- inder are located ( ) as shown.
• If not, rotate crankshaft pulley one revolution (360 degrees)and align as shown.
16. Oil pump drive chain 17. Camshaft sprocket (INT) 18. Timing chain tension guide
19. O-ring 20. Chain tensioner (for oil pump)
A. Refer to EM-160
B. Refer to EM-170
C : White paint mark (Not use for service)
PBIC3960E
1 : Camshaft (INT)
2 : Camshaft (EXH)
: Engine front
PBIC3359J
Revision: May 2010 2011 Versa

TIMING CHAINEM-161
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

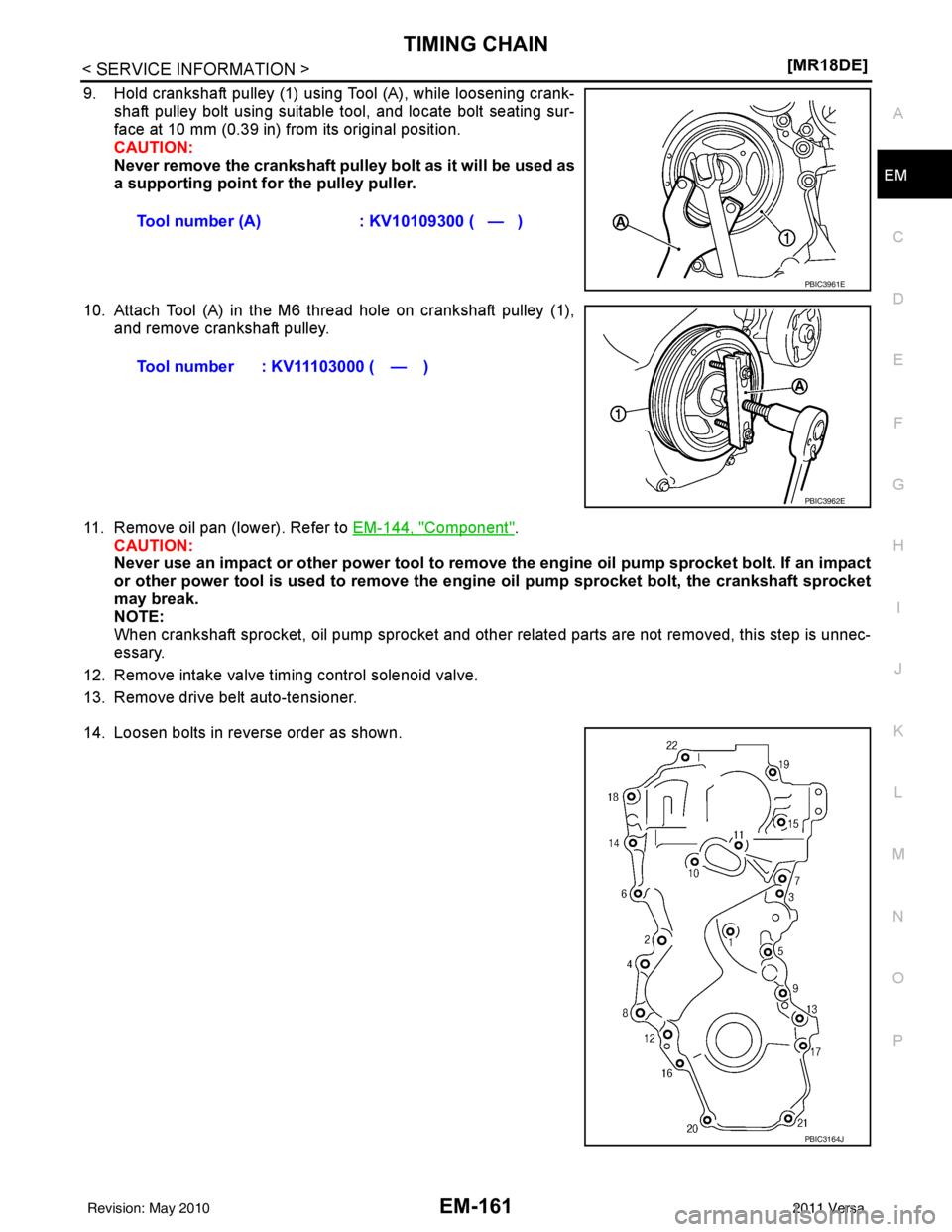

9. Hold crankshaft pulley (1) using Tool (A), while loosening crank-
shaft pulley bolt using suitable tool, and locate bolt seating sur-
face at 10 mm (0.39 in) from its original position.
CAUTION:
Never remove the crankshaft pulley bolt as it will be used as
a supporting point for the pulley puller.
10. Attach Tool (A) in the M6 thread hole on crankshaft pulley (1), and remove crankshaft pulley.
11. Remove oil pan (lower). Refer to EM-144, "
Component".
CAUTION:
Never use an impact or other power tool to remo ve the engine oil pump sprocket bolt. If an impact
or other power tool is used to remove the en gine oil pump sprocket bolt, the crankshaft sprocket
may break.
NOTE:
When crankshaft sprocket, oil pump sprocket and other related parts are not removed, this step is unnec-
essary.
12. Remove intake valve timing control solenoid valve.
13. Remove drive belt auto-tensioner.
14. Loosen bolts in reverse order as shown. Tool number (A) : KV10109300 ( — )
PBIC3961E
Tool number : KV11103000 ( — )
PBIC3962E
PBIC3164J
Revision: May 2010
2011 Versa

TIMING CHAINEM-163
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

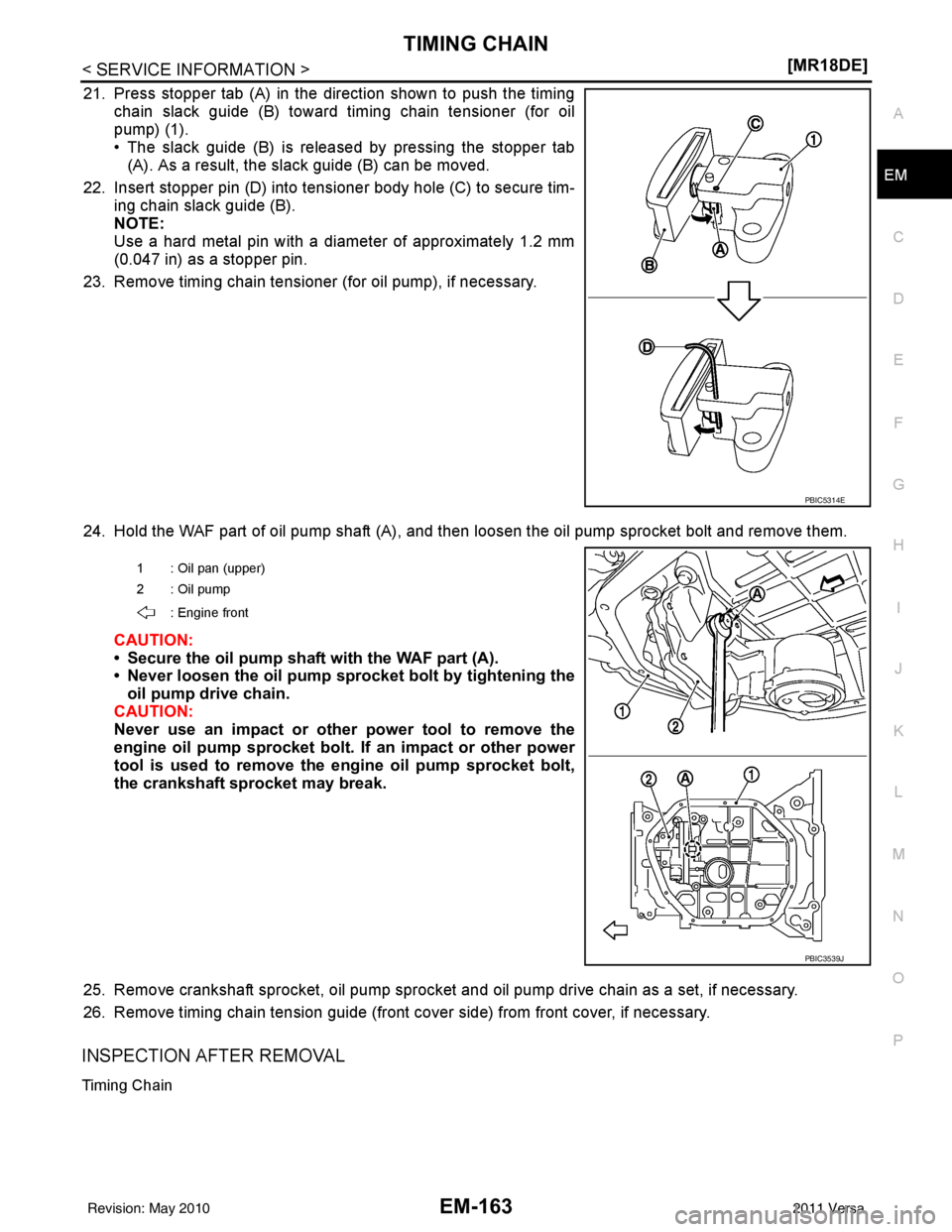

21. Press stopper tab (A) in the direction shown to push the timing
chain slack guide (B) toward ti ming chain tensioner (for oil
pump) (1).
• The slack guide (B) is released by pressing the stopper tab
(A). As a result, the slack guide (B) can be moved.
22. Insert stopper pin (D) into tensioner body hole (C) to secure tim- ing chain slack guide (B).
NOTE:
Use a hard metal pin with a diameter of approximately 1.2 mm
(0.047 in) as a stopper pin.
23. Remove timing chain tensioner (for oil pump), if necessary.
24. Hold the WAF part of oil pump shaft (A), and then loosen the oil pump sprocket bolt and remove them. CAUTION:
• Secure the oil pump shaft with the WAF part (A).
• Never loosen the oil pump sprocket bolt by tightening theoil pump drive chain.
CAUTION:
Never use an impact or other power tool to remove the
engine oil pump sprocket bolt. If an impact or other power
tool is used to remove the e ngine oil pump sprocket bolt,
the crankshaft sprocket may break.
25. Remove crankshaft sprocket, oil pump sprocket and oil pump drive chain as a set, if necessary.
26. Remove timing chain tension guide (front cover side) from front cover, if necessary.
INSPECTION AFTER REMOVAL
Timing Chain
PBIC5314E
1 : Oil pan (upper)
2: Oil pump
: Engine front
PBIC3539J
Revision: May 2010 2011 Versa

TIMING CHAINEM-165
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Never use an impact or other power tool to remo
ve the engine oil pump sprocket bolt. If an impact
or other power tool is used to remove the en gine oil pump sprocket bolt, the crankshaft sprocket
may break.

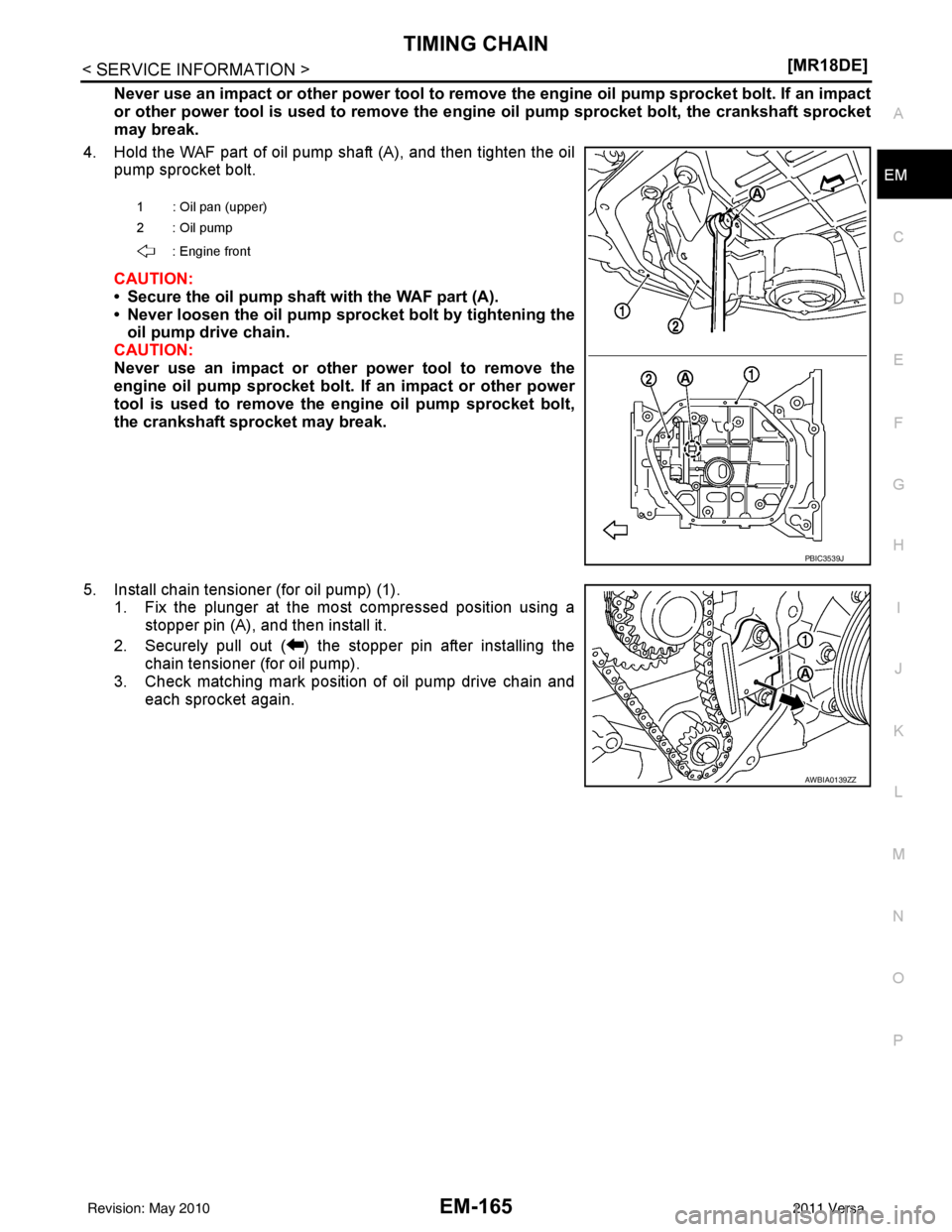

4. Hold the WAF part of oil pump shaft (A), and then tighten the oil pump sprocket bolt.
CAUTION:
• Secure the oil pump shaft with the WAF part (A).
• Never loosen the oil pump sprocket bolt by tightening theoil pump drive chain.
CAUTION:
Never use an impact or other power tool to remove the
engine oil pump sprocket bolt. If an impact or other power
tool is used to remove the e ngine oil pump sprocket bolt,
the crankshaft sprocket may break.
5. Install chain tensioner (for oil pump) (1). 1. Fix the plunger at the most compressed position using a
stopper pin (A), and then install it.
2. Securely pull out ( ) the stopper pin after installing the chain tensioner (for oil pump).
3. Check matching mark position of oil pump drive chain and each sprocket again.
1 : Oil pan (upper)
2 : Oil pump
: Engine front
PBIC3539J
AWBIA0139ZZ
Revision: May 2010 2011 Versa
