Component DescriptionINFOID:0000000005929766
1. Cooling fan motor harness connec-
tor 2. Crankshaft position sensor 3. Stop lamp switch
4. Brake pedal 5. Accelerator pedal position sensor
harness connector 6. Accelerator pedal position sensor
7. Accelerator pedal 8. Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed) 9. Fuel pressure regulator
10. Fuel pump
AWBIA0044ZZ
Component Reference
A/F sensor 1 EC-185, "
Description"
A/F sensor 1 heaterEC-138, "Description"
Accelerator pedal position sensorEC-402, "Description"
Camshaft position sensor (PHASE)EC-272, "Description"
Revision: May 2010 2011 Versa

ELECTRIC IGNITION SYSTEMEC-61
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Component DescriptionINFOID:0000000005929774
1. Cooling fan motor harness connec-
tor 2. Crankshaft position sensor 3. Stop lamp switch
4. Brake pedal 5. Accelerator pedal position sensor
harness connector 6. Accelerator pedal position sensor
7. Accelerator pedal 8. Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed) 9. Fuel pressure regulator
10. Fuel pump
AWBIA0044ZZ
Component Reference
Accelerator pedal position sensor EC-402, "
Description"
Camshaft position sensor (PHASE)EC-272, "Description"
Crankshaft position sensor (POS)EC-267, "Description"
Engine coolant temperature sensorEC-168, "Description"
Revision: May 2010 2011 Versa

EC-94
< FUNCTION DIAGNOSIS >[HR16DE]
INTAKE VALVE TIMING CONTROL
Component Description
INFOID:0000000005929791
1. Cooling fan motor harness connec- tor 2. Crankshaft position sensor
3. Stop lamp switch
4. Brake pedal 5. Accelerator pedal position sensor
harness connector 6. Accelerator pedal position sensor
7. Accelerator pedal 8. Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed) 9. Fuel pressure regulator
10. Fuel pump
AWBIA0044ZZ
Component Reference
Camshaft position sensor (PHASE) EC-272, "
Description"
Crankshaft position sensor (POS)EC-267, "Description"
Engine coolant temperature sensorEC-168, "Description"
Intake valve timing control solenoid valveEC-89, "System Description"
Revision: May 2010 2011 Versa

P0116 ECT SENSOREC-169
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
5. Soak the vehicle until the resistance between “fuel
level sensor unit and fuel pump” terminals 4 and 5
becomes 0.5 k Ω higher than the value measured before soaking.
CAUTION:
Never turn ignition switch ON during the soaking time.
NOTE:
Soak time changes depending on ambient air temperature. It may take several hours.
6. Start engine and let it idle for 20 minutes.
7. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> EC-169, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005929851
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, 24. Refer to EC-127, "
Ground Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-169, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Replace engine coolant temperature sensor. Refer to CO-24, "
Exploded View".
3.CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
>> INSPECTION END
Component InspectionINFOID:0000000005929852
1.CHECK ENGINE COOLANT TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect engine coolant temperature sensor harness connector.
3. Remove engine coolant temperature sensor.

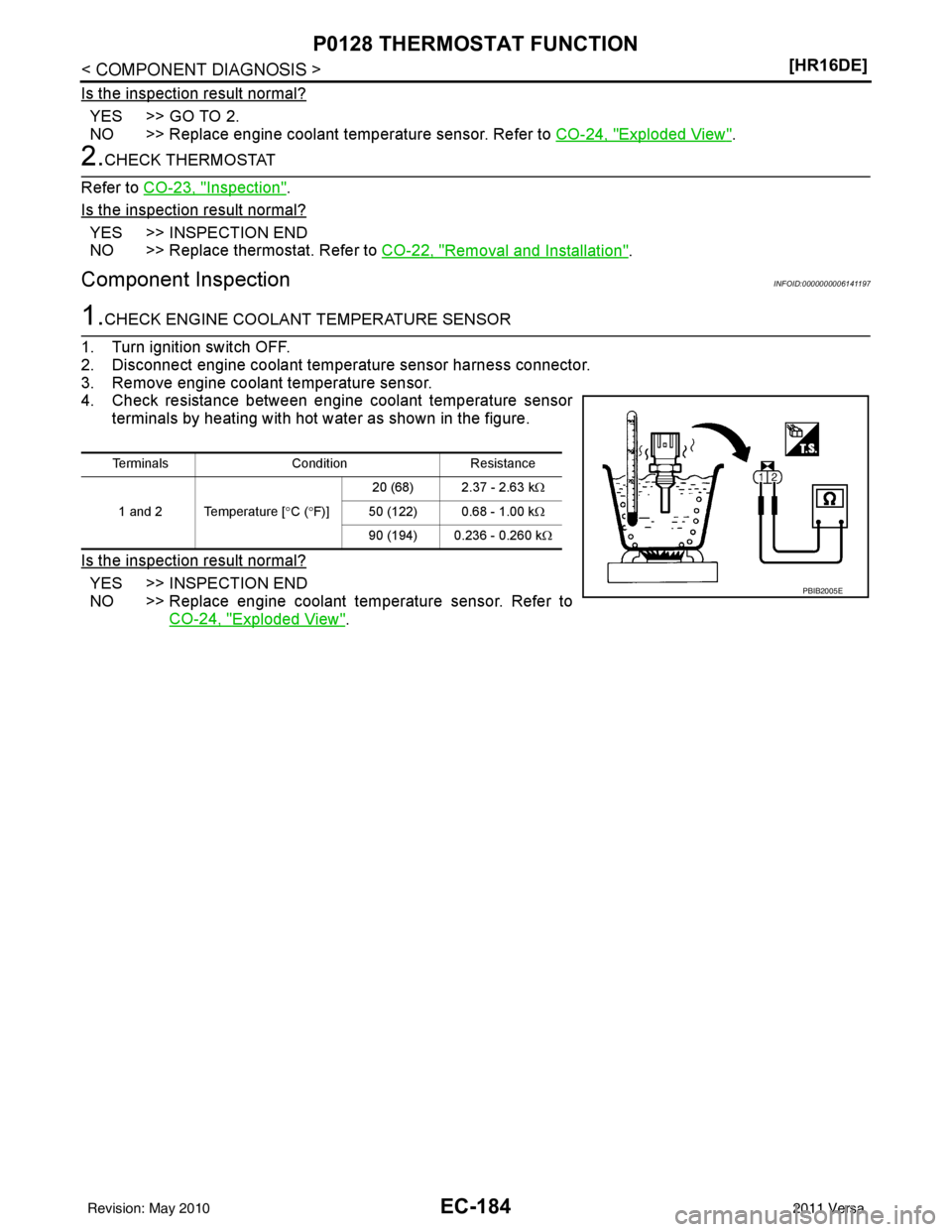

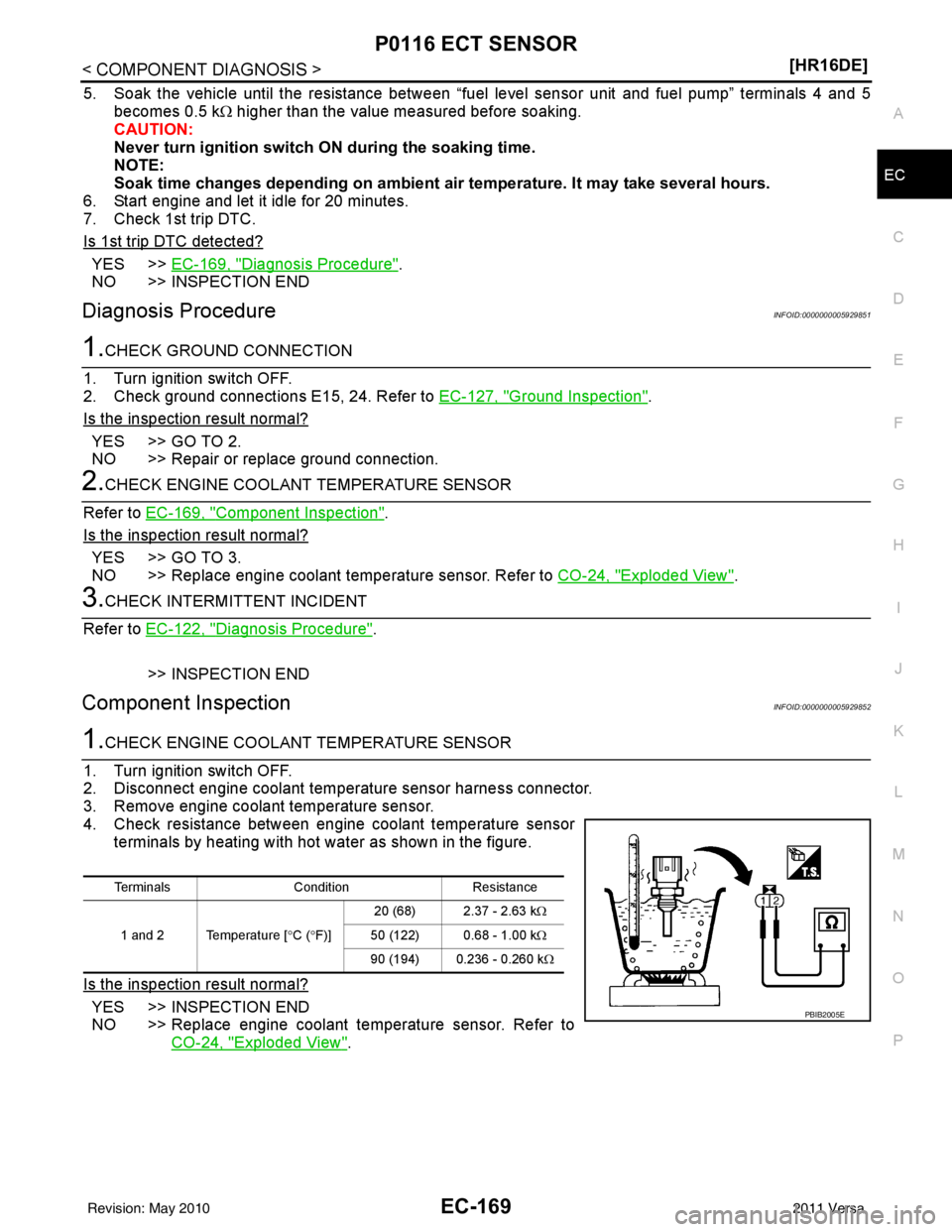

4. Check resistance between engine coolant temperature sensor terminals by heating with hot water as shown in the figure.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace engine coolant temperature sensor. Refer to CO-24, "
Exploded View".
Terminals ConditionResistance
1 and 2 Temperature [ °C ( °F)] 20 (68) 2.37 - 2.63 kΩ
50 (122) 0.68 - 1.00 k Ω
90 (194) 0.236 - 0.260 k Ω
PBIB2005E
Revision: May 2010 2011 Versa

EC-172
< COMPONENT DIAGNOSIS >[HR16DE]
P0117, P0118 ECT SENSOR
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK ECT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect engine coolant temperatur e (ECT) sensor harness connector.
2. Turn ignition switch ON.
3. Check the voltage between ECT sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between ECT sensor harness connector and ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-172, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace engine coolant temperature sensor. Refer to CO-24, "
Exploded View".
5.CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
>> INSPECTION END
Component InspectionINFOID:0000000006141195
1.CHECK ENGINE COOLANT TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect engine coolant temperature sensor harness connector.
3. Remove engine coolant temperature sensor.
ECT sensor Ground Voltage
Connector Terminal
F6 1 Ground Approx. 5 V
PBIB0080E
ECT sensor ECM
Continuity
Connector Terminal Connector Terminal
F6 2F11 44Existed
Revision: May 2010 2011 Versa

P0125 ECT SENSOREC-179
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Select “DATA MONITOR” mode with CONSULT-III.
3. Check that “COOLAN TEMP/S” is above 10
°C (50° F).
With GST
Follow the procedure “With CONSULT-III” above.
Is it above 10
°C (50°F)?
YES >> INSPECTION END
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Start engine and run it for 65 minutes at idle speed.
2. Check 1st tip DTC.
If “COOLAN TEMP/S” indicatio n increases to more than 10°C (50 °F) within 65 minutes, stop engine
because the test resu lt will be OK.
CAUTION:
Be careful not to overheat engine.
With GST
Follow the procedure “With CONSULT-III” above.
Is 1st trip DTC detected?
YES >> EC-179, "Diagnosis Procedure"
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005929866
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-127, "
Ground Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-179, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Replace engine coolant temperature sensor. Refer to CO-24, "
Exploded View".
3.CHECK THERMOSTAT OPERATION
When the engine is cold [lower than 70 °C (158° F)] condition, grasp lower radiator hose and confirm the engine
coolant does not flow.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace thermostat. Refer to CO-22, "
Removal and Installation".
4.CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
>> INSPECTION END
Component InspectionINFOID:0000000006141196
1.CHECK ENGINE COOLANT TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect engine coolant temperature sensor harness connector.
3. Remove engine coolant temperature sensor.
Revision: May 2010 2011 Versa

EC-184
< COMPONENT DIAGNOSIS >[HR16DE]
P0128 THERMOSTAT FUNCTION
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace engine coolant temperature sensor. Refer to
CO-24, "
Exploded View".
2.CHECK THERMOSTAT
Refer to CO-23, "
Inspection".
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace thermostat. Refer to CO-22, "
Removal and Installation".
Component InspectionINFOID:0000000006141197
1.CHECK ENGINE COOLANT TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect engine coolant temperature sensor harness connector.
3. Remove engine coolant temperature sensor.
4. Check resistance between engine coolant temperature sensor terminals by heating with hot water as shown in the figure.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace engine coolant temperature sensor. Refer to CO-24, "
Exploded View".
Terminals ConditionResistance
1 and 2 Temperature [ °C ( °F)] 20 (68) 2.37 - 2.63 k
Ω
50 (122) 0.68 - 1.00 kΩ
90 (194) 0.236 - 0.260 k Ω
PBIB2005E
Revision: May 2010 2011 Versa

EC-236
< COMPONENT DIAGNOSIS >[HR16DE]
P0171 FUEL INJECTION SYSTEM FUNCTION
NO >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?
YES >> Replace “fuel level sensor unit, fuel filter and fuel pump assembly”. Refer to FL-6, "Removal and
Installation".
NO >> Repair or replace
6.CHECK MASS AIR FLOW SENSOR
With CONSULT-III
1. Install all removed parts.
2. Check “MASS AIR FLOW” in “DATA MONITOR” mode with CONSULT-III.
3. For specification, refer to EC-503, "
Mass Air Flow Sensor".
With GST
1. Install all removed parts.
2. Check mass air flow sensor signal in Service $01 with GST.
3. For specification, refer to EC-503, "
Mass Air Flow Sensor".
Is the measurement value within the specification?
YES >> GO TO 7.
NO >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or grounds. Refer to EC-150, "
DTC Logic".
7.CHECK FUNCTION OF FUEL INJECTOR
With CONSULT-III
1. Start engine.
2. Perform “POWER BALANCE” in “A CTIVE TEST” mode with CONSULT-III.
3. Make sure that each circuit produces a momentary engine speed drop.
Without CONSULT-III
1. Let engine idle.
2. Listen to each fuel injector operating sound.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Perform trouble diagnosis for FUEL INJECTOR, refer to EC-433, "
Component Function Check".
8.CHECK FUEL INJECTOR
1. Turn ignition switch OFF.
2. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
3. Disconnect all fuel injector harness connectors.
4. Remove fuel tube assembly. Refer to EM-33, "
Removal and Installation".
Keep fuel hose and all fuel injectors connected to fuel tube.
5. Disconnect all ignition coil harness connectors.
6. Prepare pans or saucers under each fuel injector.
Clicking noise should be heard.
PBIB3332E
