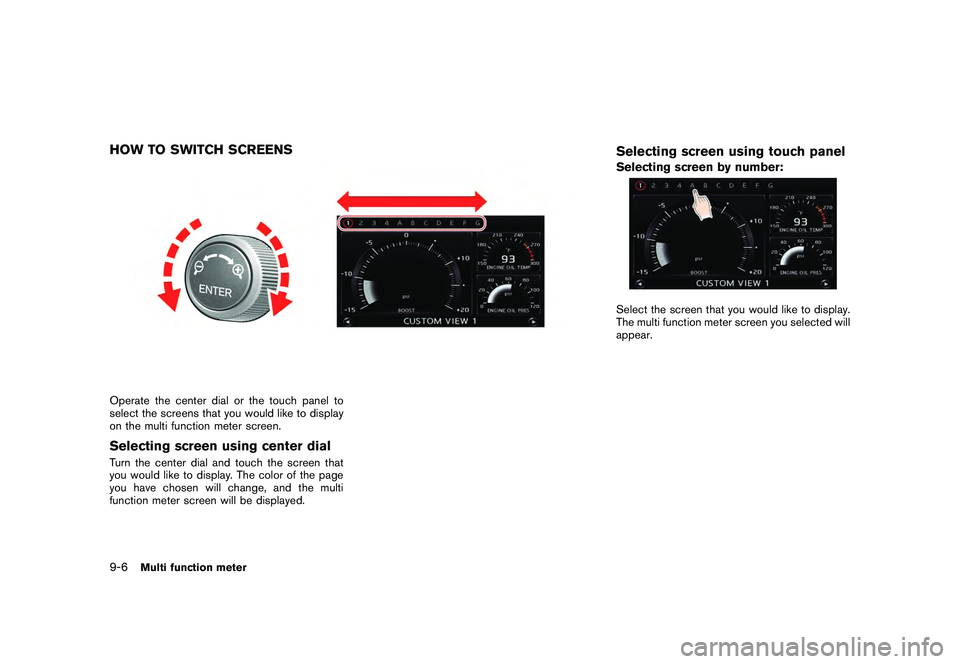

HOW TO SWITCH SCREENSOperate the center dial or the touch panel to
select the screens that you would like to display
on the multi function meter screen.Selecting screen using center dialTurn the center dial and touch the screen that
you would like to display. The color of the page
you have chosen will change, and the multi
function meter screen will be displayed.
Selecting screen using touch panelSelecting screen by number:Select the screen that you would like to display.
The multi function meter screen you selected will
appear.
9-6
Multi function meter

Black plate (255,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Selecting screen by scrolling through
screens:To u c h
or
.Witheachtouch,the
screens will scroll through in order.
: The previous screen will be displayed.: The next screen will be displayed.
This screen allows you to display the perfor-
mance and vehicle information, as needed, in
order for you to use your vehicle under optimum
conditions. You can display several vehicle
information panels at once. Each panel displays
digital gauges in the screen area.SELECTING PANELSelect the panel you would like to display and
then place it where you would like it to be
displayed. You can configure the screen to
display between 1 and 4 custom view panels.Select using center dial1. Display the panel you would to change and
push . The panel display will
change.
2. Select the panel you would like to change and push . The meter selection
screen will be displayed.3. Select the item you would like to display and push . The displayed panel will
change.
Multi function meter
9-7
CUSTOM VIEW SCREEN

Black plate (256,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Select using touch panel1. Touch the screen number you would like tochange.2. Touch the panel you would like to change.The meter selection screen will be dis-
played.
3. Touch the item you would like to display. Thedisplayed panel will change.
9-8
Multi function meter

Black plate (257,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Panel listThere is a difference between the items that you
can select as large or small panels.No.Item Large panel Small panel
1 Engine Coolant Temperature **
2 Engine Oil Temperature **
3 Engine Oil Pressure **
4 Transmission Oil Temperature **
5 Transmission Oil Pressure **
6 Boost **
7 Speed —*
8 Fuel/Range **
9 Fuel Flow **
10 Recent Fuel Economy **
11 Torque split —*
12 Accel pedal —*
13 Brake pedal —*
14 Steering —*
15 Cornering g-force **
16 Accel/Braking g-force **
17 Total g-force **
18 Clock —*
19 Reset the CUSTOM VIEW #(1-4) to Default *
*
INFO:
. Each panel selected will be saved
. Panels will remain saved in the system even
after the engine is turned off.
. Two of the same panels cannot be displayed
at the same time.
. Two of the same panels of different sizes
cannot be displayed at the same time.
. Panels that have not been assigned a
display item remain empty.
Initializing displayThe modified display will return to the screen
that was first configured.1. Display the screen you would like to initialize
and push .
Multi function meter
9-9

Black plate (258,1)
Model "R35-N" EDITED: 2009/ 10/ 30
2. Select the panel and push.3. Highlight [Reset the CUSTOM VIEW 1 to
Default] and push .
INFO:
When operating the touch panel to initialize the
display, the same procedure used to select a
meter is performed.“Select using touch panel” page 9-8
PERFORMANCE AND VEHICLE IN-
FORMATION PANELThe appearance of each panel varies. The way
that large panels and small panels are displayed
also differs, even when the same mechanical
information is displayed.Engine coolant temperatureDisplays the temperature of the engine coolant.
Large panel screenSmall panel screen
INFO:
. When this meter displays in red, reduce the
operating speed of the engine (RPMs) and
drive at a reduced speed.
. Driving while the engine coolant tempera-
ture is high may cause engine damage.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
9-10
Multi function meter

Black plate (259,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Engine oil temperatureDisplays the engine oil temperature reading.
Large panel screenSmall panel screen
INFO:
. When this meter displays in red, reduce the
operating speed of the engine (RPMs) and
drive at a reduced speed.
. Driving while the engine oil temperature is
high may cause engine damage.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
Engine oil pressureDisplays the engine oil pressure. The reading on
this dial will change based on the engine speed
(RPM) and oil temperature.
Large panel screenSmall panel screen
Multi function meter
9-11

Black plate (260,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Transmission oil temperatureDisplays the transmission oil temperature.
Large panel screenSmall panel screen
INFO:
. When this meter displays in red, reduce the
vehicle speed and drive at a reduced speed.
. Driving while the transmission oil tempera-
ture is high may cause transmission da-
mage.
. After first starting the engine, it may take a
short period of time for the oil pressure to
stabilize. This is not a malfunction.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
Transmission oil pressureDisplays the transmission oil pressure.
Large panel screenSmall panel screen
9-12
Multi function meter

Black plate (261,1)
Model "R35-N" EDITED: 2009/ 10/ 30
INFO:
. The oil pressure gauge may momentarily
have a high reading, but this is a result of oil
pressure suppression and does not indicate
a malfunction.
. If the meter reads red frequently, have your
vehicle inspected at your NISSAN dealer or
GT-R certified NISSAN dealer.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
BoostDisplays engine charging pressure.
Large panel screenSmall panel screen
SpeedDisplays the vehicle speed. This can only be
displayed as a small panel.
Small panel screen
Multi function meter
9-13
