2011 NISSAN ALTIMA HYBRID display

1. Set the destination using an appropriatemethod.
2. Select “Store Location”. 3. The location is stored in the Address Book.
The corresponding icon is displayed at the
set location on the map.
VIEWING INFORMATION ABOUT
SEARCHED LOCATION
Information (street address and phone number)
about places stored in the map data can be
displayed. 1. Set the destination using an appropriate
method.
2. Select “Place Info”.
NRG0087NRG0088NRG0089
Route guidance5-7

3. Information about the location is displayed.
4. Press BACK to return to the previousscreen.
INFO:
● If “Call” is displayed on the right side of the
screen, it is possible to call the location
indicated.
● The Bluetooth system is required to be active
and paired to the call location indicated.
● Information about locations is not displayed
while driving. After setting the route, select “Start” to begin
route guidance.
Throughout route guidance, the system navi-
gates through the guide points using visual and
voice guidance.
CAUTION
●
The navigation system’s visual and
voice guidance is for reference pur-
poses only. The contents of the guid-
ance may be inappropriate depend-
ing on the situation.
● When driving along the suggested
route, follow all traffic regulations
(e.g., one-way traffic) .
“ROUTE GUIDANCE”
(page 10-10)
VOICE GUIDANCE DURING ROUTE
GUIDANCE
When approaching a guide point (intersection or
corner) , destination, etc. during route guidance,
voice guidance announces the remaining dis-
tance and/or turning direction.
NRG0090
ABOUT ROUTE GUIDANCE
5-8Route guidance

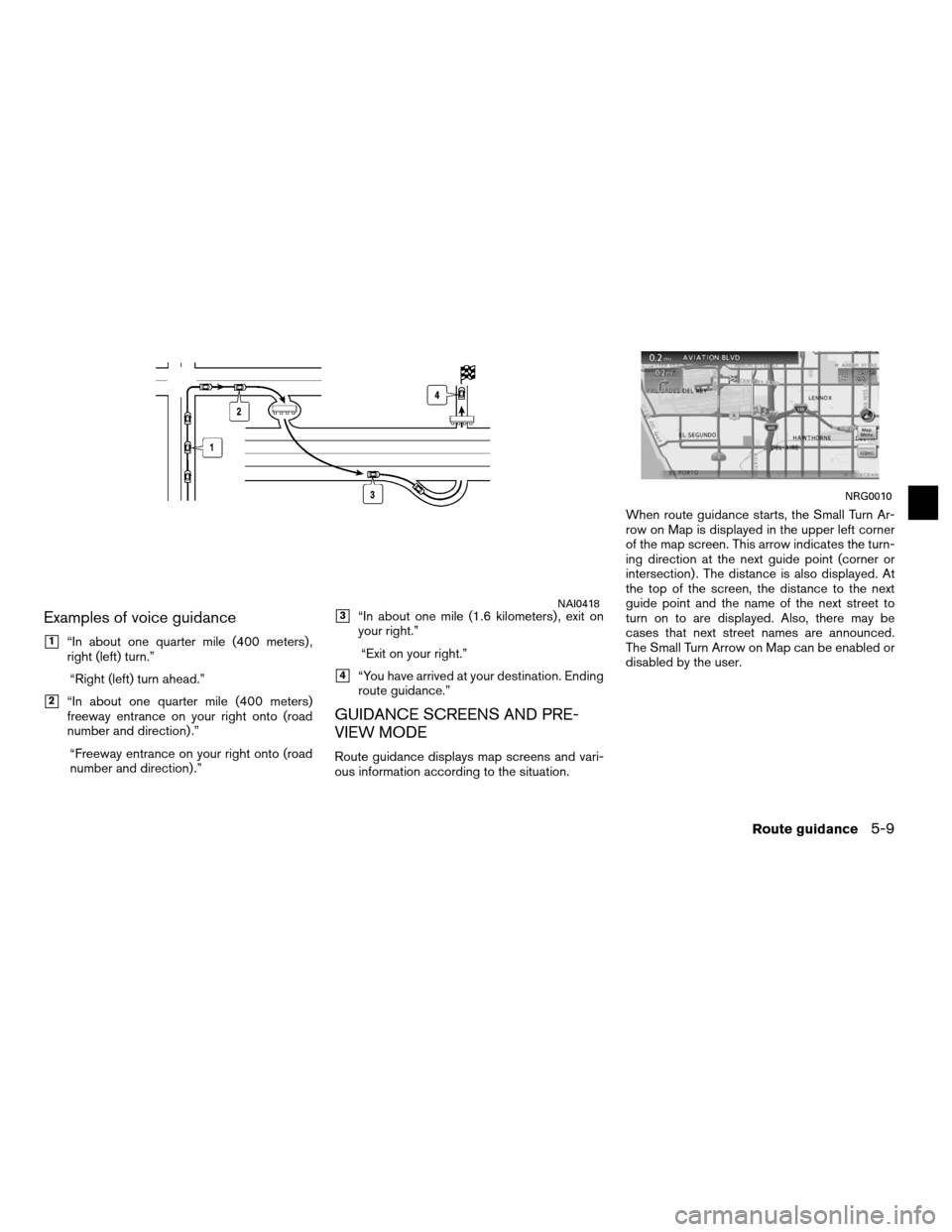

Examples of voice guidance
1“In about one quarter mile (400 meters) ,
right (left) turn.”
“Right (left) turn ahead.”
2“In about one quarter mile (400 meters)
freeway entrance on your right onto (road
number and direction) .”
“Freeway entrance on your right onto (road
number and direction) .”
3“In about one mile (1.6 kilometers) , exit on
your right.”
“Exit on your right.”
4“You have arrived at your destination. Ending
route guidance.”
GUIDANCE SCREENS AND PRE-
VIEW MODE
Route guidance displays map screens and vari-
ous information according to the situation. When route guidance starts, the Small Turn Ar-
row on Map is displayed in the upper left corner
of the map screen. This arrow indicates the turn-
ing direction at the next guide point (corner or
intersection) . The distance is also displayed. At
the top of the screen, the distance to the next
guide point and the name of the next street to
turn on to are displayed. Also, there may be
cases that next street names are announced.
The Small Turn Arrow on Map can be enabled or
disabled by the user.
NAI0418
NRG0010
Route guidance5-9

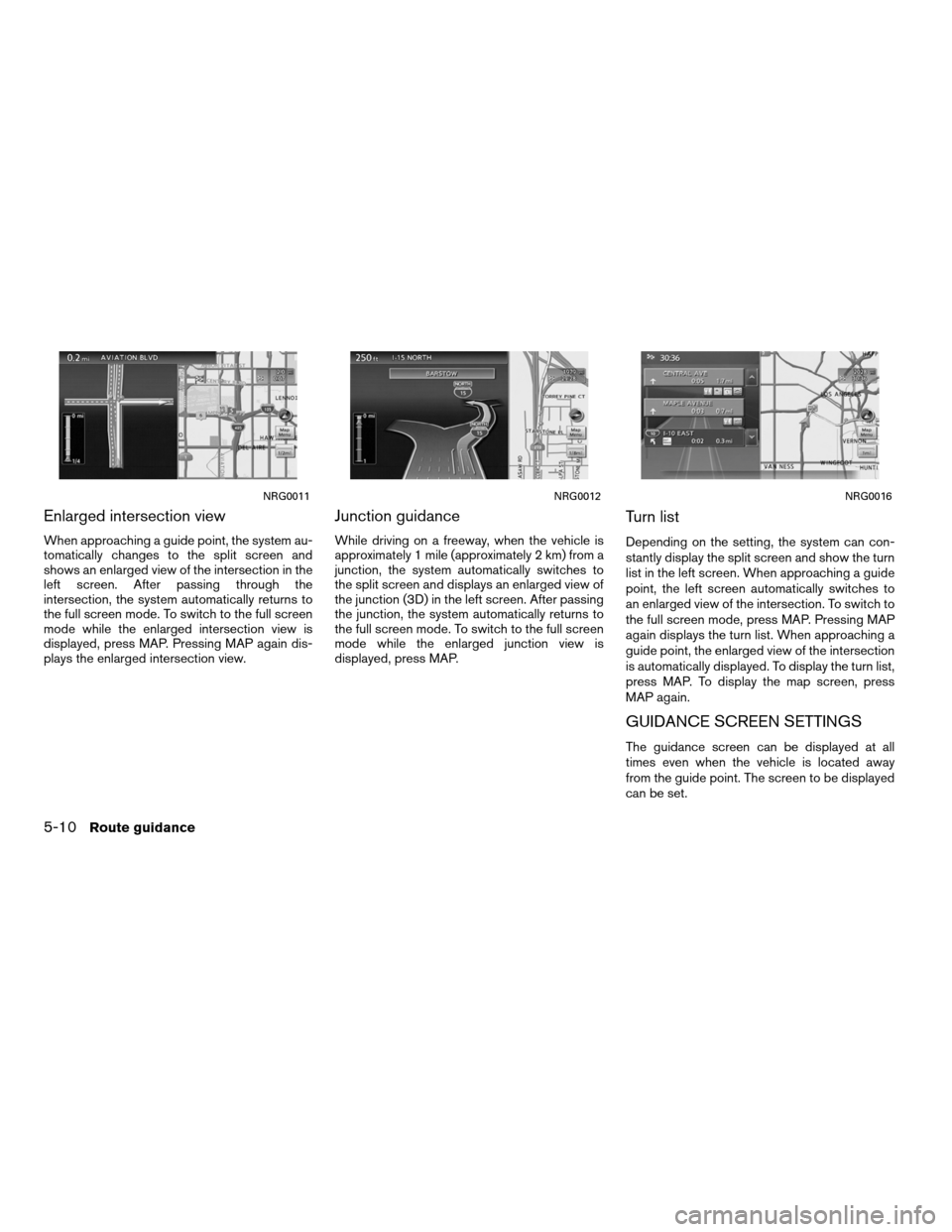

Enlarged intersection view
When approaching a guide point, the system au-
tomatically changes to the split screen and
shows an enlarged view of the intersection in the
left screen. After passing through the
intersection, the system automatically returns to
the full screen mode. To switch to the full screen
mode while the enlarged intersection view is
displayed, press MAP. Pressing MAP again dis-
plays the enlarged intersection view.
Junction guidance
While driving on a freeway, when the vehicle is
approximately 1 mile (approximately 2 km) from a
junction, the system automatically switches to
the split screen and displays an enlarged view of
the junction (3D) in the left screen. After passing
the junction, the system automatically returns to
the full screen mode. To switch to the full screen
mode while the enlarged junction view is
displayed, press MAP.
Turn list
Depending on the setting, the system can con-
stantly display the split screen and show the turn
list in the left screen. When approaching a guide
point, the left screen automatically switches to
an enlarged view of the intersection. To switch to
the full screen mode, press MAP. Pressing MAP
again displays the turn list. When approaching a
guide point, the enlarged view of the intersection
is automatically displayed. To display the turn list,
press MAP. To display the map screen, press
MAP again.
GUIDANCE SCREEN SETTINGS
The guidance screen can be displayed at all
times even when the vehicle is located away
from the guide point. The screen to be displayed
can be set.
NRG0011NRG0012NRG0016
5-10Route guidance

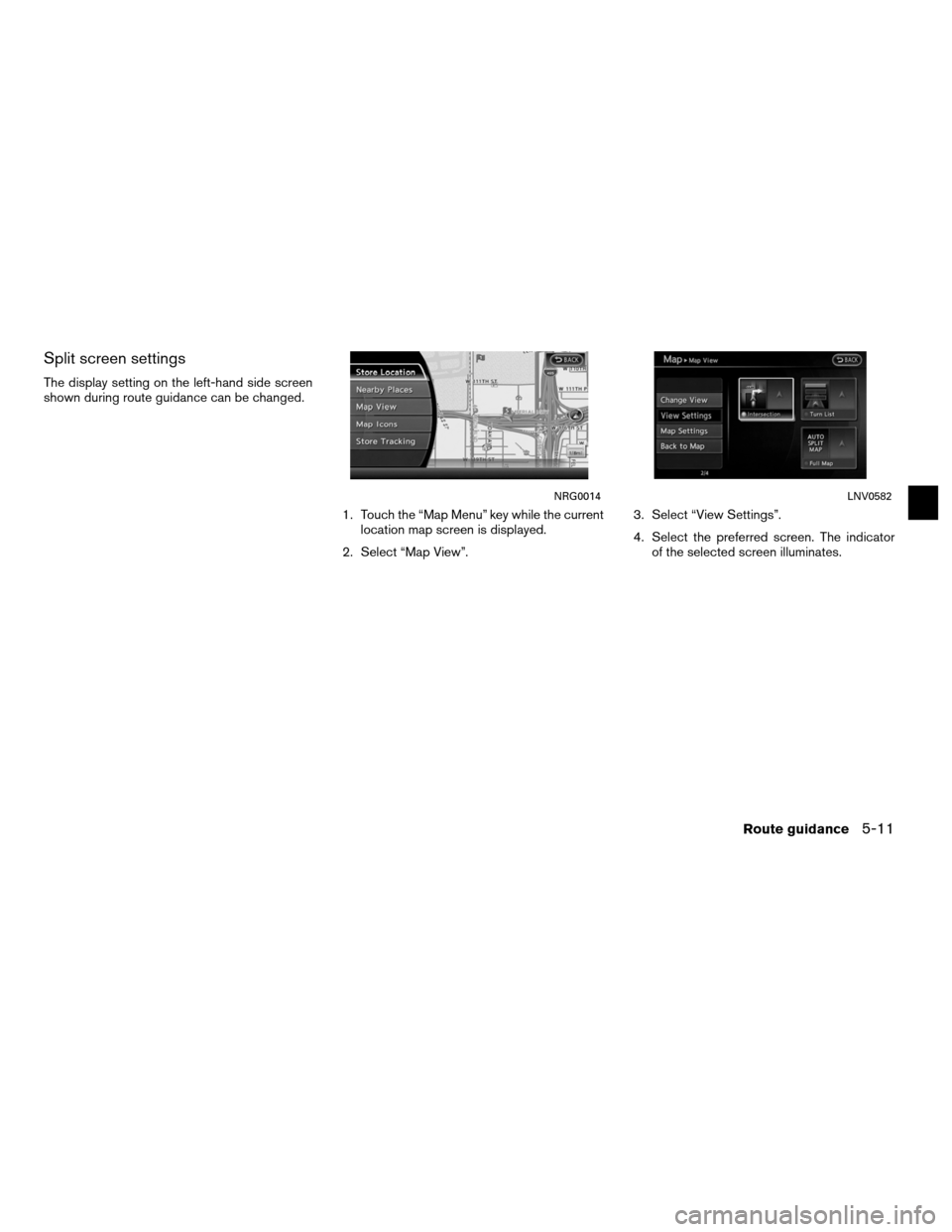

Split screen settings
The display setting on the left-hand side screen
shown during route guidance can be changed.1. Touch the “Map Menu” key while the currentlocation map screen is displayed.
2. Select “Map View”. 3. Select “View Settings”.
4. Select the preferred screen. The indicator
of the selected screen illuminates.
NRG0014LNV0582
Route guidance5-11

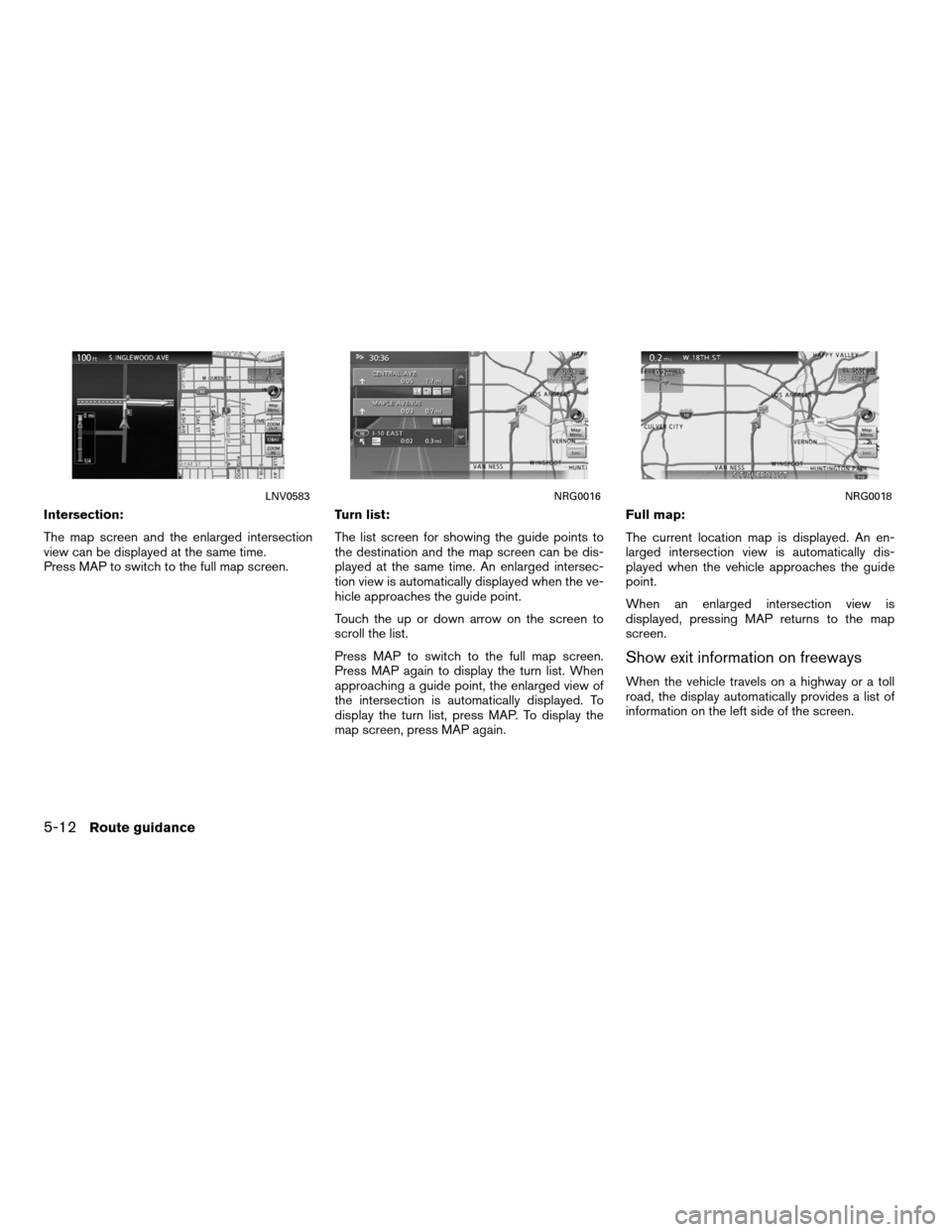

Intersection:
The map screen and the enlarged intersection
view can be displayed at the same time.
Press MAP to switch to the full map screen.Turn list:
The list screen for showing the guide points to
the destination and the map screen can be dis-
played at the same time. An enlarged intersec-
tion view is automatically displayed when the ve-
hicle approaches the guide point.
Touch the up or down arrow on the screen to
scroll the list.
Press MAP to switch to the full map screen.
Press MAP again to display the turn list. When
approaching a guide point, the enlarged view of
the intersection is automatically displayed. To
display the turn list, press MAP. To display the
map screen, press MAP again.Full map:
The current location map is displayed. An en-
larged intersection view is automatically dis-
played when the vehicle approaches the guide
point.
When an enlarged intersection view is
displayed, pressing MAP returns to the map
screen.
Show exit information on freeways
When the vehicle travels on a highway or a toll
road, the display automatically provides a list of
information on the left side of the screen.
LNV0583NRG0016NRG0018
5-12Route guidance

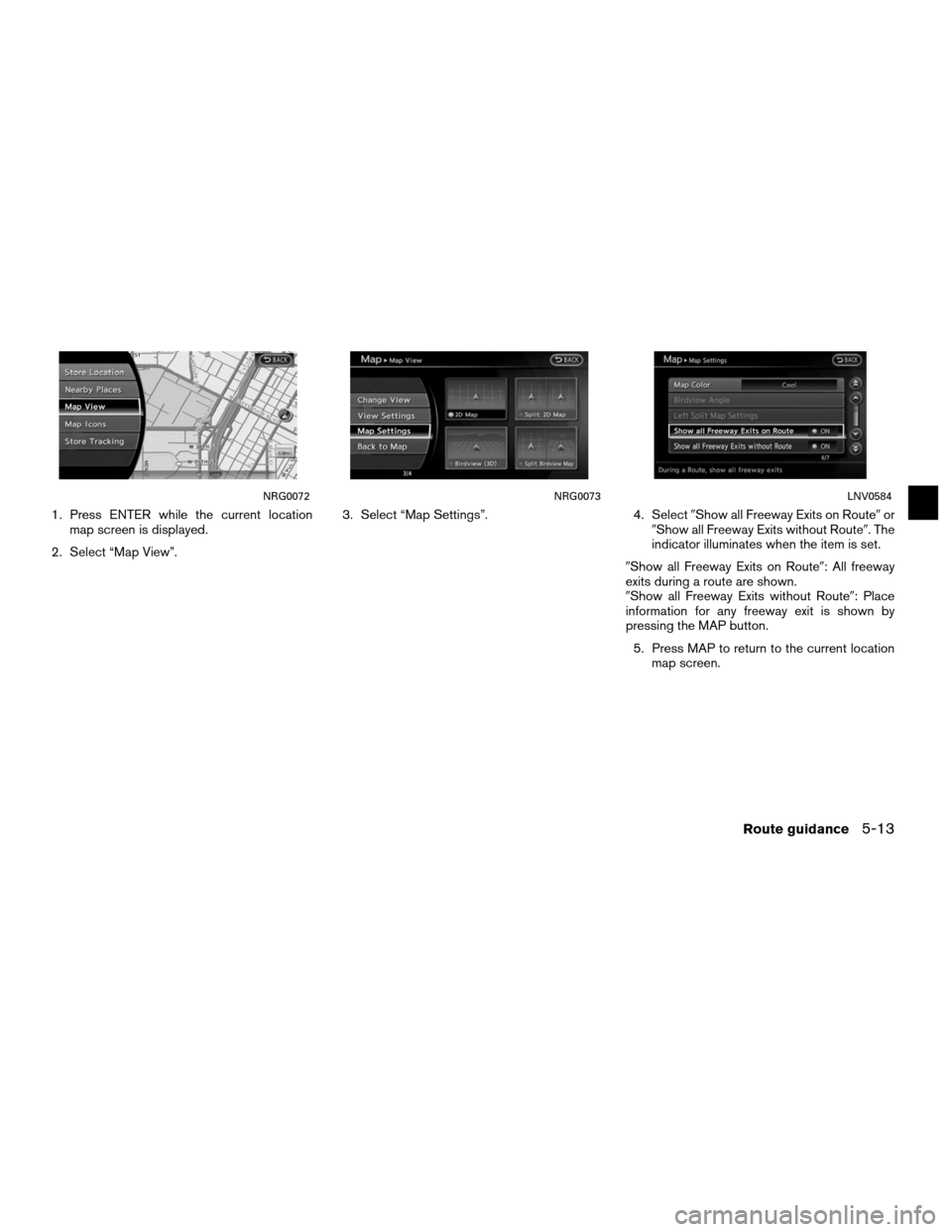

1. Press ENTER while the current locationmap screen is displayed.
2. Select “Map View”. 3. Select “Map Settings”. 4. Select
Show all Freeway Exits on Routeor
Show all Freeway Exits without Route. The
indicator illuminates when the item is set.
Show all Freeway Exits on Route: All freeway
exits during a route are shown.
Show all Freeway Exits without Route: Place
information for any freeway exit is shown by
pressing the MAP button. 5. Press MAP to return to the current location map screen.
NRG0072NRG0073LNV0584
Route guidance5-13

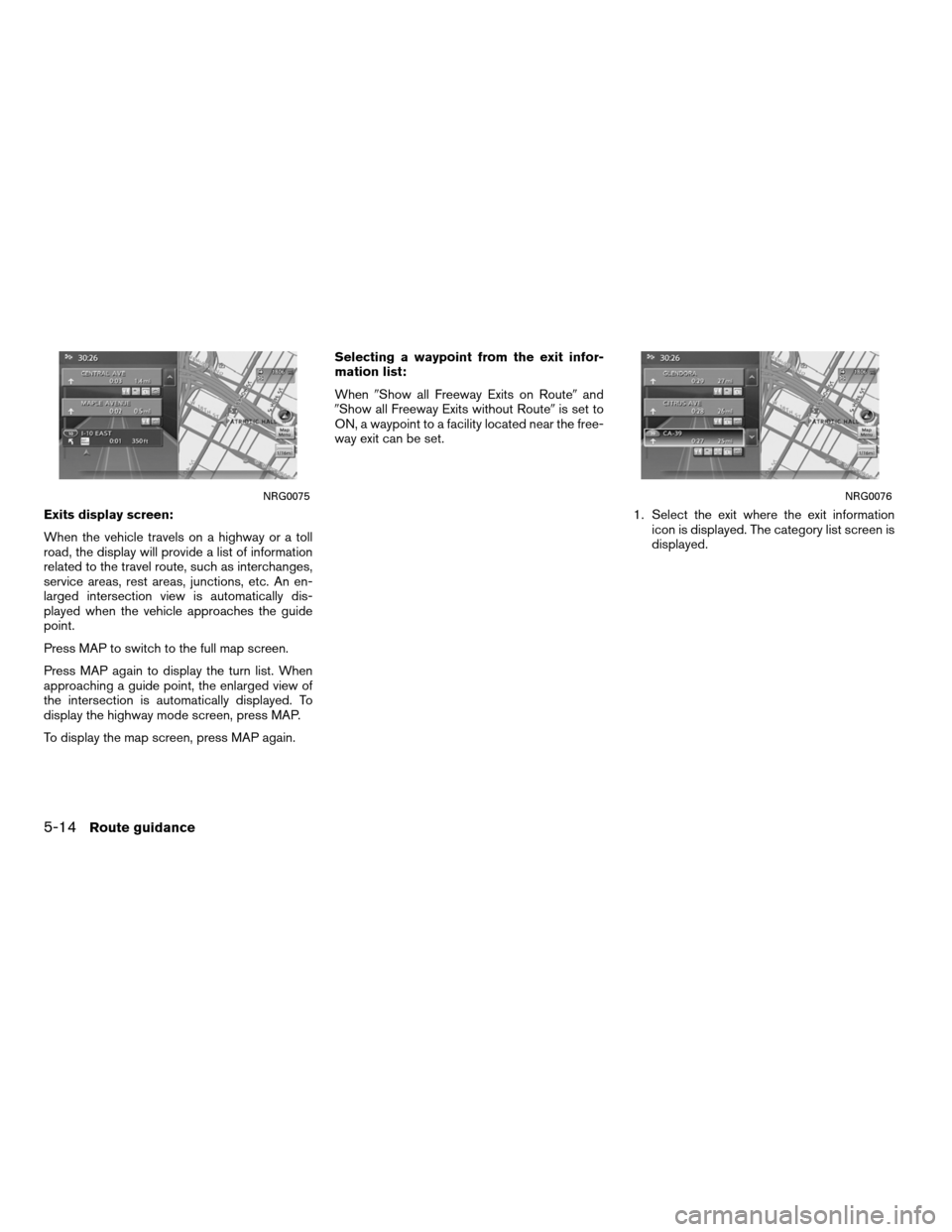

Exits display screen:
When the vehicle travels on a highway or a toll
road, the display will provide a list of information
related to the travel route, such as interchanges,
service areas, rest areas, junctions, etc. An en-
larged intersection view is automatically dis-
played when the vehicle approaches the guide
point.
Press MAP to switch to the full map screen.
Press MAP again to display the turn list. When
approaching a guide point, the enlarged view of
the intersection is automatically displayed. To
display the highway mode screen, press MAP.
To display the map screen, press MAP again.Selecting a waypoint from the exit infor-
mation list:
When
Show all Freeway Exits on Route and
Show all Freeway Exits without Route is set to
ON, a waypoint to a facility located near the free-
way exit can be set.
1. Select the exit where the exit informationicon is displayed. The category list screen is
displayed.
NRG0075NRG0076
5-14Route guidance
