2011 MITSUBISHI OUTLANDER SPORT Stand

Introduction
N09200100817
Thank you for buying a MITSUBISHI OUTLANDER
SPORT/RVR.
We are confident you will enjoy your vehicle. It has been engi-
neered for optimum performance, durability and comfort. By
thoroughly reading this Owner’s Manual, you will gain an
understanding of the many features that are included in the
OUTLANDER SPORT/RVR. The Owner’s Manual contains
descriptions and illustrations that will assist in the operation
and maintenance of your vehicle.
Your Authorized Mitsubishi Motors Dealer will be happy to
assist you with any further questions you may have regarding
the operation of your vehicle.
Please note that this manual applies to all OUTLANDER
SPORT/RVR models and explains all features including
options. Some features explained in this manual may not be
installed on your vehicle.
Please leave this Owner’s Manual in the vehicle at the time of
resale. The next owner will appreciate having access to the
information contained here.
This manual includes instructions for standard and optional
equipment available at the time of printing. Mitsubishi Motors
Corporation reserves the right to make changes in design and
specifications and to make additions or improvements in its
product without assuming any obligation to install these on
previously manufactured products.
Throughout this manual the words WARNING and
CAUTION appear.
These are reminders to be especially careful. Failure to follow the
instructions could result in personal injury or damage to your
vehicle.
WA R N I N G
!
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
CAUTION
!
Points out hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE Gives helpful information.
As with other vehicles of this type, failure to operate this vehicle
correctly may result in loss of control or an accident. Be sure to
read “on-pavement” and “off-road” driving guidelines in the
“Driving safety” and “Features and controls” sections.
WA R N I N G
!

Engine exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to the State of
California to cause cancer and birth defects and reproduc-
tive harm. In addition, certain fluids contained in vehicles
and certain products of component wear contain or emit
chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
©2010 Mitsubishi Motors Corporation Printed in Japan
11ZC(NAFTA)_Cover2.fm 1 ページ ２０１０年５月２１日　金曜日　午後１時７分

6 Quick indexIf your vehicle becomes stuck
in sand, mud or snow1. Slowly press down on the accelerator pedal to get your vehicle moving again. For
an all-wheel drive vehicle, set the drive mode-selector to the “4WD AUTO” or
“4WD LOCK” position and then slowly press down on the accelerator pedal to get
your vehicle moving.
2. If there is nothing to stop your tires from slipping, rock your vehicle back and forth
to free it.P. 6 - 2 3
WA R N I N G
!
When trying to rock your vehicle out of a stuck position, make sure that there are no people nearby. The rocking
motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.
Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If your vehicle is still stuck after several rocking attempts, call for help.
Problem
Do this
Ref. Page
BK0120400US.book 6 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

General information
1-9

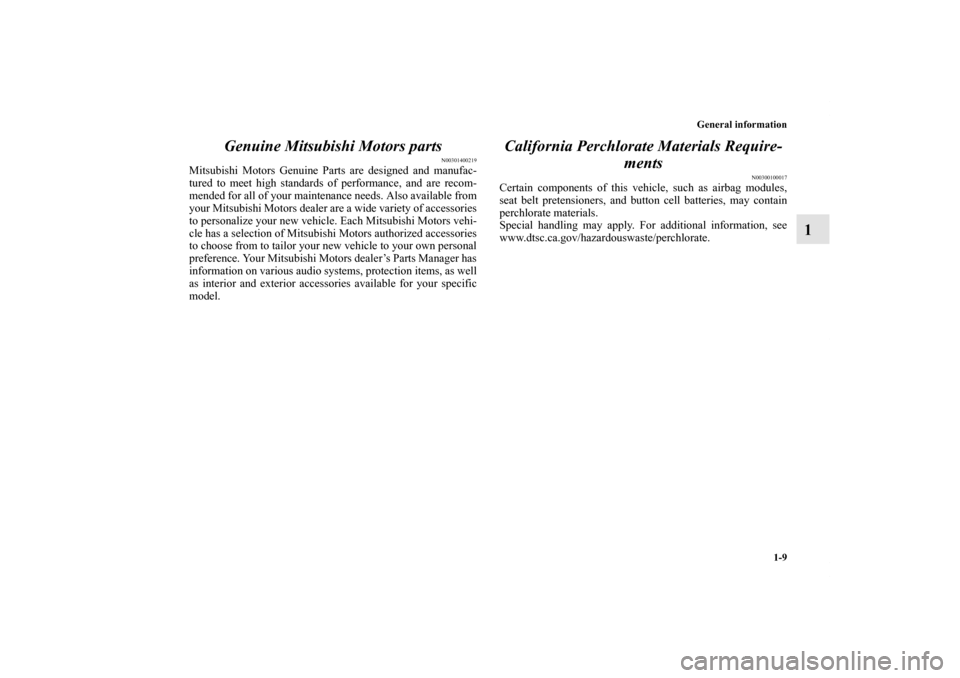

1 Genuine Mitsubishi Motors parts
N00301400219
Mitsubishi Motors Genuine Parts are designed and manufac-
tured to meet high standards of performance, and are recom-
mended for all of your maintenance needs. Also available from
your Mitsubishi Motors dealer are a wide variety of accessories
to personalize your new vehicle. Each Mitsubishi Motors vehi-
cle has a selection of Mitsubishi Motors authorized accessories
to choose from to tailor your new vehicle to your own personal
preference. Your Mitsubishi Motors dealer’s Parts Manager has
information on various audio systems, protection items, as well
as interior and exterior accessories available for your specific
model.
California Perchlorate Materials Require-
ments
N00300100017
Certain components of this vehicle, such as airbag modules,
seat belt pretensioners, and button cell batteries, may contain
perchlorate materials.
Special handling may apply. For additional information, see
www.dtsc.ca.gov/hazardouswaste/perchlorate.
BK0120400US.book 9 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Seat and restraint systems
2-31
2

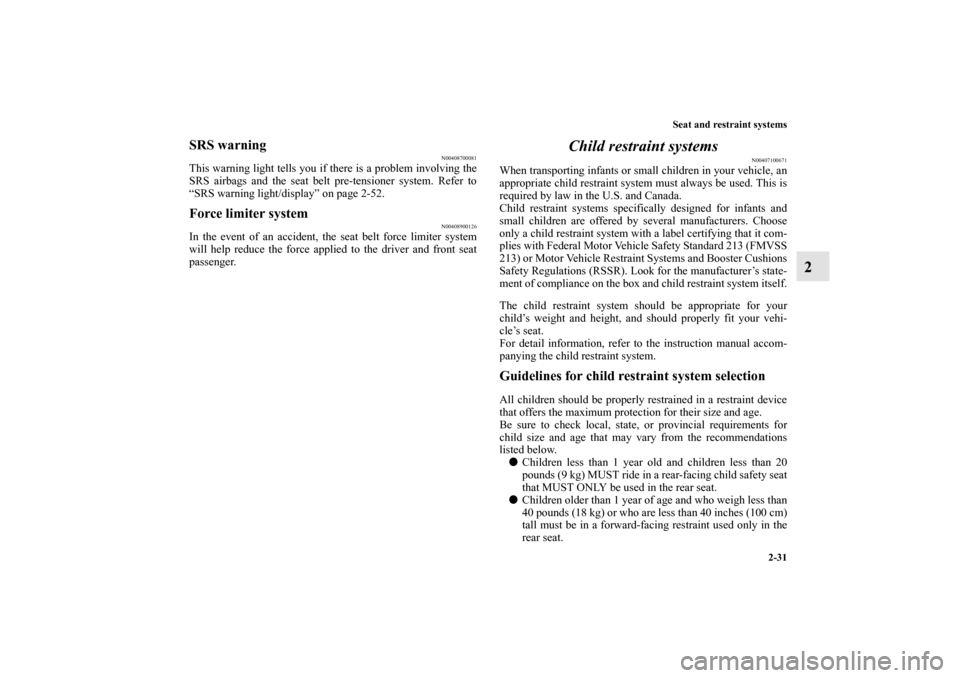

SRS warning
N00408700081
This warning light tells you if there is a problem involving the
SRS airbags and the seat belt pre-tensioner system. Refer to
“SRS warning light/display” on page 2-52.Force limiter system
N00408900126
In the event of an accident, the seat belt force limiter system
will help reduce the force applied to the driver and front seat
passenger.
Child restraint systems
N00407100671
When transporting infants or small children in your vehicle, an
appropriate child restraint system must always be used. This is
required by law in the U.S. and Canada.
Child restraint systems specifically designed for infants and
small children are offered by several manufacturers. Choose
only a child restraint system with a label certifying that it com-
plies with Federal Motor Vehicle Safety Standard 213 (FMVSS
213) or Motor Vehicle Restraint Systems and Booster Cushions
Safety Regulations (RSSR). Look for the manufacturer’s state-
ment of compliance on the box and child restraint system itself.
The child restraint system should be appropriate for your
child’s weight and height, and should properly fit your vehi-
cle’s seat.
For detail information, refer to the instruction manual accom-
panying the child restraint system.Guidelines for child restraint system selectionAll children should be properly restrained in a restraint device
that offers the maximum protection for their size and age.
Be sure to check local, state, or provincial requirements for
child size and age that may vary from the recommendations
listed below.

Children less than 1 year old and children less than 20
pounds (9 kg) MUST ride in a rear-facing child safety seat
that MUST ONLY be used in the rear seat.

Children older than 1 year of age and who weigh less than
40 pounds (18 kg) or who are less than 40 inches (100 cm)
tall must be in a forward-facing restraint used only in the
rear seat.
BK0120400US.book 31 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

2-32 Seat and restraint systems
2

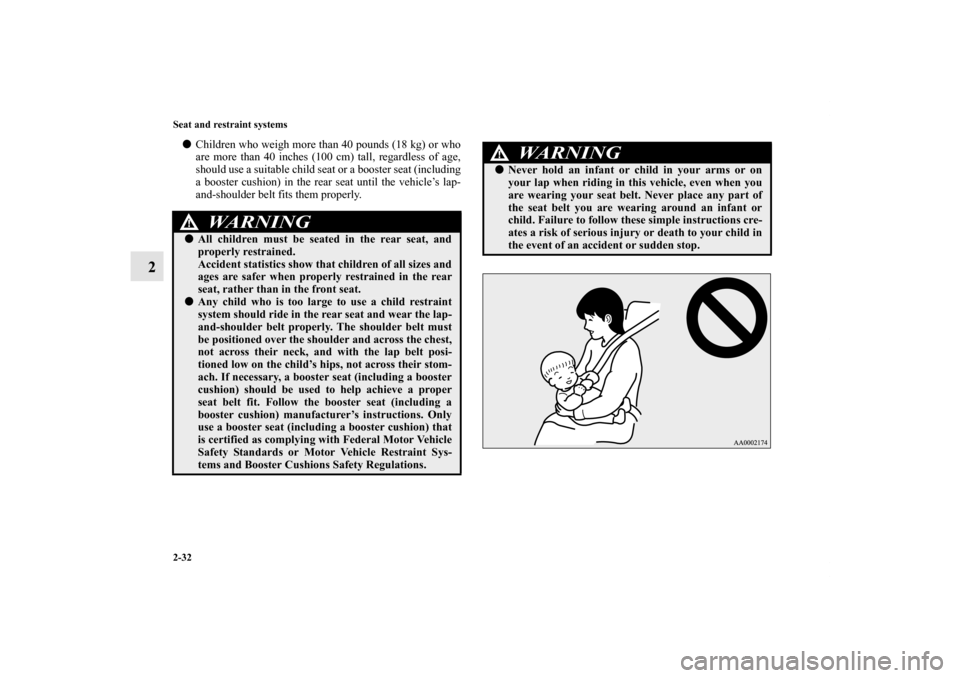

Children who weigh more than 40 pounds (18 kg) or who
are more than 40 inches (100 cm) tall, regardless of age,
should use a suitable child seat or a booster seat (including
a booster cushion) in the rear seat until the vehicle’s lap-
and-shoulder belt fits them properly.
WA R N I N G
!
All children must be seated in the rear seat, and
properly restrained.
Accident statistics show that children of all sizes and
ages are safer when properly restrained in the rear
seat, rather than in the front seat.
Any child who is too large to use a child restraint
system should ride in the rear seat and wear the lap-
and-shoulder belt properly. The shoulder belt must
be positioned over the shoulder and across the chest,
not across their neck, and with the lap belt posi-
tioned low on the child’s hips, not across their stom-
ach. If necessary, a booster seat (including a booster
cushion) should be used to help achieve a proper
seat belt fit. Follow the booster seat (including a
booster cushion) manufacturer’s instructions. Only
use a booster seat (including a booster cushion) that
is certified as complying with Federal Motor Vehicle
Safety Standards or Motor Vehicle Restraint Sys-
tems and Booster Cushions Safety Regulations.
WA R N I N G
!
Never hold an infant or child in your arms or on
your lap when riding in this vehicle, even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.
BK0120400US.book 32 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

2-38 Seat and restraint systems
2
5. Latch the tether strap hook (E) of the child restraint sys-
tem to the tether anchor bar (F) and tighten the tether strap
so it is securely fastened.
6. Push and pull the child restraint system in all directions to
be sure it is firmly secured.
Installing a child restraint system using the seat
belt (with emergency/automatic locking mecha-
nism)
N00407300426
With the exception of the driver, the seat belt in all other seat-
ing positions can be converted from normal Emergency Lock-
ing Retractor (ELR) mode, to Automatic Locking Retractor
(ALR) mode. This means that when you pull the seat belt fully
out of the retractor, the retractor will switch to its ALR child
restraint installation function. Always use the ALR child
restraint installation function when you install a child restraint
system using the seat belt.
Children 12 years old and under should always be restrained in
the rear seat, whenever possible, although the front passenger
seat belt can also be converted to ALR mode.
WA R N I N G
!
Child restraint system tether anchors are designed
only to withstand loads from correctly fitted child
restraint systems. Under no circumstances are they
to be used for adult seat belts, or harnesses, or for
attaching other items or equipment to the vehicle.
WA R N I N G
!
When you install a child restraint system using the
seat belt, always make sure the retractor has been
switched to the ALR child restraint installation
function. The ALR function will keep the child
restraint system tightly secured to the seat.
Failure to convert the retractor to the ALR function
may allow the child restraint system to move for-
ward during sudden braking or an accident, result-
ing in serious injury or death to the child or other
occupants.
BK0120400US.book 38 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Seat and restraint systems
2-41
2
6. Remove the head restraint from the location in which you
wish to install a child restraint system.
7. Remove the cargo area cover from the vehicle. (Refer to
“Cargo area cover” on page 3-252.)
8. Latch the tether strap hook (A) of the child restraint sys-
tem to the tether anchor bar (B) and tighten the tether strap
so it is securely fastened.9. Before putting your child in the restraint, push and pull
the restraint in all directions to be sure it is firmly secure.
Do this before each use. If the child restraint system is not
firmly secure, repeat steps 1 through 8.
10. To remove a child restraint system from the vehicle and
deactivate the ALR mode, remove the child from the
restraint. Unlatch the buckle. Then remove the belt from
the restraint and let the belt fully retract.If your child restraint system requires the use of a tether strap,
fasten the tether strap in accordance with the following proce-
dures.
WA R N I N G
!
Child restraint system tether anchors are designed
only to withstand loads from correctly fitted child
restraint systems. Under no circumstances are they
to be used for adult seat belts, or harnesses, or for
attaching other items or equipment to the vehicle.
BK0120400US.book 41 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-27
3
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Make sure the parking brake is applied.
3. Press and hold the brake pedal down with your right foot.
4. Press and hold the clutch pedal all the way down (manual
transaxle).
5. On vehicles equipped with manual transaxle, place the
gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT), make sure the selector lever is in the “P”
(PARK) position.NOTE
On vehicles equipped with continuously variable trans-
mission (CVT), the engine can only be started when the
selector lever is in the “P” (PARK) or “N” (NEUTRAL)
position.
For safety reasons, the engine should be started when the
selector lever is in the “P” (PARK) position in which the
driving wheels lock.
6. Press the engine switch.
7. Confirm that all warning lights and warning displays are
functioning properly.NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.Startability of continuously variable transmission (CVT)
vehicles with an ambient temperature of -22 °F (-30 °C) or
lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If this occurs,
place the selector lever in the “P” (PARK) position and let the
engine idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.
Stopping the engine
N00568200014
NOTE
If you have to bring the engine to an emergency stop
while driving, press and hold the engine switch for 3 sec-
onds or more, or press it quickly 3 times or more. The
engine will stop and the operation mode will go to ACC.
WA R N I N G
!
Do not operate the engine switch while driving
except in an emergency. If the engine is stopped
while driving, the brake servomechanism will cease
to function and braking efficiency will deteriorate.
Also, the power steering system will not function
and it will require greater manual effort to operate
the steering. This could result in a serious accident.
BK0120400US.book 27 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
