2011 MITSUBISHI OUTLANDER SPORT Stand

3-44 Features and controls
3Liftgate
N00510100214
NOTE
Locking and unlocking the doors by using power door
locks (driver and front passenger side), keyless entry sys-
tem or the F.A.S.T.-key operation (vehicles equipped with
the F.A.S.T.-key) also locks and unlocks the liftgate.
To openAfter unlocking, raise the liftgate.NOTE
The liftgate cannot be raised if it is not raised immediately
after pressing the liftgate OPEN switch.
If this happens, raise the liftgate again after pressing the
liftgate OPEN switch.

It is not possible to open the liftgate while the battery is
disconnected. If necessary, use the inside liftgate release.
WA R N I N G
!
It is dangerous to drive with the liftgate open since
carbon monoxide (CO) gas can enter the passenger
compartment.
CO is an invisible, odorless gas that can cause
unconsciousness and even death.
When opening and closing the liftgate, make sure
that there are no people nearby and be careful not to
hit your head or pinch your hands, neck, etc.
CAUTION
!
Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
CAUTION
!
Make sure there is no one standing nearby when
opening the liftgate.
BK0120400US.book 44 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-70 Features and controls
3
3. Make sure the parking brake is applied.
4. Press and hold the brake pedal down with your right foot.
5. Press and hold the clutch pedal all the way down (manual
transaxle).
6. On vehicles equipped with manual transaxle, place the
gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT), make sure the selector lever is in the “P”
(PARK) position.NOTE
On vehicles equipped with CVT, the starter will not oper-
ate unless the selector lever is in the “P” (PARK) or “N”
(NEUTRAL) position.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
7. Turn the ignition switch to the “ON” position and make
certain that all warning lights are functioning properly
before starting the engine.
8. Turn the ignition switch to the “START” position without
pressing the accelerator pedal. Release the key when the
engine starts.NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
Startability of automatic transaxle vehicle and CVT
vehicle with ambient temperature of -22
°F (-30
°C) or
lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This occurs because the transaxle has not warmed up suffi-
ciently; it does not indicate a problem. If this occurs, place the
selector lever in the “P” (PARK) position and let the engine
idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.
BK0120400US.book 70 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-98 Features and controls
3
If the warning light/display illuminate while driv-
ing
N00531700574
If only the anti-lock braking system warning light/dis-
play illuminate
Avoid hard braking and high-speed driving. Stop the vehi-
cle in a safe place.
Test the system by restarting the engine and driving at a
speed of about 12 mph (20 km/h) or higher.
If the warning light/display then remains off during driv-
ing, there is no abnormal condition.
However, if the warning light/display do not disappear, or
if they come on again when the vehicle is driven, have the
vehicle checked by an authorized MITSUBISHI
MOTORS dealer or repair facility of your choice as soon
as possible.
CAUTION
!
Any of the following indicates that the anti-lock
braking system is not functioning and only the stan-
dard brake system is working. (The standard brake
system is functioning normally.) If this happens,
take your vehicle to an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
• When the ignition switch is turned to the “ON”
position or the operation mode is put in ON, the
warning light does not come on or it remains on
and does not go off.• The warning light comes on while driving
• The warning display appears while driving
BK0120400US.book 98 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

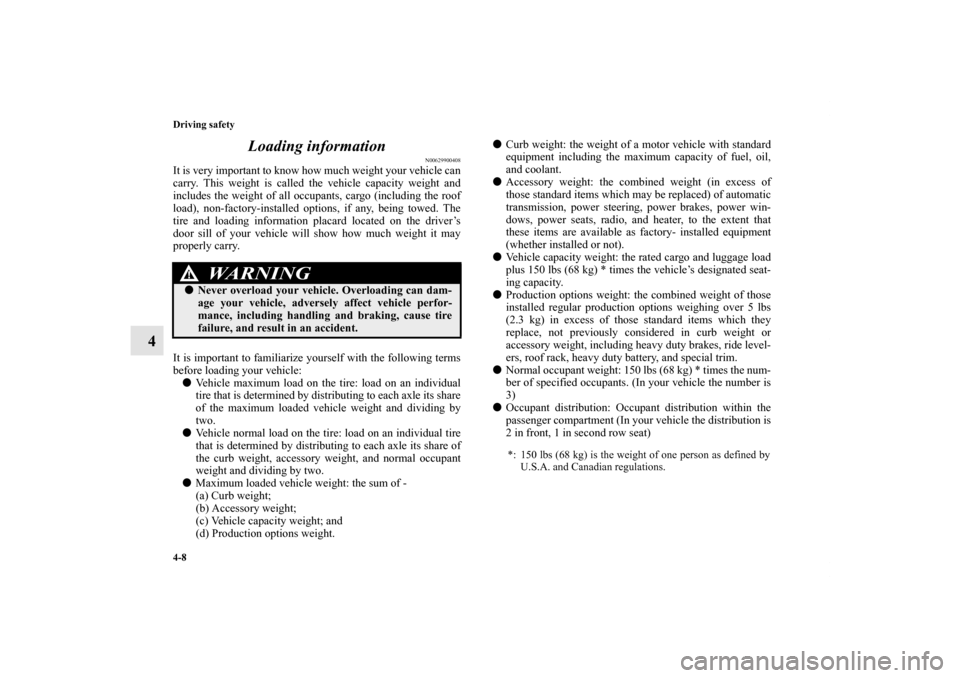

4-8 Driving safety
4Loading information
N00629900408
It is very important to know how much weight your vehicle can
carry. This weight is called the vehicle capacity weight and
includes the weight of all occupants, cargo (including the roof
load), non-factory-installed options, if any, being towed. The
tire and loading information placard located on the driver’s
door sill of your vehicle will show how much weight it may
properly carry.
It is important to familiarize yourself with the following terms
before loading your vehicle:

Vehicle maximum load on the tire: load on an individual
tire that is determined by distributing to each axle its share
of the maximum loaded vehicle weight and dividing by
two.

Vehicle normal load on the tire: load on an individual tire
that is determined by distributing to each axle its share of
the curb weight, accessory weight, and normal occupant
weight and dividing by two.

Maximum loaded vehicle weight: the sum of -
(a) Curb weight;
(b) Accessory weight;
(c) Vehicle capacity weight; and
(d) Production options weight.
Curb weight: the weight of a motor vehicle with standard
equipment including the maximum capacity of fuel, oil,
and coolant.

Accessory weight: the combined weight (in excess of
those standard items which may be replaced) of automatic
transmission, power steering, power brakes, power win-
dows, power seats, radio, and heater, to the extent that
these items are available as factory- installed equipment
(whether installed or not).

Vehicle capacity weight: the rated cargo and luggage load
plus 150 lbs (68 kg) * times the vehicle’s designated seat-
ing capacity.

Production options weight: the combined weight of those
installed regular production options weighing over 5 lbs
(2.3 kg) in excess of those standard items which they
replace, not previously considered in curb weight or
accessory weight, including heavy duty brakes, ride level-
ers, roof rack, heavy duty battery, and special trim.

Normal occupant weight: 150 lbs (68 kg) * times the num-
ber of specified occupants. (In your vehicle the number is
3)

Occupant distribution: Occupant distribution within the
passenger compartment (In your vehicle the distribution is
2 in front, 1 in second row seat)
WA R N I N G
!
Never overload your vehicle. Overloading can dam-
age your vehicle, adversely affect vehicle perfor-
mance, including handling and braking, cause tire
failure, and result in an accident.
*: 150 lbs (68 kg) is the weight of one person as defined by
U.S.A. and Canadian regulations.
BK0120400US.book 8 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

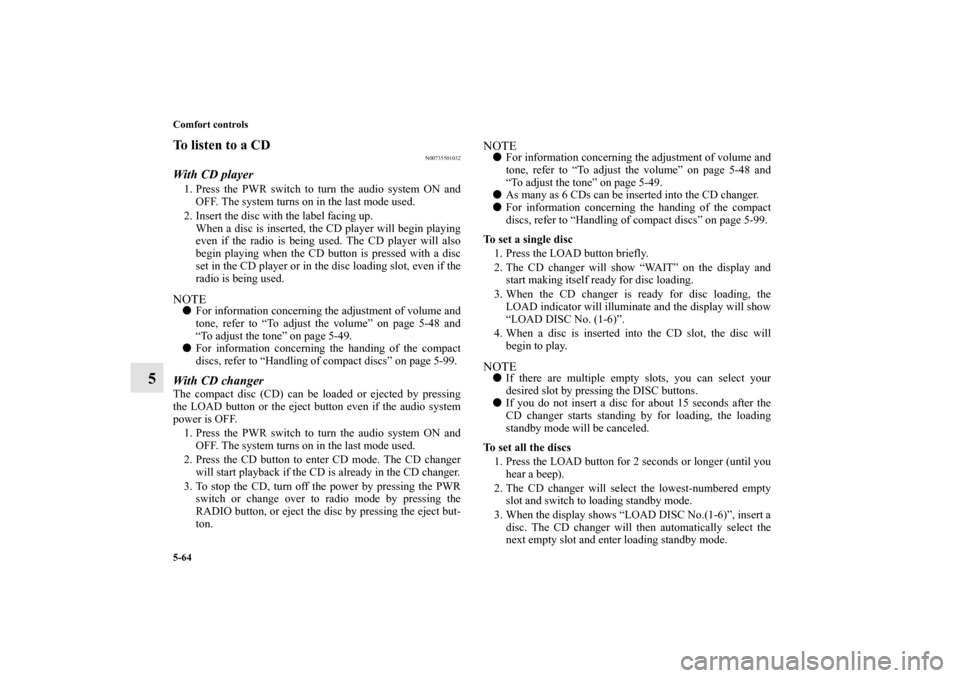

5-64 Comfort controls
5
To listen to a CD
N00735501032
With CD player1. Press the PWR switch to turn the audio system ON and
OFF. The system turns on in the last mode used.
2. Insert the disc with the label facing up.
When a disc is inserted, the CD player will begin playing
even if the radio is being used. The CD player will also
begin playing when the CD button is pressed with a disc
set in the CD player or in the disc loading slot, even if the
radio is being used.NOTE
For information concerning the adjustment of volume and
tone, refer to “To adjust the volume” on page 5-48 and
“To adjust the tone” on page 5-49.

For information concerning the handing of the compact
discs, refer to “Handling of compact discs” on page 5-99.With CD changerThe compact disc (CD) can be loaded or ejected by pressing
the LOAD button or the eject button even if the audio system
power is OFF.
1. Press the PWR switch to turn the audio system ON and
OFF. The system turns on in the last mode used.
2. Press the CD button to enter CD mode. The CD changer
will start playback if the CD is already in the CD changer.
3. To stop the CD, turn off the power by pressing the PWR
switch or change over to radio mode by pressing the
RADIO button, or eject the disc by pressing the eject but-
ton.
NOTE
For information concerning the adjustment of volume and
tone, refer to “To adjust the volume” on page 5-48 and
“To adjust the tone” on page 5-49.

As many as 6 CDs can be inserted into the CD changer.

For information concerning the handing of the compact
discs, refer to “Handling of compact discs” on page 5-99.
To set a single disc
1. Press the LOAD button briefly.
2. The CD changer will show “WAIT” on the display and
start making itself ready for disc loading.
3. When the CD changer is ready for disc loading, the
LOAD indicator will illuminate and the display will show
“LOAD DISC No. (1-6)”.
4. When a disc is inserted into the CD slot, the disc will
begin to play.NOTE
If there are multiple empty slots, you can select your
desired slot by pressing the DISC buttons.

If you do not insert a disc for about 15 seconds after the
CD changer starts standing by for loading, the loading
standby mode will be canceled.
To set all the discs
1. Press the LOAD button for 2 seconds or longer (until you
hear a beep).
2. The CD changer will select the lowest-numbered empty
slot and switch to loading standby mode.
3. When the display shows “LOAD DISC No.(1-6)”, insert a
disc. The CD changer will then automatically select the
next empty slot and enter loading standby mode.
BK0120400US.book 64 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

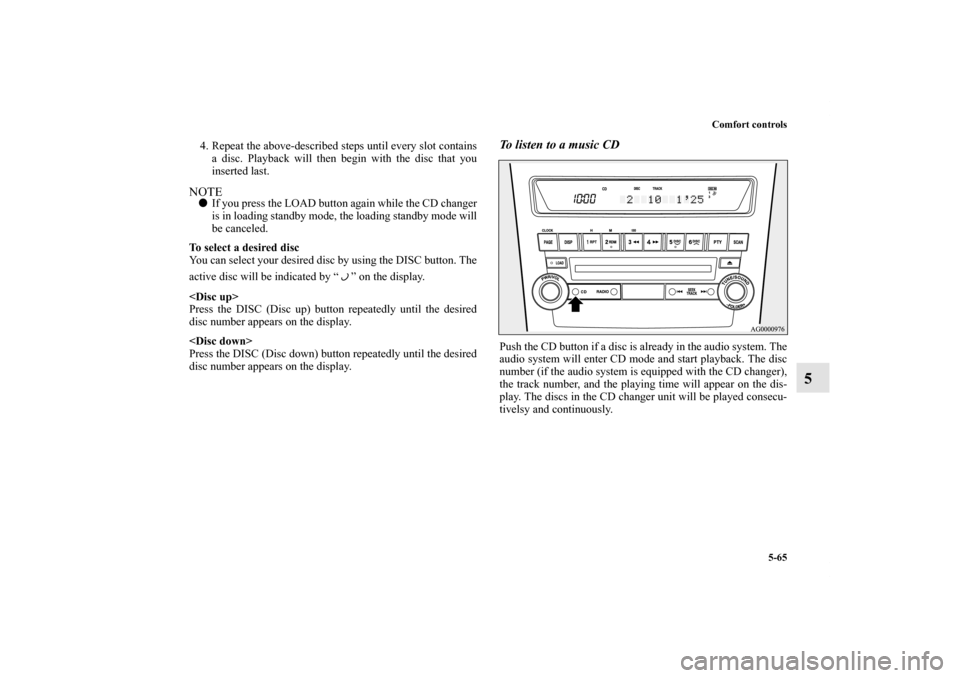

Comfort controls
5-65
5
4. Repeat the above-described steps until every slot contains
a disc. Playback will then begin with the disc that you
inserted last.NOTE
If you press the LOAD button again while the CD changer
is in loading standby mode, the loading standby mode will
be canceled.
To select a desired disc
You can select your desired disc by using the DISC button. The
active disc will be indicated by “ ” on the display.

Press the DISC (Disc up) button repeatedly until the desired
disc number appears on the display.

Press the DISC (Disc down) button repeatedly until the desired
disc number appears on the display.
To listen to a music CDPush the CD button if a disc is already in the audio system. The
audio system will enter CD mode and start playback. The disc
number (if the audio system is equipped with the CD changer),
the track number, and the playing time will appear on the dis-
play. The discs in the CD changer unit will be played consecu-
tivelsy and continuously.
BK0120400US.book 65 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

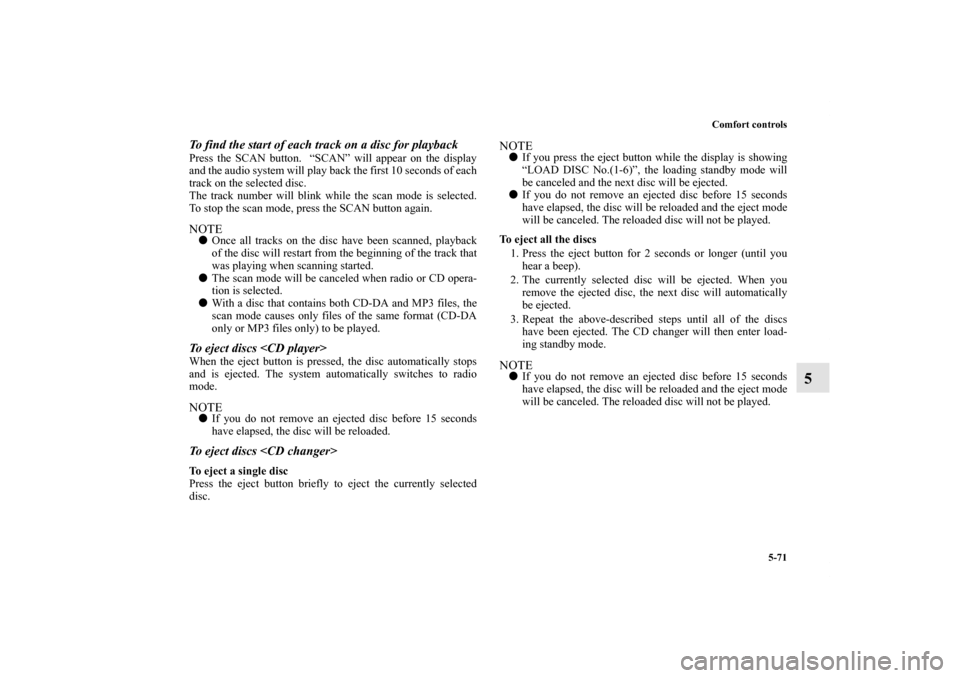

Comfort controls
5-71
5
To find the start of each track on a disc for playbackPress the SCAN button. “SCAN” will appear on the display
and the audio system will play back the first 10 seconds of each
track on the selected disc.
The track number will blink while the scan mode is selected.
To stop the scan mode, press the SCAN button again.NOTE
Once all tracks on the disc have been scanned, playback
of the disc will restart from the beginning of the track that
was playing when scanning started.

The scan mode will be canceled when radio or CD opera-
tion is selected.

With a disc that contains both CD-DA and MP3 files, the
scan mode causes only files of the same format (CD-DA
only or MP3 files only) to be played.To eject discs When the eject button is pressed, the disc automatically stops
and is ejected. The system automatically switches to radio
mode.NOTE
If you do not remove an ejected disc before 15 seconds
have elapsed, the disc will be reloaded.To eject discs To eject a single disc
Press the eject button briefly to eject the currently selected
disc.
NOTE
If you press the eject button while the display is showing
“LOAD DISC No.(1-6)”, the loading standby mode will
be canceled and the next disc will be ejected.

If you do not remove an ejected disc before 15 seconds
have elapsed, the disc will be reloaded and the eject mode
will be canceled. The reloaded disc will not be played.
To eject all the discs
1. Press the eject button for 2 seconds or longer (until you
hear a beep).
2. The currently selected disc will be ejected. When you
remove the ejected disc, the next disc will automatically
be ejected.
3. Repeat the above-described steps until all of the discs
have been ejected. The CD changer will then enter load-
ing standby mode.NOTE
If you do not remove an ejected disc before 15 seconds
have elapsed, the disc will be reloaded and the eject mode
will be canceled. The reloaded disc will not be played.
BK0120400US.book 71 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

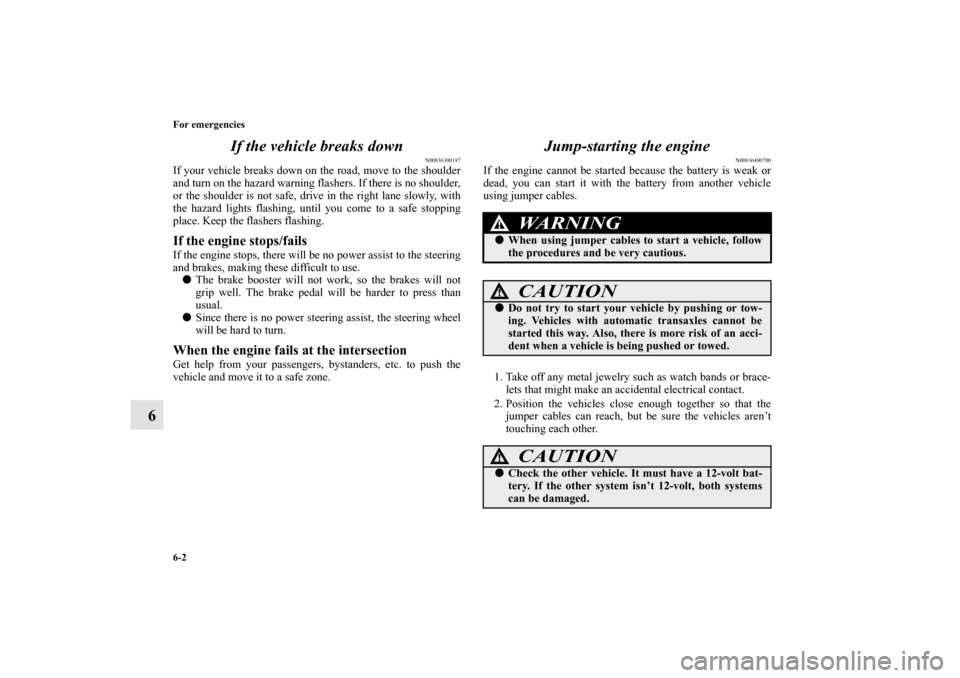

6-2 For emergencies
6If the vehicle breaks down
N00836300187
If your vehicle breaks down on the road, move to the shoulder
and turn on the hazard warning flashers. If there is no shoulder,
or the shoulder is not safe, drive in the right lane slowly, with
the hazard lights flashing, until you come to a safe stopping
place. Keep the flashers flashing.If the engine stops/failsIf the engine stops, there will be no power assist to the steering
and brakes, making these difficult to use.

The brake booster will not work, so the brakes will not
grip well. The brake pedal will be harder to press than
usual.

Since there is no power steering assist, the steering wheel
will be hard to turn.When the engine fails at the intersectionGet help from your passengers, bystanders, etc. to push the
vehicle and move it to a safe zone.
Jump-starting the engine
N00836400700
If the engine cannot be started because the battery is weak or
dead, you can start it with the battery from another vehicle
using jumper cables.
1. Take off any metal jewelry such as watch bands or brace-
lets that might make an accidental electrical contact.
2. Position the vehicles close enough together so that the
jumper cables can reach, but be sure the vehicles aren’t
touching each other.
WA R N I N G
!
When using jumper cables to start a vehicle, follow
the procedures and be very cautious.
CAUTION
!
Do not try to start your vehicle by pushing or tow-
ing. Vehicles with automatic transaxles cannot be
started this way. Also, there is more risk of an acci-
dent when a vehicle is being pushed or towed.
CAUTION
!
Check the other vehicle. It must have a 12-volt bat-
tery. If the other system isn’t 12-volt, both systems
can be damaged.
BK0120400US.book 2 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
