2011 MERCEDES-BENZ SLK300 Owner's Manual

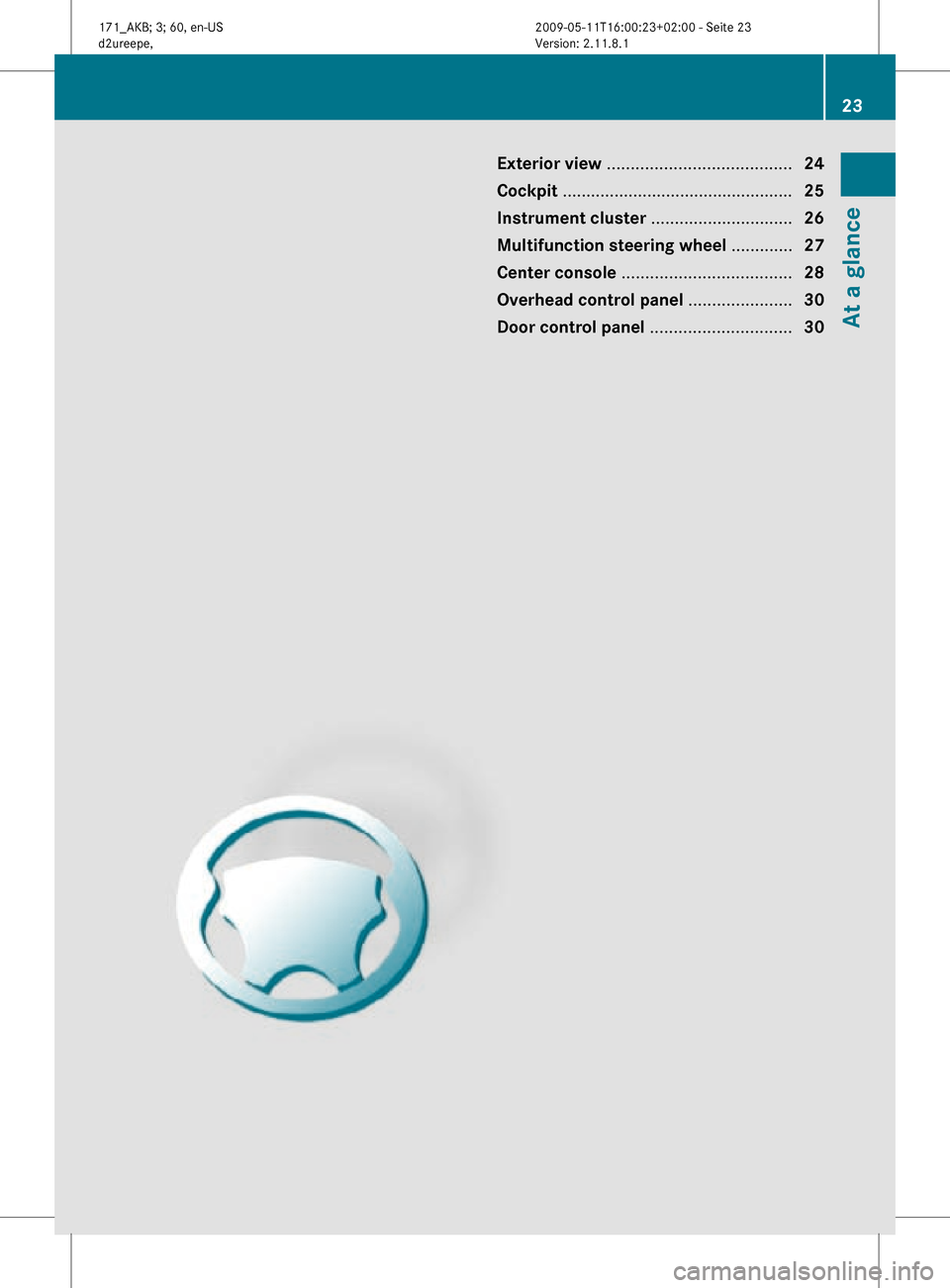

Exterior view
....................................... 24
Cockpit ................................................. 25
Instrument cluster ..............................26
Multifunction steering wheel .............27
Center console .................................... 28
Overhead control panel ......................30
Door control panel .............................. 30 23At a glance
171_AKB; 3; 60, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-11T16:00:23+02:00 - Seite 23

Exterior view
i
This Operator’s Manual describes all features, standard or optional, potentially available
for your vehicle at the time of purchase. Please be aware that your vehicle might not be
equipped with all features described in this manual. Function Page
:
Trunk:
Locking and unlocking 56
Opening and closing 59
Valet locking 61
;
Rear window defroster 170
=
Fuel filler flap 190
?
Doors:
Locking and unlocking 56,
264 A
Exterior rear view mirrors 68
B
Retractable hardtop 170
C
Windshield:
Wiping with washer fluid 77 Function Page
Cleaning 229
D
Wipers 76
Wiper blades, replacing 271
Wiper blades, cleaning 229
E
Hood 192
F
Front lamps 267
G
Front towing eye 286
H
Headlamp cleaning system 74
I
Tires and wheels 197
Rims and tires 297
J
Rear lamps 267
K
Rear towing eye 28624
Exterior viewAt a glance
171_AKB; 3; 60, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-11T16:00:23+02:00 - Seite 24

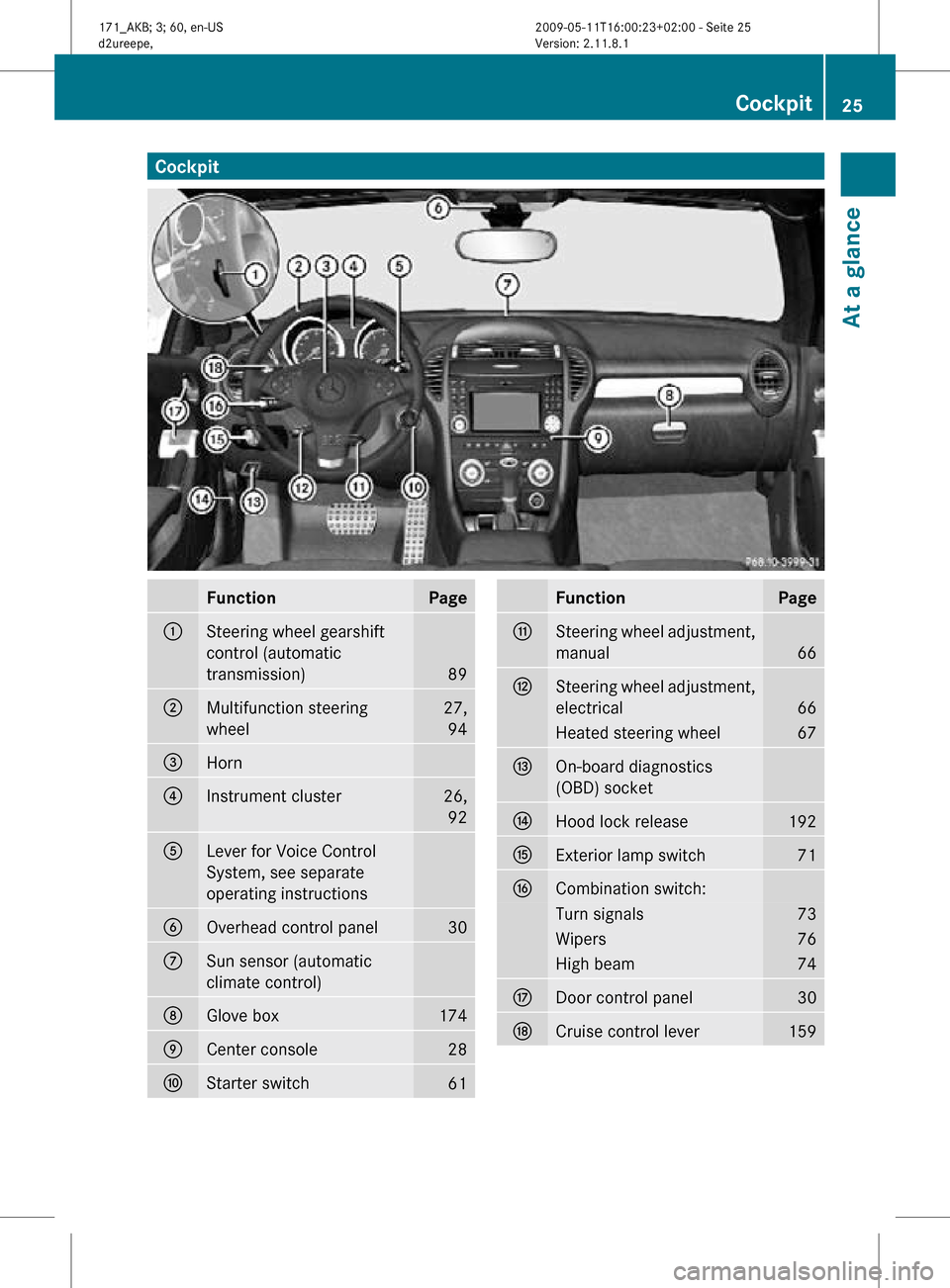

Cockpit
Function Page
:
Steering wheel gearshift
control (automatic
transmission)
89
;
Multifunction steering
wheel 27,
94 =
Horn
?
Instrument cluster 26,
92 A
Lever for Voice Control
System, see separate
operating instructions
B
Overhead control panel 30
C
Sun sensor (automatic
climate control)
D
Glove box 174
E
Center console 28
F
Starter switch
61 Function Page
G
Steering wheel adjustment,
manual
66
H
Steering wheel adjustment,
electrical
66
Heated steering wheel 67
I
On-board diagnostics
(OBD) socket
J
Hood lock release 192
K
Exterior lamp switch 71
L
Combination switch:
Turn signals 73
Wipers 76
High beam 74
M
Door control panel 30
N
Cruise control lever 159Cockpit
25At a glance
171_AKB; 3; 60, en-US
d2ureepe, Version: 2.11.8.1 2009-05-11T16:00:23+02:00 - Seite 25 Z

Instrument cluster
Function Page
:
Multifunction display with:
Trip odometer 109
Main odometer 95
Gear range indicator
(automatic transmission)
88
Program mode indicator
(automatic transmission)
88
Outside temperature
indicator or digital
speedometer (depending
on selected setting in the
control system)
97,
104 Set speed for cruise control 159
;
Tachometer with:
! Engine malfunction
indicator lamp, USA only
262
; Engine malfunction
indicator lamp, Canada only
262
h Combination low tire
pressure/TPMS
malfunction telltale, USA
only
201,
262 Function Page
7 Seat belt telltale 42,
259 K High-beam headlamp
indicator lamp
73
=
Fuel gauge with:
8 Fuel tank reserve
warning lamp (the arrow
indicates that the fuel filler
flap is on the right-hand
side)
261
?
Clock 93
A
Speedometer with:
+ Supplemental
Restraint System (SRS)
indicator lamp
32,
260 ! Antilock Brake
System (ABS) indicator
lamp
257
# Left turn signal
indicator lamp
d Electronic Stability
Program (ESP
®
) warning
lamp 26026
Instrument clusterAt a glance
171_AKB; 3; 60, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-11T16:00:23+02:00 - Seite 26

Function Page
! Right turn signal
indicator lamp
J Brake warning lamp,
Canada only
258
$ Brake warning lamp,
USA only
258
B
Reset button for:
Trip odometer 93
Settings 102
C
Knobs for instrument
cluster illumination
93 Multifunction steering wheel
Function Page
:
Multifunction display 95
;
Press button 6:
to answer a call 110
to dial
1 110
to redial
1 110
Press button ~:
to end a call 110
to reject an incoming call 110
Press button
W or X: to select submenus in the
Settings menu
103
to set values
to operate the RACETIMER
2 98
to set the volume
=
Press button V or U
to select next/previous
menu. 93
1
Function only available in telephone menu.
2 AMG vehicles only. Multifunction steering wheel
27At a glance
171_AKB; 3; 60, en-US
d2ureepe, Version: 2.11.8.1 2009-05-11T16:00:23+02:00 - Seite 27 Z

Function Page
Press button & or *
briefly: to move within a menu
to select previous or next
track, scene or stored
station within Audio/DVD
menu
100
to switch to the phone book
and select a name or
number within Telephone
menu
110
Press and hold button
& or *:
to select previous or next
track with quick search or
to select previous or next
station in station list or
wave band within
Audio/
DVD menu 100
to start the quick search in
the phone book within
Telephone

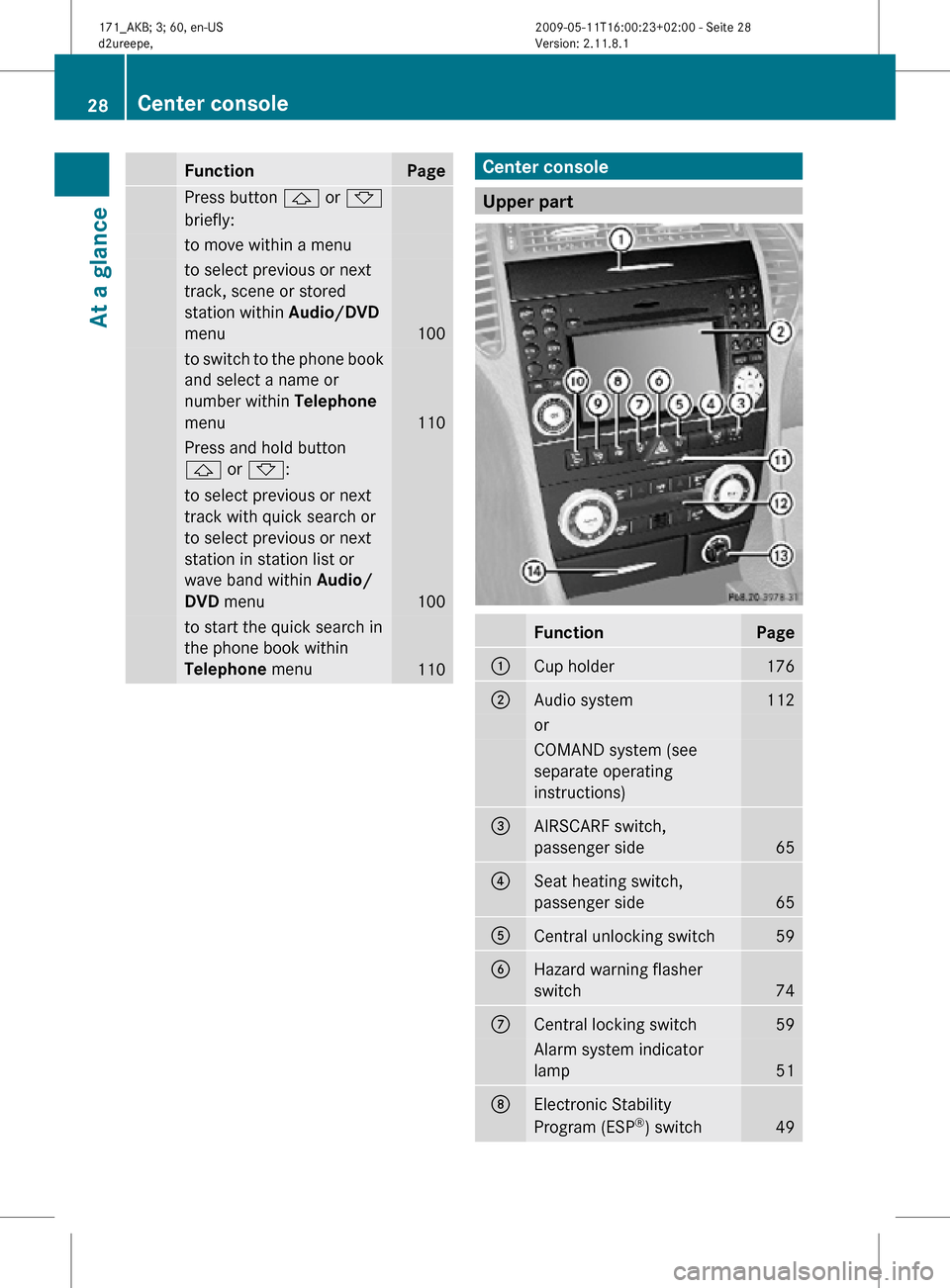

menu 110 Center console
Upper part
Function Page
:
Cup holder 176
;
Audio system 112
or
COMAND system (see
separate operating
instructions)
=
AIRSCARF switch,
passenger side
65
?
Seat heating switch,
passenger side
65
A
Central unlocking switch 59
B
Hazard warning flasher
switch
74
C
Central locking switch 59
Alarm system indicator
lamp
51
D
Electronic Stability
Program (ESP
®
) switch 4928
Center consoleAt a glance
171_AKB; 3; 60, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-11T16:00:23+02:00 - Seite 28

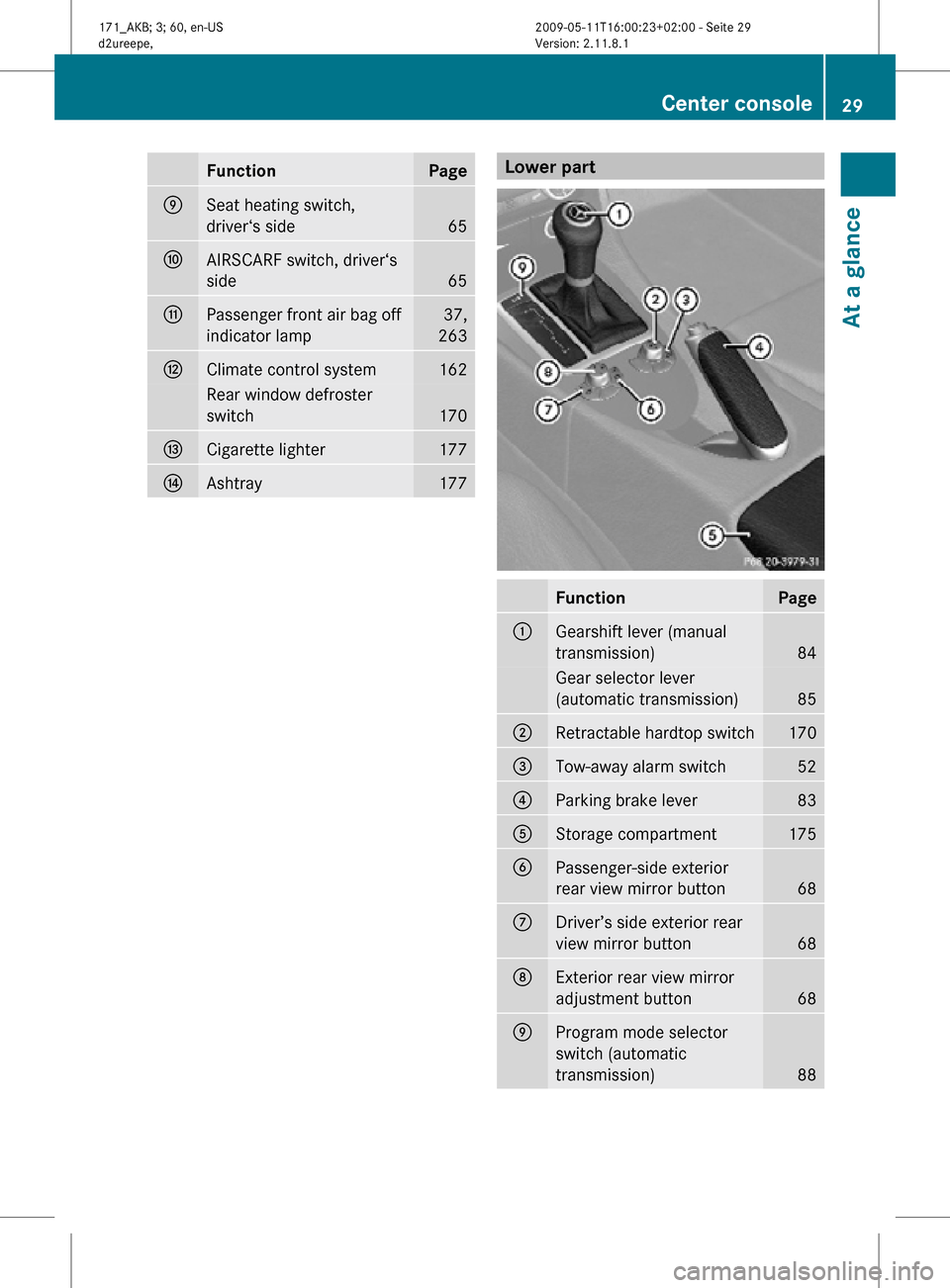

Function Page
E
Seat heating switch,
driver‘s side
65
F
AIRSCARF switch, driver‘s
side
65
G
Passenger front air bag off
indicator lamp 37,
263 H
Climate control system 162
Rear window defroster
switch
170
I
Cigarette lighter 177
J
Ashtray 177 Lower part
Function Page
:
Gearshift lever (manual
transmission)
84
Gear selector lever
(automatic transmission)
85
;
Retractable hardtop switch 170
=
Tow-away alarm switch 52
?
Parking brake lever 83
A
Storage compartment 175
B
Passenger-side exterior
rear view mirror button
68
C
Driver’s side exterior rear
view mirror button
68
D
Exterior rear view mirror
adjustment button
68
E
Program mode selector
switch (automatic
transmission)
88Center console
29At a glance
171_AKB; 3; 60, en-US
d2ureepe, Version: 2.11.8.1 2009-05-11T16:00:23+02:00 - Seite 29 Z

Overhead control panel
Function Page
:
Interior lighting switch 75
;
Automatic interior lighting 75
=
Right reading lamp switch 75
?
SOS button (Tele Aid
system)
180
A
Garage door opener 183
B
Sensor for auto-dimming
rear view mirrors
69
C
Interior rear view mirror 68
D
Hands-free microphone for
Tele Aid (emergency call
system) and telephone
178
E
Left reading lamp switch 75 Door control panel
Function Page
:
Inside door handle 58
;
Power window switch,
passenger-side window
78
=
Power window switch,
driver’s side window
7830
