2011 MERCEDES-BENZ C-CLASS SALOON Owners Manual

30

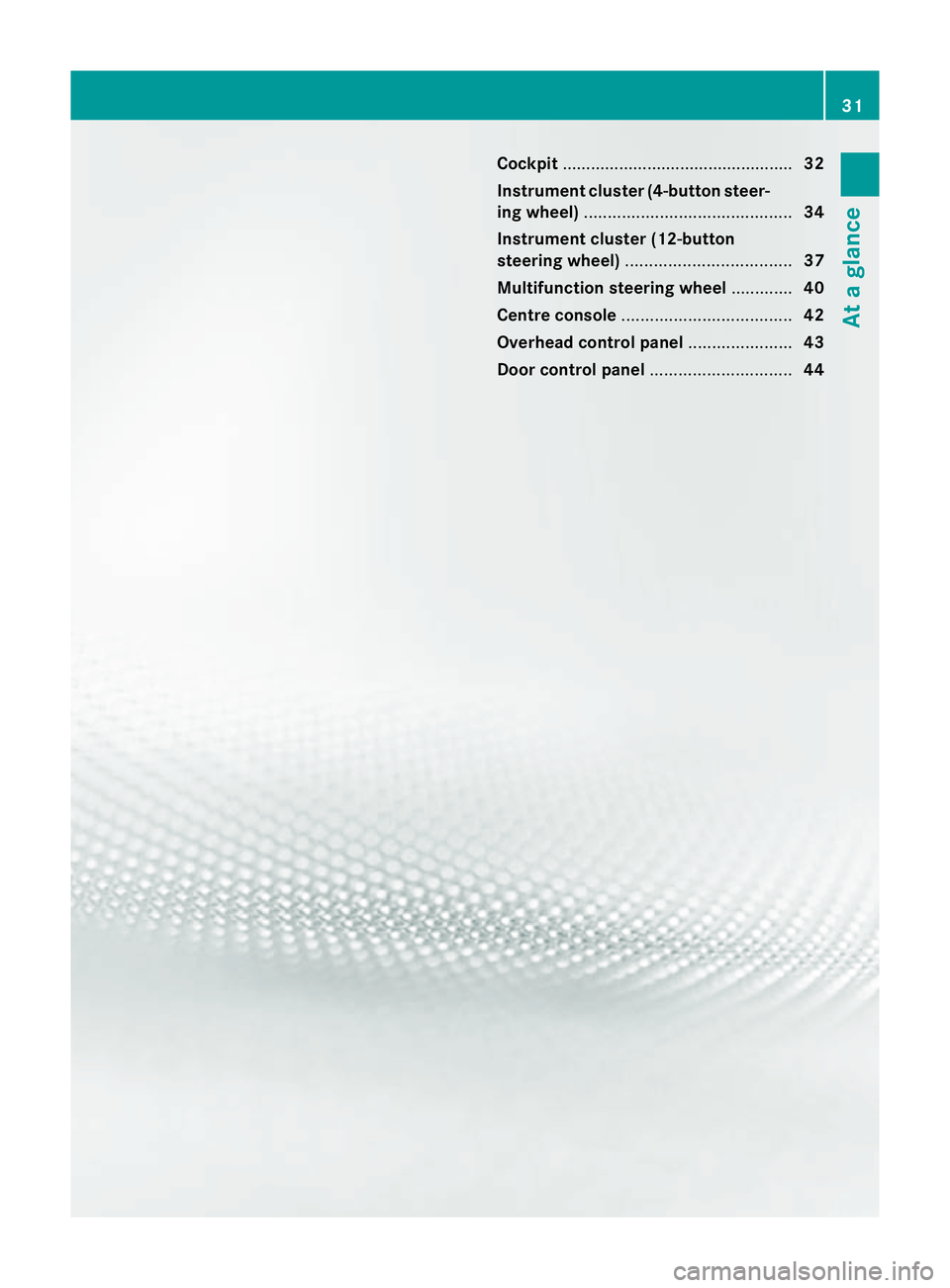

Cockpit
................................................. 32
Instrumen tcluster (4-button steer-
ing wheel) ............................................ 34
Instrument cluster (12-button
steering wheel) ................................... 37
Multifunction steering wheel .............40
Centre console .................................... 42
Overhea dcontrol panel ...................... 43
Door control panel .............................. 44 31At a glance

Cockpit
Function Page
:
Automatic transmission:
steering wheel gearshift
paddles
164
;
Cruise control lever 178
=
Instrument cluster (4-but-
to
ns teering wheel) 34
Instrument cluster (12-but-
ton steering wheel)
37
?
Horn
A
PARKTRONIC warning dis-
play
196
B
Overhead control panel 43
C
Climate control systems 134
D
Ignitio
nlock 153
Start/Stop button 153
E
Adjusts the steering wheel
manually
110
F
Adjusts the steering wheel
electrically
110
G
Combination switch 120
H
Parking brake
175 Function Page
I
On-board diagnostic inter-
face
28
J
Opens the bonnet 322
K
Releases the parking brake 175
L
Light switch 11832
CockpitAt a glance

Function Page
:
Overhead control panel 43
;
PARKTRONIC warning dis-
play
196
=
Cruise control lever 178
?
Instrument cluster (4-but-
to
ns teering wheel) 34
Instrument cluster (12-but-
ton steering wheel)
37
A
Horn
B
Automatic transmission:
steering wheel gearshift
paddles
164
C
Ligh
tswitch 118
D
Releases the parking brake
175 Function Page
E
Opens the bonnet 322
F
On-board diagnostic inter-
face
28
G
Ignitio
nlock 153
Start/Stop button 153
H
Adjusts the steering wheel
manually
110
I
Adjusts the steering wheel
electrically
110
J
Combination switch 120
K
Parking brake 175
L
Climate control systems 134Cockpit
33At a glance

Instrumen
tcluster (4-button steering wheel) Displays and controls
i
Instrument cluster: kilometres Function Page
:
Fuel gauge
;
Coolant temperature 222
=
Speedometer
?
Rev counter 222
A
ECO start/stop function 156
Rear window wiper 130
Automatic transmission:
Transmission position and
drive program
162
Manual transmission:
Gearshif
trecommendation 161
Outside temperature 222
HOLD function 193
Stored limit speed 180
B
Multifunction display
223 Function Page
C
Time
Automatic transmission:
Outside temperature (vehi-
cles for the United King-
dom: speed in km/h)
222
HOLD function 193
Stored limit speed 180
D
Brightness control knob for
the instrument cluster light-
ing: turn clockwise or anti-
clockwise 34
Instrument cluster (4-button steering wheel)At a glance

i
Instrument cluster: miles Function Page
:
Fuel gauge
;
Coolant temperature 222
=
Speedometer
?
Rev counter 222
A
ECO start/stop function 156
Rearw
indow wiper 130
Automatic transmission:
Transmission position and
drive program
162
Manual transmission:
Gearshif
trecommendation 161
Outside temperature 222
HOLD function 193
Stored limit speed
180 Function Page
B
Multifunction display 223
C
Time
Automatic transmission:
Outside temperature (vehi-
cles for the United King-
dom: speed in km/h)
222
HOLD function 193
Stored limit speed 180
D
Brightness control knob for
the instrument cluster light-
ing: turn clockwise or anti-
clockwiseInstrument cluster (4-button steering wheel)
35At a glance

Warning and indicator lamps
Function Page
:
Reserve fuel 298
;
Coolant 298
=
ABS 293
?
Brakes 293
A
Seat belt 291
B
Turn signal 120
C
SRS
297 Function Page
D
Engine diagnostics 298
E
ESP
® 295
F
Rea
rfoglamp 119
G
Main-beam headlamps 120
H
Dipped-beam headlamps 119
I
Front foglamps 119
J
Diesel engine: preglow 15536
Instrument cluster (4-button steering wheel)At a glance

Instrumen
tcluster (12-button steering wheel) Displays and controls
i
Instrument cluster: kilometres Function Page
:
Fuel gauge
;
Coolant temperature 226
=
Speedometer with seg-
ments
227
?
Multifunction display 228
A
Rev counter 226
B
Brightness control knob for
the instrumen
tcluster light-
ing: turn clockwise or anti-
clockwise Instrument cluster (12-button steering wheel)
37At a glance
