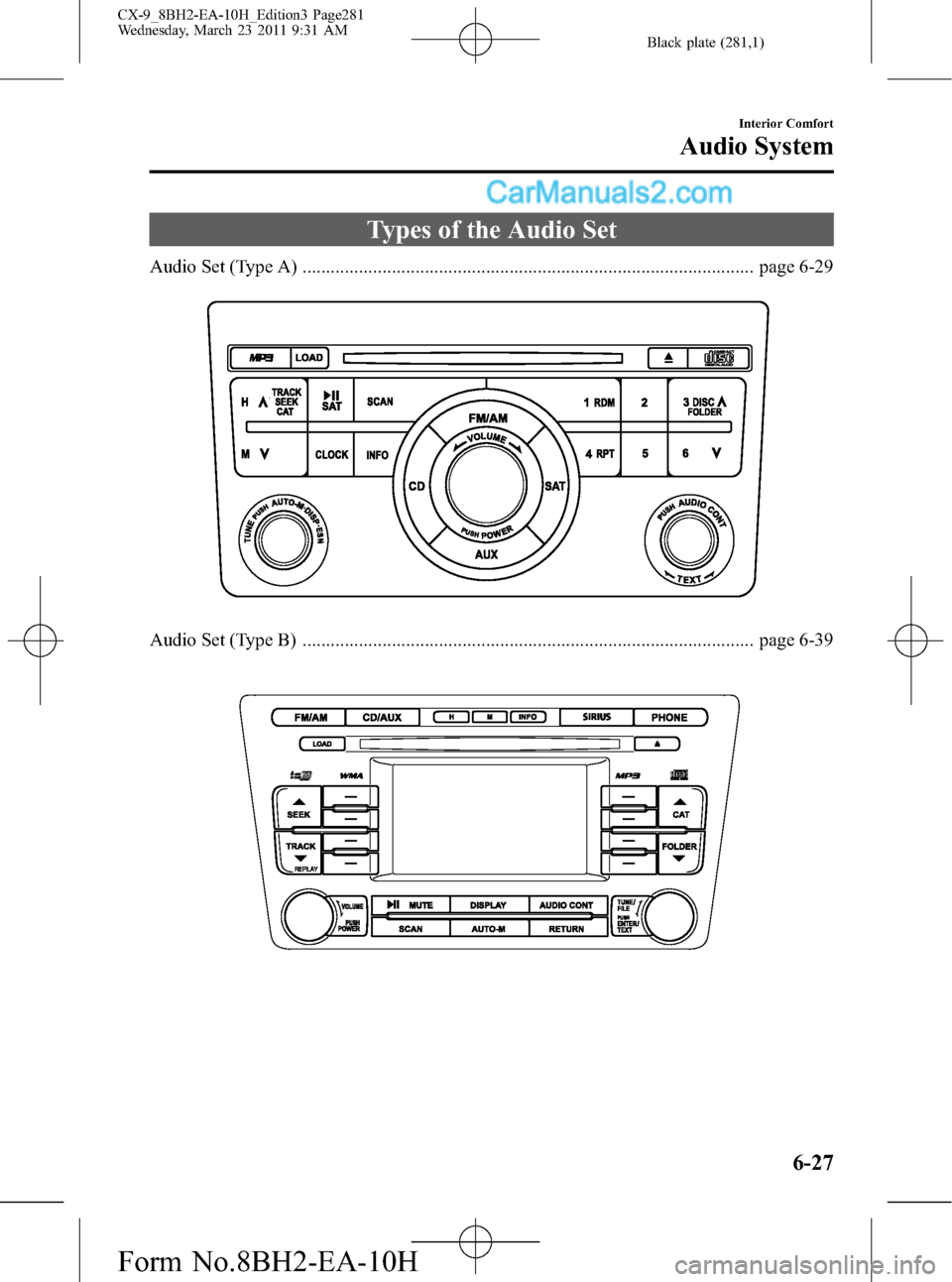

Types of the Audio Set
Audio Set (Type A) ................................................................................................ page 6-29
Audio Set (Type B) ................................................................................................ page 6-39
Interior Comfort
Audio System
6-27
CX-9_8BH2-EA-10H_Edition3 Page281
Wednesday, March 23 2011 9:31 AM
Form No.8BH2-EA-10H

Black plate (282,1)
MEMO
6-28
CX-9_8BH2-EA-10H_Edition3 Page282
Wednesday, March 23 2011 9:31 AM
Form No.8BH2-EA-10H

Black plate (283,1)
Audio Set (Type A)
Audio information is displayed on the information display.
The/(),buttons are only functional if the vehicle is equipped with the
separately purchased SIRIUS digital satellite radio unit (U.S.A. and Canada).
Power/Volume/Sound Controls .............................................................................. page 6-30
Operating the Radio ............................................................................................... page 6-32
Operating the Compact Disc (CD) Player .............................................................. page 6-34
Operating the Auxiliary jack .................................................................................. page 6-37
Error Indications ..................................................................................................... page 6-38
