2011 MAZDA MODEL CX-9 Owners Manual (in English)

Black plate (130,1)
2. Turn the key counterclockwise and
hold until the windows and the
moonroof are completely open. After
the doors and the liftgate are unlocked,
the windows and the moonroof fully
open automatically.
Open
To stop this operation, turn the key to the
center position, then turn it
counterclockwise again.
NOTE
The window and the moonroof opening
operation also can be stopped by turning the
key clockwise. However, the doors and the
liftgate will lock.
Closing
The windows and the moonroof can be
closed in case they are left open after
getting out of the vehicle.
NOTE
(With advanced key)
If the auto-lock function (page 3-8) has been
activated, the doors and the liftgate
automatically lock as you walk away from the
vehicle, however, the power windows and the
moonroof cannot be closed. When leaving the
vehicle, close the windows and the moonroof
using the power window switch or the tilt or
slide switch inside the vehicle, the key, or a
request switch on the front door handles.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key clockwise and hold until
the windows and the moonroof are
completely closed. After the doors and
the liftgate are locked, the windows
and the moonroof close as long as the
key is turned.
Close
With request switch on the driver's
door (Advanced key)
1. If the doors and the liftgate are locked,
unlock them.
3-46
Knowing Your Mazda
Doors and Locks
CX-9_8BH2-EA-10H_Edition3 Page130
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (131,1)
2. Press and hold the request switch on
the driver's door. After the doors and
the liftgate are locked, the windows
and the moonroof close as long as the
request switch is pressed.
Request switch
To stop the windows and the moonroof
from closing, release the request switch. If
the operation is performed from the
beginning again, the windows and the
moonroof close.
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
Knowing Your Mazda
Doors and Locks
3-47
CX-9_8BH2-EA-10H_Edition3 Page131
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (132,1)
qFuel-Filler Lid
To open, pull the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
To close the fuel-filler cap, turn it
clockwise until two or more clicks are
heard.
Open
Close
CAUTION
If the check fuel cap warning light
illuminates, the fuel-filler cap may
not be properly installed. If the
warning light illuminates, park your
vehicle safely off the right-of-way,
remove the fuel-filler cap and
reinstall it correctly. After the cap has
been correctly installed, the fuel cap
warning light may continue to
illuminate until a number of driving
cycles have been completed. A drive
cycle consists of starting the engine
(after four or more hours with the
engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.
NOTE
The removed cap can be attached to the inner
side of the lid during refueling to prevent fuel
on the cap from dripping onto the vehicle.
3-48
Knowing Your Mazda
Doors and Locks
CX-9_8BH2-EA-10H_Edition3 Page132
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (133,1)
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening,
slide the hood latch lever to the right,
and lift the hood.
3. Grasp the support rod in the padded
area and secure it in the stay hole
indicated by the arrow to hold the hood
open.
Pad
Clip
Support rod
qClosing the Hood
WARNING
Do not leave items in the engine
compartment:
After you have finished checking or
doing servicing in the engine
compartment, do not forget and
leave items such as tools or rags in
the engine compartment.
Tools or other items left in the engine
compartment could cause engine
damage or a fire leading to an
unexpected accident.
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod into its clip while
holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
Knowing Your Mazda
Doors and Locks
3-49
CX-9_8BH2-EA-10H_Edition3 Page133
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (134,1)
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Tilt switch Slide switch
WARNING
Do not let passengers stand up or
extend part of their body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a
person―especially a child―could
be caught in it as it closes, causing
serious injury or even death.NOTE
Before washing your Mazda, make sure the
moonroof is completely closed so that water
does not get inside the cabin area. After
washing your Mazda or after it rains, wipe the
water off the moonroof before operating it to
avoid water penetration which could cause
rust and water damage to your headliner.
qOperating the Moonroof
Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the tilt switch.
To fully close automatically, momentarily
pull the tilt switch or press the front of the
slide switch.
To stop tilting partway, press any part of
the tilt or slide switch.
Close
Tilt upTilt down
(Tilt down)
Slide Operation
To fully open automatically, momentarily
press the rear of the slide switch.
To fully close automatically, momentarily
press the front of the slide switch or pull
the tilt switch.
3-50
Knowing Your Mazda
íSome models.
Doors and Locks
CX-9_8BH2-EA-10H_Edition3 Page134
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

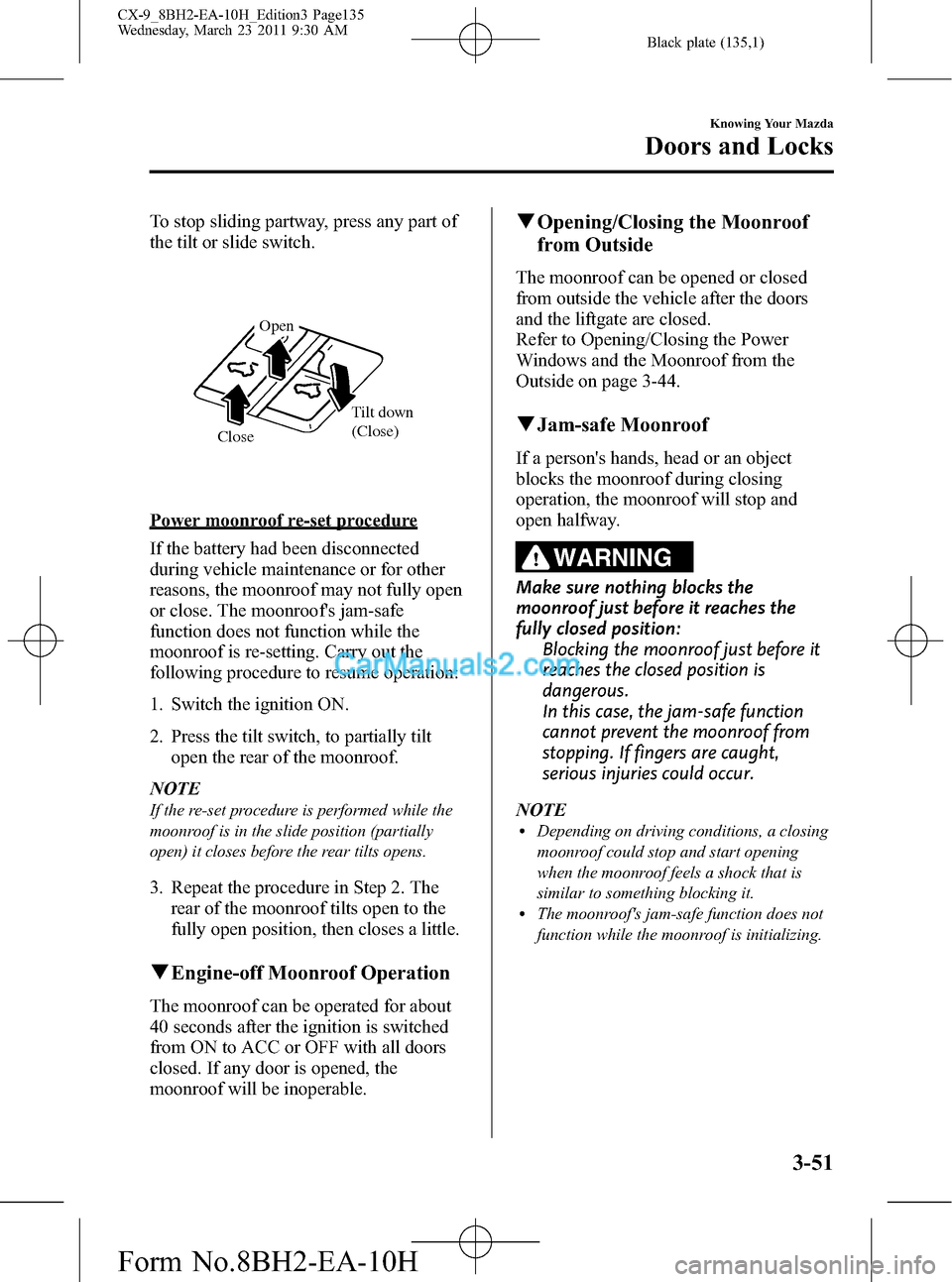

Black plate (135,1)
To stop sliding partway, press any part of
the tilt or slide switch.
Close Tilt down
(Close)
Open
Power moonroof re-set procedure
If the battery had been disconnected
during vehicle maintenance or for other
reasons, the moonroof may not fully open
or close. The moonroof's jam-safe
function does not function while the
moonroof is re-setting. Carry out the
following procedure to resume operation:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tilt
open the rear of the moonroof.
NOTE
If the re-set procedure is performed while the
moonroof is in the slide position (partially
open) it closes before the rear tilts opens.
3. Repeat the procedure in Step 2. The
rear of the moonroof tilts open to the
fully open position, then closes a little.
qEngine-off Moonroof Operation
The moonroof can be operated for about
40 seconds after the ignition is switched
from ON to ACC or OFF with all doors
closed. If any door is opened, the
moonroof will be inoperable.
qOpening/Closing the Moonroof
from Outside
The moonroof can be opened or closed
from outside the vehicle after the doors
and the liftgate are closed.
Refer to Opening/Closing the Power
Windows and the Moonroof from the
Outside on page 3-44.
qJam-safe Moonroof
If a person's hands, head or an object
blocks the moonroof during closing
operation, the moonroof will stop and
open halfway.
WARNING
Make sure nothing blocks the
moonroof just before it reaches the
fully closed position:
Blocking the moonroof just before it
reaches the closed position is
dangerous.
In this case, the jam-safe function
cannot prevent the moonroof from
stopping. If fingers are caught,
serious injuries could occur.
NOTE
lDepending on driving conditions, a closing
moonroof could stop and start opening
when the moonroof feels a shock that is
similar to something blocking it.
lThe moonroof's jam-safe function does not
function while the moonroof is initializing.
Knowing Your Mazda
Doors and Locks
3-51
CX-9_8BH2-EA-10H_Edition3 Page135
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H

Black plate (136,1)
qSunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
ØThe sunshade does not tilt. To
avoid damaging the sunshade, do
not push up on it.
ØDo not close the sunshade while
the moonroof is opening. Trying to
force the sunshade closed could
damage it.
3-52
Knowing Your Mazda
Doors and Locks
CX-9_8BH2-EA-10H_Edition3 Page136
Wednesday, March 23 2011 9:30 AM
Form No.8BH2-EA-10H
