2011 LINCOLN MKX My Lincoln Touch Manual

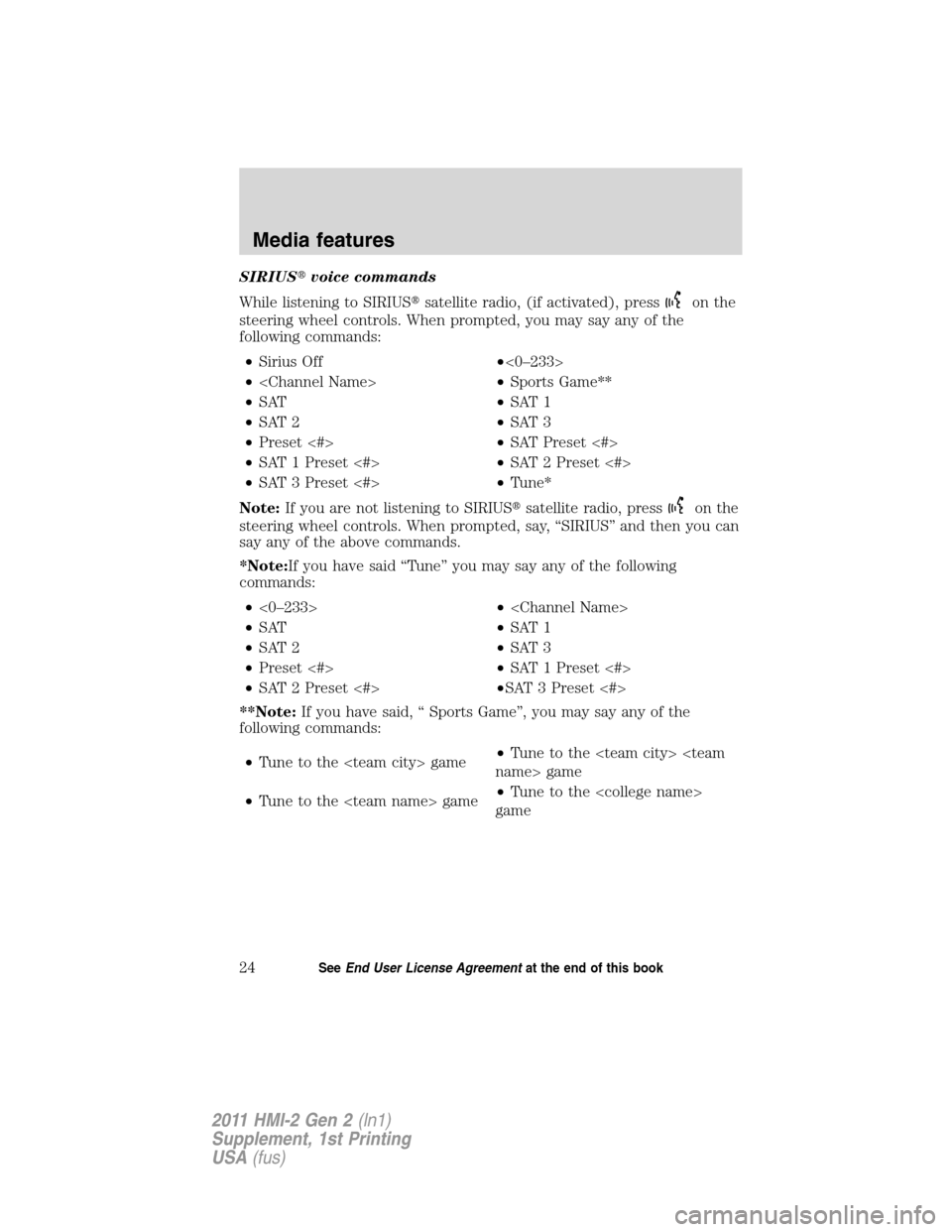

SIRIUSvoice commands
While listening to SIRIUSsatellite radio, (if activated), press
on the
steering wheel controls. When prompted, you may say any of the
following commands:
•Sirius Off•<0–233>
••Sports Game**
•SAT•SAT 1
•SAT 2•SAT 3
•Preset <#>•SAT Preset <#>
•SAT 1 Preset <#>•SAT 2 Preset <#>
•SAT 3 Preset <#>•Tune*
Note:If you are not listening to SIRIUSsatellite radio, press
on the
steering wheel controls. When prompted, say, “SIRIUS” and then you can
say any of the above commands.
*Note:If you have said “Tune” you may say any of the following
commands:
•<0–233>•
•SAT•SAT 1
•SAT 2•SAT 3
•Preset <#>•SAT 1 Preset <#>
•SAT 2 Preset <#>•SAT 3 Preset <#>
**Note:If you have said, “ Sports Game”, you may say any of the
following commands:
•Tune to the game•Tune to the name> game
•Tune to the game•Tune to the
game
Media features
24SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

Satellite radio (if activated)
SIRIUSsatellite radio service:
SIRIUSsatellite radio is a
subscription based satellite radio
service that broadcasts a variety of
music, sports, news, weather, traffic
and entertainment programming.
Your factory installed SIRIUS
satellite radio system includes: hardware and a limited subscription term
which begins on the date of sale or lease of the vehicle. Refer to your
authorized dealer for availability.
For more information on extended subscription terms (a service fee is
required), the online media player and a complete list of SIRIUS
satellite radio channels, and other features, please visit www.sirius.com in
the United States, www.sirius-canada.ca in Canada, or call SIRIUSat
1–888–539–7474.
Satellite radio reception factors
•Antenna obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
•Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
•Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
You will hear an audio mute when there is a satellite radio signal
interference. Your display may show ACQUIRING...toindicatethe
interference.
Satellite radio electronic serial number (ESN):You will need your
ESN to activate, modify or track your satellite radio account. The ESN is
found on the System Information Screen (SR ESN:XXXXXXXXXXXX).
To access your ESN, press the bottom left corner of the
touchscreen, then SIRIUS > Options > ESN.
Note:SIRIUSreserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming
changes.
Media features
25SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

Troubleshooting tips
Radio Display Condition Possible action
Acquiring Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
Sat Fault / SIRIUS
system failureInternal module or
system failure
present.If this message does
not clear within shortly,
or with an ignition key
cycle, your receiver
may have a fault. See
your authorized dealer
for service.
Invalid Channel Channel no longer
available.Tune to another
channel or choose
another preset.
Unsubscribed Channel Subscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
No Signal Loss of signal from
the SIRIUSsatellite
or SIRIUStower to
the vehicle antenna.The signal is currently
being blocked. When
you move into an open
area, the signal should
return.
Updating Update of channel
programming in
progress.No action required. The
process may take up to
three minutes.
Call SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUSSatellite
Radio.Call SIRIUSat
1–888–539–7474 to
reactivate or resolve
subscription issues.
Media features
26SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

Radio Display Condition Possible action
No Channels Available All the channels in
the selected category
are skipped or locked.Using the channel
guide, unlock or unskip
the channels.
Subscription Updated SIRIUShas updated
the channels available
for your vehicle.No action required.
CD
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
To access, press the lower left corner of the touchscreen and then select
theCDtab.
•Select on-screen options such as Repeat, Shuffle and Scan.
•Press ‘Options’ to access:
•Sound settings:Select to adjust Bass, Treble, Midrange, Balance
and Fade, THX Deep note demo (if equipped), DSP (if equipped),
Occupancy mode (if equipped), Audio Visualizer (if equipped), and
Speed compensated volume settings.
•Text Display settings:Allows you to choose how you would like
the information to display on screen.
•Compression settings:Allows you to access compression
settings.
•You can also advance and reverse the current track or current folder
(if applicable).
Media features
27SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

Disc voice commands
While listening to a disc, press
on the steering wheel controls and
when prompted, you may say any of the following commands:
•Play•Pause
•Repeat•Repeat Off
•Shuffle•Shuffle CD (WMA or MP3 only)
•Shuffle Folder (WMA or MP3
only)•Shuffle Off
•Repeat Folder (WMA or MP3
only)•Repeat Track
•Play previous track•Play next track
•Play track <1–512>•Help
Note:If you are not listening to a CD, press
on the steering wheel
controls and when prompted, say any of the above commands.
SD CARD
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Your vehicle is equipped with an SD card slot which can be used for your
SD navigation card (if equipped) or for putting in your SD card which
contains music. Your SD card slot is either located in the center console
or behind a small access door in your instrument panel.
Note:In order for the navigation features to work (if equipped), the SD
navigation card MUST be in this slot. To re-order navigation SD cards,
contact your authorized dealer.
Note:Your SD card slot is spring loaded. To remove the SD card, simply
press the card in and the system will eject the card. Do not attempt to
pull the card to remove it as this could cause damage.
To access and play music from your SD card slot:
1. Press the lower left corner of the touchscreen.
Media features
28SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

2. Insert the SD card into the card
slot and select the SD card tab once
recognized. You can then select
from the following options:
Repeat:Select to repeat the currently playing song/album.
Shuffle:Select to play music on the selected album or folder in random
order.
Browse:Select to browse the contents of the SD card. This feature can
also allow you to search and play by genre, artist, album, etc.
Similar Music:Select to choose music similar to that currently playing.
Options:
•Sound Settings:Select to adjust Bass, Treble, Midrange, Balance and
Fade, THX Deep note demo (if equipped), DSP (if equipped),
Occupancy mode (if equipped) and Speed compensated volume
settings.
•Media Player Settings:Select to access:
•Autoplay on/off:With this feature on, you can listen to music
which has already been randomly indexed during the indexing
process. With this feature off, the system will not begin to play any
of your music until all the media has been indexed and you make a
selection.
•Bluetooth Devices:Select to connect, disconnect, add or delete a
device. You can also set a device as your favorite so that the
system will automatically attempt to connect to that device at
every ignition cycle.
•Index Bluetooth Audio Devices on/off:Turn this feature on to
have the system automatically index aBluetoothaudio device, if
able.
•Gracenote Database Info:Allows you to view the version level of
the Gracenote Database.
•Gracenote Media Management on/off:When turned on, this
feature will pull in metadata information from the Gracenote
Database for your music files. This will override information from
your device. This feature defaults to off.
•Gracenote Cover Art on/off:When turned on, this feature will
pull in cover art from the Gracenote Database for your music files.
This will override any art from your device. This feature defaults to
off.
Media features
29SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

•Media Device Information:Displays descriptive information about
the device, if connected.
•Text Display:Allows you to choose how you would like the
information to display on screen.
To view song informationsuch as Title, Artist, File, Folder, Album,
and Genre, touch the on-screen album art. This will take you to another
screen where you can view this information.
You can also pressWhat’s Playingto hear how the system pronounces
the current band and song. This can be helpful when using voice
commands to ensure that the system correctly plays your request.
Voice commands for your SD card
For a complete listing of available voice commands, please refer toVoice
commands for USB and SD cardin the followingUSBsection.
SD logo is a trademark of SD-3C,
LLC.
USB
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
This feature allows you to plug in
media playing devices, memory
sticks, flash/thumb drives and also
charge devices if they support this
feature. Your USB ports are either
located in your center console or
behind a small access door in your
instrument panel.
Media features
30SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

To access and play music from your USB:
1. Select the lower left corner of the touchscreen to access the media
screen.
2. Insert your flash/thumb drive into the USB slot and select the USB tab
once recognized. You can then select from the following options:
Repeat:Select to repeat the currently playing song/album.
Shuffle:Select to play music on the selected album or folder in random
order.
Browse:Select to browse the contents of the flash drive/thumb drive
connected to the USB port. This feature also allows you to search and
play by genre, artist, album, etc.
Similar Music:Select to choose music similar to that currently playing.
Options:
•Sound Settings:Select to adjust Bass, Treble, Midrange, Balance and
Fade, THX Deep note demo (if equipped), DSP (if equipped),
Occupancy mode (if equipped) and Speed compensated volume
settings.
•Media Player Settings:Select to access:
•Autoplay on/off:With this feature on, you can listen to music
which has already been randomly indexed during the indexing
process. With this feature off, the system will not begin to play any
of your music until all the media has been indexed and you make a
selection.
•Bluetooth Devices:Select to connect, disconnect, add or delete a
device. You can also set a device as your favorite so that the
system will automatically attempt to connect to that device at
every ignition cycle.
•Index Bluetooth Audio Devices on/off:Turn this feature on to
have the system automatically index aBluetoothaudio device, if
able.
•Gracenote Database Info:Allows you to view the version level of
the Gracenote Database.
•Gracenote Media Management on/off:When turned on, this
feature will pull in metadata information from the Gracenote
Database for your music files. This will override information from
your device. This feature defaults to off.
•Gracenote Cover Art on/off:When turned on, this feature will
pull in cover art from the Gracenote Database for your music files.
This will override any art from your device. This feature defaults to
off.
Media features
31SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
