2011 Lexus CT200h display

284
2-4. Using other driving systems
CT200h_EE (OM76041E)
CAUTION
Conditions which may affect the rear view monitor system
If the back of the vehicle has been hit, the camera’s position and mounting
angle may have been changed. Have the vehicle inspected by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
Rapid temperature changes, such as when hot water is poured on the vehi-
cle in cold weather, may cause the system to function abnormally.
If the camera lens is dirty, it cannot transmit a clear image. Rinse with
water and wipe with a soft cloth. If the camera lens is extremely dirty,
wash with a mild cleanser and rinse.
The displayed image may be darker and moving images may be slightly
distorted when the system is cold.
When washing the vehicle, do not apply intensive bursts of water to the
camera or camera area. Doing so may result in the camera malfunctioning.
Do not allow organic solvent, car wax, window cleaner or glass coat to
adhere to the camera. If this happens, wipe it off as soon as possible.
As the camera has a water proof construction, do not detach, disassemble
or modify it. This may cause incorrect operation.
Do not hit the camera or subject it to strong impacts as this may cause its
position and mounting angle to change.
Do not scrub the camera lens roughly or clean it with a hard brush or abra-
sive cleaner. Doing so may damage the lens and adversely affect the
image.

292
2-4. Using other driving systems
CT200h_EE (OM76041E)
PCS (Pre-Crash Safety system)

: If equipped
When the radar sensor detects possibility of a frontal collision, the pre-
crash safety system such as the brakes and seat belts are automatically
engaged to lessen impact to occupants as well as vehicle damage.
Pre-crash seat belts (front seat belts only)
If the pre-crash sensor detects that a collision is unavoidable, the
pre-crash safety system will retract the seat belt before the collision
occurs.
The same will happen if the driver makes an emergency braking or
loses control of the vehicle. (P. 106)
However, when the VSC system is disabled, the system will not
operate in the event of skidding.
Pre-crash brake assist
When there is a high possibility of a frontal collision, the system
applies greater braking force in relation to how strongly the brake
pedal is depressed.
Pre-crash braking
When there is a high possibility of a frontal collision, the system
warns the driver using a warning light, warning display and buzzer.
If the system determines that a collision is unavoidable, the brakes
are automatically applied to reduce the collision speed. Pre-crash
b ki b di bl d i h h b ki ff i h

315
3-1. Using the air conditioning system and defogger
3
Interior features
CT200h_EE (OM76041E)To change the air outlets, press .
The air outlets used are switched each time the button is pressed.
The air flow shown on the display indicates the following:
Air flows to the upper body.
Air flows to the upper body and
feet.
STEP3

329
3-2. Using the audio system
3
Interior features
CT200h_EE (OM76041E)

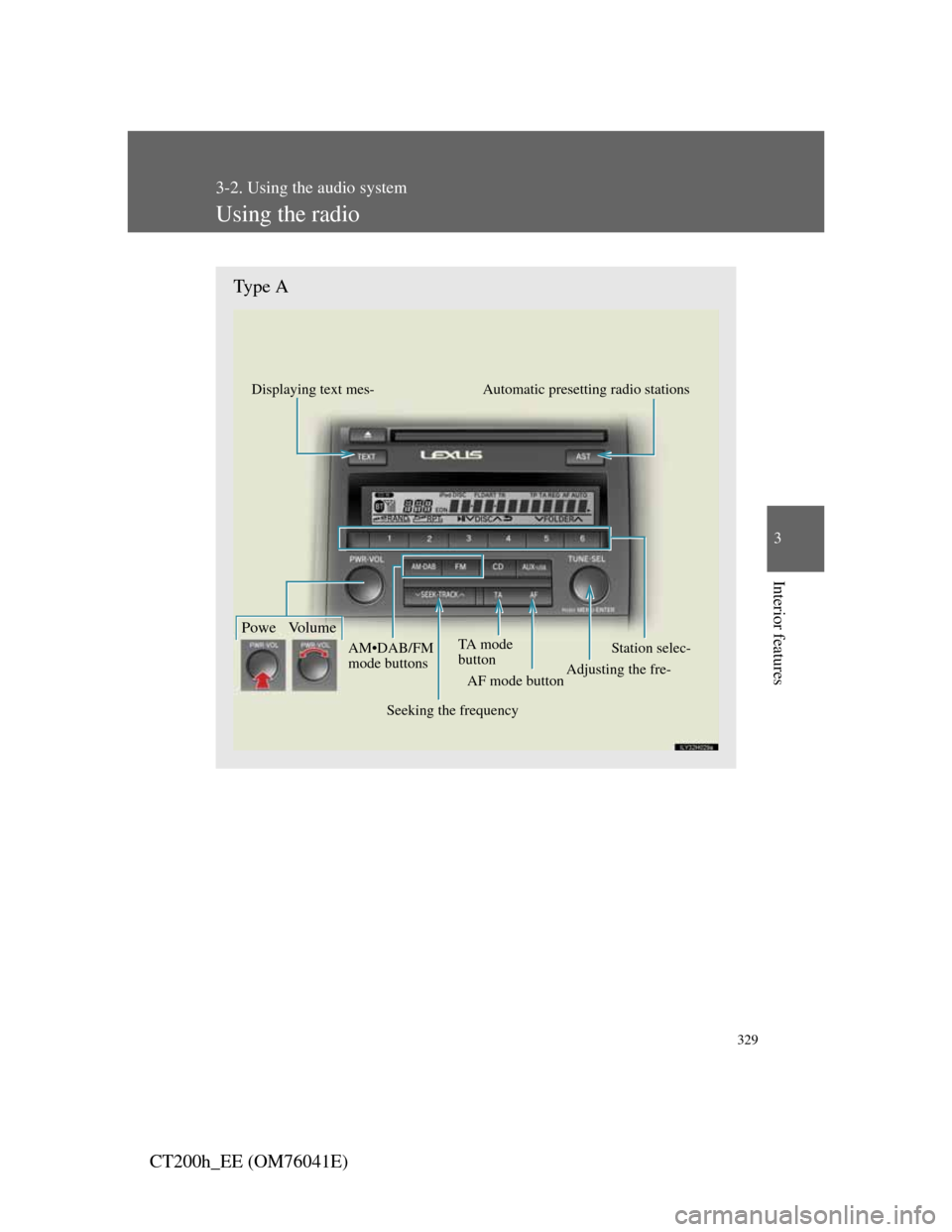

Using the radio
Type A
Displaying text mes-Automatic presetting radio stations
Station selec-
Adjusting the fre-TA mode
button
Seeking the frequency AM•DAB/FM
mode buttons
Powe Volume
AF mode button

330
3-2. Using the audio system
CT200h_EE (OM76041E)
Type B
Station selector
Displaying
text message
Adjusting the
frequency
Automatic presetting radio sta- Seeking the frequency AM•DAB/FM
mode buttonsPowe Volume
Program type button
AF mode
button
TA mode button

333
3-2. Using the audio system
3
Interior features
CT200h_EE (OM76041E)Traffic information
Press .
TP mode: The system automatically switches to traffic informa-
tion when a broadcast with a traffic information signal
is received.
The station returns to the previous one when the traffic
information ends.
TA mode:Traffic information can be heard only when a signal is
received. The system switches to the mute mode when
a signal is not received. In CD or MP3/WMA mode,
the system automatically switches to traffic informa-
tion when a signal is received.
The audio system returns to the mute, CD or MP3/
WMA mode when the traffic information ends.
Audio system mode changes as follows each time . is
pressed:
FM modes: “TP” “TA” off
Modes other than the radio modes: “TA” off
Emergency broadcast reception mode
“ALARM” appears in the display in the event that an emergency
broadcast is received, and the emergency broadcast is aired.

335
3-2. Using the audio system
3
Interior features
CT200h_EE (OM76041E)
Using the CD player
Type A
Displaying
text message
Selecting a track Random
playback
Powe Volume
CD eject
Repeat play
Play back

336
3-2. Using the audio system
CT200h_EE (OM76041E)
Type B
CD insertDisplaying text
message
Selecting a track Random
playback
Powe Volume
CD eject
Repeat playCD selection
Play back Playback/pause
