2011 Lexus CT200h display

231
2-2. Instrument cluster
2
When driving
CT200h_EE (OM76041E)
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

248
CT200h_EE (OM76041E)
2-4. Using other driving systems
Cruise control

: If equipped
Use the cruise control to maintain a set speed without depressing the
accelerator pedal.
Indicator
Display
Cruise control switch
Setting the vehicle speed
Press the “ON-OFF” button
to activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
STEP1

249
2-4. Using other driving systems
2
When driving
CT200h_EE (OM76041E)

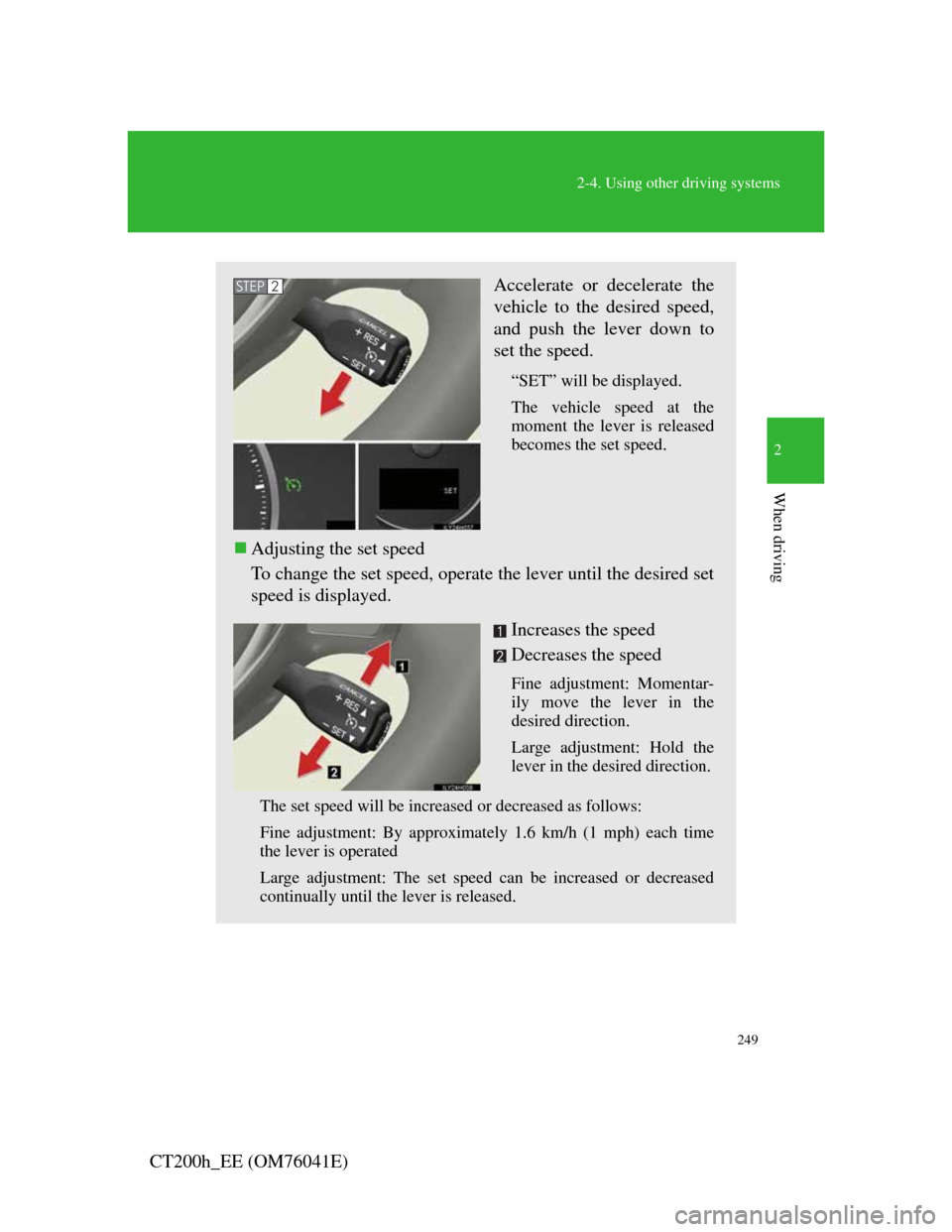

Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to
set the speed.
“SET” will be displayed.
The vehicle speed at the
moment the lever is released
becomes the set speed.
Adjusting the set speed
To change the set speed, operate the lever until the desired set
speed is displayed.
Increases the speed
Decreases the speed
Fine adjustment: Momentar-
ily move the lever in the
desired direction.
Large adjustment: Hold the
lever in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time
the lever is operated
Large adjustment: The set speed can be increased or decreased
continually until the lever is released.
STEP2

252
2-4. Using other driving systems
CT200h_EE (OM76041E)
Dynamic radar cruise control
: If equipped
Dynamic radar cruise control supplements conventional cruise control
with a vehicle-to-vehicle distance control. In vehicle-to-vehicle dis-
tance control mode, the vehicle automatically accelerates or deceler-
ates in order to maintain a set following distance from vehicles ahead.
Indicators
Display
Set speed
Vehicle-to-vehicle distance
button
Cruise control switch

253
2-4. Using other driving systems
2
When driving
CT200h_EE (OM76041E)
Setting the vehicle speed (vehicle-to-vehicle distance control
mode)
Press the “ON-OFF” button
to activate the cruise control.
Radar cruise control indicator
will come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to
set the speed.
“SET” will be displayed.
The vehicle speed at the
moment the lever is released
becomes the set speed.
STEP1
STEP2

254
2-4. Using other driving systems
CT200h_EE (OM76041E)
Adjusting the set speed
To change the set speed, operate the lever until the desired set
speed is displayed.
Increases the speed
Decreases the speed
Fine adjustment: Momentar-
ily move the lever in the
desired direction.
Large adjustment: Hold the
lever in the desired direction.
In the vehicle-to-vehicle distance control mode, the set speed will
be increased or decreased as follows:
When the set speed is shown in “km/h”
Fine adjustment: By approximately 5 km/h (3.1 mph) each
time the lever is operated
Large adjustment: By approximately 5 km/h (3.1 mph) for each
0.75 seconds the lever is held
When the set speed is shown in “MPH”
Fine adjustment: By approximately 5 mph (8 km/h) each time
the lever is operated
Large adjustment: By approximately 5 mph (8 km/h) for each
0.75 seconds the lever is held
In the constant speed control mode (P. 260), the set speed will
be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time
the lever is operated
Large adjustment: The set speed can be increased or decreased
continually until the lever is released.

255
2-4. Using other driving systems
2
When driving
CT200h_EE (OM76041E)
Changing the vehicle-to-vehicle distance
Pressing the button changes
the vehicle-to-vehicle dis-
tance as follows:
Long
Medium
Short
The vehicle-to-vehicle dis-
tance is set automatically to
long mode when the
“POWER” switch is turned
to ON mode.
If a vehicle is running ahead
of you, the preceding vehicle
mark will also be displayed.
Vehicle-to-vehicle distance settings
Select a distance from the table below. Note that the distances
shown correspond to a vehicle speed of 80 km/h (50 mph).
Vehicle-to-vehicle distance increases/decreases in accordance
with vehicle speed.
Preceding vehicle
Distance optionsVehicle-to-vehicle distance
LongApproximately 50 m (160 ft.)
MediumApproximately 40 m (130 ft.)
ShortApproximately30m(100ft.)

259
2-4. Using other driving systems
2
When driving
CT200h_EE (OM76041E)
Approach warning
When your vehicle is too close to a vehicle ahead, and sufficient
automatic deceleration via the cruise control is not possible, the
display will flash and the buzzer will sound to alert the driver. An
example of this would be if another driver cuts in front of you
while you are following a vehicle. Apply the brakes to ensure an
appropriate vehicle-to-vehicle distance.
Warnings may not occur when
In the following instances, there is a possibility that the warn-
ings will not occur:
When the speed of the vehicle ahead matches or exceeds your
vehicle speed
When the vehicle ahead is traveling at an extremely slow
speed
Immediately after the cruise control speed was set
At the instant the accelerator is applied
