2011 Lancia Delta technical specifications

198A5000
844A2000 (▲)
Diesel
4 in line
83 x 90.4
1956
16.5
± 0.4
121.3/120 (
▲)
165/163 (▲)
4000
360
36.7
1750
Automotive diesel fuel
(EN590 specifications)
256TECHNICAL SPECIFICATIONS
844A1000
Diesel
4 in line
82 x 90.4
1910
16.5
± 0.4
139,5
190
4000
400
41
2000
Automotive diesel fuel
(EN590 specifications)
198A2000
955A4000 (▲)
Diesel
4 in line
79.5 x 80.5
1598
16.5
± 0.4
88/85 (
▲)
120/115 (▲)
4000
300
31
1500
Automotive diesel fuel
(EN590 specifications)
(▲) For versions/markets where provided
GENERAL INFORMATION 1.6 Multijet 1.9 Twin Turbo Multijet 2.0 Multijet
Engine code
Cycle
Number and arrangement of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Max power (EEC) kW
HP
corresponding speed rpm
Max. torque (EEC) Nm
kgm
corresponding speed rpm
Fuel

TECHNICAL SPECIFICATIONS257
6
Electronically controlled phased sequential Multipoint
electronic injection with turbocharger and intercooler
FUEL SUPPLY SYSTEM
Common Rail Multijet direct injection electronically controlled with turbo and intercooler
Modifications or repairs to the fuel supply system that are not carried out properly or do not take the
technical specifications of the system into account can cause malfunctions leading to the risk of fire.
1.6 Multijet – 1.9 Twin Turbo Multijet – 2.0 Multijet
Fuel supply system
1.4 Turbo Jet – 1.4 Turbo Multi Air
Fuel supply system

Six forward speed plus reverse with synchronisers for the engagement of the forward speeds
Self-adjusting pedal without idle stroke
Front
258TECHNICAL SPECIFICATIONS
TRANSMISSION
Self-ventilated discs
Disc
Controlled by hand lever, acting on rear brakes
BRAKES
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake disks reducing braking efficiency
the first time the brakes are applied.
1.4 Turbo Jet – 1.4 Turbo Multi Air ––1.6 Multijet ––1.9 Twin Turbo Multijet – 2.0 Multijet
Service brakes:
– front
– rear
Parking brake
1.4 Turbo Jet – 1.4 Turbo Multi Air ––1.6 Multijet ––1.9 Twin Turbo Multijet – 2.0 Multijet
Gearbox
Clutch
Drive

Rack and pinion with electric power steering
10.6/11.2 (*)
TECHNICAL SPECIFICATIONS259
6
SUSPENSIONS
Mac Pherson independent wheels
Interconnected wheels with torsion beam
1.4 Turbo Jet – 1.4 Turbo Multi Air ––1.6 Multijet ––1.9 Twin Turbo Multijet – 2.0 Multijet
Gearbox
Parking brake
STEERING
(*) With 18" tyres
1.4 Turbo Jet – 1.4 Turbo Multi Air ––1.6 Multijet ––1.9 Twin Turbo Multijet – 2.0 Multijet
Ty p e
Steering circle
(kerb to kerb) m

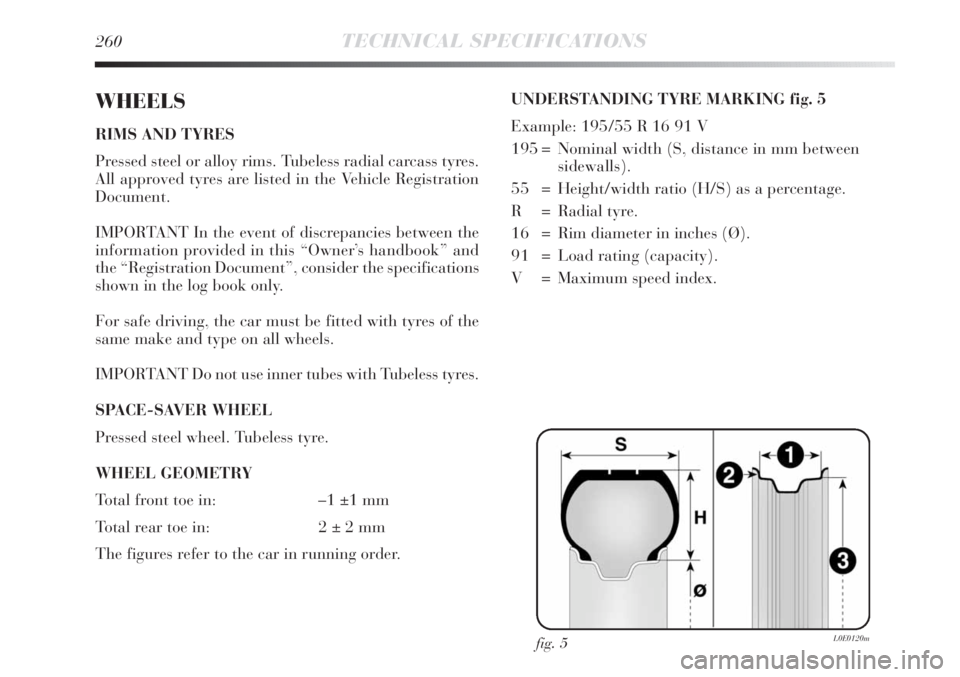

260TECHNICAL SPECIFICATIONS
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass tyres.
All approved tyres are listed in the Vehicle Registration
Document.
IMPORTANT In the event of discrepancies between the
information provided in this “Owner’s handbook” and
the “Registration Document”, consider the specifications
shown in the log book only.
For safe driving, the car must be fitted with tyres of the
same make and type on all wheels.
IMPORTANT Do not use inner tubes with Tubeless tyres.
SPACE-SAVER WHEEL
Pressed steel wheel. Tubeless tyre.
WHEEL GEOMETRY
Total front toe in: –1
±1 mm
Total rear toe in: 2
±2 mm
The figures refer to the car in running order.UNDERSTANDING TYRE MARKING fig. 5
Example: 195/55 R 16 91 V
195 = Nominal width (S, distance in mm between
sidewalls).
55 = Height/width ratio (H/S) as a percentage.
R = Radial tyre.
16 = Rim diameter in inches (Ø).
91 = Load rating (capacity).
V = Maximum speed index.
fig. 5L0E0120m

TECHNICAL SPECIFICATIONS261
6
Load rating (capacity)
60 = 250 kg 84 = 500 kg
61 = 257 kg 85 = 515 kg
62 = 265 kg 86 = 530 kg
63 = 272 kg 87 = 545 kg
64 = 280 kg 88 = 560 kg
65 = 290 kg 89 = 580 kg
66 = 300 kg 90 = 600 kg
67 = 307 kg 91 = 615 kg
68 = 315 kg 92 = 630 kg
69 = 325 kg 93 = 650 kg
70 = 335 kg 94 = 670 kg
71 = 345 kg 95 = 690 kg
72 = 355 kg 96 = 710 kg
73 = 365 kg 97 = 730 kg
74 = 375 kg 98 = 750 kg
75 = 387 kg 99 = 775 kg
76 = 400 kg 100 = 800 kg
77 = 412 kg 101 = 825 kg
78 = 425 kg 102 = 850 kg
79 = 437 kg 103 = 875 kg
80 = 450 kg 104 = 900 kg
81 = 462 kg 105 = 925 kg
82 = 475 kg 106 = 950 kg
83 = 487 kgMaximum speed index
Q = up to 160 km/h. H = up to 210 km/h.
R = up to 170 km/h. V = up to 240 km/h.
S = up to 180 km/h. W= up to 270 km/h.
T = up to 190 km/h. Y = up to 300 km/h.
U = up to 200 km/h.
Maximum speed rating
for snow tyres
QM + S = up to 160 km/h.
TM + S = up to 190 km/h.
HM + S = up to 210 km/h.

262TECHNICAL SPECIFICATIONS
UNDERSTANDING RIM MARKING fig. 5
Example: 6J x 15 H2 ET 31.5
6 = rim diameter in inches (1).
J = rim drop centre outline (side projection where the
tyre bead rests) (2).
15 = rim nominal diameter in inches (corresponds to di-
ameter of the tyre to be mounted) (3 = Ø).
H2 = shape and number of humps (contour used for
withholding tubeless tyre beads on the rim).
ET 31.5 = wheel camber angle (distance between the
disc/rim supporting plane and the wheel rim
centre line).
fig. 5aL0E0193m
RIM PROTECTORS fig. 5a
Do not fit wheel caps when using caps fixed
(with springs) to the steel rim and tyres other
than factory-fitted tyres provided with Rim
Protector (fig. 5a). The use of unsuitable tyres and
wheel hub caps could cause a sudden pressure loss
in the tyre.

TECHNICAL SPECIFICATIONS263
6
7Jx16"- ET31
7Jx17"- ET31
7.5Jx18"- ET354Bx15" H-ET 35 (*) 125/90 R15-96M (*)
(*) Depending on the trim level, the space-saver for the 1.9 Twin Turbo Multijet and the 2.0 Multijet has a 205/55 R16-91V tyre
and a 7Jx16"-ET31 rim. In this case the 205/55 R16 91V tyre has the same specifications as the space-saver: the information
in “Replacing a wheel” therefore refers to the 205/55 R16 91V tyre.
(
❏) Tyre to which chains cannot be fitted.
205/55 R16-91V
225/45 R17-91W
225/40 R18-92W
(❏)
205/55 R16-91T (M+S)
225/45 R17-91T (M+S)
225/40 R18-92T (M+S)
On 205/55 R16-91V tyres, use reduced size snow chains with a maximum projection of 9 mm beyond
the tyre profile. On 225/45 R17-91W tyres, use reduced size snow chains with a maximum projec-
tion of 7 mm beyond the tyre profile.
IMPORTANT Special techniques need to be adopted for 225/40 R18 92W tyres. For this reason, this tyre can only
be ordered when the car is purchased. Do not fit this tyre after the vehicle has been purchased!
Versions Rims Tyres Snow tyres Space-saver
(for versions/markets, where provided)
Rim Tyre
1.4 Turbo Jet
1.4 Turbo
Multi Air
1.6 Multijet
1.9 Twin
Turbo Multijet
2.0 Multijet
