2011 INFINITI QX56 headrest

FRONT SEATSE-119
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
4. Pull downward and remove headrest display escutcheon (1) and headrest display unit (2) by pulling them out and remov-
ing pins on upper side of display.
5. Disconnect inner harness connector.
6. Remove headrest display escutcheon from headrest display unit. Press headrest display escutcheon to the headrest display unit side. Disconnect pawls on upper side
and remove headrest display escutcheon.
4. Remove the headrest display harness upper tube from headrest trim.
5. Remove the headrest trim from headrest pad and frame.
ASSEMBLY
Assembly in the reverse order of disassembly.
JMJIA4233ZZ
Revision: 2010 May2011 QX56

SECOND SEATSE-121
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
*: Heater seat model only.
BENCH SEAT (RH SEAT) AND CAPTAIN SEAT (RH SEAT)
1. Headrest LH 2. Headrest (center) 3. Headrest holder (free)
4. Headrest holder (locked) 5. Seatback heater unit
*6. Seatback trim
7. Seatback pad 8. Armrest outer cover 9. Armrest outer bracket
10. Bush 11. Armrest inner cover RH 12. Armrest trim
13. Armrest pad & frame 14. Armrest inner cover LH 15. Cup holder
16. Reclining inner cover (outside) 17. Seat inner hinge 18. Reclining device inner cover (out- side)
19. Reclining device inner cover (inside) 20. Seat cushion heater unit
*21. Seat cushion trim
22. Seat cushion pad 23. Seat hinge cover RH 24. Seat cushion hinge cover RH
25. Seat hinge cover LH 26. Seat cushion hinge cover LH 27. Seat cushion under cover
28. Seat harness assembly 29. Device arm cover 30. Reclining device outer cover (inside)
31. Reclining device outer cover (out- side) 32. Snap ring 33. Reclining lever knob
34. Anchor bolt 35. Seat belt buckle (center) 36. Seat belt buckle LH
37. Center seat belt retractor 38. Screw cap 39. Seatback center finisher
40. Seatback center finisher cover 41. Center seat belt shoulder guide 42. Seatback board
43. Seatback board clip 44. Center seat belt guide 45. Rear seat lever assembly
46. Seat control lever escutcheon 47. Seatback frame 48. Seat cushion frame
49. Seat hinge assembly RH 50. Seat cushion carpet RH 51. Seat hinge assembly LH
52. Seat cushion carpet LH : Pawl
Refer to GI-4, "
Components" for symbols in the figure.
Revision: 2010 May2011 QX56

SE-122
< REMOVAL AND INSTALLATION >
SECOND SEAT
1. Headrest RH 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seatback trim 5. Seatback pad 6. Seat cushion trim
7. Seat cushion pad 8.Seat cushion heater unit
*9. Seat cushion under cover
10. Seat cushion hinge cover RH 11. Seat hinge cover RH 12. Seat cushion hinge cover LH
13. Seat harness assembly 14. Seat cushion carpet 15. Seat belt buckle anchor bolt
16. Seat belt buckle 17. Reclining inner cover (outside) 18. Seatback frame
JMJIA4580GB
Revision: 2010 May2011 QX56

SE-124
< REMOVAL AND INSTALLATION >
SECOND SEAT
1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seatback trim 5. Seatback pad 6. Seat cushion heater unit
7. Seat cushion trim 8. Seat cushion pad 9. Seat cushion under cover
10. Seat hinge assembly RH 11. Seat cushion hinge cover RH 12. Seat hinge cover LH
13. Seat cushion hinge cover LH 14. Seat hinge assembly LH 15. Seat harness assembly
16. Seat cushion carpet 17. Anchor bolt 18. Seat belt buckle
JMJIA4581GB
Revision: 2010 May2011 QX56

SECOND SEATSE-125
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
Removal and InstallationINFOID:0000000006217430
REMOVAL
CAUTION:
 When removing and installing, use shop cloths to protect parts from damage.
 When removing and installing, 2 workers ar e required so as to prevent it from dropping.
1. Remove the headrest.
2. Remove the seat hinge cover.
a. Bench seat (RH side) and captain seat  Open pawls on upper side to outside and disconnect thepawls.
 Pull the cover forward, side the pawl on lower side downward, and disconnect the pawl.
b. Bench seat (LH side)  Open pawls on upper side to outside and disconnect thepawls.
 Pull the cover forward, side the pawl on lower side downward,
and disconnect the pawl.
3. Remove the from mounting bolt of seat hinge assembly.
4. Operate rear seat lever or reclining lever to releas e seat lock assembly lock and to fold seat forward.
5. Disconnect seat harness assembly harness connector (A).
6. Remove the rear mounting nut of seat hinge assembly.
19. Reclining device outer cover (inside) 20. Reclining device outer cover (out- side)21. Snap ring
22. Reclining lever knob 23. Seatback board 24. Seatback board clip
25. Seatback heater unit 26. Rear seat lever assembly 27. Seat control lever escutcheon
28. Seatback frame 29. Reclining device inner cover (out- side)30. Bush
31. Seat cushion frame : Pawl
Refer to GI-4, "
Components" for symbols in the figure.
: Pawl
JMJIA3870ZZ
: Pawl
JMJIA3869ZZ
JMJIA4261ZZ
Revision: 2010 May2011 QX56

SECOND SEATSE-127
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
(heater seat model only)
5. Remove the rear seat lever assembly. 1. Remove the rear seat lever assembly fixing screws.
2. Lift rear seat lever assembly and remove seatback control wire.
6. Remove the seatback center finisher. 1. Pull seatback center finisher cover rearward to remove.
2. Remove the seatback center finisher fixing screws.
3. Remove the seat belt from seatback center finisher.
7. Remove the center seat belt anchor. 1. Remove the seat cushion and seat cushion under cover.
Refer to SE-130, "
SEAT CUSHION : Disassembly and Assembly".
2. Remove the center seat belt anchor. Refer to SB-13, "
SEAT BELT RETRACTOR : Removal and Installation".
8. Remove the seatback trim and seatback pad. 1. Remove the headrest holder. CAUTION:
Before installing headrest holder check its orientation.
(front/rear and right/left)
JMJIA4471ZZ
: Pawl
JMJIA3877ZZ
PIIB4084J
Revision: 2010 May2011 QX56

SECOND SEATSE-129
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
1. Slide and align the clips (B) to the holes on the seatback as shown in the figure, and then remove the seatback board
(A).
2. Remove the clips after removing the seatback board.
3. Disconnect the seatback heater unit harness connector (A).
(heater seat model only)
4. Remove the rear seat lever assembly. 1. Remove the rear seat lever assembly fixing screws.
2. Lift rear seat lever assembly and remove seatback control wire.
5. Remove the seatback trim and seatback pad. 1. Remove the headrest holder. CAUTION:
Before installing headrest holder check its orientation.
(front/rear and right/left)
2. Roll up seatback trim (2) from backward to forward so that seat control lever escutcheon (1) is visible.
3. Remove the seat control lever escutcheon (1).
4. Remove the seatback trim and seat back pad from the seatback frame.
5. Remove the hog rings, and separate the seatback trim and seatback pad.
6. Remove the seatback frame.
JMJIA4076ZZ
JMJIA4262ZZ
PIIB4084J
: Pawl
JMJIA3878ZZ
Revision: 2010 May2011 QX56

THIRD SEATSE-137
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

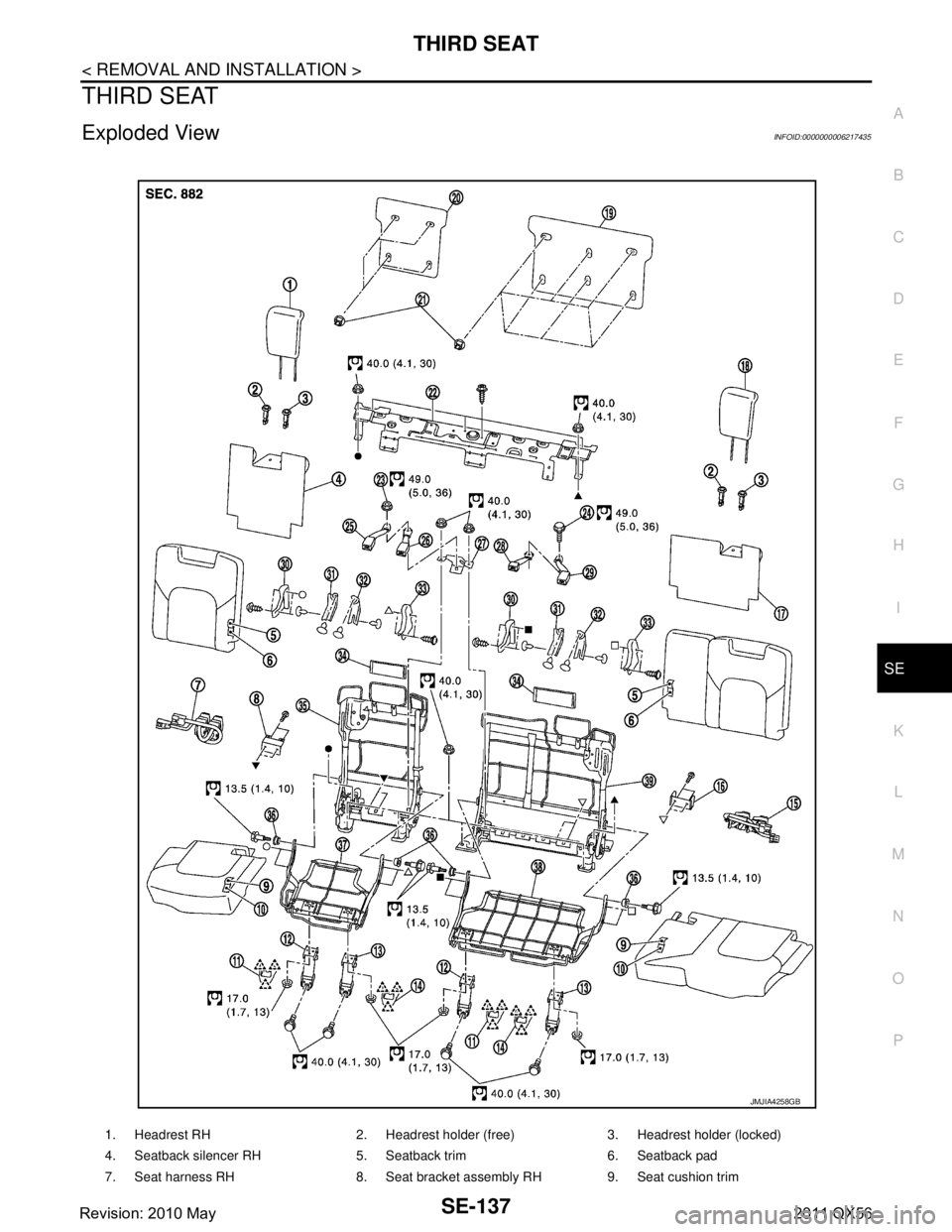

THIRD SEAT
Exploded ViewINFOID:0000000006217435
1. Headrest RH 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seatback silencer RH 5. Seatback trim 6. Seatback pad
7. Seat harness RH 8. Seat bracket assembly RH 9. Seat cushion trim
JMJIA4258GB
Revision: 2010 May2011 QX56
