PRE-CRASH SEAT BELT CONTROL UNIT (PASSENGER SIDE)
SBC-17
< ECU DIAGNOSIS INFORMATION >
C
D E
F
G
I
J
K L
M A
B
SBC
N
O P
PRE-CRASH SEAT BELT CONTROL UNIT (PASSENGER SIDE)
Reference ValueINFOID:0000000006237886
TERMINAL LAYOUT
PHYSICAL VALUES
Fail SafeINFOID:0000000006237887
 When a system malfunction is detected, deactivates a part of the system or all functions depending on the
malfunctioning part.
 When the malfunction condition recovers to the norma l condition, the system returns to the normal opera-
tion.
JMHIA0711ZZ
Te r m i n a l N o .
(Wire color) Description
ConditionVa l u e
(Approx.)
+ – Signal name Input/
Output
1
(Y) Ground Power supply Input — Battery voltage
6
(LG/B) Ground Seat belt buckle switch signal Input Seat belt is fastened 0 V
Seat belt is unfastened 5 V
8
(G) Ground Local Communication Line 2 Input/
Output IGN ON 5 V
9
(–) Ground Shield — — —
16
(W) Ground Local Communication Line 1
Input/
Output ——
18
(B) Ground Ground — — 0 V
19
(W) Ground Motor passenger circuit power supply Input — Battery voltage
20
(B) Ground Motor passenger circuit ground — — 0 V
Display contents of CONSULT-III Fail-safe
U0126 STRG ANG SEN SIG Stops the operation in the conditions as per the following.
 When lateral slippage during cornering occurs
 When steering wheel is rotated for emergency
U0428 STRG ANGL CAL Stops the operation in the conditions as per the following.
 When lateral slippage during cornering occurs
 When steering wheel is rotated for emergency
Revision: 2010 May2011 QX56

SBC-18
< ECU DIAGNOSIS INFORMATION >
PRE-CRASH SEAT BELT CONTROL UNIT (PASSENGER SIDE)
*1: The deactivation mode differs depending on the internal malfunctioning condition of control unit
U1000 CAN communication circuit
Stops the operation in the conditions as per the following. *
1
 During emergency brake operation
 When ABS continuo
usly operates
 When lateral slippage during cornering occurs
 When Intelligent brake assistance operates
 When steering wheel is rotated for emergency
 When the vehicle inclined excessively
 A part or the whole comfort function
B2452 SEAT BLT MTR AS CIRC Fully deactivates the whole operation.
B2453 BR_STROKE_SEN_CIRC Stops the operation in the conditions as per the following.
 During emergency brake operation
 When ABS continuo
usly operates
B2455 CONTROL UNIT DR Stops the operation in the conditions as per the following. *
1
 During emergency brake operation
 When ABS continuo
usly operates
 When lateral slippage during cornering occurs
 When Intelligent brake assistance operates
 When steering wheel is rotated for emergency
 When the vehicle inclined excessively
 A part or the whole comfort function
B2456 SEAT BLT PWR AS Fully deactivates the whole operation.
B2457 CONTROL UNIT AS Fully deactivates the whole operation.*
1
B2458 LOCAL COMM
Fully deactivates the whole operation.*1
B2461 VHCL SPEED SIGNALStops the operation in the conditions as per the following.
 During emergency brake operation
 When ABS continuo
usly operates
 When lateral slippage during cornering occurs
 When steering wheel is rotated for emergency
 When the vehicle inclined excessively
 A part or the whole comfort function
B2463 ROLLOVER SIGNAL When the vehicle inclined excessively
B2466 DR/AS CONTROL UNIT Stops the operation in the conditions as per the following.
 During emergency brake operation
 When ABS continuo
usly operates
 When lateral slippage during cornering occurs
 When steering wheel is rotated for emergency
 When the vehicle inclined excessively
 A part or the whole comfort function
B2471 SYS HEAT PROTC AS  Fully deactivates the whole operation.
 Operation return
- 1 time operation becomes possible after approximately 30 seconds
- Returns to the initial condition after approximately 8 minutes
Display contents of CONSULT-III Fail-safe
Revision: 2010 May2011 QX56

SCS-1
SUSPENSION
C
DF
G H
I
J
K L
M
SECTION SCS
A
B
SCS
N
O PCONTENTS
SUSPENSION CONTROL SYSTEM
HBMC
PRECAUTION ................ ...............................
4
PRECAUTIONS .............................................. .....4
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
4
Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect .....................................
4
Precaution for Procedure without Cowl Top Cover ......5
Precaution for Hydraulic Body-Motion Control
System ......................................................................
5
PREPARATION ............................................6
PREPARATION .............................................. .....6
Special Service Tools .......................................... ......6
Commercial Service Tools ........................................6
SYSTEM DESCRIPTION ..............................7
DESCRIPTION ............................................... .....7
Description .......................................................... ......7
COMPONENT PARTS ........................................8
Component Parts Location .................................. ......8
Component Description .............................................8
STRUCTURE AND OPERATION ........................9
Hydraulic Body-Motion Control System .............. ......9
Shock Absorber .........................................................9
PPMU ......................................................................10
Accumulator ............................................................11
PPMU Pipe ..............................................................11
SYSTEM .............................................................12
System Diagram .................................................. ....12
System Description .................................................12
Component Description ...........................................14
BASIC INSPECTION ...................................15
CHECK SYSTEM PRESSURE .........................15
Work Procedure ................................................... ....15
PRESSURE REDUCING METHOD ..................17
Work Procedure .......................................................17
AIR BLEEDING METHOD ................................18
Work Procedure .......................................................18
CHECK INTERNAL LEAKAGE ........................20
Work Procedure .......................................................20
CHECK FOR MALFUNCTION ..........................22
Work Procedure .......................................................22
CHECK SHOCK ABSORBER FOR MAL-
FUNCTION ....................................... .................
24
Work Procedure ................................................... ....24
CHECK ORIFICE FOR CLOGGING .................27
Work Procedure .......................................................27
SYMPTOM DIAGNOSIS ..............................29
DIFFERENCE IN APPEARANCE .....................29
Description ........................................................... ....29
Inspection Procedure ...............................................29
LARGE ROLL ANGLE ......................................30
Description ...............................................................30
Inspection Procedure ...............................................30
REMOVAL AND INSTALLATION ...............31
HYDRAULIC BODY-MOTION CONTROL
SYSTEM ............................................................
31
Hydraulic Piping ................................................... ....31
FRONT TUBE ASSEMBLY .......................................31
FRONT TUBE ASSEMBLY : Exploded View ...... ....32
FRONT TUBE ASSEMBLY : Removal and Instal-
lation ........................................................................
32
FRONT TUBE ASSEMBLY : Inspection ..................34
Revision: 2010 May2011 QX56

SCS-2
ACCUMULATOR ......................................................34
ACCUMULATOR : Exploded View .........................35
ACCUMULATOR : Removal and Installation ..........35
ACCUMULATOR : Inspection ................................38
ACCUMULATOR : Disposal ...................................38
PPMU, MIDDLE TUBE ASSEMBLY, PPMU PIPE ...38
PPMU, MIDDLE TUBE ASSEMBLY, PPMU PIPE
: Exploded View ......................................................
39
PPMU, MIDDLE TUBE ASSEMBLY, PPMU PIPE
: Removal and Installation ......................................
39
PPMU, MIDDLE TUBE ASSEMBLY, PPMU PIPE
: Inspection .............................................................
43
PPMU, MIDDLE TUBE ASSEMBLY, PPMU PIPE
: Disposal ................................................................
43
REAR TUBE ASSEMBLY ...................................... ...43
REAR TUBE ASSEMBLY : Exploded View ............44
REAR TUBE ASSEMBLY : Removal and Installa-
tion ....................................................................... ...
44
REAR TUBE ASSEMBLY : Inspection ...................46
AIR LEVELIZER CONTROL SYSTEM
PRECAUTION ....... ....................... ...............
47
PRECAUTIONS .............................................. ...47
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. ...
47
Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect ..................................
47
Precaution for Procedure without Cowl Top Cover ...48
Precaution for Air Levelizer Control System ...........48
SYSTEM DESCRIPTION ............................49
DESCRIPTION ................................................ ...49
Description ........................................................... ...49
COMPONENT PARTS .......................................50
Component Parts Location .................................. ...50
Component Description ..........................................50
Air Levelizer Control Module ..................................51
Vehicle Height Sensor ............................................51
Air Compressor .......................................................51
Air Compressor Relay ............................................51
CK SUSP Indicator Lamp .......................................51
STRUCTURE AND OPERATION ......................52
Rear Shock Absorber .......................................... ...52
Vehicle Height Sensor ............................................53
SYSTEM .......................................................... ...54
System Diagram .................................................. ...54
System Description .................................................54
Fail-safe ..................................................................55
DIAGNOSIS SYSTEM (AIR LEVELIZER
CONTROL MODULE) ........................................
56
CONSULT-III Function ........................................ ...56
ECU DIAGNOSIS INFORMATION .............58
AIR LEVELIZER CONTROL MODULE .......... ...58
Reference Value .................................................. ...58
Fail-safe ..................................................................59
DTC Inspection Priority Chart .................................59
DTC Index ...............................................................59
WIRING DIAGRAM ....................................61
AIR LEVELIZER CONTROL SYSTEM ........... ...61
Wiring Diagram .................................................... ...61
BASIC INSPECTION ..................................65
DIAGNOSIS AND REPAIR WORKFLOW ...... ...65
Work Flow ............................................................ ...65
Diagnostic Work Sheet ...........................................66
STANDARD VEHICLE HEIGHT SETTING .......67
Description ........................................................... ...67
Work Procedure ......................................................67
DTC/CIRCUIT DIAGNOSIS ........................69
C1801 VHCL HEIGHT SENSOR .................... ...69
DTC Logic ............................................................ ...69
Diagnosis Procedure ..............................................69
Component Inspection ............................................70
C1802 AIR SUS COMPRS RELAY ...................72
DTC Logic ............................................................ ...72
Diagnosis Procedure ..............................................72
C1803 AIR SUSPENSION EXH SOL ................74
DTC Logic ............................................................ ...74
Diagnosis Procedure ..............................................74
Component Inspection ............................................75
C1804 VHCL HEIGHT ADJ UP .........................77
DTC Logic ............................................................ ...77
Diagnosis Procedure ..............................................77
Component Inspection (Air Compressor Relay) .....79
Component Inspection (Air Compressor) ............. ...79
C1805 VHCL HEIGHT ADJ DOWN ...................80
DTC Logic ............................................................ ...80
Diagnosis Procedure ..............................................80
C1806 VHCL HEIGHT SEN FIX ........................81
DTC Logic ............................................................ ...81
Diagnosis Procedure ...............................................81
C1807 VHCL HEIGHT SEN VOLT ....................82
DTC Logic ............................................................ ...82
Diagnosis Procedure ..............................................82
C1808 AIR SUS COMPRS FNCTN ...................84
DTC Logic ............................................................ ...84
Diagnosis Procedure ..............................................84
U1000 CAN COMM CIRCUIT ............................87
Revision: 2010 May2011 QX56

SCS-4
< PRECAUTION >[HBMC]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint S
ystem (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000006256134
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
 Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.
 Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
 When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.
 When using air or electric power tools or hammers , always switch the ignition OFF, disconnect the
battery, and wait at least 3 minu tes before performing any service.
Precaution Necessary for Steering W heel Rotation after Battery Disconnect
INFOID:0000000006256136
NOTE:
 Before removing and installing any control units, first tu rn the push-button ignition switch to the LOCK posi-
tion, then disconnect bot h battery cables.
 After finishing work, confirm that all control unit connectors are connected properly, then re-connect both
battery cables.
 Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If a DTC is detected, perform trouble diagnos is according to self-diagnosis results.
For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the bat tery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables. NOTE:
Supply power using jumper cables if battery is discharged.
2. Turn the push-button ignition switch to ACC position. (At this time, the steering lock will be released.)
3. Disconnect both battery cables. The steering lock wi ll remain released with both battery cables discon-
nected and the steering wheel can be turned.
4. Perform the necessary repair operation.
Revision: 2010 May2011 QX56

PRECAUTIONSSCS-5
< PRECAUTION > [HBMC]
C
D
F
G H
I
J
K L
M A
B
SCS
N
O P
5. When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)
6. Perform self-diagnosis check of a ll control units using CONSULT-III.
Precaution for Procedure without Cowl Top CoverINFOID:0000000006256138
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Precaution for Hydraulic Body-Motion Control SystemINFOID:0000000006255996
WARNING:
 Always check the piping for loose co nnections, damage, or twists before starting operation, since
pressure in hydraulic circuit becom es high during air bleeding operation.
 When repairing or replacing a malfunctioning pa rt, always release pressure from hydraulic circuit,
since dangerous conditions may be created when oil leakage occurs during air bleeding operation.
 Clean surrounding areas of oil inlet and air bleeder usi ng steam before starting operation, since there may
be mud on it.
 Always decrease pressure when removing a system related part, since system pressure is high.
 Seal the removed part using vinyl tape for preventi ng dirt from getting on or entering the removed part.
 Check system pressure again 1 day or more after bleeding operation is complete, since system pressure may decrease when air bleeding is insufficient.
 Use Genuine NISSAN Hydraulic Suspension Fluid for suspension fluid.
 Never reuse drained suspension fluid.
 Check for suspension fluid leakage after removing a system-related part.
PIIB3706J
Revision: 2010 May2011 QX56

SCS-12
< SYSTEM DESCRIPTION >[HBMC]
SYSTEM
SYSTEM
System DiagramINFOID:0000000006256006
System DescriptionINFOID:0000000006256007

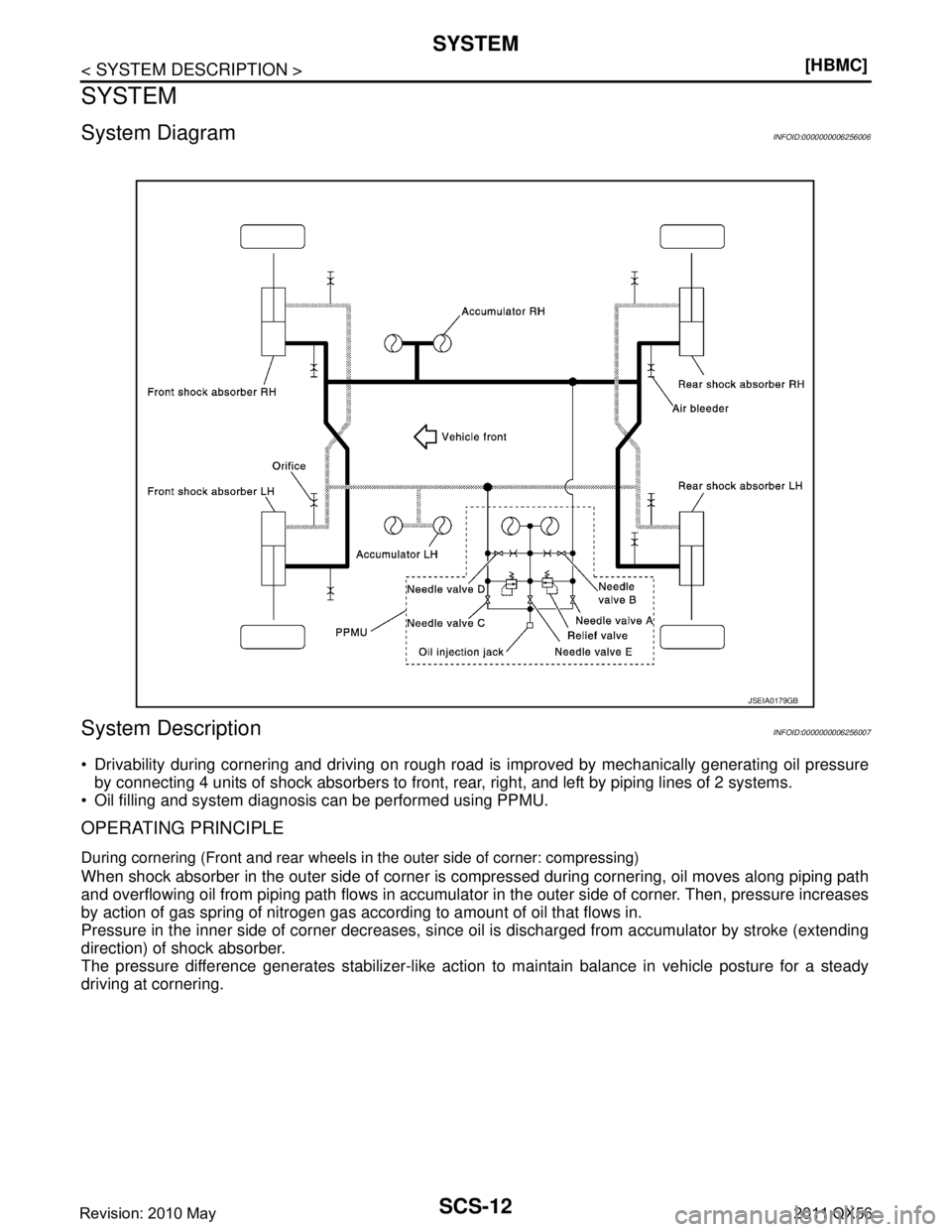

 Drivability during cornering and driving on rough road
is improved by mechanically generating oil pressure
by connecting 4 units of shock absor bers to front, rear, right, and left by piping lines of 2 systems.
 Oil filling and system diagnosis can be performed using PPMU.
OPERATING PRINCIPLE

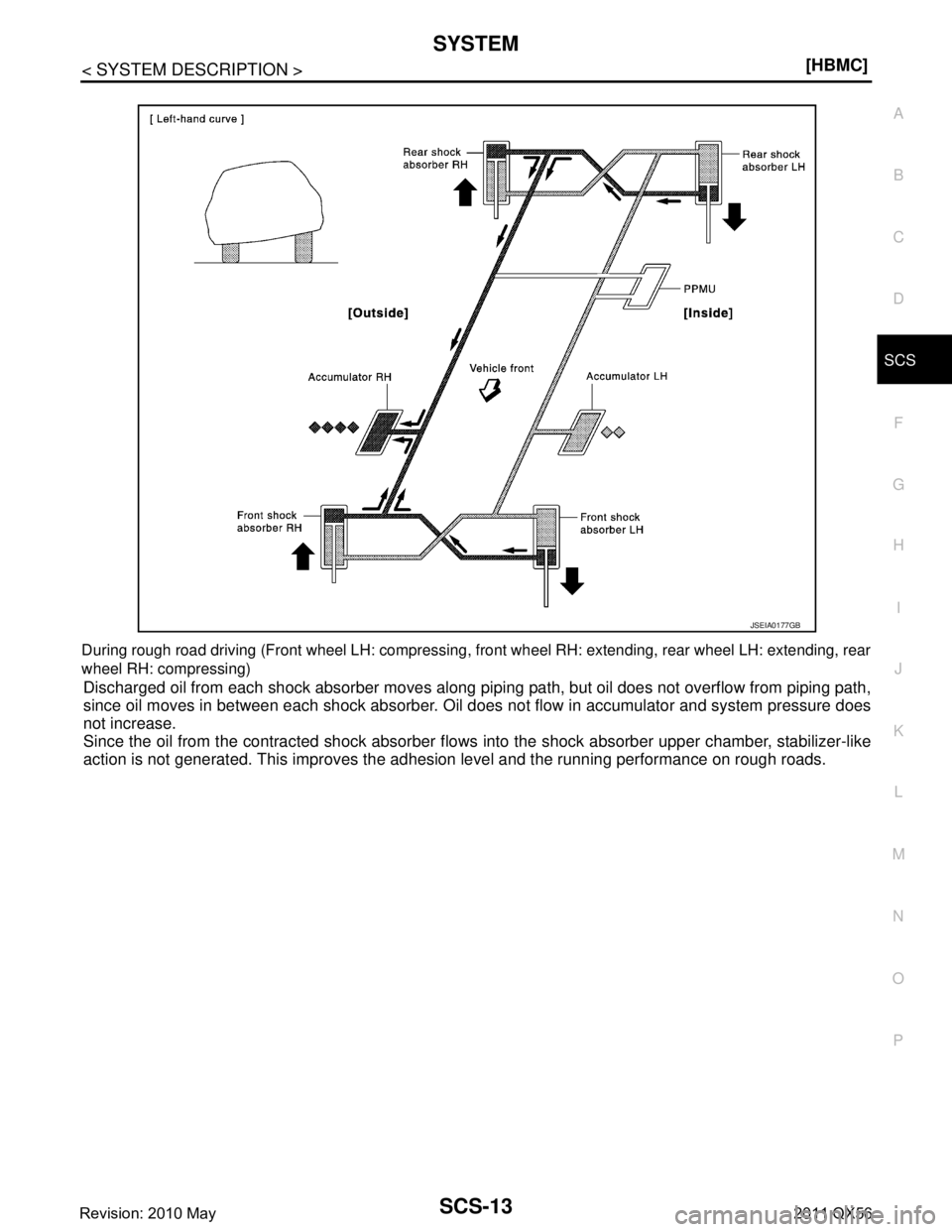

During cornering (Front and rear wheels in the outer side of corner: compressing)
When shock absorber in the outer side of corner is compressed during cornering, oil moves along piping path
and overflowing oil from piping path flows in accumulato r in the outer side of corner. Then, pressure increases
by action of gas spring of nitrogen gas acco rding to amount of oil that flows in.
Pressure in the inner side of corner decreases, since oil is discharged from accumulator by stroke (extending
direction) of shock absorber.
The pressure difference generates stabilizer-like action to maintain balance in vehicle posture for a steady
driving at cornering.
JSEIA0179GB
Revision: 2010 May2011 QX56

SYSTEMSCS-13
< SYSTEM DESCRIPTION > [HBMC]
C
D
F
G H
I
J
K L
M A
B
SCS
N
O P
During rough road driving (Front wheel LH: compressing, front wheel RH: extending, rear wheel LH: extending, rear
wheel RH: compressing)
Discharged oil from each shock absorber moves along piping
path, but oil does not overflow from piping path,
since oil moves in between each shock absorber. Oil does not flow in accumulator and system pressure does
not increase.
Since the oil from the contracted shock absorber flow s into the shock absorber upper chamber, stabilizer-like
action is not generated. This improves the adhes ion level and the running performance on rough roads.
JSEIA0177GB
Revision: 2010 May2011 QX56
