●Audio system
To use the memory function, lock the doors with
the Intelligent Key that is linked to the settings.
To enable the memorized settings:
1. Carry the Intelligent Key that is linked to the settings, and unlock the doors by
pushing the driver’s door handle request
switch or UNLOCK
button on the
Intelligent Key.
2. Push the ignition switch to the “ON” position. “Connection with the key has
been done” will be displayed on the
screen and the memorized settings are
available (only when a new Intelligent Key
is used).
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
●When the vehicle speed is above 4 MPH
(7 km/h).
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second. ●
When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the engine is started while moving the
automatic drive positioner.
● When the selector lever is moved from the P
(Park) position to any other position. (How-
ever, it will not be canceled if the switch is
pushed while the seat and steering column
are returning to the previous positions
(entry/exit function).)
● When the driver’s door remains open for
more than 45 seconds and the ignition
switch is not in the ON position.
● The seat synchronization function is auto-
matically disabled if the outside mirrors or
steering wheel reaches its maximum adjust-
ment.
● The seat synchronization function will not
operate if the seat is adjusted over one of
the following maximum thresholds:
– Seat sliding: 3.0 in (76 mm)
– Seatback reclining: 9.1 degrees
– Seat lifter (rear side): 0.8 in (20 mm)
Pre-driving checks and adjustments3-29
—
—
07/14/10—dstomski


Full Screen Display :
The full screen display will appear when select-
ing the “Full Screen Display” key.
To operate the Image Viewer or to change the
settings, select the desired key using the
INFINITI controller.
●
(Start)
Select the “
” key to start playing the
slideshow.
●
(Stop)
Select the “
” key to stop the slide-
show. ●
(Next)
Select the “
” key to display the next
file.
●
(Previous)
Select the “
” key to display the previ-
ous file.
Setting the Image Viewer :
The Image Viewer setting display will appear
when selecting the “Settings” key on the full
screen display. The following settings are avail-
able for the full screen display.
● Slideshow Speed
Select the “Slideshow Speed” key. From the
following display, select the changing time
from 5, 10, 30, 60 seconds or “No Auto
Change”.
● Slideshow Order
Select the “Slideshow Order” key. From the
following display, select “Random” or “Or-
der List”. For “Order List”, the image order is
the order of the files as stored on the USB
memory. Operating tips :
●
Only files that meet the following conditions
will be displayed.
– Image type: JPEG
– File Extensions: *.jpg, *jpeg
– Maximum Resolution: 2048 × 1536 pixels
– Maximum Size: 2-MB
– Colors: 32768 (15-bit)
– Maximum File Name lengths: 253-Bytes
– Maximum Folders: 500
– Maximum Images per Folder: 1024
● If an electronic device (such as a digital
camera) is directly connected to the vehicle
using a USB cable, no image will be dis-
played on the screen.
● If the file name is too long, some file names
may not be entirely displayed.
● When the total number of characters in the
file name exceeds 100 or if 1 file name in a
directory exceeds 100 characters, all files
will show a shortened 8-character version.
The image will still be displayed when se-
lected.
SAA2492
Monitor, climate, audio, phone and voice recognition systems4-23
—
—
01/12/10—pattie


space on the Music Box leaving less room for
more songs.
For the details of Music Box, see “MUSIC BOX
HARD DRIVE (models with navigation system)”
later in this section.
Text (models without navigation system) :
When the “Text” key is selected in the screen
using the INFINITI controller and then the ENTER
button is pushed while the CD is being played,
the music information below will be displayed
on the screen.
CD:
● Disc title
● Track title
CD with compressed audio files:
● Folder title
● File title
● Song title
● Album title
● Artist
Next/Previous Track and Fast
Forward/Rewind :
When the
(fast forward) or(re-
wind) button is pushed for more than 1.5 sec- onds while the CD is being played, the CD will
play while fast forwarding or rewinding. When
the button is released, the CD will return to
normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the CD is being
played, the next track or the beginning of the
current track on the CD will be played.
REPEAT (RPT), RANDOM (RDM) :
When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:
(CD)
(CD with compressed audio files)
CD EJECT :
When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it will be
pulled back into the slot to protect it.
DVD (Digital Versatile Disc) PLAYER
OPERATION (models with navigation
system)
Precautions
Start the engine when using the DVD entertain-
ment system.
Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the selector lever to the P (Park) position.
4-62Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


and it will turn off automatically after a period of
time. To turn it on again, push the DISC·AUX
button again.
DVD operation keys :
When the DVD is playing without the operation
screen being shown, you may use the touch
screen to select items from the displayed video.
You may also use the INFINITI controller to
select an item from the displayed video. When
the operation screen is being shown, use the
INFINITI controller or touch screen to select an
item from the displayed menus.
PAUSE:
Select the “
” key to pause the DVD. To
resume playing the DVD, use the “PLAY” key.
PLAY:
Select the “
” key to start playing the DVD,
for example, after pausing the DVD.
STOP:
Select the “
” key to stop playing the DVD.
/Next/Previous Chapter:
Select the “
”or“” key to skip the
chapter(s) of the disc forward/backward. The
chapters will advance/go back the number of
times this key is selected.
/Commercial Skip:
This function is only for DVD-VIDEO, DVD-VR.
Select the “
”or“” key to skip
forward or backwards by the set amount as
defined in the DVD Settings menu.
/Next/Previous Image:
This function is only for DVD-AUDIO. Select the
“
”or“” key to advance or rewind
the still image. The still image will advance or
rewind the number of times this key is selected.
*DVD-AUDIO may not be playable depending on
the system.
Top Menu :
When the “Top Menu” key is selected in the
screen while a DVD is being played, the top
menu specific to each disc will be displayed. For
details, see the instructions on the disc.
DVD settings
Select the “Settings” key to adjust the following
settings.
*DVD-AUDIO may not be playable depending on
the system.
Key (DVD-VIDEO, DVD-AUDIO) :
Keys for the DVD menu operation are displayed.
:Move the cursor to select a DVD menu.
Enter: Enter the selected menu.
Move: Change the display location by moving the operation key.
Back: Return to the previous screen.
Example
SAA2498
4-64Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


●Play Mode
Select the preferred play mode.
Movie file operation (models with
navigation system)
Park the vehicle in a safe location for the front
seat occupants to operate the USB memory
while watching the images.
PLAY :
When the DISC·AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX button
repeatedly until the center display changes to
the USB memory mode. Operation keys :
To operate the USB memory, select the desired
key displayed on the operation screen using the
INFINITI controller.
Pause
Select the “
” key to pause the movie file.
To resume playing the movie file, select the
“
” key.
Play
Select the “
” key to start playing a movie
file, for example, after pausing a movie file.
STOP
Select the “
” key to stop playing a movie
file.
Skip (Next chapter)
Select the “
” key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
SAA2503
4-68Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


Next/Previous Track and Fast
Forward/Rewind :
When the
orbutton is pushed for
more than 1.5 seconds while the iPod is play-
ing, the iPod will play while fast forwarding or
rewinding. When the button is released, the
iPod will return to the normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the iPod is play-
ing, the next track or the beginning of the
current track on the iPod will be played.
The INFINITI controller can also be used to
select tracks when the iPod is playing.
REPEAT (RPT), RANDOM (RDM) :
When the RPT button is pushed while a track is
being played, the play pattern can be changed
as follows:
MUSIC BOX HARD DRIVE (models with
navigation system)
The Music Box hard drive audio system can
store songs from CDs being played. The system
has a 9.3 gigabyte (GB) storage capacity.
The following CDs can be recorded in the Music
Box hard drive audio system.
● CDs that contain uncompressed audio files
● Hybrid Compact Disc Digital Audio (Hybrid
CD-DA) specification in Super Audio CDs
● Compact Disc Digital Audio (CD-DA) specifi-
cation in CD-Extras
● First session of multisession disc
Extreme temperature conditions [below 4°F
(20°C) and above 158°F (70°C)] could affect the
performance of the hard drive.
NOTE:
If the hard drive needs to be replaced due to a
malfunction, all stored music data will be
erased.
Recording CDs
1. Operate the audio system to play a CD. For
the details of playing CDs, see “Compact
Disc (CD) player operation” earlier in this
section.
2. Select the “Start REC” key.
NOTE:
● The system starts playing and recording the
1st track on the CD when the “Start REC” key
is selected.
● The recording process can be stopped at any
time. All tracks that were played before the
CD was stopped are stored.
SAA2513
4-76Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


●Individual tracks can be deleted from the
hard drive after the CD is recorded.
● The order of the tracks may not be changed
while recording.
If the title information of the track being re-
corded is stored either in the hard drive or in
the CD, the title is automatically displayed on
the screen. For title acquisition from the hard
drive, music recognition technology and related
data are provided by Gracenote.
If a track is not recorded successfully due to
skipping sounds, the
mark is displayed
behind the track number.
The Music Box hard drive cannot perform re-
cording under the following conditions.
● There is not enough space in the hard drive.
● The number of albums reaches the maximum
of 500. ●
The number of tracks reaches the maximum
of 3,000.
Automatic recording :
If the “Automatic Recording” function is turned
to ON, recording starts when a CD is inserted.
(See “Music Box settings” later in this section.)
Stopping recording :
To stop the recording, select the “Stop REC” key
button by touching the screen or using the
INFINITI controller.
If the CD is ejected, the audio system is turned
off or the ignition switch is pushed to the OFF
position, the recording also stops.
SAA2514
Monitor, climate, audio, phone and voice recognition systems4-77
—
—
07/15/10—tbrooks

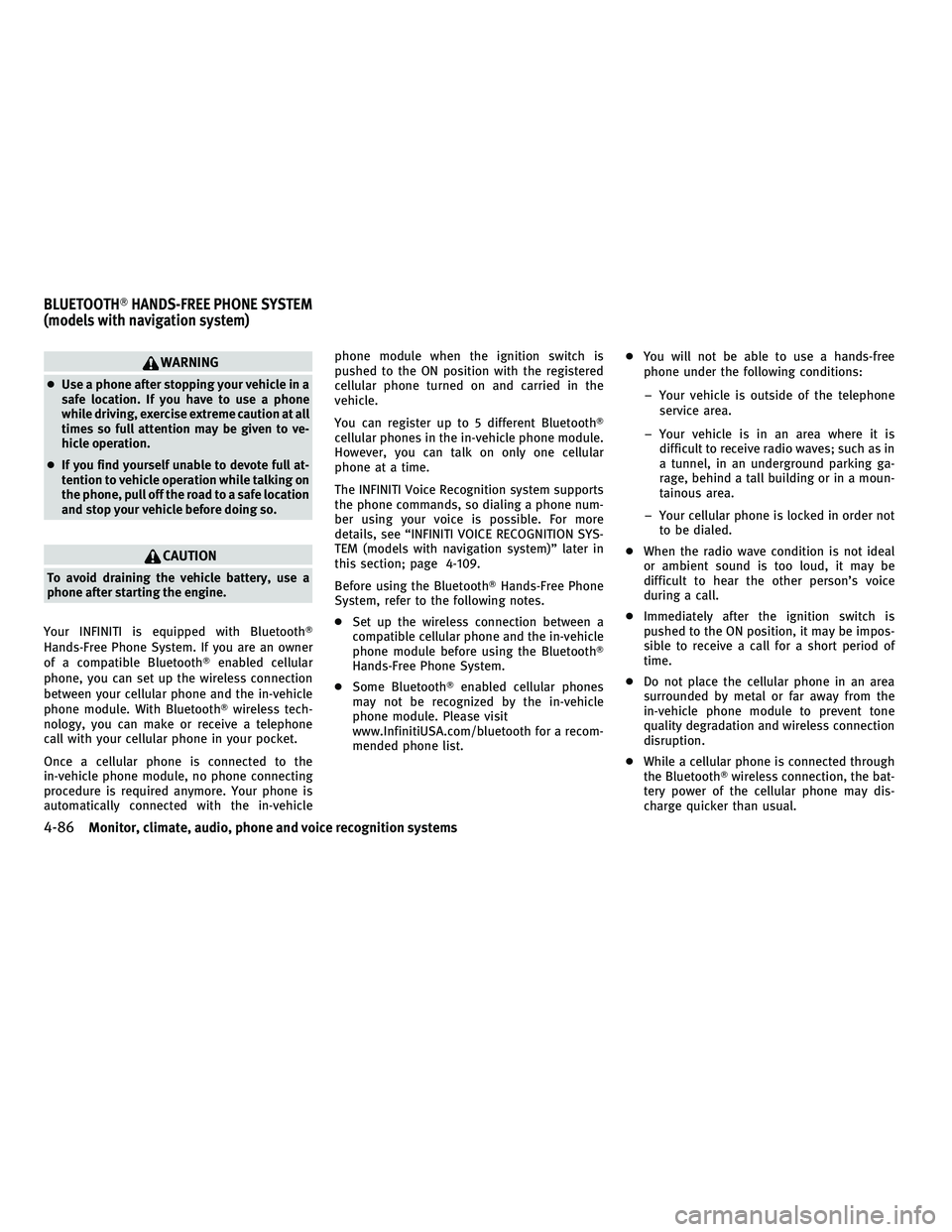

WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your INFINITI is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a compatible Bluetooth enabled cellular
phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth wireless tech-
nology, you can make or receive a telephone
call with your cellular phone in your pocket.
Once a cellular phone is connected to the
in-vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle phone module when the ignition switch is
pushed to the ON position with the registered
cellular phone turned on and carried in the
vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible. For more
details, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section; page 4-109.
Before using the Bluetooth
Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
compatible cellular phone and the in-vehicle
phone module before using the Bluetooth
Hands-Free Phone System.
● Some Bluetooth enabled cellular phones
may not be recognized by the in-vehicle
phone module. Please visit
www.InfinitiUSA.com/bluetooth for a recom-
mended phone list. ●
You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone service area.
– Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the ON position, it may be impos-
sible to receive a call for a short period of
time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual.
BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)
4-86Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks
