Warning light and display
When the Preview Function is not operating
properly, a chime sounds and the system warn-
ing light (orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine and resume driving.
If the indicator stays on, it may indicate that the
Preview Function is malfunctioning (the brake is
operative). Although the Vehicle is still drive-
able under normal conditions, have the vehicle
checked at an INFINITI retailer.
How to handle the sensor
The sensor for the Preview Function is common
with Intelligent Cruise Control and is located
below the front bumper.
To keep the Preview Function operating prop-
erly, be sure to observe the following:
●Always keep the sensor clean. Wipe with a
soft cloth carefully so as not to damage the
sensor.
● Do not strike or damage the areas around
the sensor. Do not touch or remove the
screw located on the sensor. Doing so could
cause failure or malfunction. If the sensor is
damaged due to an accident, contact an
INFINITI retailer.
● Do not attach a sticker (including transpar-
ent material) or install an accessory near the
sensor. This could cause failure or malfunc-
tion.
ANTI-LOCK BRAKING SYSTEM (ABS)
WARNING
● The Anti-lock Braking System (ABS) is a so-
phisticated device, but it cannot prevent ac-
cidents resulting from careless or dangerous
driving techniques. It can help maintain ve-
hicle control during braking on slippery sur-
faces. Remember that stopping distances on
slippery surfaces will be longer than on nor-
mal surfaces even with ABS. Stopping dis-
tances may also be longer on rough, gravel
or snow covered roads, or if you are using
tire chains. Always maintain a safe distance
from the vehicle in front of you. Ultimately,
the driver is responsible for safety.
● Tire type and condition may also affect brak-
ing effectiveness.
– When replacing tires, install the specified size of tires on all four wheels.
– When installing a spare tire, make sure that it is the proper size and type as speci-
fied on the Tire and Loading Information
label. See “TIRE AND LOADING INFORMA-
TION LABEL” in the “9. Technical and con-
sumer information” section of this
manual.
SSD0471
Starting and driving5-87
—
—
01/12/10—pattie


– For detailed information, see “WHEELSAND TIRES” in the “8. Maintenance and
do-it-yourself” section of this manual.
The Anti-lock Braking System (ABS) controls the
brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each
wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Using the system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady pres-
sure, but do not pump the brakes. The ABS will
operate to prevent the wheels from locking up.
Steer the vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
Self-test feature
The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer.
The computer has a built-in diagnostic feature
that tests the system each time you start the
engine and move the vehicle at a low speed in
forward or reverse. When the self-test occurs,
you may hear a “clunk” noise and/or feel a
pulsation in the brake pedal. This is normal and
does not indicate a malfunction. If the computer
senses a malfunction, it switches the ABS off
and illuminates the ABS warning light on the
instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked by an INFINITI retailer.
Normal operation
The ABS operates at speeds above 3 to 6 MPH
(5 to 10 km/h).
When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly
applies and releases hydraulic pressure. This
action is similar to pumping the brakes very
quickly. You may feel a pulsation in the brake
pedal and hear a noise from under the hood or
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are haz-
ardous and extra care is required while driving.
5-88Starting and driving
—
—
01/13/10—tbrooks

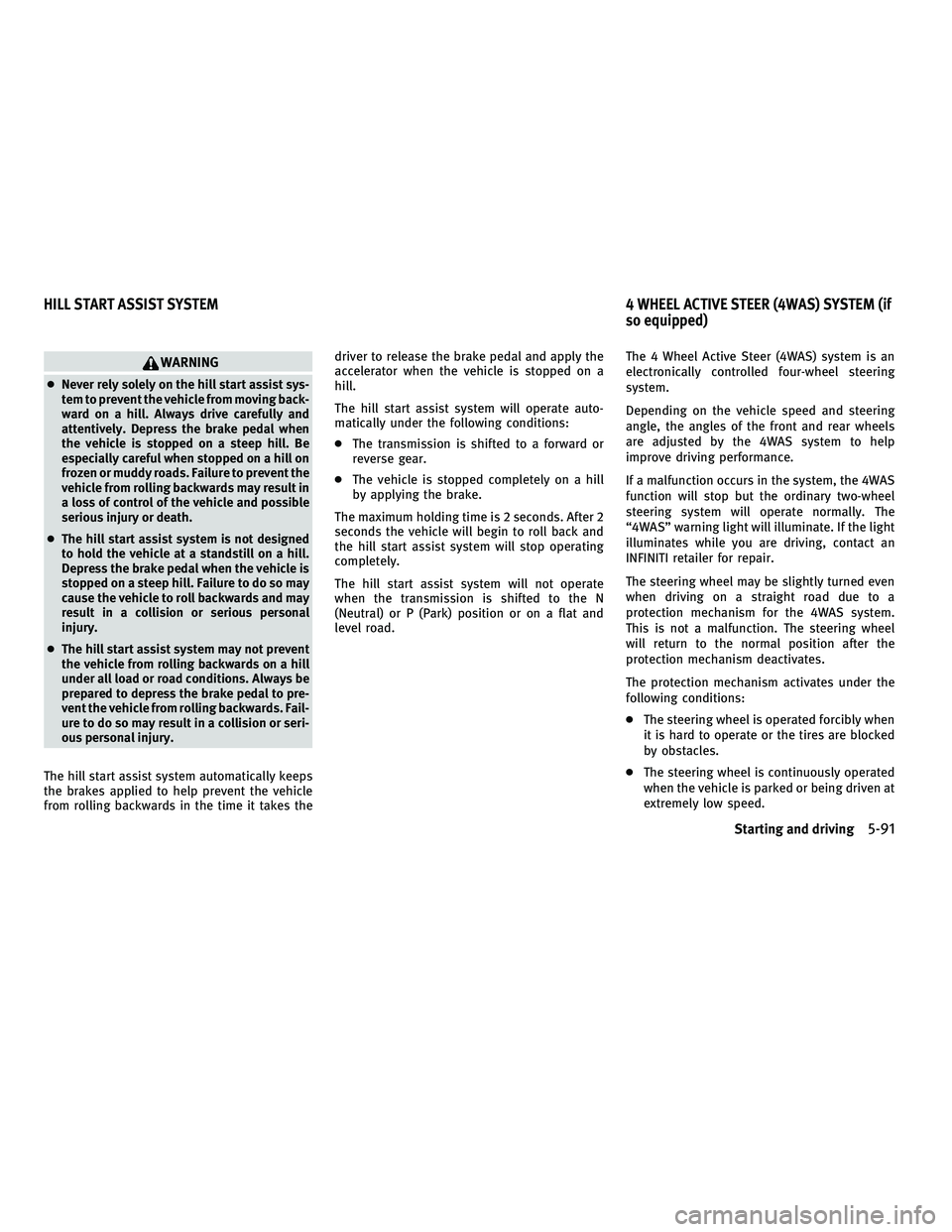

WARNING
●Never rely solely on the hill start assist sys-
tem to prevent the vehicle from moving back-
ward on a hill. Always drive carefully and
attentively. Depress the brake pedal when
the vehicle is stopped on a steep hill. Be
especially careful when stopped on a hill on
frozen or muddy roads. Failure to prevent the
vehicle from rolling backwards may result in
a loss of control of the vehicle and possible
serious injury or death.
● The hill start assist system is not designed
to hold the vehicle at a standstill on a hill.
Depress the brake pedal when the vehicle is
stopped on a steep hill. Failure to do so may
cause the vehicle to roll backwards and may
result in a collision or serious personal
injury.
● The hill start assist system may not prevent
the vehicle from rolling backwards on a hill
under all load or road conditions. Always be
prepared to depress the brake pedal to pre-
vent the vehicle from rolling backwards. Fail-
ure to do so may result in a collision or seri-
ous personal injury.
The hill start assist system automatically keeps
the brakes applied to help prevent the vehicle
from rolling backwards in the time it takes the driver to release the brake pedal and apply the
accelerator when the vehicle is stopped on a
hill.
The hill start assist system will operate auto-
matically under the following conditions:
●
The transmission is shifted to a forward or
reverse gear.
● The vehicle is stopped completely on a hill
by applying the brake.
The maximum holding time is 2 seconds. After 2
seconds the vehicle will begin to roll back and
the hill start assist system will stop operating
completely.
The hill start assist system will not operate
when the transmission is shifted to the N
(Neutral) or P (Park) position or on a flat and
level road. The 4 Wheel Active Steer (4WAS) system is an
electronically controlled four-wheel steering
system.
Depending on the vehicle speed and steering
angle, the angles of the front and rear wheels
are adjusted by the 4WAS system to help
improve driving performance.
If a malfunction occurs in the system, the 4WAS
function will stop but the ordinary two-wheel
steering system will operate normally. The
“4WAS” warning light will illuminate. If the light
illuminates while you are driving, contact an
INFINITI retailer for repair.
The steering wheel may be slightly turned even
when driving on a straight road due to a
protection mechanism for the 4WAS system.
This is not a malfunction. The steering wheel
will return to the normal position after the
protection mechanism deactivates.
The protection mechanism activates under the
following conditions:
●
The steering wheel is operated forcibly when
it is hard to operate or the tires are blocked
by obstacles.
● The steering wheel is continuously operated
when the vehicle is parked or being driven at
extremely low speed.
HILL START ASSIST SYSTEM 4 WHEEL ACTIVE STEER (4WAS) SYSTEM (if
so equipped)
Starting and driving5-91
—
—
01/12/10—pattie


SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during winter:
●A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.
● A sturdy, flat board to be placed under the
jack to give it firm support.
● A shovel to dig the vehicle out of snowdrifts.
● Extra window washer fluid to refill the reser-
voir tank.
DRIVING ON SNOW OR ICE
WARNING
● Wet ice (32°F, 0°C and freezing rain), very
cold snow or ice can be slick and very hard to
drive on. The vehicle will have much less
traction or “grip” under these conditions.
Try to avoid driving on wet ice until the road
is salted or sanded.
● Whatever the condition, drive with caution.
Accelerate and slow down with care. If accel-
erating or downshifting too fast, the drive
wheels will lose even more traction. ●
Allow more stopping distance under these
conditions. Braking should be started
sooner than on dry pavement.
● Allow greater following distances on slip-
pery roads.
● Watch for slippery spots (glare ice). These
may appear on an otherwise clear road in
shaded areas. If a patch of ice is seen ahead,
brake before reaching it. Try not to brake
while on the ice, and avoid any sudden steer-
ing maneuvers.
● Do not use the cruise control on slippery
roads.
● Snow can trap dangerous exhaust gases un-
der your vehicle. Keep snow clear of the ex-
haust pipe and from around your vehicle.
ENGINE BLOCK HEATER (if so
equipped)
Engine block heaters are used to assist in cold
temperature starting.
The engine block heater should be used when
the outside temperature is 20°F (7°C) or
lower.
To use the engine block heater
1. Turn the engine off.
2. Open the hood and unwrap the engine
block heater cord.
3. Plug the engine block heater cord into a grounded 3-wire, 3-pronged extension
cord.
4. Plug the extension cord into a Ground Fault Interrupt (GFI) protected, grounded
110-volt AC (VAC) outlet.
5. The engine block heater must be plugged in for at least2-4hours, depending on
outside temperatures, to properly warm
the engine coolant. Use an appropriate
timer to turn the engine block heater on.
6. Before starting the engine, unplug and properly store the cord to keep it away
from moving parts.
WARNING
●Do not use your engine block heater with an
ungrounded electrical system or a
2-pronged adapter. You can be seriously in-
jured by an electrical shock if you use an
ungrounded connection.
Starting and driving5-93
—
—
01/12/10—pattie


CAUTION
●Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
● To avoid the danger of being scalded, never
remove the radiator cap while the engine is
still hot. When the radiator cap is removed,
pressurized hot water will spurt out, possi-
bly causing serious injury.
● Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or
if you feel a lack of engine power, detect
abnormal noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake and move the selector
lever to the P (Park) position.
Do not stop the engine.
2. Turn off the climate control. Open all the windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed. 3. If engine overheating is caused by climb-
ing a long hill on a hot day, run the engine
at a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leak-
ing or the cooling fan does not run, stop
the engine.
WARNING
Be careful not to allow your hands, hair, jewelry
or clothing to come into contact with, or get
caught in, engine belts or the engine cooling
fan. The engine cooling fan can start at any
time.
7. After the engine cools down, check thecoolant level in the reservoir tank with the
engine running. Add coolant to the reser-
voir tank if necessary. Have your vehicle
repaired at the nearest INFINITI retailer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
IF YOUR VEHICLE OVERHEATS
In case of emergency6-11
—
—
01/13/10—pattie


Remove the retainers1as illustrated and pull
out the filter element
2.
The filter element should not be cleaned and
reused. Replace it according to the mainte- nance intervals. See “INFINITI Service and Main-
tenance Guide” for maintenance intervals.
When replacing the filter, wipe the inside of the
air cleaner housing and the cover with a damp
cloth.
WARNING
●
Operating the engine with the air cleaner
removed can cause you or others to be
burned. The air cleaner not only cleans the
air, it stops flame if the engine backfires. If it
isn’t there, and the engine backfires, you
could be burned. Do not drive with the air
cleaner removed, and be careful when work-
ing on the engine with the air cleaner
removed.
● Never pour fuel into the throttle body or at-
tempt to start the engine with the air cleaner
removed. Doing so could result in serious
injury.
CLEANING
If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your wind-
shield is clean if beads do not form when
rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild deter-
gent. Then rinse the blade with clear water. If
your windshield is still not clear after cleaning
the blades and using the wiper, replace the
blades.
Worn windshield wiper blades can damage the
windshield and impair driver vision.
VQ37VHR engine
SDI2546
WINDSHIELD WIPER BLADES
8-20Maintenance and do-it-yourself
—
—
01/13/10—pattie


10 Index
4 Wheel Active Steer (4WAS) system.....5-91
4 Wheel Active Steer (4WAS) warning
light ...................... .2-12
A
ABS (Anti-lock Braking System) ........5-87
Adaptive front lighting system (AFS) .....2-35
Advanced air bag system ...........1-41
Aiming control, Adaptive front lighting
system (AFS) ................. .2-35
Air bag system Advanced air bag system .........1-41
Front passenger air bag and status
light ..................... 1-43
Front-seat mounted side-impact
supplemental air bag system .......1-46
Roof-mounted curtain side-impact
supplemental air bag system .......1-46
Air bag warning labels .............1-48
Air bag warning light ..........1-48 , 2-15
Air cleaner housing filter ...........8-19
Air conditioner Air conditioner service ...........4-44
Air conditioner specification label ....9-13
Air conditioning system refrigerant and
lubricant recommendations .......4-44
Automatic climate control ........4-30
In-cabin microfilter ............4-43
Operation
(See automatic climate control) .....4-30 Alarm, How to stop alarm
(see vehicle security system)
.........2-28
Alcohol, drugs and driving ...........5-6
Antenna .................... .4-85
Anti-lock Braking System (ABS) ........5-87
Anti-lock braking system (ABS) warning
light ...................... .2-10
Appearance care Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Armrest .................... .1-10
Ashtrays
(See cigarette lighter and ashtrays) .....2-44
Audible reminders .............. .2-18
Audio operation precautions .........4-44
Audio system ................. .4-44
Audio system, Steering wheel audio
controls .................... .4-83
Autolight system ............... .2-33
Automatic Automatic

climate control .........4-32
Automatic transmission fluid (ATF) ....8-14
Climate control .............. 4-30
Driving with automatic transmission . . . 5-12
Automatic door locks ..............3-5
Automatic drive positioner ..........3-26
Automatic seat positioner ...........3-26
Average fuel consumption and speed . . . .2-25
Avoiding collision and rollover .........5-5 B
Battery ..................... .8-16
Battery Battery saver system ...........2-34
Intelligent Key ............... 8-25
Variable voltage control system .....8-18
Before starting the engine ...........5-10
Belts (See drive belts) .............8-18
Bluetooth hands-free phone system
(models with navigation system) . . . . . . .4-86
Booster seats ................. .1-33
Brake Anti-lock Braking System (ABS) . .....5-87
Brake fluid ................. 8-15
Brake system ............... 5-84
Parking brake operation .........5-16
Brake warning light .............. .2-11
Break-in schedule .............. .5-80
Brightness control and display ON/OFF
button ..................... .4-8
Brightness control, Instrument panel . . . .2-36
Bulb check/instrument panel .........2-10
Bulb replacement .............. .8-27
C
Cabin air filter ................ .4-43
Capacities and recommended
fuel/lubricants ................. .9-2
—
—
07/26/10—dmoore
