2011 Hyundai Sonata Owner's Manual

Page 281 of 380

Hyundai Sonata 2011  Owners Manual
What to do in an emergency14
64. Remove the wheel lug nut wrench,
jack, jack handle, and spare tire
from the vehicle.
5. Block both the front and rear of the wheel that is diagonally opposite
the jac

Page 282 of 380

Hyundai Sonata 2011  Owners Manual
615
What to do in an emergency

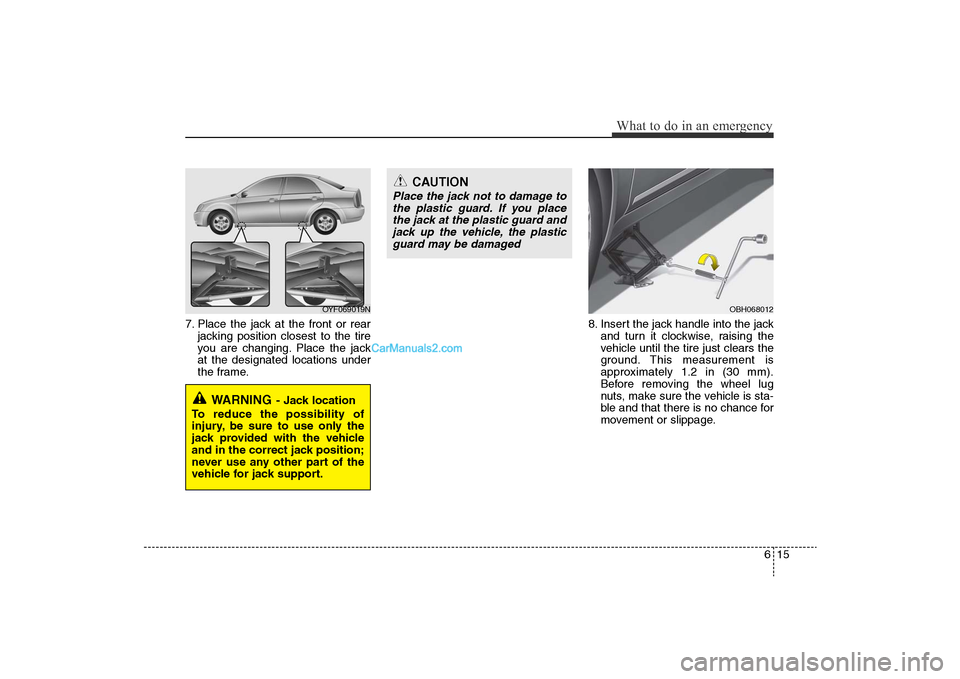

7. Place the jack at the front or rearjacking position closest to the tire
you are changing. Place the jack
at the designated locations under
the frame. 8. Insert the j

Page 283 of 380

Hyundai Sonata 2011  Owners Manual
What to do in an emergency16
69. Loosen the wheel nuts and
remove them with your fingers.
Slide the wheel off the studs and
lay it flat so it cannot roll away. To
put the wheel on the hub, pick up
th

Page 284 of 380

Hyundai Sonata 2011  Owners Manual
617
What to do in an emergency
If you have a tire gauge, remove the
valve cap and check the air pressure.
If the pressure is lower than recom-
mended, drive slowly to the nearest
service station and

Page 285 of 380

Hyundai Sonata 2011  Owners Manual
What to do in an emergency18

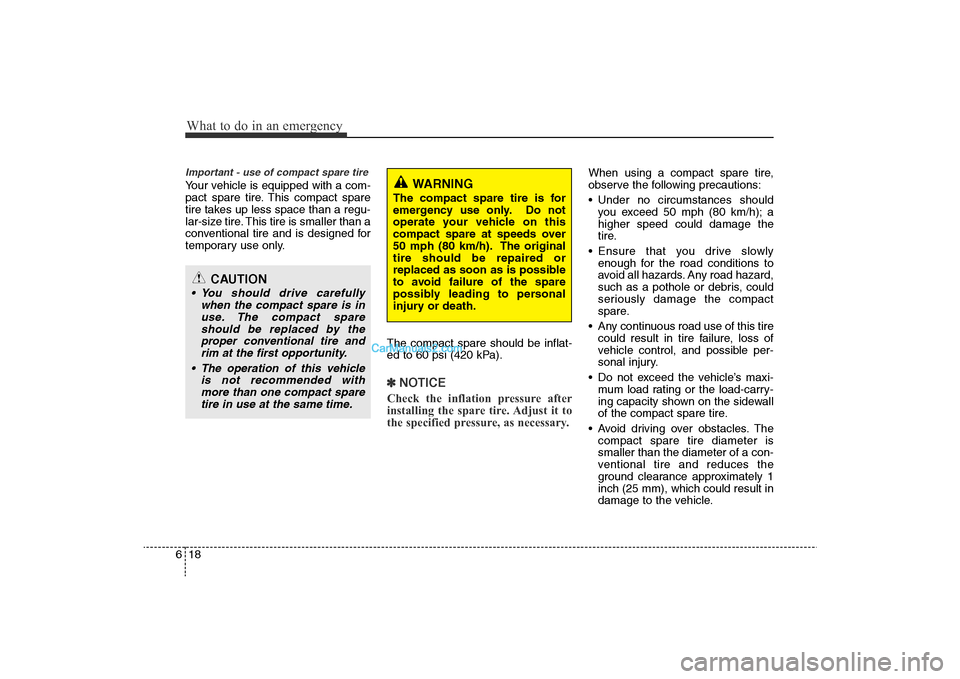

6Important - use of compact spare tireYour vehicle is equipped with a com-
pact spare tire. This compact spare
tire takes up less space than a regu-
lar-size tire. This t

Page 286 of 380

Hyundai Sonata 2011  Owners Manual
619
What to do in an emergency
• Do not take this vehicle through anautomatic car wash while the com-
pact spare tire is installed.
• Do not use tire chains on the com- pact spare tire. Because o

Page 287 of 380

Hyundai Sonata 2011  Owners Manual
What to do in an emergency20
6
HXD02HXD03

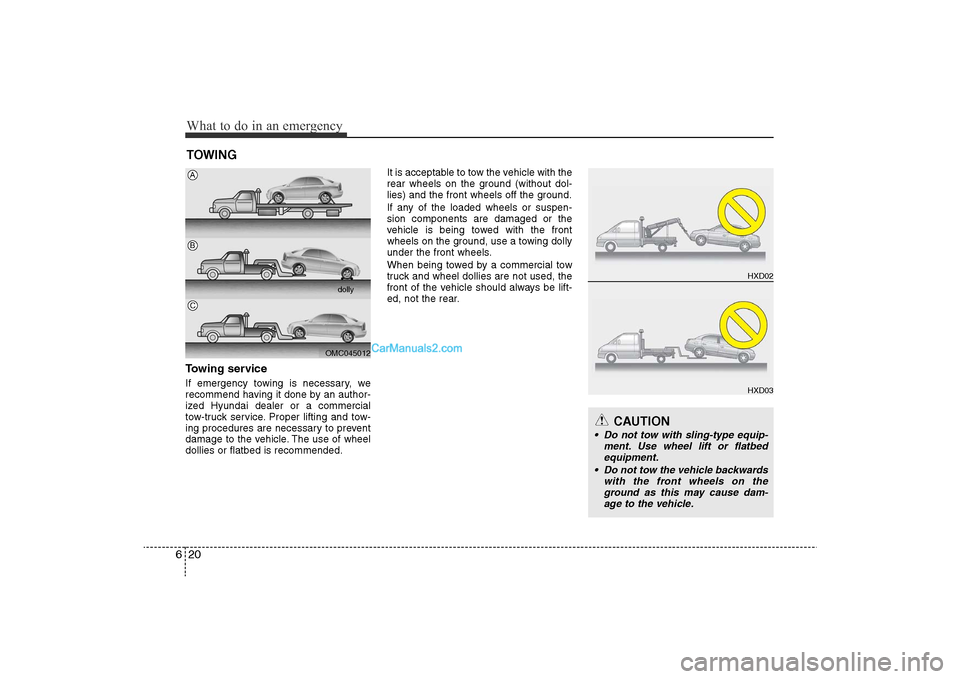

TOWINGTowing serviceIf emergency towing is necessary, we
recommend having it done by an author-
ized Hyundai dealer or a commercial
tow-truck service. Proper

Page 288 of 380

Hyundai Sonata 2011  Owners Manual
621
What to do in an emergency
When towing your vehicle in an emer-
gency without wheel dollies :
1. Set the ignition switch in the ACC posi-tion.
2. Place the shift lever in N (Neutral).
3. Release
