2011 Hyundai Sonata Owner's Manual

Page 257 of 380

Hyundai Sonata 2011  Owners Manual

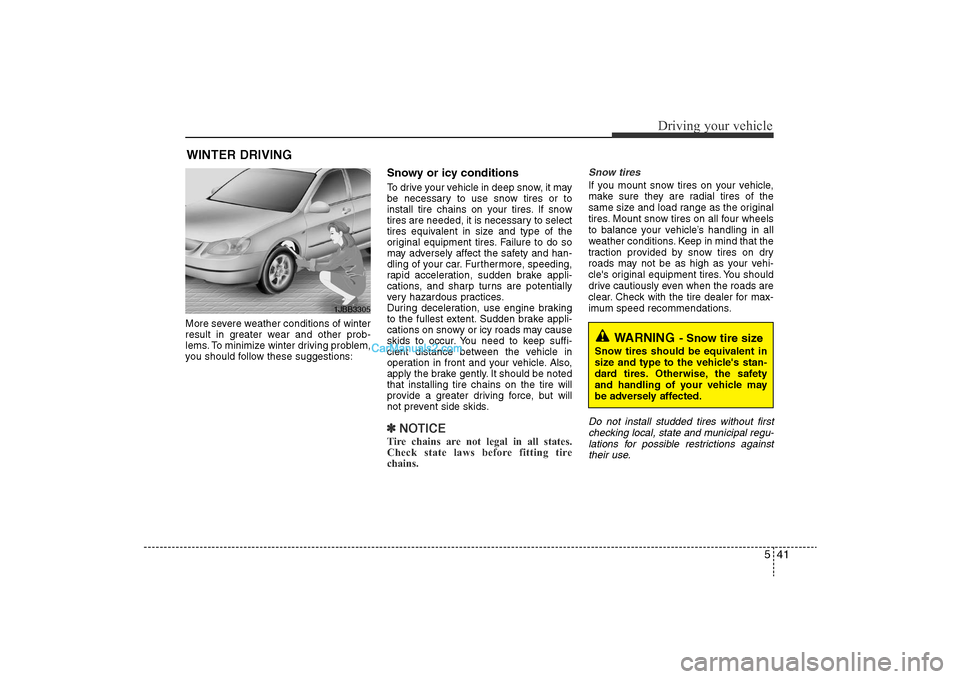

541
Driving your vehicle
More severe weather conditions of winter
result in greater wear and other prob-
lems. To minimize winter driving problem,
you should follow these suggestions:
Snowy or icy co

Page 258 of 380

Hyundai Sonata 2011  Owners Manual
Driving your vehicle42
5Tire chains Since the sidewalls of radial tires are
thinner, they can be damaged by mount-
ing some types of snow chains on them.
Therefore, the use of snow tires is rec-
omme

Page 259 of 380

Hyundai Sonata 2011  Owners Manual
543
Driving your vehicle
Use high quality ethylene glycol
coolantYour vehicle is delivered with high quality
ethylene glycol coolant in the cooling
system. It is the only type of coolant that
should

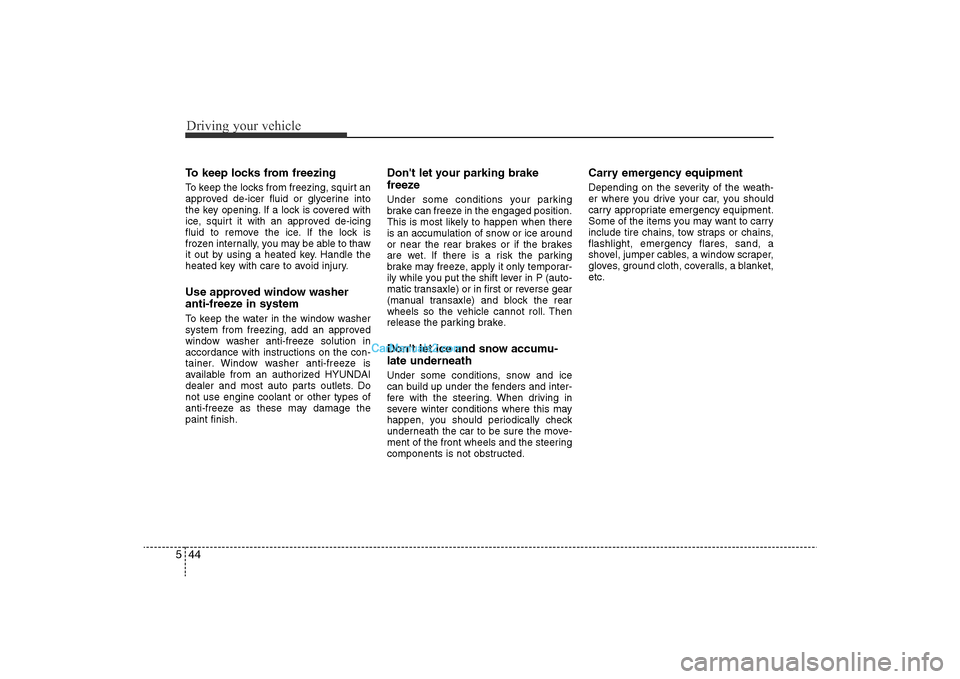

Page 260 of 380

Hyundai Sonata 2011  Owners Manual
Driving your vehicle44
5To keep locks from freezingTo keep the locks from freezing, squirt an
approved de-icer fluid or glycerine into
the key opening. If a lock is covered with
ice, squirt it with a

Page 261 of 380

Hyundai Sonata 2011  Owners Manual
545
Driving your vehicle
Tire and loading information label
The label located on the drivers door
sill gives the original tire size, cold
tire pressures recommended for your
vehicle, the number of p

Page 262 of 380

Hyundai Sonata 2011  Owners Manual
Driving your vehicle46
5Towing capacity:We do not recommend using this
vehicle for trailer towing.Cargo capacity:The cargo capacity of your vehicle
will increase or decrease depending
on the weight a

Page 263 of 380

Hyundai Sonata 2011  Owners Manual
547
Driving your vehicle

C190F03JM
Item Description TotalA Vehicle Capacity  1400 lbs
Weight (635 kg)
Subtract Occupant
B Weight  860 lbs
172 lbs (78 kg) × 5 (390 kg)
C
Available Cargo and
540 lbs

Page 264 of 380

Hyundai Sonata 2011  Owners Manual
Driving your vehicle48
5Certification label
The certification label is located on
the drivers door sill at the center pil-
lar.
This label shows the maximum
allowable weight of the fully loaded
vehi
