2011 FORD MUSTANG Owners Manual

2. To calibrate, press and hold the 7
and 9 radio preset buttons together
for approximately 10 seconds until
CAL appears. Release the buttons.
3. Slowly drive the vehicle in a
circle (less than 3 mph [5 km/h])
until the CAL display changes to the
direction value (N, S, E, W, etc.). It
may take up to five circles to
complete calibration.
4. The compass is now calibrated.
CENTER CONSOLE
Your vehicle is equipped with a
variety of console features. These
include:
•Dual cupholders in front of
console (pull door open to
access)
•Lockable storage bin (use ignition
key to lock/unlock the console bin
and press the latch to open the
console)
•Auxiliary power point
•Coin holder slots
•Audio input jack
•USB port (if equipped)
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
Driver Controls
73
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

AUXILIARY POWER POINT (12V DC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
Auxiliary power points can be found in the following locations:
•On the instrument panel
•Inside the center console storage bin
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12VDC/180W/15A. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
POWER WINDOWS
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
Driver Controls
74
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

Press and pull the switches to open
and close windows.
•Press down (to the first detent)
and hold the switch to open.
•Pull up (to the first detent) and
hold the switch to close.
One-touch up or down (front windows only)
This feature allows the driver or passenger’s window to open or close
fully without holding the control down.
To operate one-touch down, press the switch completely down to the
second detent and release quickly. The window will open fully.
Momentarily press the switch to any position to stop the window
operation.
To operate one-touch up, pull the switch completely up to the second
detent and release quickly. The window will close fully. Momentarily
press the switch to any position to stop the window operation.
Restoring the one-touch up functionality (front windows only)
Under low battery power conditions, one-touch up only functionality may
be lost. To reset this function after restoring full battery power, pull the
switch to the one-touch up position, hold the switch until the glass
reaches the stall position and continue to hold for two seconds. Press the
window switch down and operate the window to the full down position.
One-touch up will now be functional.Perform one-touch up
re-calibration with the door closed only. Calibrating with the door
open will cause the window to continuously bounce back.
Bounce-back (front windows only)
When an obstacle has been detected in the window opening as the
window is moving upward, the window will automatically move down and
stop.
Bounce-back override (front windows only)
To override bounce-back, within two seconds after reaching bounce-back
position, if the switch is moved from the neutral to the express-up
positionthe window will travel up with no bounce-back protection.
If the switch is released before the window reaches fully closed position,
the window will stop. For example: bounce-back override can be used to
overcome the resistance of ice on the window or seals.
Driver Controls
75
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

Short drop glass (front windows only)
In order to improve door efforts and sealing, your vehicle is equipped
with short drop glass. This feature lowers the glass when either door is
opened. The glass returns to its closed position when the door is closed.
Proper operation of the short drop glass requires that the windows be
calibrated.Though your windows will have been calibrated before
your vehicle is delivered to you, it is possible for the windows to
lose calibration.If a window loses its calibration, your short drop
feature will lower the window, but will not raise it again when the door is
closed. To re-calibrate the window, pull the switch up to raise the
window until it completes its travel and hold the switch up for two
seconds. Another possible effect of lost calibration is that the feature
may not lower the window. To re-calibrate the window in this case, lower
the window until it completes its travel and hold the switch down for
two seconds. Immediately after releasing the window switch, pull the
switch up to raise the window until it completes its travel and hold the
switch up for two seconds.Perform short drop re-calibration with
doors closed only. Re-calibrating with doors open will cause the
window to continuously bounce back.
Rear power windows (convertible only)
The rear quarter windows are operated by a single window switch
located at the driver door window controls. Press and pull the window
switch to open and close the windows.
•Press down and hold the switch to open.
•Pull up and hold the switch to close.
Rear power windows manual override (convertible only)
The rear quarter window switch will not operate under the following
conditions:
•Convertible top is moving
•Convertible top is not completely up or down
In the event that the rear quarter window switch does not operate when
the convertible top is completely up or down, the rear quarter windows
can be manually raised up.
The following procedure must be performed within two minutes:
1. Turn the ignition key to the off position, then turn back to the on
position.
2. Press the rear window switch down three times.
Driver Controls
76
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

3. Turn the ignition key to the off position, then turn back to the on
position.
4. Pull and hold the rear window switch up and hold for three seconds,
the rear windows will begin to start moving up.
Accessory delay
With accessory delay, the window switches, convertible top (if equipped)
and radio may be used for up to 10 minutes after the ignition switch is
turned to the off position or until either front door is opened.
INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror up or down and from side to side.
WARNING:Do not adjust the mirror while the vehicle is in
motion.
Automatic dimming interior rear view mirror (if equipped)
The interior rear view mirror has an auto-dimming function. The
electronic day/night mirror will change from the normal (high reflective)
state to the non-glare (darkened) state when bright lights (glare) reach
the mirror. When the mirror detects bright light from behind the vehicle,
it will automatically adjust (darken) to minimize glare.
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Note:A rear center passenger and/or raised rear center headrest (if
equipped) may also block the light from reaching the sensor.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Note:If equipped with a rearview camera system, a video image will
display in the mirror or the navigation system display (if equipped) when
the vehicle is put in R (Reverse). As you shift into any other gear from R
(Reverse), the image will remain for a few seconds and then turn off.
Refer toRearview camera systemin theDrivingchapter.
Driver Controls
77
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

EXTERIOR MIRRORS
Power side view mirrors
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Blind spot mirrors
Your vehicle is equipped with blind spot mirrors. Refer toBlind spot
mirrorsin theDrivingchapter.
SPEED CONTROL
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.
Using speed controls
The speed controls are located on the steering wheel. The following
buttons work with speed control:
Base controls
Optional controls
ON/OFF:Press to turn the system on or off.
RESSET
ON
OFF
RESUME
OFF ON SETSET
Driver Controls
78
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

SET (+):Press to set a speed or to increase a set speed.
SET (–):Press to decrease a set speed.
RES / RESUME:Press to resume a set speed.
Setting speed control
The set speed control:
1. Press and release ON.
2. Accelerate to the desired speed.
3. Press and release SET (+).
4. Take your foot off the accelerator pedal.
5. The indicator
light on the instrument cluster will turn on.
Note:
•Vehicle speed may vary momentarily when driving up and down a
steep hill.
•If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.
•If the vehicle speed decreases more than 10 mph (16 km/h) below
your set speed on an uphill, your speed control will disengage.
Disengaging speed control
To disengage the speed control, tap the brake pedal or clutch pedal (if
equipped).
Disengaging the speed control will not erase previous set speed.
Resuming a set speed
Press and release RES / RESUME. This will automatically return the
vehicle to the previously set speed.
Increasing speed while using speed control
To increase the set speed:
•Press and hold SET (+) until you get to the desired speed, then
release. You can also use SET (+) to operate the tap-up function.
Press and release SET (+) to increase the vehicle set speed in 1 mph
(1.6 km/h) increments.
•Use the accelerator pedal to get to the desired speed then press and
release SET (+).
Driver Controls
79
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

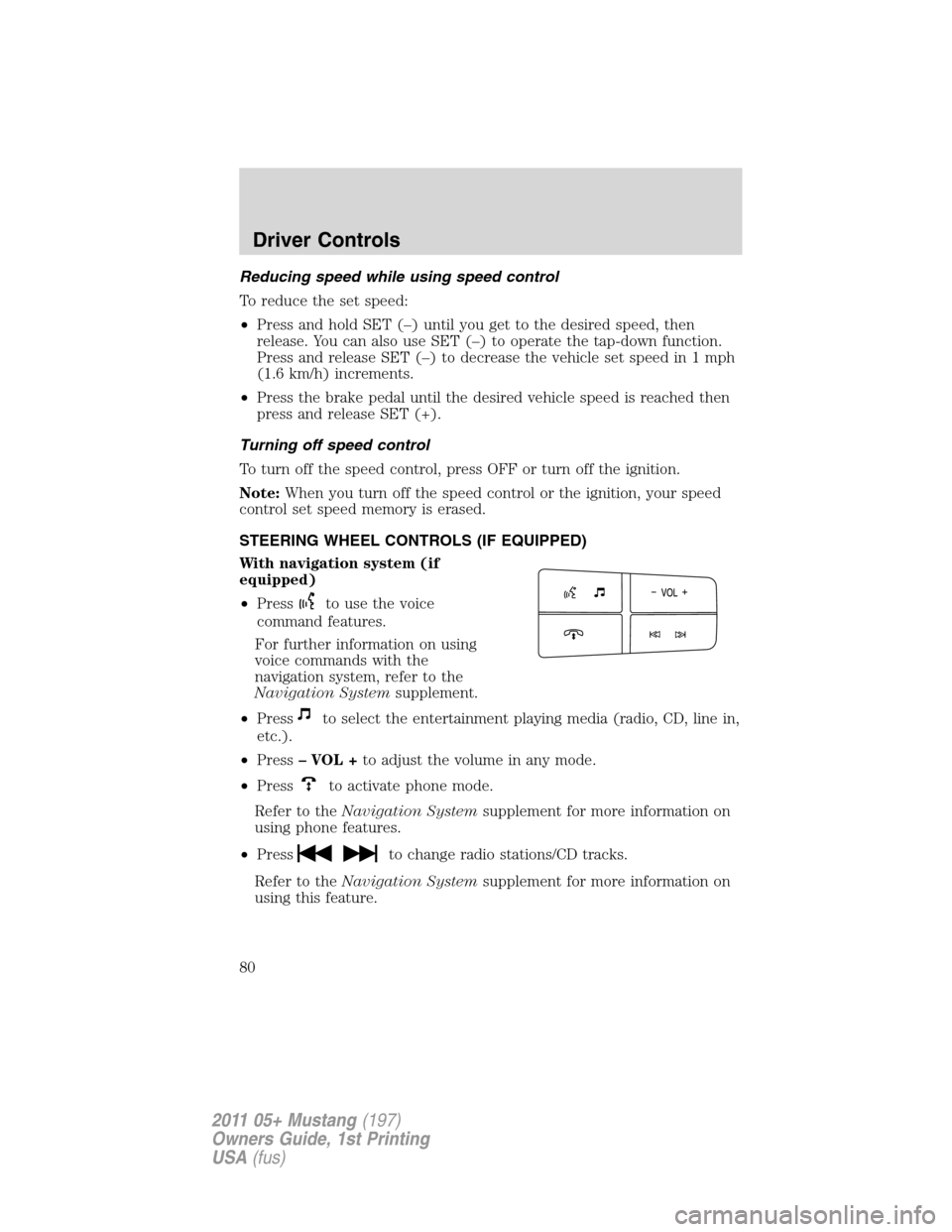

Reducing speed while using speed control
To reduce the set speed:
•Press and hold SET (–) until you get to the desired speed, then
release. You can also use SET (–) to operate the tap-down function.
Press and release SET (–) to decrease the vehicle set speed in 1 mph
(1.6 km/h) increments.
•Press the brake pedal until the desired vehicle speed is reached then
press and release SET (+).
Turning off speed control
To turn off the speed control, press OFF or turn off the ignition.
Note:When you turn off the speed control or the ignition, your speed
control set speed memory is erased.
STEERING WHEEL CONTROLS (IF EQUIPPED)
With navigation system (if
equipped)
•Press
to use the voice
command features.
For further information on using
voice commands with the
navigation system, refer to the
Navigation Systemsupplement.
•Press
to select the entertainment playing media (radio, CD, line in,
etc.).
•Press– VOL +to adjust the volume in any mode.
•Press
to activate phone mode.
Refer to theNavigation Systemsupplement for more information on
using phone features.
•Press
to change radio stations/CD tracks.
Refer to theNavigation Systemsupplement for more information on
using this feature.
Driver Controls
80
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
