2011 FORD KUGA index

Oil Pump(21 714 0)
Special Tool(s)211-014
Remover, Steering Wheel
13019
Removal
NOTE:Removal steps in this procedure may
contain installation details.
1. Refer to: Timing Belt (303-01 Engine - 2.5L
Duratec (147kW/200PS) - VI5, Removal and
Installation).
2. Special Tool(s): 211-014
E64877
211-014
3.Torque: 6Nm
E64878
4.Refer to: Crankshaft Front Seal (303-01 Engine
- 2.5L Duratec (147kW/200PS) - VI5, Removal
and Installation).
Installation
1. To install, reverse the removal procedure.
G543327en2008.50 Kuga8/2011
303-01- 48
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
48
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

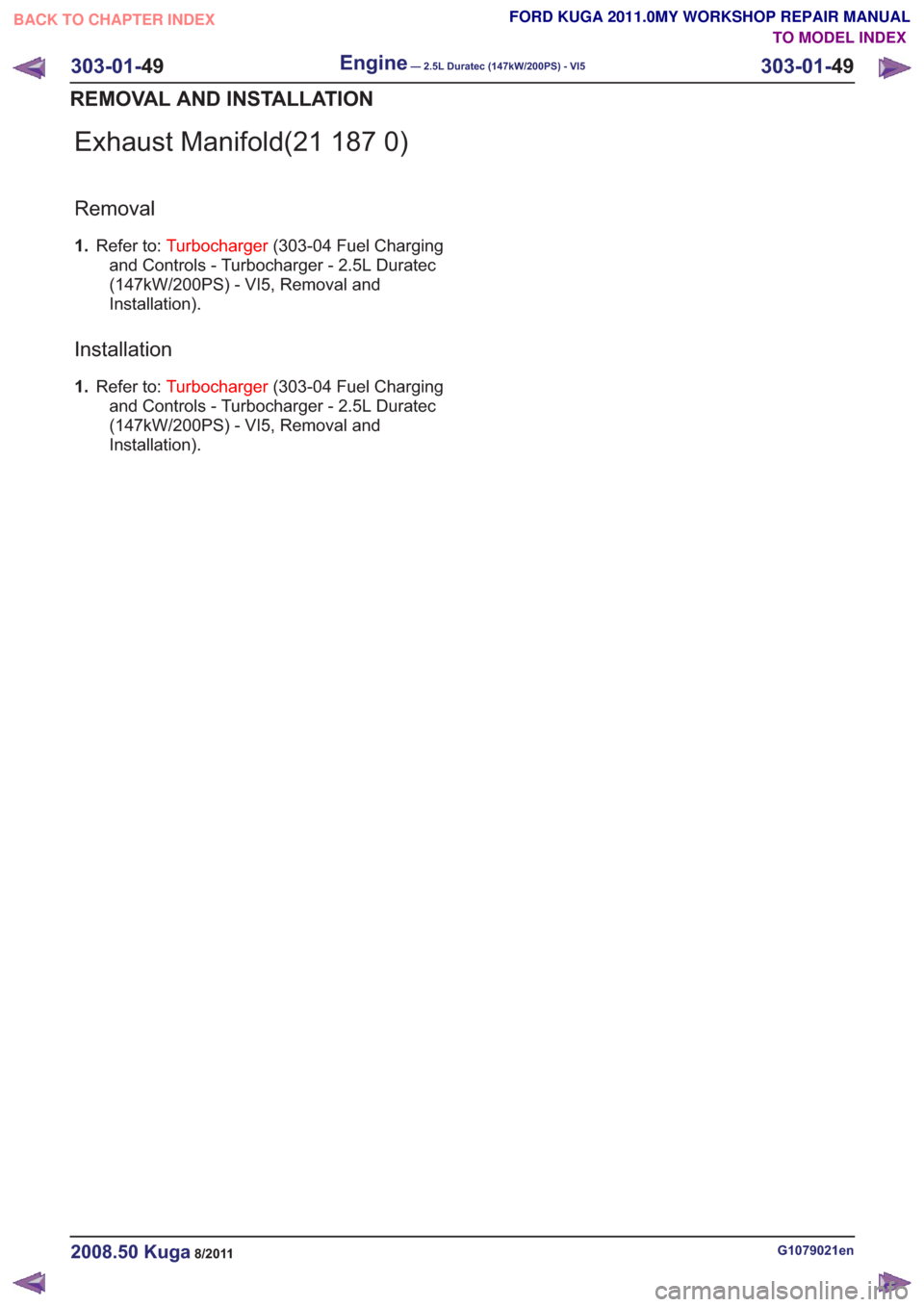

Exhaust Manifold(21 187 0)
Removal
1.Refer to: Turbocharger (303-04 Fuel Charging
and Controls - Turbocharger - 2.5L Duratec
(147kW/200PS) - VI5, Removal and
Installation).
Installation
1. Refer to: Turbocharger (303-04 Fuel Charging
and Controls - Turbocharger - 2.5L Duratec
(147kW/200PS) - VI5, Removal and
Installation).
G1079021en2008.50 Kuga8/2011
303-01- 49
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
49
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

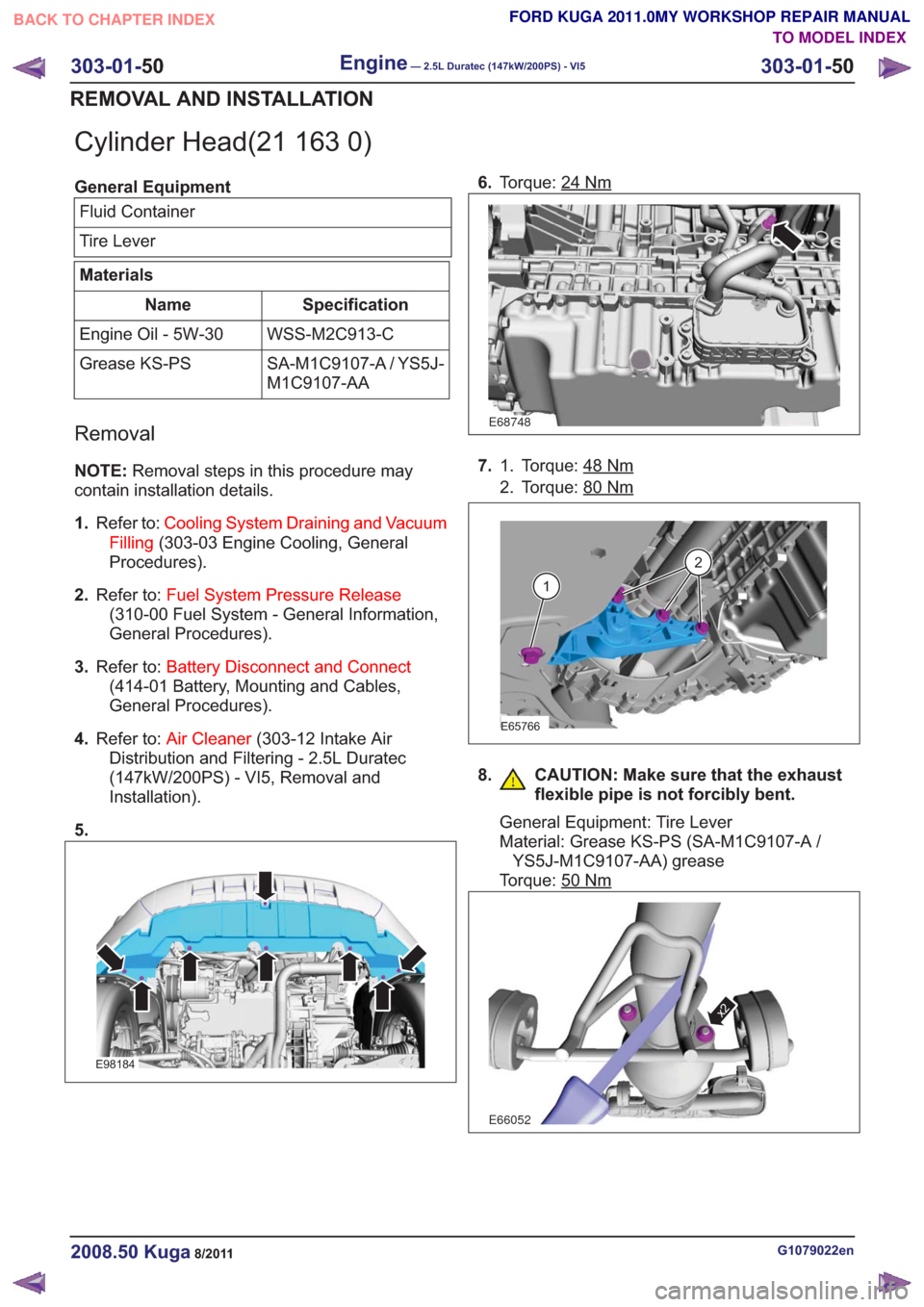

Cylinder Head(21 163 0)
General EquipmentFluid Container
Tire Lever
Materials
Specification
Name
WSS-M2C913-C
Engine Oil - 5W-30
SA-M1C9107-A / YS5J-
M1C9107-AA
Grease KS-PS
Removal
NOTE:
Removal steps in this procedure may
contain installation details.
1. Refer to: Cooling System Draining and Vacuum
Filling (303-03 Engine Cooling, General
Procedures).
2. Refer to: Fuel System Pressure Release
(310-00 Fuel System - General Information,
General Procedures).
3. Refer to: Battery Disconnect and Connect
(414-01 Battery, Mounting and Cables,
General Procedures).
4. Refer to: Air Cleaner (303-12 Intake Air
Distribution and Filtering - 2.5L Duratec
(147kW/200PS) - VI5, Removal and
Installation).
5.
E98184
6. Torque: 24Nm
E68748
7. Torque: 48Nm1.
2. Torque: 80
Nm
E65766
1
2
8. CAUTION: Make sure that the exhaust
flexible pipe is not forcibly bent.
General Equipment: Tire Lever
Material: Grease KS-PS (SA-M1C9107-A /YS5J-M1C9107-AA) grease
Torque: 50
Nm
E66052
x2
G1079022en2008.50 Kuga8/2011
303-01- 50
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
50
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

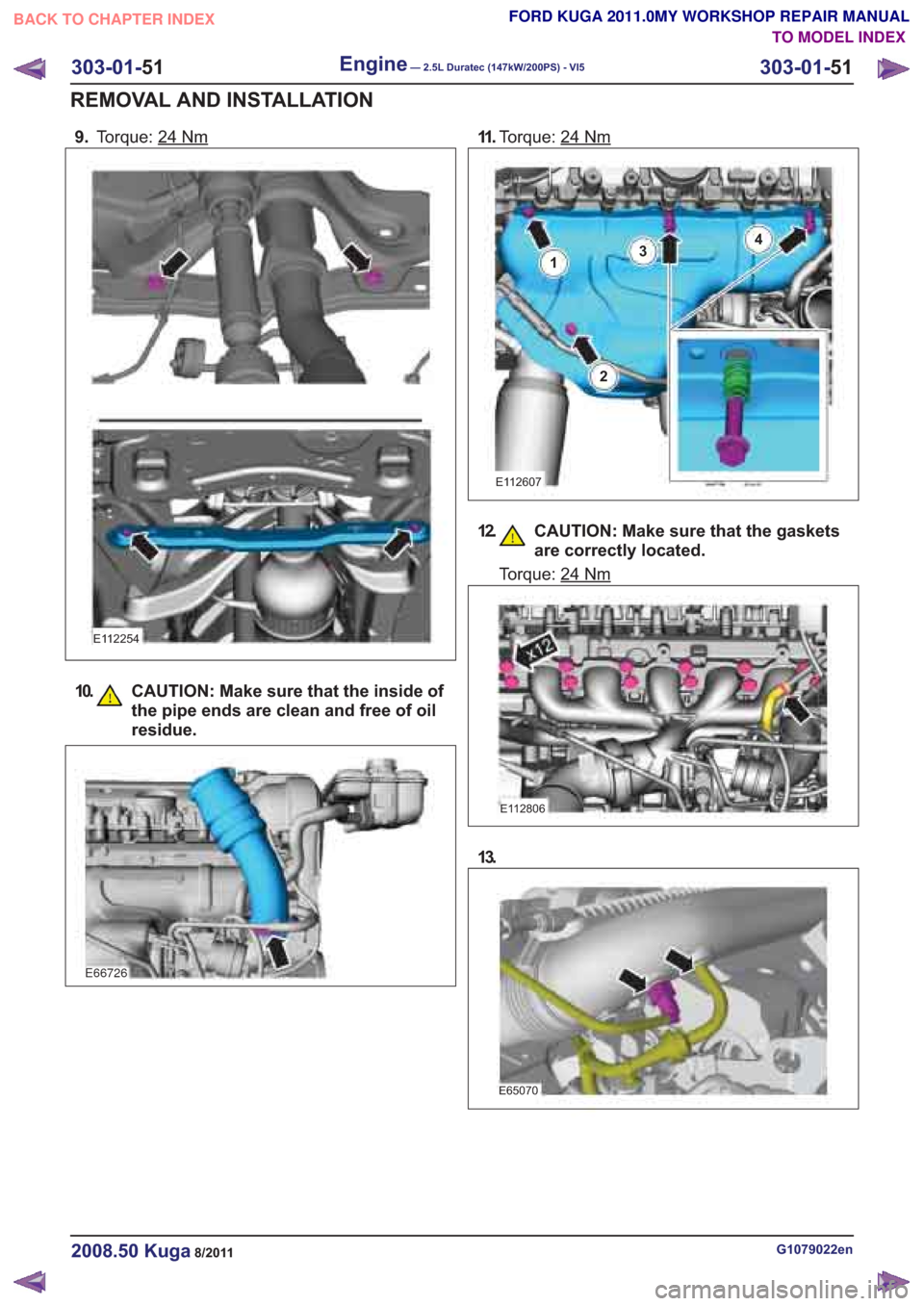

9.Torque: 24Nm
E112254
G1079022en2008.50 Kuga8/2011
303-01- 51
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
51
REMOVAL AND INSTALLATION
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
E66726
10. CAUTION: Make sure that the inside of the pipe ends are clean and free of oil
residue.
11 .Torque: 24Nm
E112607
1
2
34
12. CAUTION: Make sure that the gaskets
are correctly located.
E112806
13.
E65070
Torque: 24Nm

15. CAUTION: Make sure that the inside ofthe pipe ends are clean and free of oil
residue.
1. Torque: 10
E68504
16. CAUTION: Make sure that the inside ofthe pipe ends are clean and free of oil
residue.
E68413
18.Torque: 10Nm
E113004
x8
19.
G1079022en2008.50 Kuga8/2011
303-01- 52
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
52
REMOVAL AND INSTALLATION
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
E67743

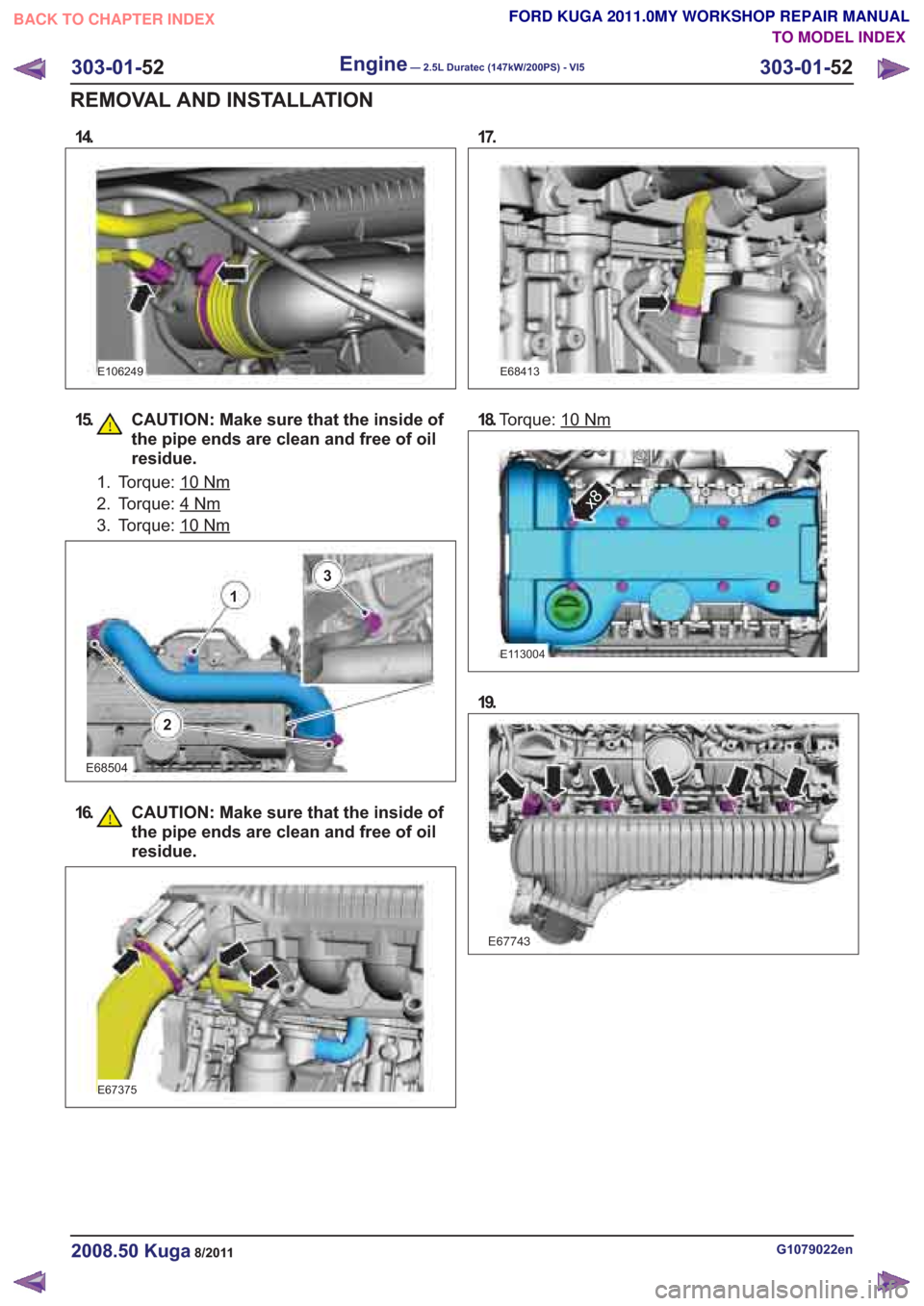

14.
E106249
Nm
2. Torque: 4Nm
3. Torque: 10Nm
2
1
3
17.
E67375

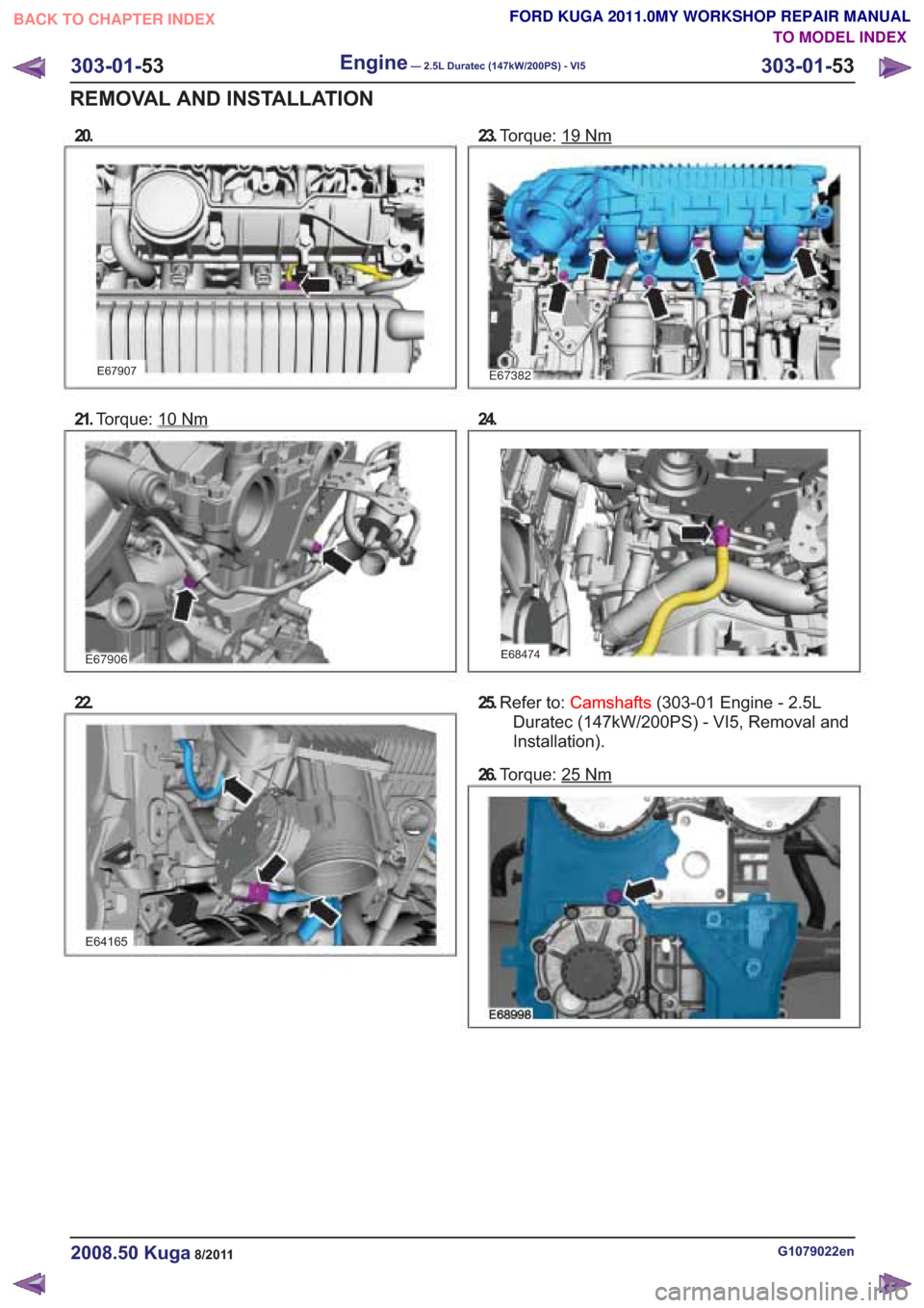

20.
21.Torque: 10Nm
E67906
22.
E64165
23.Torque: 19Nm
24.
E68474
25.Refer to: Camshafts (303-01 Engine - 2.5L
Duratec (147kW/200PS) - VI5, Removal and
Installation).
26. Torque: 25
Nm
G1079022en2008.50 Kuga8/2011
303-01- 53
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
53
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
E67907E67382
E68998

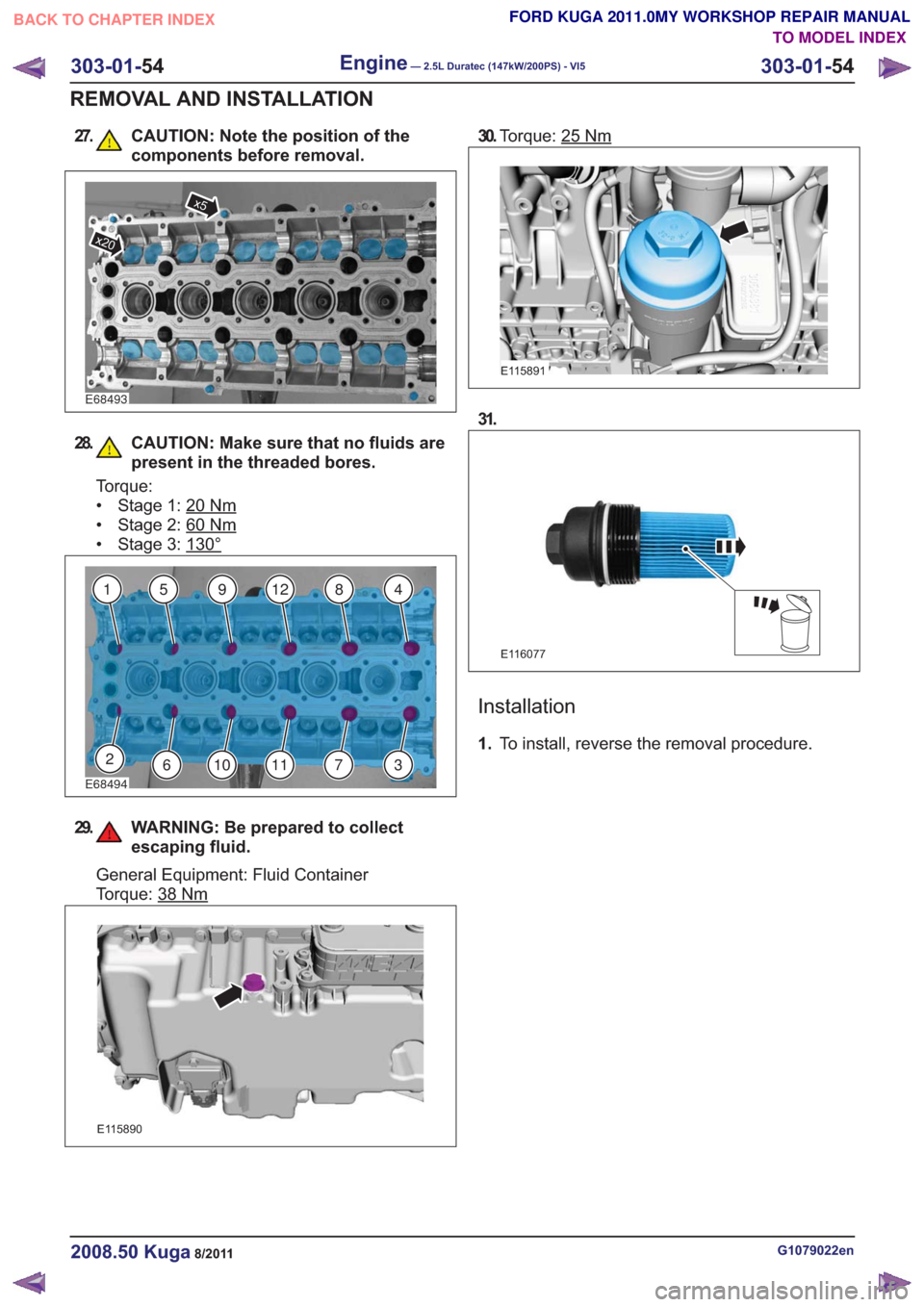

27. CAUTION: Note the position of thecomponents before removal.
E68493
x20
x5
28. CAUTION: Make sure that no fluids arepresent in the threaded bores.
Torque:
• Stage 1: 20
Nm
• Stage 2: 60Nm
• Stage 3: 130°
E68494
1591284
37111062
29. WARNING: Be prepared to collectescaping fluid.
General Equipment: Fluid Container
Torque: 38
Nm
E115890
30.Torque: 25Nm
E115891
31.
E116077
Installation
1.To install, reverse the removal procedure.
G1079022en2008.50 Kuga8/2011
303-01- 54
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
54
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

2. CAUTION: Make sure that fluid level isto the MAX mark.
Refer to: Specifications (303-01 Engine - 2.5L
Duratec (147kW/200PS) - VI5, Specifications).
Material: Engine Oil - 5W-30 (WSS-M2C913-C) engine oil
E116204
3. Refer to: Door Window Motor Initialization
(501-11 Glass, Frames and Mechanisms,
General Procedures).
