Setting the clock
To set the time, press CLOCK. The
display will read SET TIME. Use the
memory preset numbers (0–9) to
enter in the desired time–hours and minutes and press OK. The clock
will then begin from that time.
If your vehicle is equipped with an in-dash clock, refer toClockin the
Driver Controlschapter for instructions on how to set the time.
AM/FM Radio
/ VOL (Power/Volume):Press
to turn the radio on/off. Turn the
knob to increase/decrease volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a nominal listening level when the
ignition switch is turned back on.
AM/FM:Press repeatedly to select
AM/FM1/FM2 frequency band.
TUNE:Turn the knob to go
up/down the frequency band in
individual increments.
DIRECT:Press DIRECT and then
select the desired radio frequency
(i.e. 93.9) using the memory preset
numbers (0–9).
SEEK:Press
SEEKto
access the previous/next strong
radio station.
SCAN:Press for a brief sampling of
all strong radio stations.
Entertainment Systems
29
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

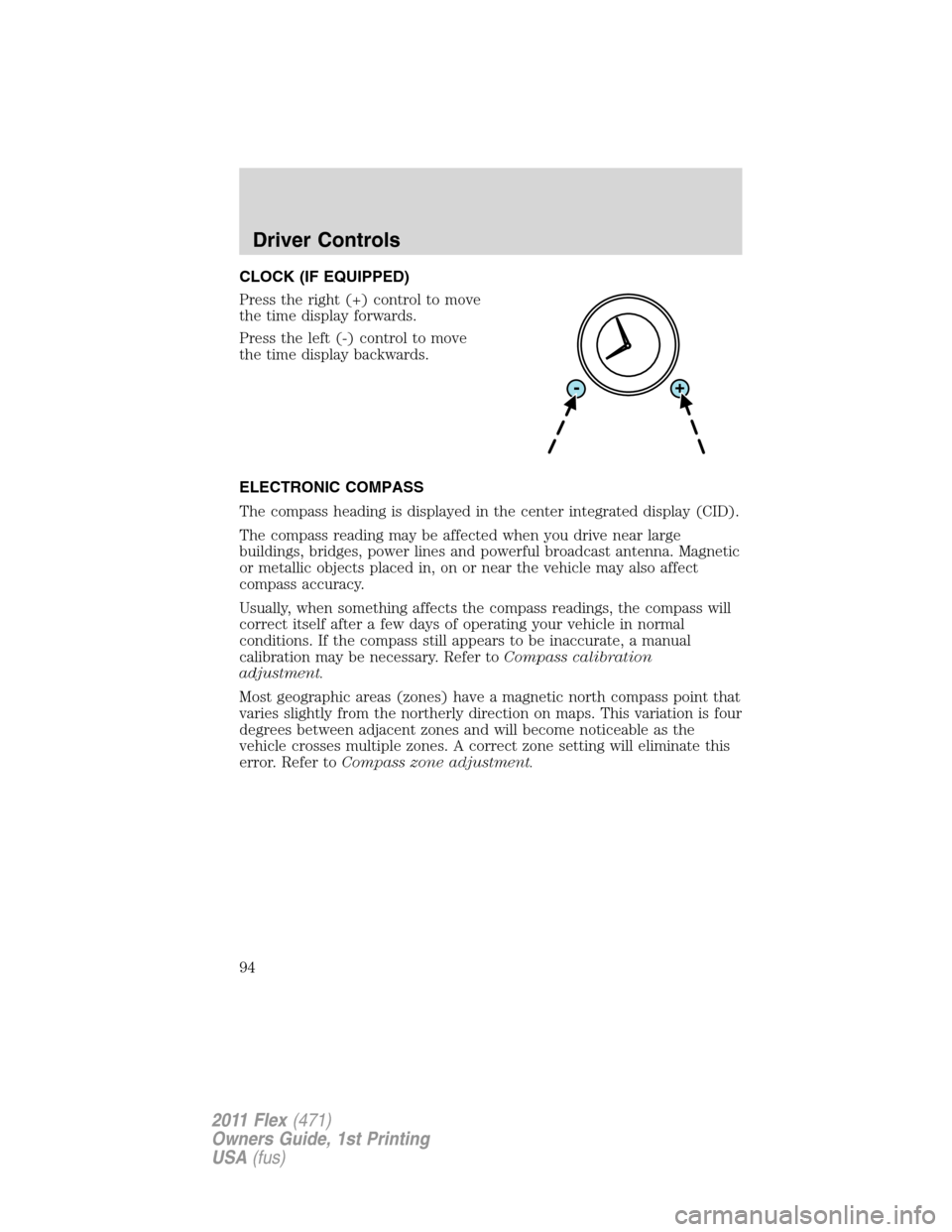

CLOCK (IF EQUIPPED)
Press the right (+) control to move
the time display forwards.
Press the left (-) control to move
the time display backwards.
ELECTRONIC COMPASS
The compass heading is displayed in the center integrated display (CID).
The compass reading may be affected when you drive near large
buildings, bridges, power lines and powerful broadcast antenna. Magnetic
or metallic objects placed in, on or near the vehicle may also affect
compass accuracy.
Usually, when something affects the compass readings, the compass will
correct itself after a few days of operating your vehicle in normal
conditions. If the compass still appears to be inaccurate, a manual
calibration may be necessary. Refer toCompass calibration
adjustment.
Most geographic areas (zones) have a magnetic north compass point that
varies slightly from the northerly direction on maps. This variation is four
degrees between adjacent zones and will become noticeable as the
vehicle crosses multiple zones. A correct zone setting will eliminate this
error. Refer toCompass zone adjustment.
Driver Controls
94
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

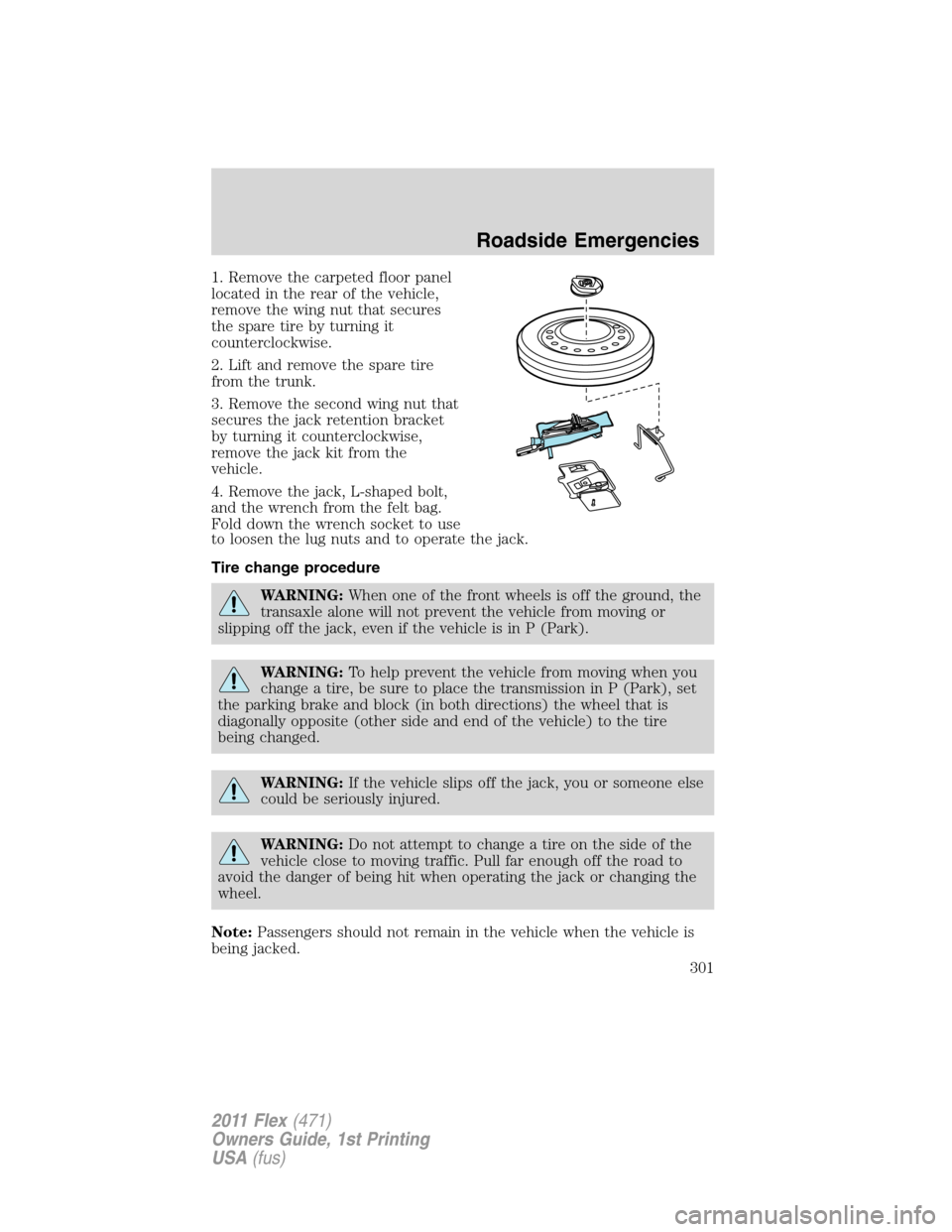

1. Remove the carpeted floor panel
located in the rear of the vehicle,
remove the wing nut that secures
the spare tire by turning it
counterclockwise.
2. Lift and remove the spare tire
from the trunk.
3. Remove the second wing nut that
secures the jack retention bracket
by turning it counterclockwise,
remove the jack kit from the
vehicle.
4. Remove the jack, L-shaped bolt,
and the wrench from the felt bag.
Fold down the wrench socket to use
to loosen the lug nuts and to operate the jack.
Tire change procedure
WARNING:When one of the front wheels is off the ground, the
transaxle alone will not prevent the vehicle from moving or
slipping off the jack, even if the vehicle is in P (Park).
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure to place the transmission in P (Park), set
the parking brake and block (in both directions) the wheel that is
diagonally opposite (other side and end of the vehicle) to the tire
being changed.
WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
WARNING:Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the road to
avoid the danger of being hit when operating the jack or changing the
wheel.
Note:Passengers should not remain in the vehicle when the vehicle is
being jacked.
Roadside Emergencies
301
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

WARNING:Keep batteries out of reach of children. Batteries
contain sulfuric acid. Avoid contact with skin, eyes or clothing.
Shield your eyes when working near the battery to protect against
possible splashing of acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and
get prompt medical attention. If acid is swallowed, call a physician
immediately.
WARNING:Battery posts, terminals and related accessories
contain lead and lead compounds.Wash hands after handling.
Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. To begin this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift in P (Park), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Release the parking brake. With your foot on the brake pedal and with
the A/C on, put the vehicle in D (Drive) and allow the engine to idle for
at least one minute.
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
Maintenance and Specifications
347
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

in rear seat ..............................199
LATCH .....................................203
recommendations ...................197
tether anchorage hardware ...206
Child safety seats - booster
seats ...........................................209
Cleaning your vehicle
engine compartment ..............328
instrument panel ....................331
interior .....................................332
plastic parts ............................330
washing ....................................327
waxing .....................................328
wheels ......................................328
wiper blades ............................330
Climate control
(see Air conditioning or
Heating) ...........................68, 71, 74
Clock ............................................94
Clock adjust
AM/FM .......................................29
Compass, electronic ....................94
calibration .................................95
set zone adjustment .................95
Console
overhead ....................................93
Controls
power seat ...............................147
steering column ......................106
Coolant
checking and adding ..............348
refill capacities ................351, 378
specifications ..........................378
Cooler ..........................................97
Cruise control
(see Speed control) ..................104
Customer Assistance ................288Ford Extended Service
Plan ..................................387, 390
Getting assistance outside the
U.S. and Canada .....................324
Getting roadside assistance ...288
Getting the service you
need .........................................320
Ordering additional owner’s
literature .................................325
Utilizing the
Mediation/Arbitration
Program ...................................323
D
Daytime running lamps
(see Lamps) ................................83
Defrost
rear window and rearview
mirrors .......................................74
windshield .................................74
Dipstick
automatic transmission
fluid ..........................................369
engine oil .................................342
Driving under special
conditions ..........................283, 285
sand .........................................284
snow and ice ...........................286
through water .................284, 287
DVD system .................................47
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................315
running out of fuel .........314, 360
Emission control system ..........365
Engine ........................................381
Index
413
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............397
What Maintenance Schedule
Should You Follow? ................393
Seats ..........................................143
child safety seats ....................199
cleaning ...................................333
climate control ..........................74
easy access/easyout feature ..152
front seats ...............................146
heated ........................71, 150, 159
memory seat ...................132, 150
second row seats ............154, 157
third row seats ........157, 160–161
Second-row power fold seat ....157
SecuriCode keyless entry
system ........................................135
SecuriLock passive anti-theft
system ........................................137
Servicing your vehicle ..............336
Setting the clock .........................29
SOS Post Crash Alert ...............194
Spare tire
(see Changing the Tire) ...........300
Spark plugs,
specifications .....................377, 381
Specification chart,
lubricants ...................................378
Speed control ............................104
Starting your vehicle ........250–252
jump starting ..........................315
Steering wheel
controls ....................................106
tilting .........................................92
Stereo
6-CD in dash .............................28CD-MP3 .....................................28
SYNC..........................................67
T
Temporary mobility kit .............305
Third-row power fold seat .......163
Tilt steering wheel ......................92
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....231
Tires ...........................216–217, 298
alignment ................................224
care ..........................................220
changing ..................298, 300–301
checking the pressure ............220
inflating ...................................218
label .........................................230
replacing ..................................222
rotating ....................................224
safety practices .......................223
sidewall information ...............226
snow tires and chains ............236
spare tire .................................298
Temporary mobility kit ..........305
terminology .............................217
tire grades ...............................217
treadwear ........................216, 221
Towing .......................................244
recreational towing .................249
Trailer Brake
Controller-Integrated ..............247
trailer towing ..........................244
wrecker ....................................318
Trailer Brake
Controller-Integrated ................247
Transaxle
fluid, refill capacities ..............378
lubricant specifications ..........378
Transmission .............................266
brake-shift interlock (BSI) ....265
Index
417
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)
