2011 FIAT STRADA ESP

REFUELLING
Refuel the vehicle exclusively with diesel for motor
vehicles in compliance with European specification
EN590.
The use of other products or mixtures may damage
the engine beyond repair and consequently
invalidate the warranty, due to the damage caused.
STARTING THE ENGINE
Make sure that the handbrake is engaged, set the
gear lever to neutral, fully depress the clutch
without pressing the accelerator, then turn the
ignition key to MAR and wait for the
mand Uwarning lights to switch off; turn the ignition key
to AVV and release it as soon as the engine has
started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter reaches high
temperatures during operation. Do not park on
grass, dry leaves, pine needles or other
flammable material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows
continuous diagnosis of the emission-related
components in order to help protect the
environment.ELECTRICAL ACCESSORIES
If, after buying the vehicle, you wish to add
electrical accessories (with the risk of gradually
draining the battery), contact a Fiat Dealership.
They will calculate the overall electrical
requirement and check that the vehicle’s
electrical system can support the required load.
CODE card
Keep it in a safe place, not in the vehicle.
You are advised to keep the electronic code on
the CODE card with you at all times
.
SCHEDULED SERVICING
Correct maintenance enables the vehicle to
perfectly maintain performance and safety
characteristics, its environmentalfriendliness and
its low running costs over time.
THE OWNER HANDBOOK CONTAINS…
... important information, advice and warnings for
correct use, driving safety and maintenance of
your vehicle over time. Pay particular attention
to the symbols
"(personal safety)
#(environmental protection)
!(vehicle integrity).
ESSENTIAL INFORMATION!
K


4

22
GENERAL INSTRUCTIONS
FOR USING THE SEAT BELTS
The driver is responsible for
respecting (and ensuring that all the
other passengers also respect) the
local laws in force regarding the use
of seat belts. Always fasten the seat
belts before starting off.
fig. 25
F0X0029m
For maximum safety,
keep the back of your
seat upright, lean back into it
and make sure the seat belt fits
closely across your chest and
pelvis. Always fasten the seat
belts on both the front and the
rear seats! Travelling without
using seat belts increases the
risk of severe injury and even
death in the event of an
accident.
WARNING
The belt must not be
twisted. The upper part
must pass over the shoulder
and cross the chest diagonally.
The lower part must adhere to
the pelvis, rather than the
abdomen of the passenger, to
avoid the risk of slipping
forward fig. 25. Do not use
devices (clips, pegs, etc.) to
hold the belts away from the
body.
WARNING

29
IMPORTANT The electronic
injection control system gradually
shuts off the flow of fuel when the
engine is “over-revving” resulting in
a gradual loss of engine power.
fig. 39
F0X0303m
fig. 40
F0X0304m
If the needle moves to
the red zone, stop the
engine immediately and
contact a Fiat Dealership.
If this situation persists
despite all measures
taken, stop the engine
and contact a Fiat Dealership.

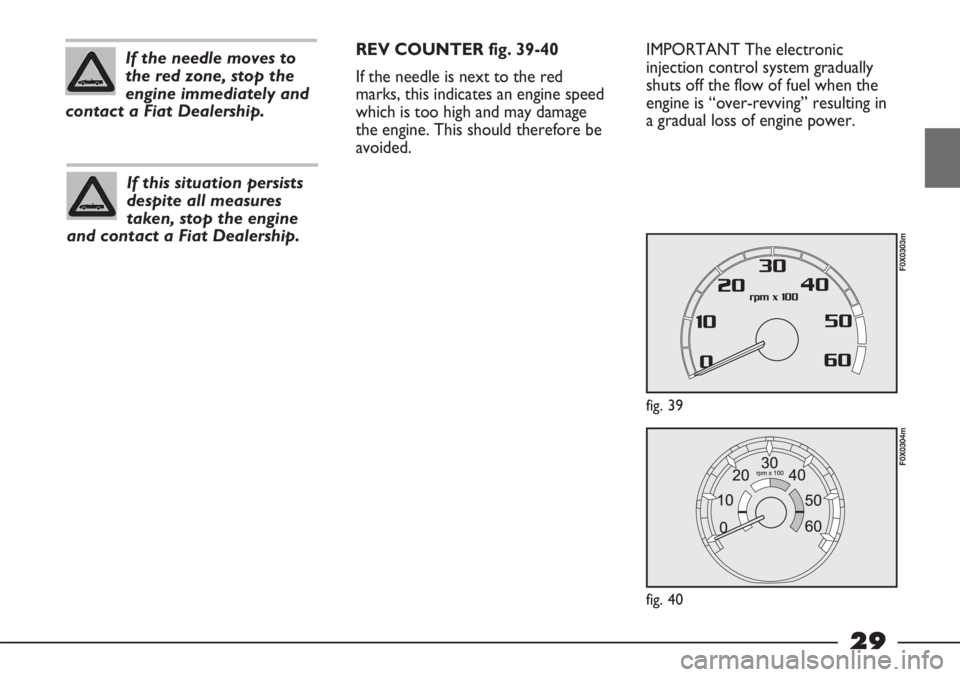

REV COUNTER fig. 39-40
If the needle is next to the red
marks, this indicates an engine speed
which is too high and may damage
the engine. This should therefore be
avoided.

30
COMPASS fig. 41
Some versions may be equipped
with a compass A for navigation.
This instrument indicates the
correct direction by switching on
red LEDs in the scale. The most
important cardinal points are
marked on the scale:
N = North, S = South,
E = East, W = West plus
NW = North-West,
NE = North-East,
SW = South-West,
SE = South-East.
IMPORTANT The indication
provided by the compass must only
be considered as an aid for the
driver. It should not encourage the
driver to head towards and travel
through unknown places and/or
regions, relying solely on this
navigation instrument.
IMPORTANT Strong magnetic fields
(mobile phones, radio-frequency
aerials etc.) may cause the compass
to provide incorrect information.
S WESWSE-1-2
-3
-4
x10°-1
-2
-3
-40 01
-1
-2
-3
-4
x10°-1
-2
-3
-40
0
1
fig. 41
F0X0025m
ROLL AND PITCH METERS
fig. 41
Some versions may feature a roll
meter B and pitch meter C.
The roll and pitch meters provide
indications on a scale with steps of
10 degrees, from +40 to -40
degrees.
When the vehicle is stationary
(acceleration of less than 0.18 G) the
indication will correspond to the
angle of the vehicle itself.
IMPORTANT The indication
provided by the roll and pitch
meters must only be considered as
an additional indication, not as
“control” of the vehicle. The driver
is always responsible or controlling
the vehicle in all circumstances.
The risk of rollover is
present even if the
vehicle features roll and pitch
meters. Situations which are
dangerous for other road users
and for yourself should
therefore be avoided.
WARNING

41
Set speed limit exceeded - SPEEd
This function allows the vehicle speed limit to be set (km/h). When this is exceeded, the driver is notified through an
acoustic signal.
To set the speed limit, proceed as follows:
– press the MODE button repeatedly until SPEEd is displayed with the unit of measurement km/h;
– set the new limit as desired by pressing the ▼ and/or ▲buttons.
The speed limit can only be set to a value of 30 km/h or above.
Every time the ▼ and/or ▲buttons are pressed, the value is decreased/increased by 5 units respectively. When the
buttons are held down, the value decreases or increases rapidly, as appropriate.
It is advisable to release the button as you approach the desired value, then complete the adjustment with single presses.
fig. 48
▼
▼ ▼
▼
MODE
MODE MODE
MODE
MODE MODE

45
Initial checks
When the key is turned to MAR-
ON, the display begins a process of
diagnosis for the vehicle’s on-board
systems. This may last for a few
seconds. If, with the engine running,
the system does not detect any
faults, the system displays OK.
If the display indicates a fault, see
WARNING LIGHTS AND
MESSAGES in this section.
Speed limit exceeded
(Spd. Lim.)
This function allows the vehicle
speed limit to be set (km/h). When
this is exceeded, the driver is
notified through a dedicated
indication on the display, an acoustic
signal and a warning light (triangle
logo).
This indications are interrupted
immediately when the MODE
button is pressed. The indication on
the displayTo set the speed limit, proceed as
follows:
– press the MODE button briefly to
enter the menu;
– press the ▼button; Spd. Lim. will
appear on the display;
– press the MODE button briefly,
then ▼or ▲to select ON or
OFF;
– to activate the function, press the
MODE button briefly when ON
flashes;
– press the ▼button: a speed value
will appear on the display;
– press the MODE button briefly:
the value will flash;
– set the new values as desired,
corresponding to the new speed
limit, by pressing the ▼and/or ▲
buttons.
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.The speed limit can only be set to a
value of 30 km/h (or 20 mph) or
above. Every time the ▼or ▲
buttons are pressed, the value is
decreased/increased by 5 units
respectively When the buttons are
held down, the value decreases or
increases rapidly, as appropriate. It is
advisable to release the button as
you approach the desired value, then
complete the adjustment with single
presses.
The indication on the display is
interrupted automatically if the
vehicle speed falls below the set
value by at least 5 km/h (or 5 mph).

46
Dusk sensor sensitivity
(auto lamp)
This function, only available for
certain versions/markets, allows
dusk sensor sensitivity to be
adjusted to 3 levels:
level 1 – minimum sensitivity
level 2 – medium sensitivity
level 3 – maximum sensitivity
The greater the sensitivity, the lesser
the light intensity required to
automatically switch on the dipped
headlights, side lights and number
plate light.
To adjust, proceed as follows:
– press the MODE button briefly:
the display will show the level set
previously;
– press the ▼or ▲button to make
the desired adjustment;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.Trip B
This function, present only on some
versions/markets where provided,
allows the display of Trip B (partial
trip) to be activated (ON) or
deactivated (OFF). For further
information, see TRIP COMPUTER
in this section.
To activate or deactivate the
function, proceed as follows:
– press the MODE button briefly:
ON or OFF (depending on the
previous setting) flashes on the
display;
– press the ▼or ▲button to
select;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.Set Clock
(time adjustment)
To adjust the time, proceed as
follows:
– press the MODE button briefly:
the hours flash on the display;
– press the ▼or ▲button to
adjust;
– press the MODE button briefly:
the minutes flash on the display;
– press the ▼or ▲button to
adjust;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.
Every time the ▼or ▲buttons are
pressed, the value is
decreased/increased by 1 unit
respectively When the buttons are
held down, the value decreases or
increases rapidly, as appropriate. It is
advisable to release the button as
you approach the desired value, then
complete the adjustment with single
presses.

47
Clock Mode (12h or 24h)
To choose the time display format
(12h or 24h), proceed as follows:
– press the MODE button briefly:
the mode set previously flashes on
the display;
– press the ▼or ▲button to select
12h or 24h;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.
Set Date
This function is used to set the date
(day – month – year). To set,
proceed as follows:
– press the MODE button briefly:
the year flashes on the display;
– press the ▼or ▲button to
adjust;– press the MODE button briefly:
the month flashes on the display;
– press the ▼or ▲button to
adjust;
– press the MODE button briefly:
the day flashes on the display;
– press the ▼or ▲button to
adjust;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.
Every time the ▼or ▲buttons are
pressed, the value is
decreased/increased by 1 unit
respectively When the buttons are
held down, the value decreases or
increases rapidly, as appropriate. It is
advisable to release the button as
you approach the desired value, then
complete the adjustment with single
presses.Audio Rpt.
(radio info repetition)
This function, present only on some
versions/markets where provided,
allows the frequency band or the
RDS messages from the current
station to be displayed.
To activate (ON) or deactivate
(OFF) radio info repetition, proceed
as follows:
– press the MODE button briefly:
ON or OFF (depending on the
previous setting) flashes on the
display;
– press the ▼or ▲button to
select;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.
